Mass Air Flow Meter: Removal

REMOVE COWL TOP VENTILATOR LOUVER RH (See REMOVAL )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER CAP SUB-ASSEMBLY LH
1. Disconnect the MAF meter connector.
2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap LH.

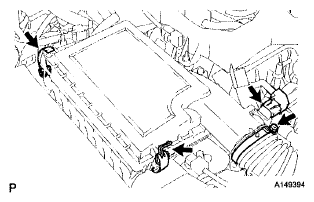

Fig 1: Identifying MAF Meter Connector And Hose Clamp (LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR CLEANER CAP SUB-ASSEMBLY RH
1. Disconnect the MAF meter connector.
2. Remove the 2 clamps, loosen the hose clamp and remove the air cleaner cap RH.

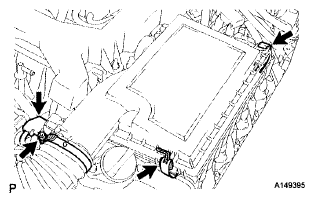

Fig 2: Identifying MAF Meter Connector And Hose Clamp (RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 1)
1. Remove the 2 screws and MAF meter.

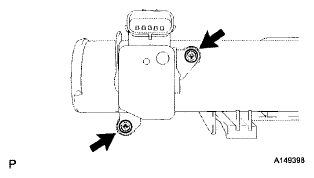

Fig 3: Locating MAF Meter Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 2)
1. Remove the 2 screws and MAF meter.

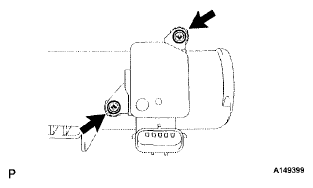

Fig 4: Locating MAF Meter Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
