Electrical Component Locator: Motors
MOTORS LOCATION

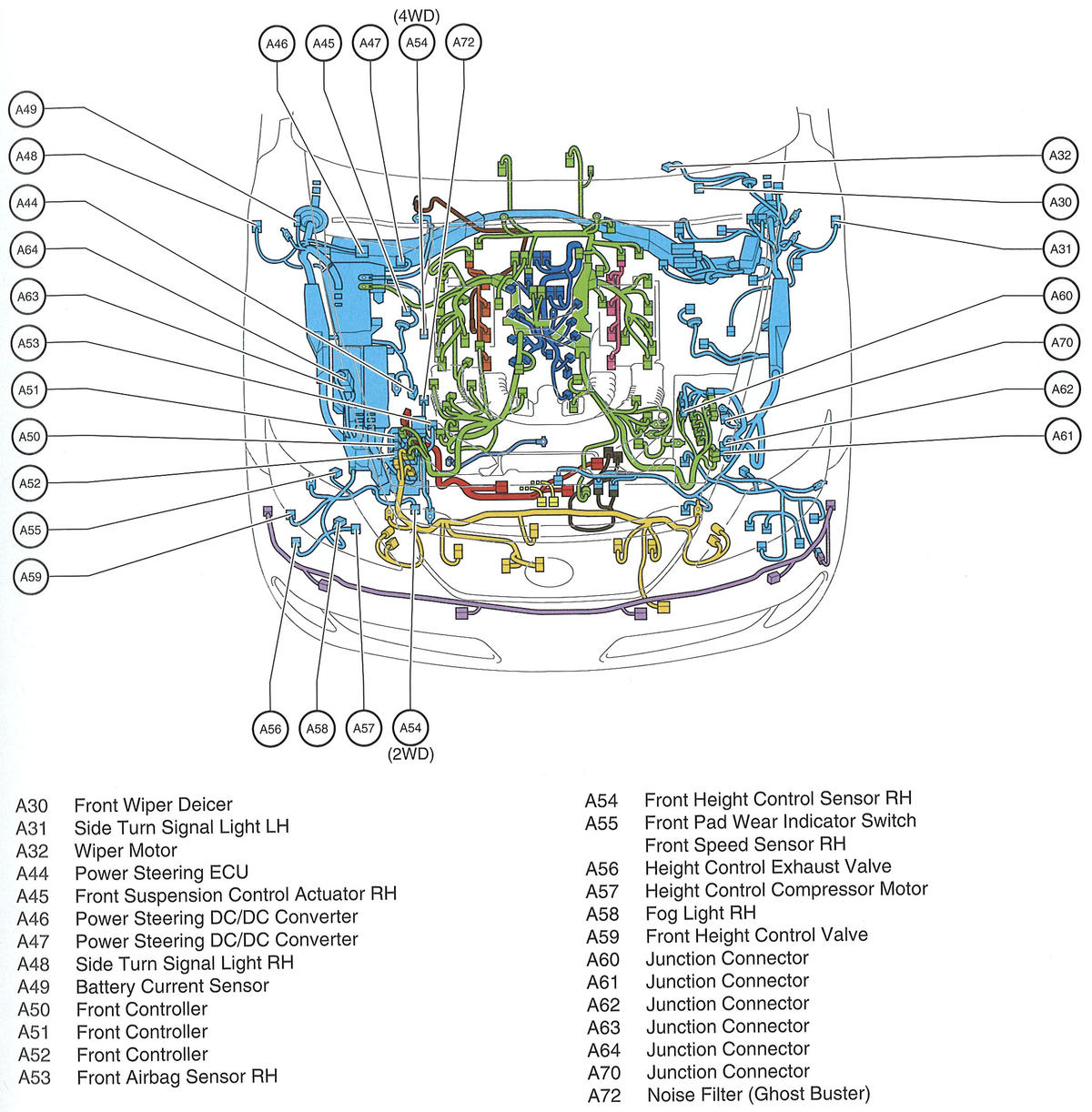

| Component | Location |
|---|---|
| Brake Accumulator Pump | Left rear of engine compartment. See Figure. |
| Brake Actuator | Left rear of engine compartment. See Figure. |
| Camshaft Control Motor (Bank 1) | Left front of engine. See Figure. |
| Camshaft Control Motor (Bank 2) | Right front of engine. See Figure. |
| Cooling Fan Motor (Main) | Left side of radiator. See Figure. |
| Cooling Fan Motor (Sub) | Right side of radiator. See Figure. |
| Front Blower Motor | Right side of dash. See Figure. |
| Front Door Closer Motor LH | Driver's door. See Figure. |
| Front Door Closer Motor RH | Front passenger's door. See Figure. |
| Front Door Lock Motor LH | Driver's door. See Figure. |
| Front Door Lock Motor RH | Front passenger's door. See Figure. |
| Front Headrest Motor LH | Driver's seat back. See Figure. |
| Front Headrest Motor RH | Front passenger's seat back. See Figure. |
| Front Lumbar Support Motor (Forward - Back) | Driver's seat back. See Figure. |
| Front Lumbar Support Motor RH | Front passenger's seat back. See Figure. |
| Front Lumbar Support Motor (Up - Down) | Driver's seat back. See Figure. |
| Front Power Seat Cushion Control Motor LH | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Lift Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Reclining Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Slide Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Vertical Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor RH (Lift Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Reclining Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Slide Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Vertical Position) | Under front passenger's seat. See Figure. |
| Front Power Window Regulator Motor LH | Driver's door. See Figure. |
| Front Power Window Regulator Motor RH | Front passenger's door. See Figure. |
| Front Pre-Collision Seat Belt Motor LH | Base of left "B" pillar. See Figure. |
| Front Pre-Collision Seat Belt Motor RH | Base of right "B" pillar. See Figure. |
| Front Seat Climate Fan Motor LH (Seat Cushion) | Under driver's seat. See Figure. |
| Front Seat Climate Fan Motor RH (Seat Cushion) | Under front passenger's seat. See Figure. |
| Front Suspension Control Actuator LH | Left side of engine compartment. See Figure. |
| Front Suspension Control Actuator RH | Right side of engine compartment. See Figure. |
| Fuel Lid Opener Motor | Left side of luggage compartment, behind left rear wheelwell. See Figure. |
| Headlight Cleaner Motor | Below left headlight. See Figure. |
| Height Control Compressor Motor | Right front of engine compartment. See Figure. |
| Intake Air Control Valve Actuator | Left rear of engine. See Figure. |
| Luggage Closer Motor | Center rear of luggage compartment lid. See Figure. |
| Ottoman Reclining Motor | Under center of rear seats. See Figure. |
| Outer Rear View Mirror LH | At mirror. See Figure. |
| Outer Rear View Mirror RH | At mirror. See Figure. |
| Parking Brake Actuator | Left side of luggage compartment. See Figure. |
| Power Steering Motor | Front center of engine compartment. See Figure. |
| Power Tilt Motor | On steering column. See Figure. |
| Rear A/C Blower Assembly | Left front of luggage compartment. See Figure. |
| Rear Door Closer Motor LH | Front of left rear door. See Figure. |
| Rear Door Closer Motor RH | Front of right rear door. See Figure. |
| Rear Door Lock Motor LH | Rear of left rear door. See Figure. |
| Rear Door Lock Motor RH | Rear of right rear door. See Figure. |
| Rear Door Shade LH | Left rear door. See Figure. |
| Rear Door Shade RH | Right rear door. See Figure. |
| Rear Headrest Motor LH | Left rear seat back. See Figure. |
| Rear Headrest Motor RH | Right rear seat back. See Figure. |
| Rear Power Seat Motor LH | Under left rear seat. See Figure. |
| Rear Power Seat Motor RH | Under right rear seat. See Figure. |
| Rear Power Seat Position Motor LH (Fold Position) | Under left rear seat. See Figure. |
| Rear Power Seat Position Motor RH (Fold Position) | Under right rear seat. See Figure. |
| Rear Power Window Regulator Motor LH | Left rear door. See Figure. |
| Rear Power Window Regulator Motor RH | Right rear door. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Back) | Left rear seat back. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Cushion) | Under left rear seat. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Back) | Right rear seat back. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Cushion) | Under right rear seat. See Figure. |
| Rear Sunshade | Under center of rear parcel shelf. See Figure. |
| Rear Suspension Control Actuator LH | Left rear wheelwell. See Figure. |
| Rear Suspension Control Actuator RH | Right rear wheelwell. See Figure. |
| Seat Vibrator | Right rear seat back. See Figure. |
| Short Connector (Brake Stroke Simulator) (2) | Left rear of engine compartment. See Figure. |
| Starter | Right rear of engine. See Figure. |
| VGRS Actuator | Left front of engine. See Figure. |
| Washer Motor | On washer fluid reservoir, below left headlight. See Figure. |
| Wiper Motor | Left rear of engine compartment. See Figure. |
