Floor Shift Assembly: Disassembly

REMOVE SHIFT POSITION INDICATOR
1. Remove the 2 screws and detach the 3 hooks. Then remove the shift position indicator from the rear console upper panel.

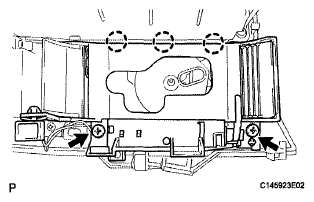

Fig 1: Locating Shift Position Indicator And Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONTROL POSITION INDICATOR PLATE
1. Using a small screwdriver, detach the claw and remove the indicator plate.
REMOVE SHIFT LEVER CAP
1. Detach the 2 claws and remove the shift lever cap.
Fig 2: Locating Shift Lever Cap And Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR LENS
1. Using a small screwdriver, detach the 4 claws and remove the lens from the shift position indicator.
Fig 3: Removing Shift Position Indicator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR SLIDE COVER
1. Remove the position indicator slide cover from the shift position indicator.
2. Remove the No. 2 slide cover from the slide cover.
Fig 4: Identifying No. 2 Slide Cover And Slide Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LOCK RELEASE BUTTON
1. Using a small screwdriver, detach the claw and remove the button.
Fig 5: Detaching Claw And Button
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
1. Detach the connector clamp.
2. Using a small screwdriver, detach the 2 claws and remove the wire.
Fig 6: Detaching Claws And Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
