Intake Air Control Valve Actuator: Inspection
- INSPECT INTAKE AIR CONTROL VALVE ACTUATOR

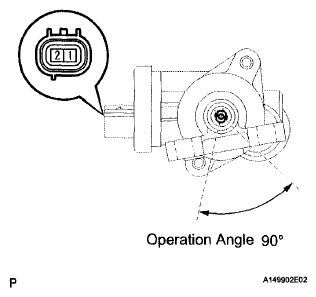

- When battery voltage is applied between terminals 1 and 2 of the connector, check the operation of the actuator shaft.
OK
INTAKE AIR CONTROL VALVE ACTUATOR INSPECTION CHARTMeasurement Condition Specified Condition Battery positive (+) → Terminal 1
Battery negative (-) → Terminal 2Actuator shaft rotates to left Battery positive (+) - → Terminal 2
Battery negative (-) → Terminal 1Actuator shaft rotates to right NOTE: Apply battery voltage for 10 seconds or less each time the inspection is performed.
- When battery voltage is applied between terminals 1 and 2 of the connector, check the operation of the actuator shaft.
