INSPECT FUEL INJECTOR ASSEMBLY
NOTE:
This inspection aims at inspecting the fuel injectors for opens or shorts, because the fuel injectors of this vehicle are a high-pressure type and a fuel injection volume inspection cannot be performed.

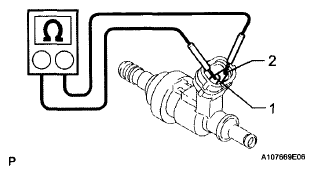

- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE
| Tester Connection |
Condition |
Specified Condition |
| 1 - 2 |
20°C (68°F) |
2.01 to 2.31 Ω |
If the result is not as specified, replace the injector assembly.
