Ignition Coil And Spark Plug: Removal

  1. REMOVE COWL TOP VENTILATOR LOUVER RH  (See REMOVAL )
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
  3. REMOVE V-BANK COVER SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE AIR CLEANER INLET COVER  (See REMOVAL )
  5. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  6. REMOVE ENGINE ROOM SIDE COVER RH  (See REMOVAL )
  7. REMOVE NO. 1 AIR CLEANER INLET  (See REMOVAL )
  8. REMOVE INTAKE AIR CONNECTOR PIPE  (See REMOVAL )
  9. REMOVE AIR CLEANER ASSEMBLY LH  (See REMOVAL )
  10. REMOVE AIR CLEANER ASSEMBLY RH  (See REMOVAL )
  11. REMOVE SKID CONTROL ECU  (See REMOVAL )
  12. REMOVE SKID CONTROL ECU BRACKET  (See REMOVAL )
  13. REMOVE BATTERY
    1. Disconnect the cable from the positive (+) battery terminal.
    2. Disconnect the battery cable clamp.
    3. Remove the nut, battery clamp and No. 2 battery clamp bolt.
    4. Remove the battery insulator.
    5. Remove the battery.

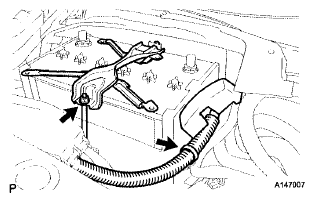

      Fig 1: Locating Battery Cable Clamp
      G06196543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE BATTERY TRAY
    1. Remove the 3 bolts and battery tray.

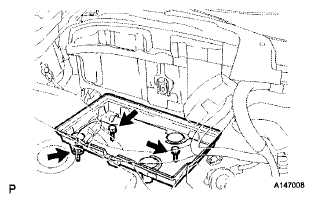

      2. Fig 2: Locating Battery Tray Bolts
      G06196544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT ENGINE WIRE
    1. Remove the No. 1 relay block cover.
    2. Remove the nut and disconnect the engine wire from the No. 1 relay block.
    3. Disconnect the 2 clamps.

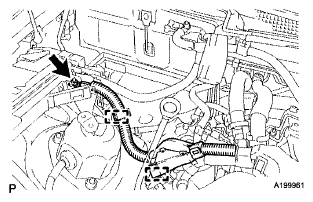

      4. Fig 3: Locating No. 1 Relay Block Engine Wire With Clamps
      G06196545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE (for AWD)  (See REMOVAL )
  17. REMOVE NO. 5 ENGINE COVER SUB-ASSEMBLY (for AWD)
    1. Remove the 2 nuts and No. 5 engine cover.

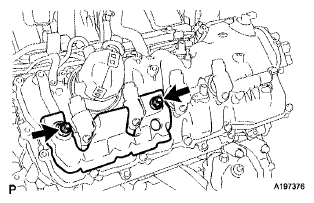

      Fig 4: Locating No. 5 Engine Cover Nuts
      G06196546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE NO. 6 ENGINE COVER SUB-ASSEMBLY (for AWD)
    1. Remove the 2 nuts and No. 6 engine cover.

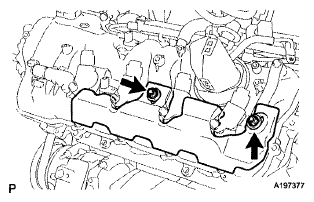

      Fig 5: Locating No. 6 Engine Cover Nuts
      G06196547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 8 ignition coil connectors.
    2. Remove the 8 bolts.

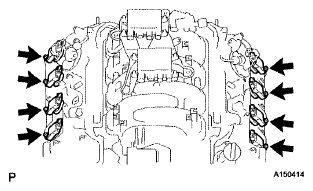

      Fig 6: Locating Ignition Coil Connectors With Bolts
      G06196548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, pry up each spark plug tube gasket at the cutouts to remove the 8 ignition coils together with the 8 spark plug tube gaskets.

      HINT:

      Tape the screwdriver tip before use.

      NOTE: Do not damage the cylinder head cover when removing the spark plug tube gasket.
      Fig 7: Removing Spark Plug Tube Gasket
      G04943803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SPARK PLUG
    1. Using a 16 mm plug wrench, remove the 8 spark plugs.
      Fig 8: Removing Spark Plugs
      G04943804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
