Combination Meter: Notes

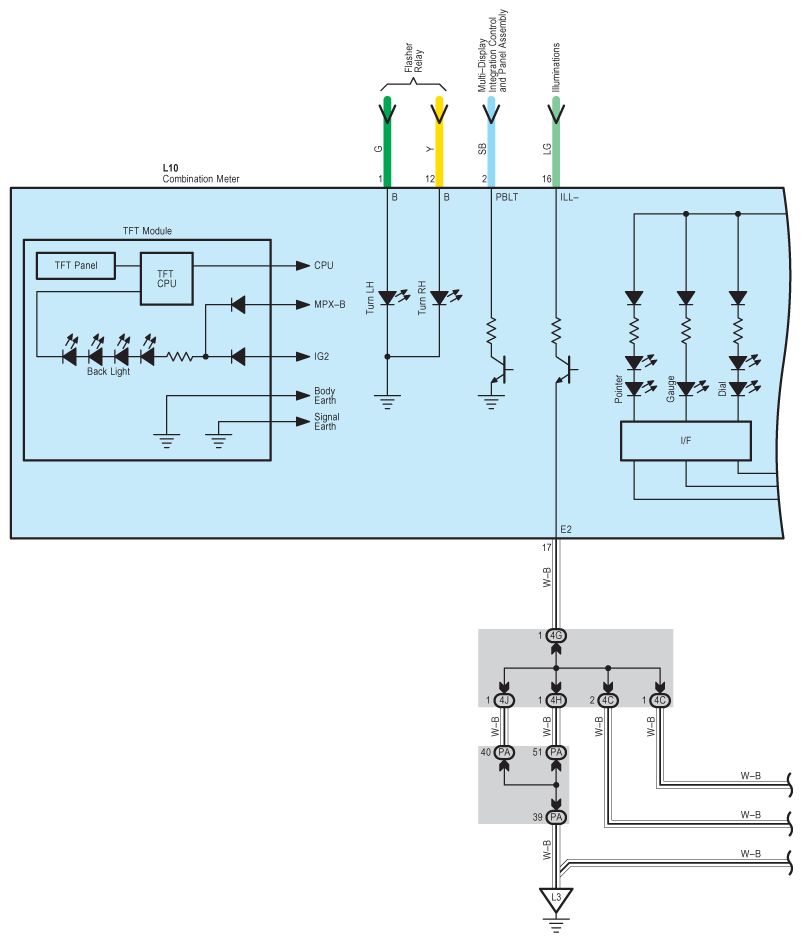

Fig 1: Combination Meter - Circuit Diagram (1 Of 10)
G07589776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

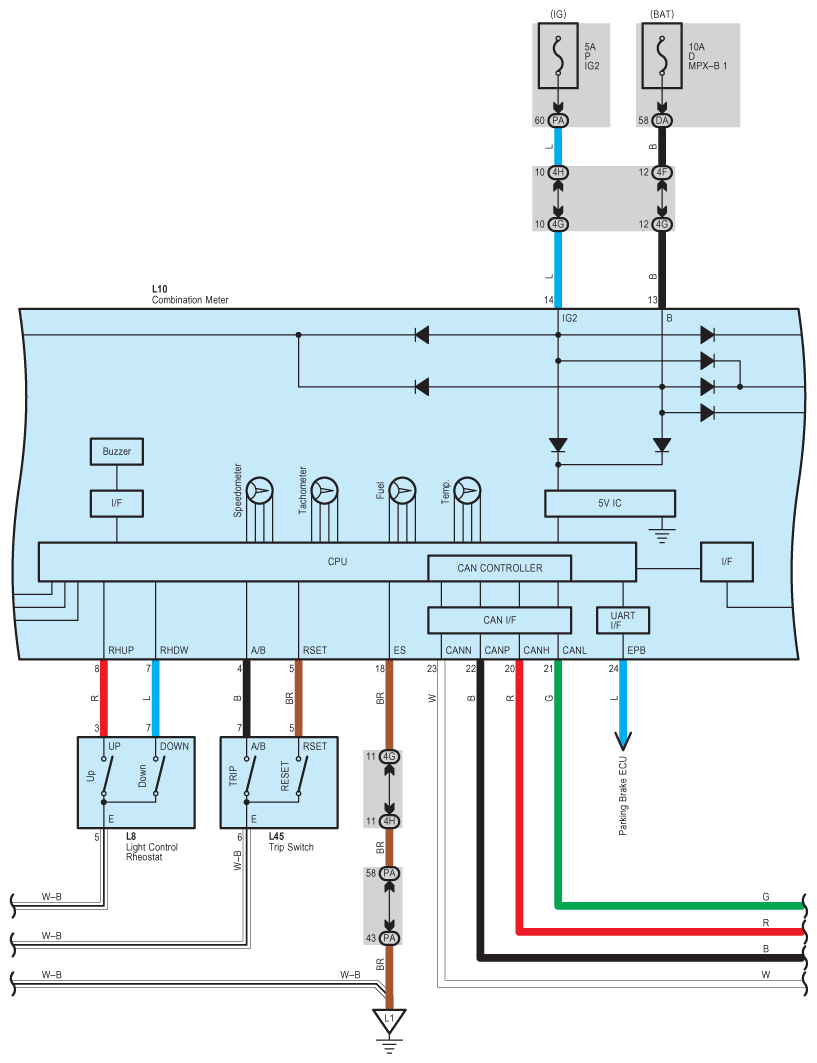

Fig 2: Combination Meter - Circuit Diagram (2 Of 10)
G07589777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

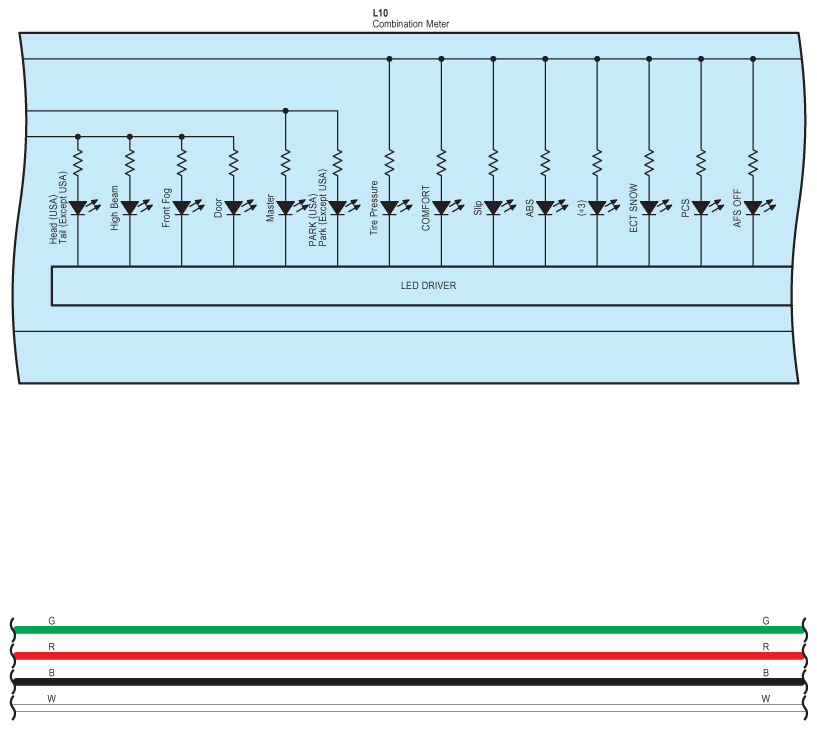

Fig 3: Combination Meter - Circuit Diagram (3 Of 10)
G07589778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

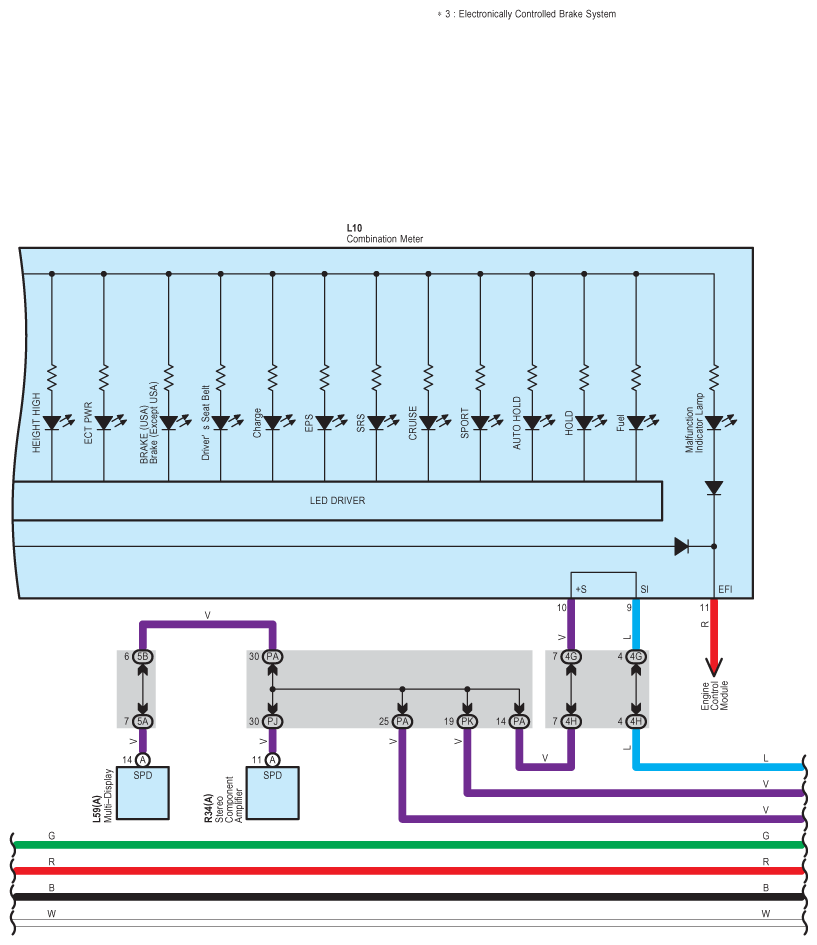

Fig 4: Combination Meter - Circuit Diagram (4 Of 10)
G07589779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

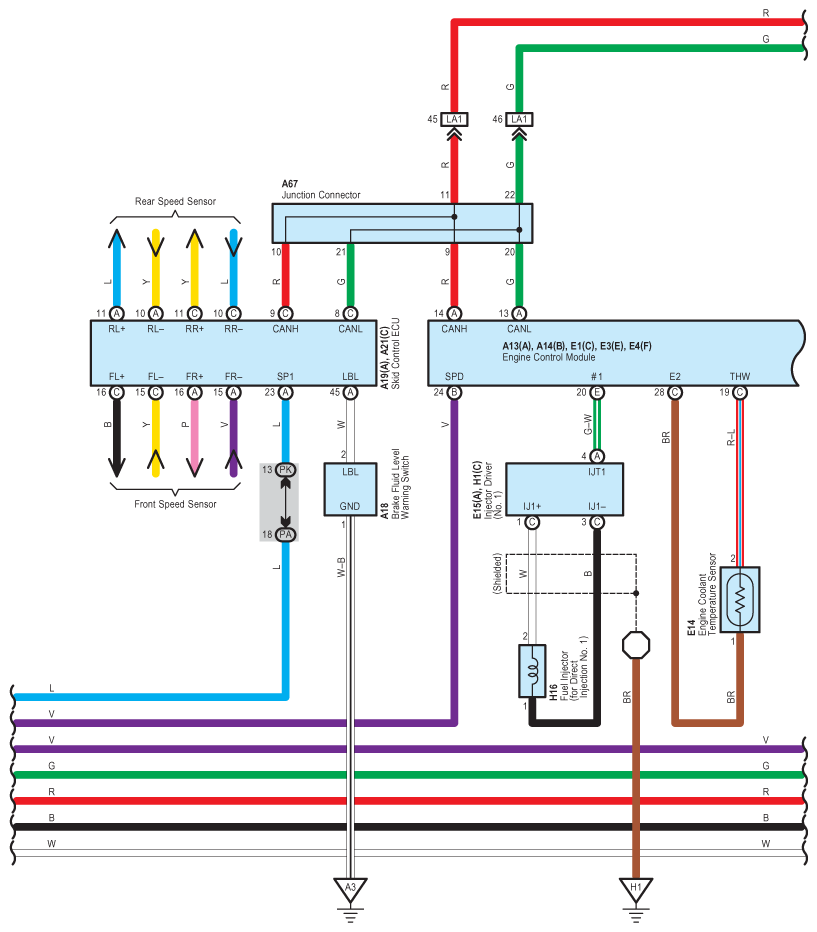

Fig 5: Combination Meter - Circuit Diagram (5 Of 10)
G07589780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

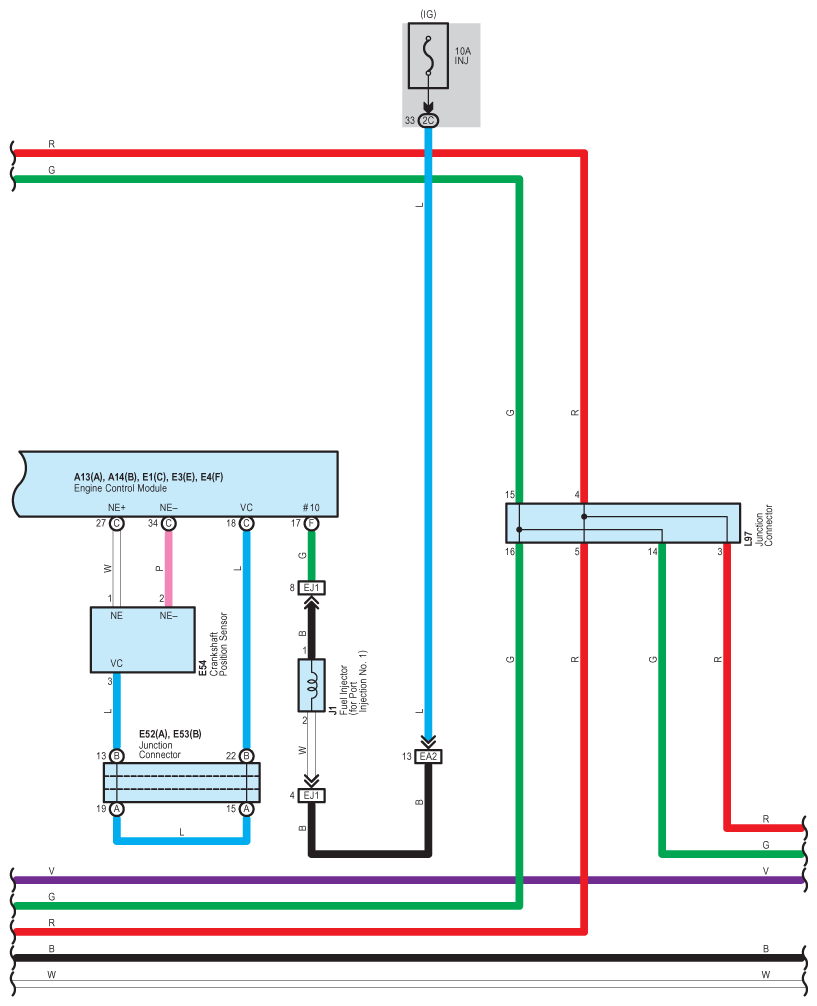

Fig 6: Combination Meter - Circuit Diagram (6 Of 10)
G07589781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

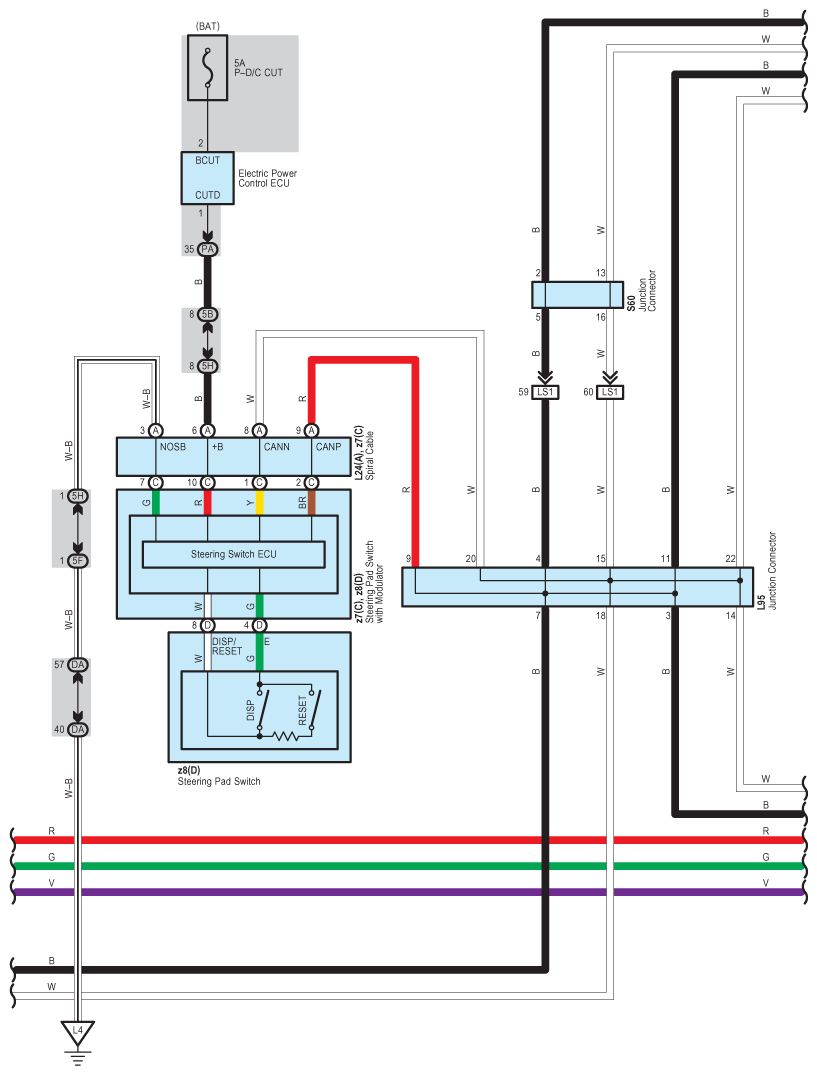

Fig 7: Combination Meter - Circuit Diagram (7 Of 10)
G07589782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

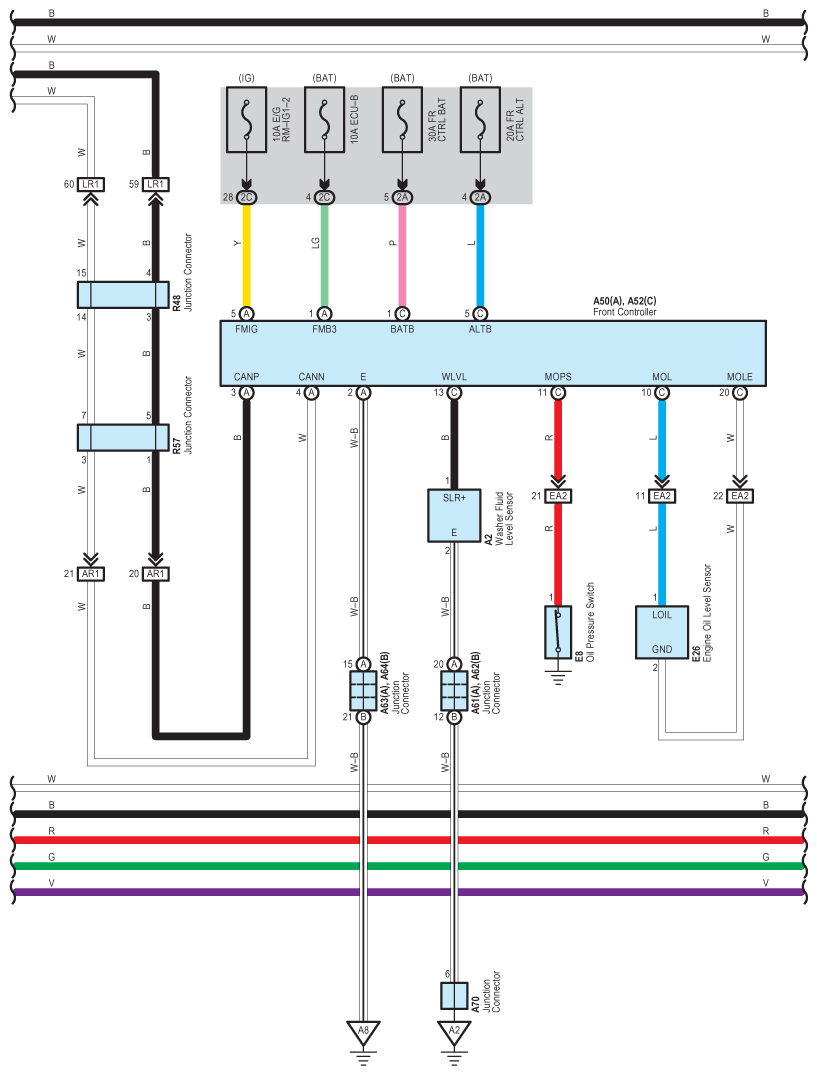

Fig 8: Combination Meter - Circuit Diagram (8 Of 10)
G07589783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

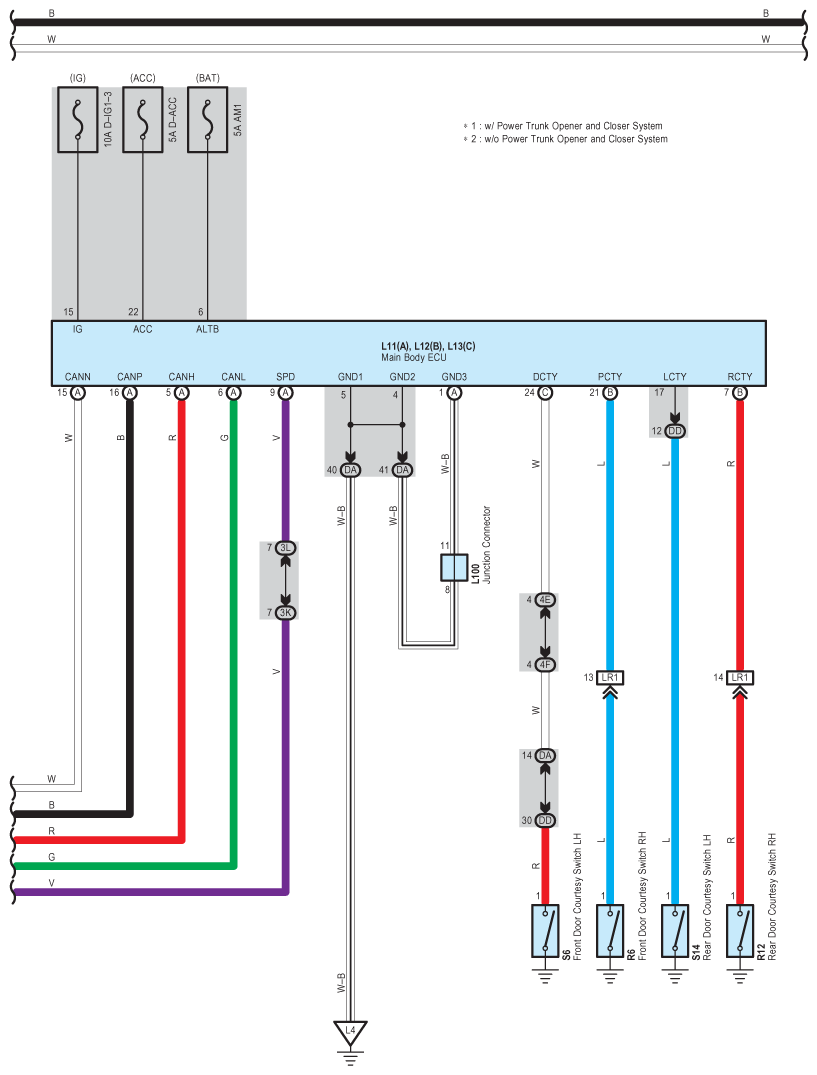

Fig 9: Combination Meter - Circuit Diagram (9 Of 10)
G07589784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

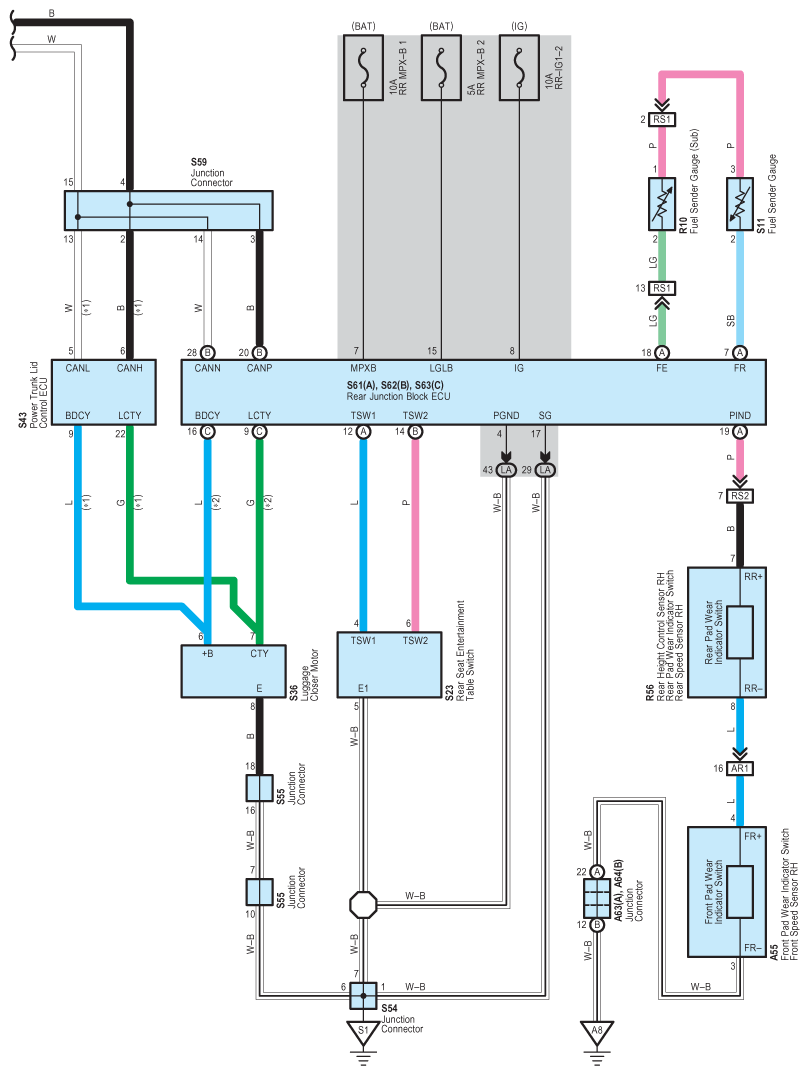

Fig 10: Combination Meter - Circuit Diagram (10 Of 10)
G07589785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
