Steering Pad Switch: Inspection

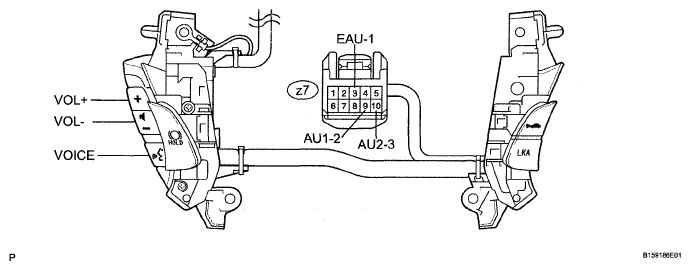

- INSPECT STEERING PAD SWITCH ASSEMBLY (STEERING WHEEL SIDE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 7(AU1-2) - 3(EAU-1) VOL+ switch pushed 680 Ω 7(AU1-2) - 3(EAU-1) VOL- switch pushed 2880 Ω 10(AU2-3) - 3(EAU-1) VOICE switch pushed 2200 Ω If the result is not as specified, replace the switch assembly.

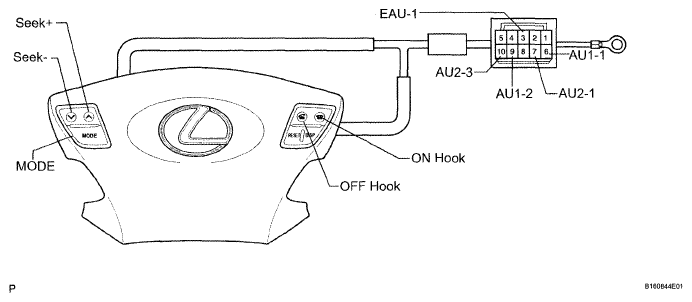

- INSPECT STEERING PAD SWITCH ASSEMBLY (STEERING PAD SIDE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 7(AU2-1) - 3(EAU-1) No switch is pushed 1,000 kΩ or higher 7(AU2-1) - 3(EAU-1) MODE switch pushed Below 1 Ω 7(AU2-1) - 10(AU2-3) No switch is pushed 1,010 Ω 7(AU2-1) - 3(EAU-1) ON Hook switch pushed 330 Ω 7(AU2-1) - 3(EAU-1) OFF Hook switch pushed 1,010 Ω 6(AU1-1) - 3(EAU-1) No switch is pushed 1,000 kΩ or higher 6(AU1-1) - 3(EAU-1) Seek+ switch pushed Below 2.5 Ω 6(AU1-1) - 3(EAU-1) Seek- switch pushed 329 Ω 6(AU1-1) - 9(AU1-2) No switch is pushed 330 Ω If the result is not as specified, replace the switch assembly.
