Operation Check

  1. INITIAL CHECK FUNCTION
    1. Turn the engine switch on (IG).
    2. After 2 seconds or more have passed, turn the clearance sonar main switch ON. Then check the buzzer sounding condition.

      Buzzer sounding:

      1 +/-0.3 sec.

      HINT:

      • If a malfunction is detected in the ultrasonic sensor circuits, the location of the malfunctioning sensor blinks on the display's vehicle graphic. However, after the sensor returns to normal, the display also returns to normal.
      • When the engine switch is turned on (IG) while the clearance sonar main switch is ON, the buzzer will not sound.

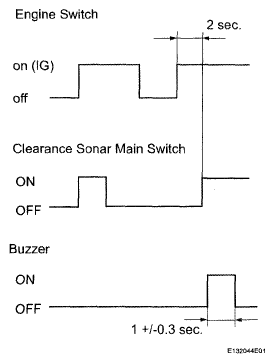

      Fig 1: Buzzer Sounding Blinking Pattern
      G04951809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. MALFUNCTION OF MULTI-INFORMATION DISPLAY
    1. Ultrasonic sensor open circuit
      1. If there is an open circuit between the ultrasonic sensor and the ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.

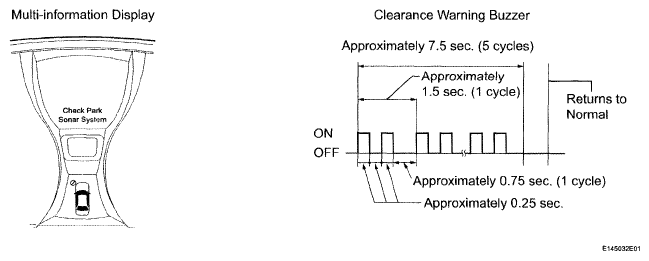

      Fig 2: Malfunction Of Multi-Information Display - Ultrasonic Sensor Open Circuit
      G04951810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The example shows an open circuit in the No. 1 ultrasonic sensor (front left sensor).
      • If a sensor has an open circuit, "Check Park Sonar System" is displayed. Refer to "open circuit in front sensor is displayed as a result or self-check" on the Problem Symptoms Table to inspect it.
    2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.

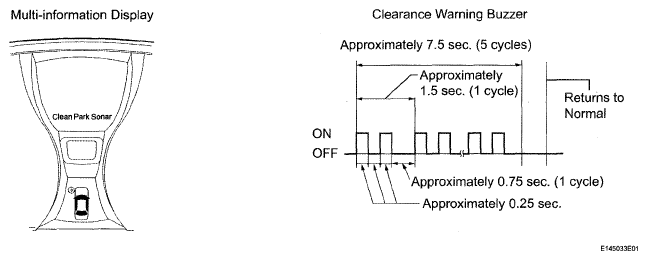

      Fig 3: Malfunction Of Multi-Information Display - Ultrasonic Sensor Frozen
      G04951811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The example shows that the No. 1 ultrasonic sensor (front sensors) is frozen.
      • If "Clean Park Sonar" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal.
  3. MALFUNCTION OF MULTI-DISPLAY
    1. Ultrasonic sensor open circuit
      1. If there is an open circuit between the ultrasonic sensor and the ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.

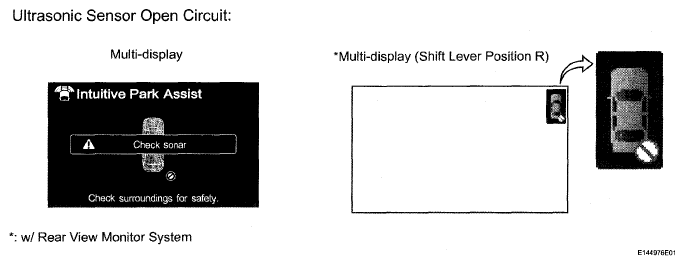

        Fig 4: Malfunction Of Multi-Information Display - Ultrasonic Sensor Open Circuit
        G04951812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        This example shows an open circuit in the No. 1 ultrasonic sensor (rear right sensor).

        • If a sensor has an open circuit, refer to PROBLEM SYMPTOMS TABLE  "open circuit in rear sensor is displayed as a result of self-check" on the Problem Symptoms Table to inspect it.
    2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.

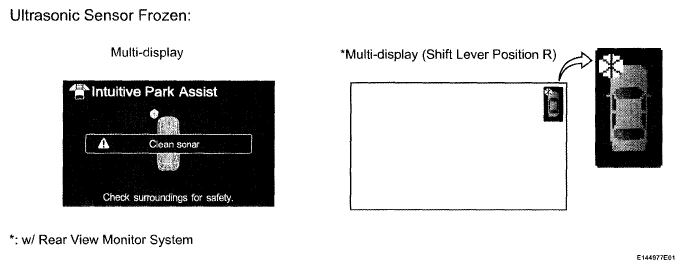

        Fig 5: Malfunction Of Multi-Information Display - Ultrasonic Sensor Frozen
        G04951813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • The example shows that the ultrasonic sensor (front left sensor) is covered with foreign matter.
        • If "Clean sonar" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal.
  4. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
    1. Detection range measurement
      CAUTION: Make sure the vehicle does not move by applying the parking brake firmly.
      1. Turn the engine switch on (IG).
      2. Move the shift lever to R position to check the front side sensors, rear center sensors and rear corner sensors.
      3. Move the shift lever to D, S and N position to check front side sensors, front corner sensors and front center sensors.
    2. Turn the clearance sonar main switch ON.
    3. Move a 60 mm (2.36 in.) pole near each sensor to measure its detection range.
      1. Front center sensors detection range

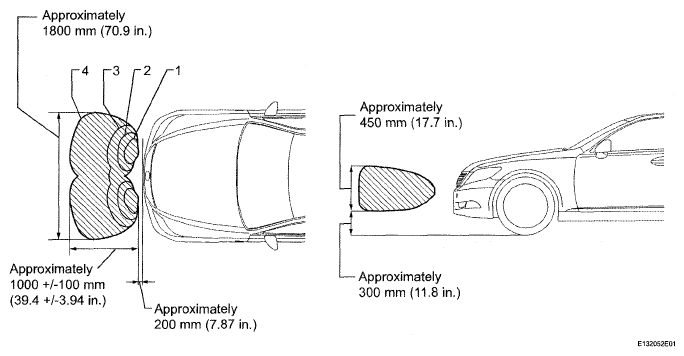

        Fig 6: Identifying Front Center Sensors Detection Range
        G04951814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Front corner sensors detection range

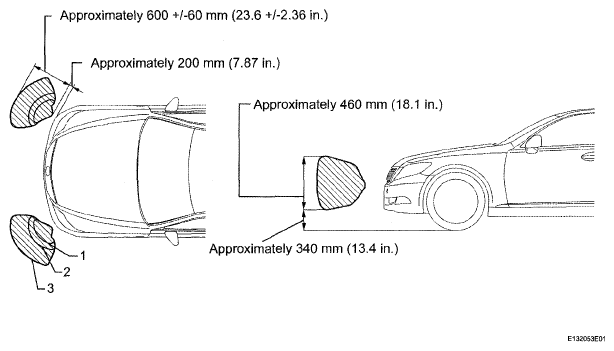

        Fig 7: Identifying Front Corner Sensors Detection Range
        G04951815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Front side sensors detection range

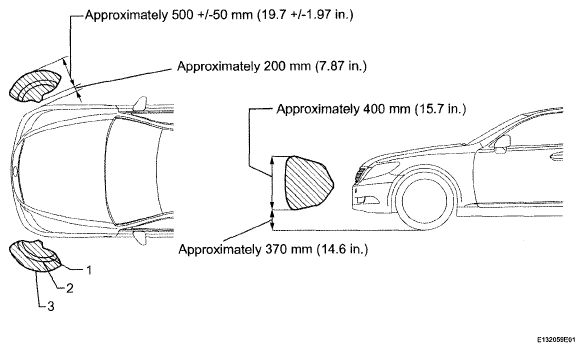

        Fig 8: Identifying Front Side Sensors Detection Range
        G04951816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Rear center sensors detection range

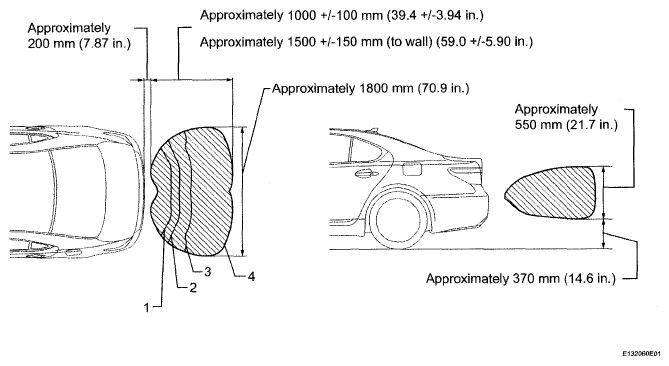

        Fig 9: Identifying Rear Center Sensors Detection Range
        G04951817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Rear corner sensors detection range

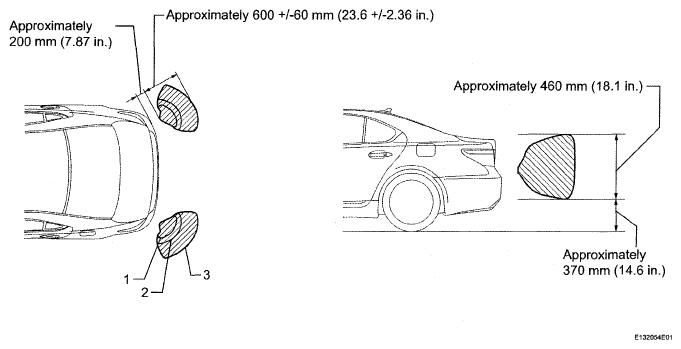

        Fig 10: Identifying Rear Corner Sensors Detection Range
        G04951818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: These detection ranges are applicable when positioning the 60 mm (2.36 in.) pole parallel or perpendicular to the ground. The ranges vary depending on the measuring method and type of obstacle (such as walls).
    4. When the ultrasonic sensors have detected an obstacle, check the multi-information display, multi-display and buzzer sounds with the clearance sonar main switch ON.

    Operation condition:

    ENGINE OPERATING CONDITIONS

    Shift Lever Position Vehicle Speed Buzzer Detection, Multi-information Display Detection, Multi-display Detection
    Front Center LH Front Center RH Front Corner LH Front Corner RH Front Side LH Front Side RH Rear Center LH Rear Center RH Rear Corner LH Rear Corner RH
    P - Only perform check operation
    D, S 9 km/h (5 mph) or less O O O*1
    X*2
    X X
    13 km/h (8 mph) or more X X X X X
    R 9 km/h (5 mph) or less X X O O O
    13 km/h (8 mph) or more X X O O O
    (N) 9 km/h (5 mph) or less O O O*1
    X*2
    X X
    13 km/h (8 mph) or more X X X X X
    HINT:
    *1: w/o Advanced parking guidance system
    *2: w/ Advanced parking guidance system
  1. Check the buzzer sounds with the clearance sonar main switch ON.

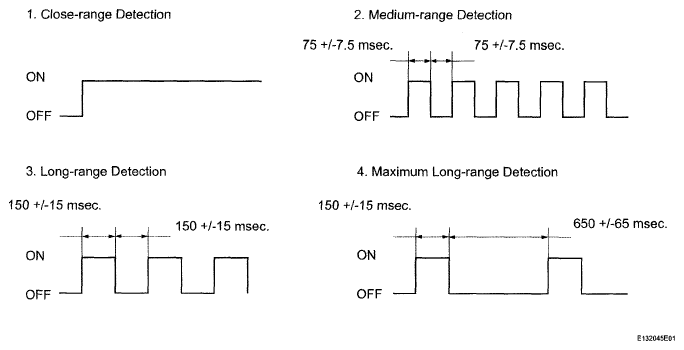

    Fig 11: Blinking Pattern Of Buzzer Sound
    G04951819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Front detection range

    FRONT DETECTION RANGE

    Detection Distance
    1. Close-range detection Within 300 +/-30 mm (11.8 +/-1.18 in.)
    2. Medium-range detection 300 +/-30 to 375 +/-40 mm (11.8 +/-1.18 to 14.8 +/-1.57 in.)
    3. Long-range detection 375 +/-40 to 600 +/-60 mm (14.8 +/-1.57 to 23.6 +/-2.36 in.)

    Rear detection range

    REAR DETECTION RANGE

    Detection Distance
    1. Close-range detection Within 250 +/-30 mm (9.84 +/-1.18 in.)
    2. Medium-range detection 250 +/-30 to 375 +/-40 mm (9.84 +/-1.18 to 14.8 +/-1.57 in.)
    3. Long-range detection 375 +/-40 to 600 +/-60 mm (14.8 +/-1.57 to 23.6 +/-2.36 in.)

    Front center detection range

    FRONT CENTER DETECTION RANGE

    Detection Distance
    1. Close-range detection Within 300 +/-30 mm (11.8 +/-1.18 in.)
    2. Medium-range detection 300 +/-30 to 375 +/-40 mm (11.8 +/-1.18 to 14.8 +/-1.57 in.)
    3. Long-range detection 375 +/-40 to 500 +/-50 mm (14.8 +/-1.57 to 19.7 +/-1.97 in.)
    4. Maximum long-range detection 500 +/-50 to 1000 +/-100 mm (19.7 +/-1.97 to 39.4 +/-3.94 in.)

    Rear center detection range

    REAR CENTER DETECTION RANGE

    Detection Distance
    1. Close-range detection Within 350 +/-40 mm (13.8 +/-1.57 in.)
    2. Medium-range detection 350 +/-40 to 450 +/-50 mm (13.8 +/-1.57 to 17.7 +/-1.97 in.)
    3. Long-range detection 450 +/-50 to 600 +/-60 mm (17.7 +/-1.97 to 23.6 +/-2.36 in.)
    4. Maximum long-range detection 600 +/-60 to 1000 +/-100 mm (23.6 +/-2.36 to 39.4 +/-3.94 in.) 600 +/-60 to 1500 +/-150 mm (23.6 +/-2.36 to 59.1 +/-5.91 in.) (To the wall)

    Front side detection range

    FRONT SIDE DETECTION RANGE

    Detection Distance
    1. Close-range detection Within 300 +/-30 mm (11.8 +/-1.18 in.)
    2. Medium-range detection 300 +/-30 to 375 +/-40 mm (11.8 +/-1.18 to 14.8 +/-1.57 in.)
    3. Long-range detection 375 +/-40 to 500 +/-50 mm (14.8 +/-1.57 to 19.7 +/-1.97 in.)

    HINT:

    Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.

  2. Check the multi-display, multi-information display and buzzer, when the front corner sensors and front center sensors have detected an obstacle.

    Operation condition:

    ENGINE OPERATING CONDITIONS

    Engine Switch Clearance Sonar Main Switch Shift Lever Position Vehicle Speed
    on (IG) ON D, S, N 9 km/h (5 mph) or less

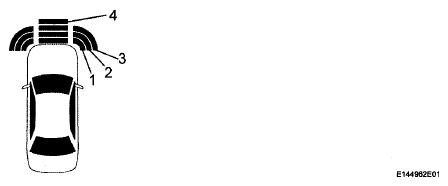

    Fig 12: Multi-Information Display - Detection Range With Bars
    G06192355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Multi-information display

    MULTI-INFORMATION DISPLAY REFERENCE CHART

    Detection Range Buzzer Number of bars displayed
    1. Close-range detection Sounds continuously 1 (blinking)
    2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (illuminated)
    3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (illuminated)
    4. Maximum long-range detection Sounds intermittently (ON: 150 msec./OFF: 650 msec.) 4 (illuminated)

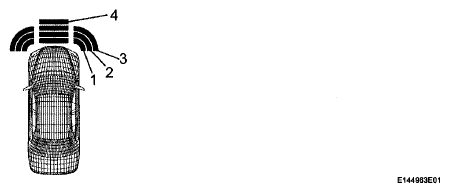

    Fig 13: Multi-Information Display - Detection Range With Bars
    G06192356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Multi-display

    MULTI-INFORMATION DISPLAY REFERENCE CHART

    Detection Range Buzzer Number of bars displayed
    1. Close-range detection Sounds continuously 1 (red illumination)
    2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (yellow illumination)
    3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (yellow illumination)
    4. Maximum long-range detection Sounds intermittently (ON: 150 msec./OFF: 650 msec.) 4 (yellow illumination)

    HINT:

    Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.

  3. Check the multi-display, multi-information display and buzzer, when the rear center sensors and rear corner sensors have detected an obstacle.

    Operation condition:

    ENGINE OPERATING CONDITIONS

    Engine Switch Clearance Sonar Main Switch Shift Lever Position
    on (IG) ON R position

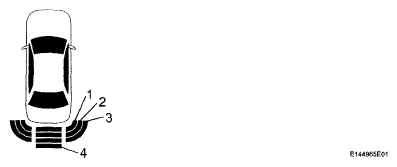

    Fig 14: Multi-Information Display - Detection Range With Bars
    G04951822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Multi-information display

    MULTI-INFORMATION DISPLAY REFERENCE CHART

    Detection Range Buzzer Number of bars displayed
    1. Close-range detection Sounds continuously 1 (blinking)
    2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (illuminated)
    3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (illuminated)
    4. Maximum long-range detection (for Rear center sensors) Sounds intermittently (ON: 150 msec./OFF: 650 msec.) 4 (illuminated)

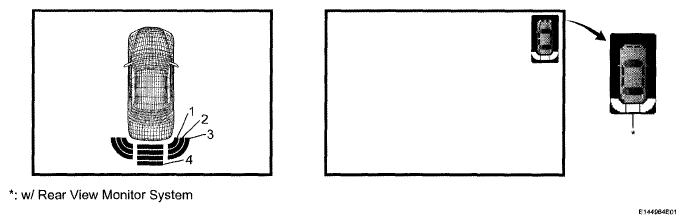

    Fig 15: Identifying Rear Corner Range Detection Position (W/ Rear View Monitor System)
    G04951823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Multi-display

    MULTI-DISPLAY REFERENCE CHART

    Detection Range Buzzer Number of bars displayed
    1. Close-range detection Sounds continuously 1 (red illumination) *: Illumination (red)
    2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (yellow illumination) *: Blinking (yellow)
    3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (yellow illumination) *: Blinking (yellow)
    4. Maximum long-range detection (for Rear center sensors) Sounds intermittently (ON: 150 msec./OFF: 650 msec.) 4 (yellow illumination) *: Blinking (yellow)

    HINT:

    Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.

  4. Check the multi-display, multi-information display and buzzer, when the front side sensors have detected an obstacle.

Operation condition:

ENGINE OPERATING CONDITIONS

Engine Switch Clearance Sonar Main Switch Shift Lever Position
on (IG) ON R position

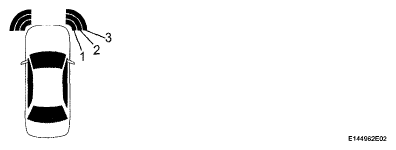

Fig 16: Multi-Information Display - Detection Range With Bars
G04951824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multi-information display

MULTI-INFORMATION DISPLAY REFERENCE CHART

Detection Range Buzzer Number of bars displayed
1. Close-range detection Sounds continuously 1 (blinking)
2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (illuminated)
3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (illuminated)

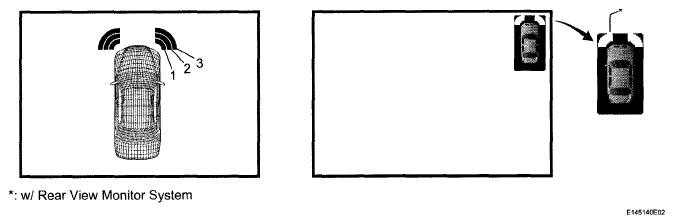

Fig 17: Identifying Front Side Sensors Range Detection Position (W/ Rear View Monitor System)
G04951825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Multi-display

MULTI-INFORMATION DISPLAY REFERENCE CHART

Detection Range Buzzer Number of bars displayed
1. Close-range detection Sounds continuously 1 (red illumination) *: Illumination (red)
2. Medium-range detection Sounds intermittently (ON: 75 msec./OFF: 75 msec.) 2 (yellow illumination) *: Blinking (yellow)
3. Long-range detection Sounds intermittently (ON: 150 msec./OFF: 150 msec.) 3 (yellow illumination) *: Blinking (yellow)

HINT:

Ultrasonic waves are used to measure the detection range. However, the detection range may vary depending on the ambient temperature.
