DTC B2312 Power Window Switch Malfunction: Wiring Diagram

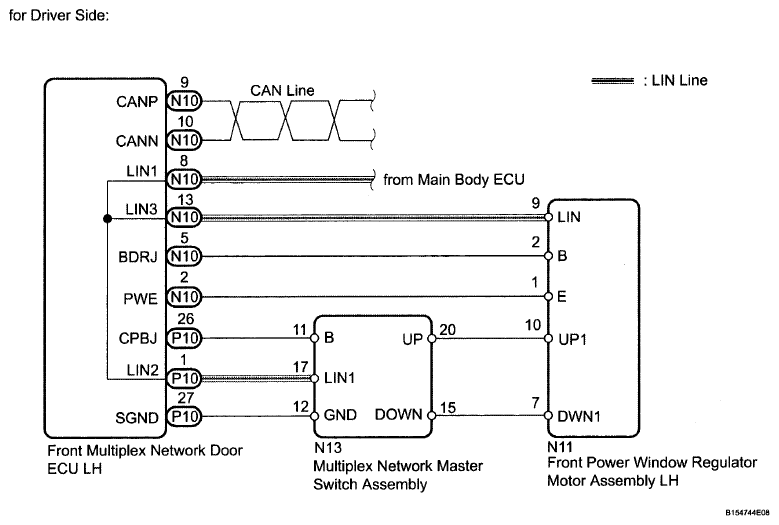

Fig 1: Power Window Switch Wiring Diagram (1 Of 4)
G06197075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

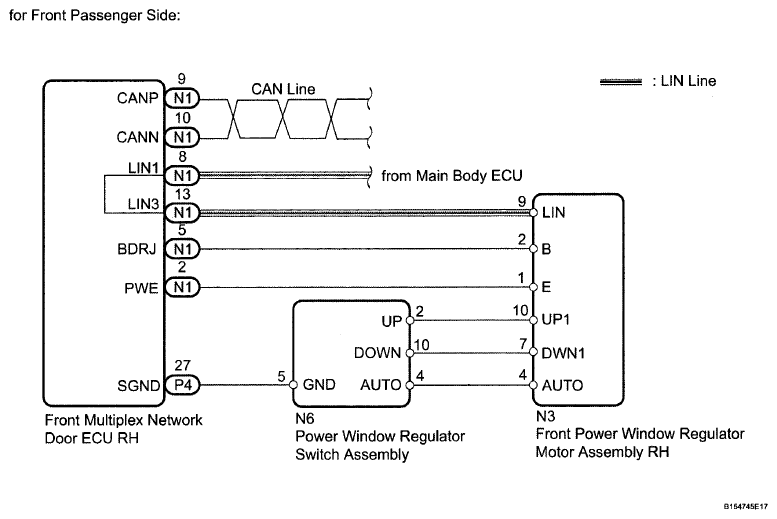

Fig 2: Power Window Switch Wiring Diagram (2 Of 4)
G06197076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

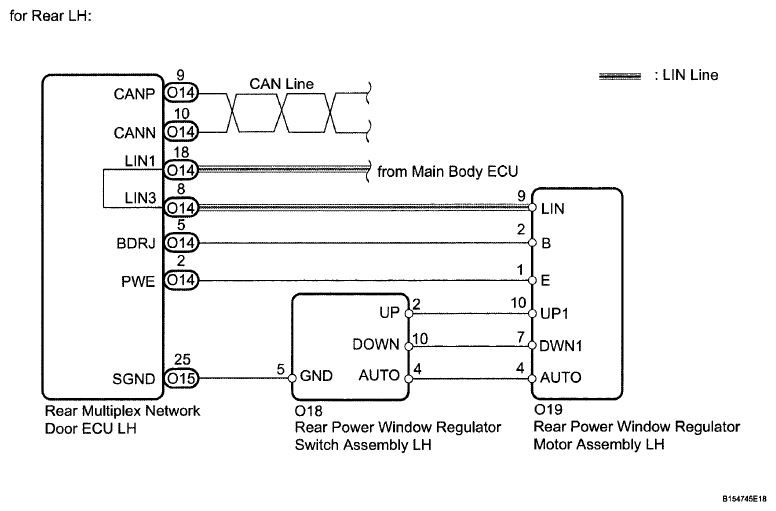

Fig 3: Power Window Switch Wiring Diagram (3 Of 4)
G06197077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

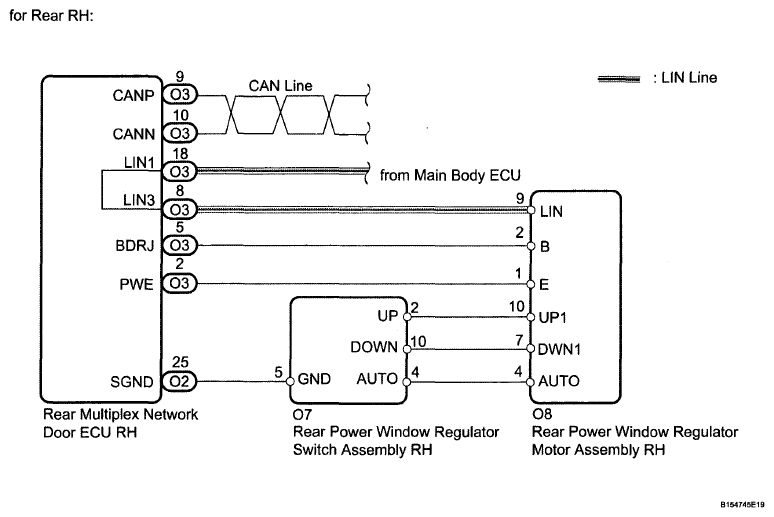

Fig 4: Power Window Switch Wiring Diagram (4 Of 4)
G06197078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
