FRONT SPEED SENSOR (for 2WD): Components

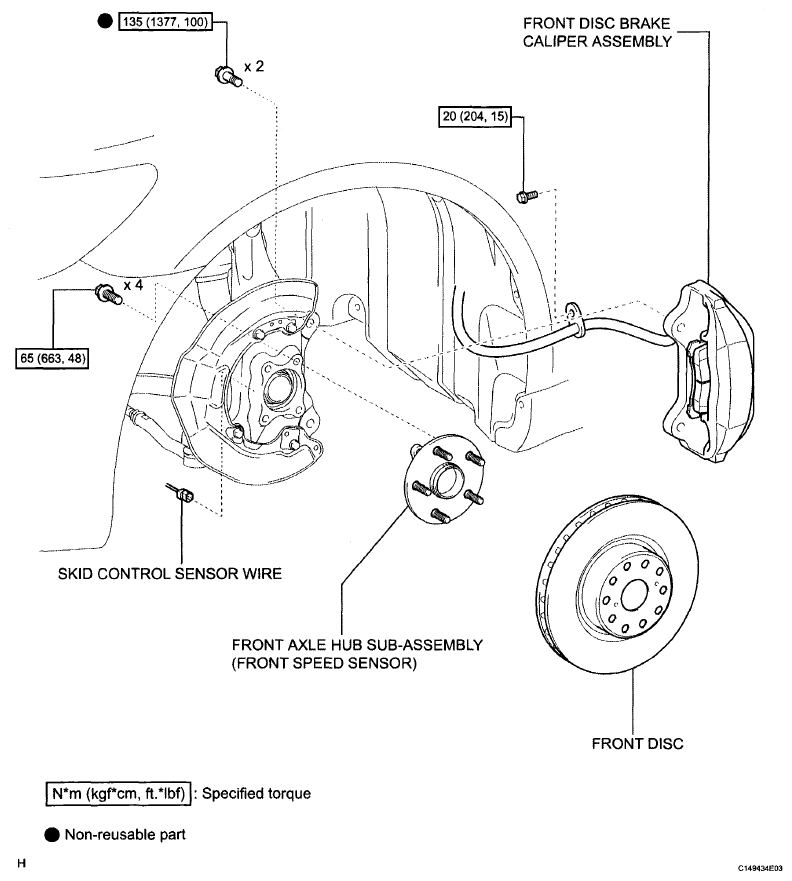

Fig 1: Front Speed Sensor Replacement Components - For 2WD (1 Of 2) With Torque Specifications
G06187578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Speed Sensor Replacement Components - For 2WD (2 Of 2) With Torque Specifications
G05848364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
