Fuel Lid Opener: Notes

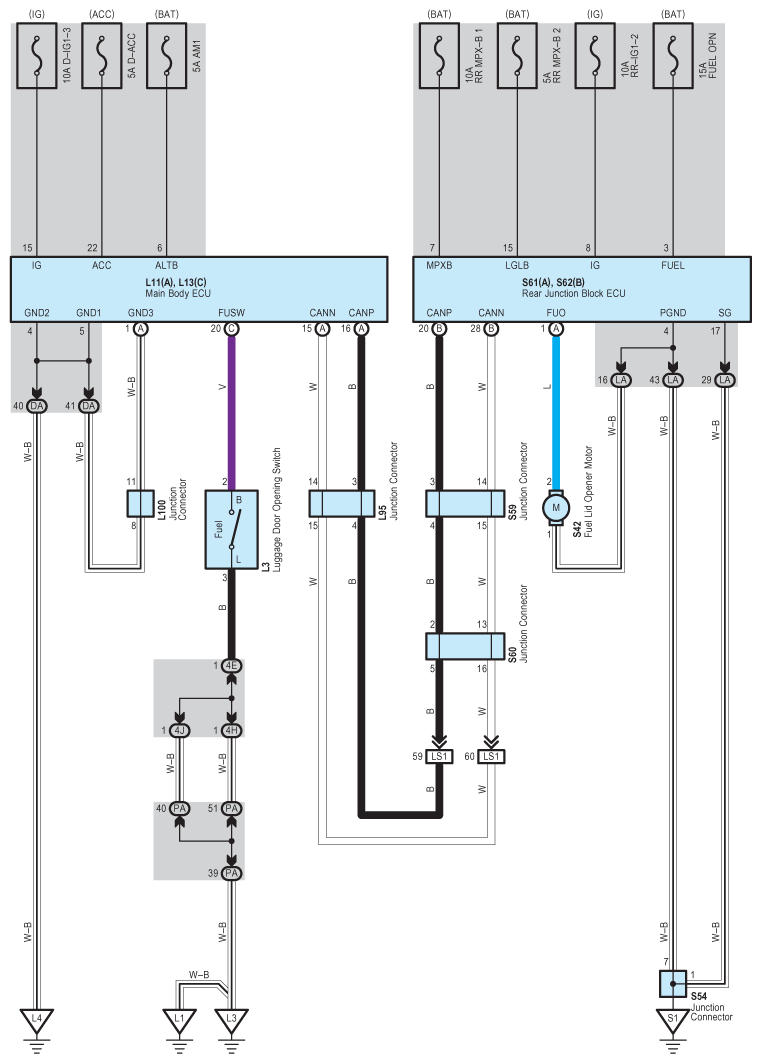

Fig 1: Fuel Lid Opener - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
