Rear Sunshade: Notes

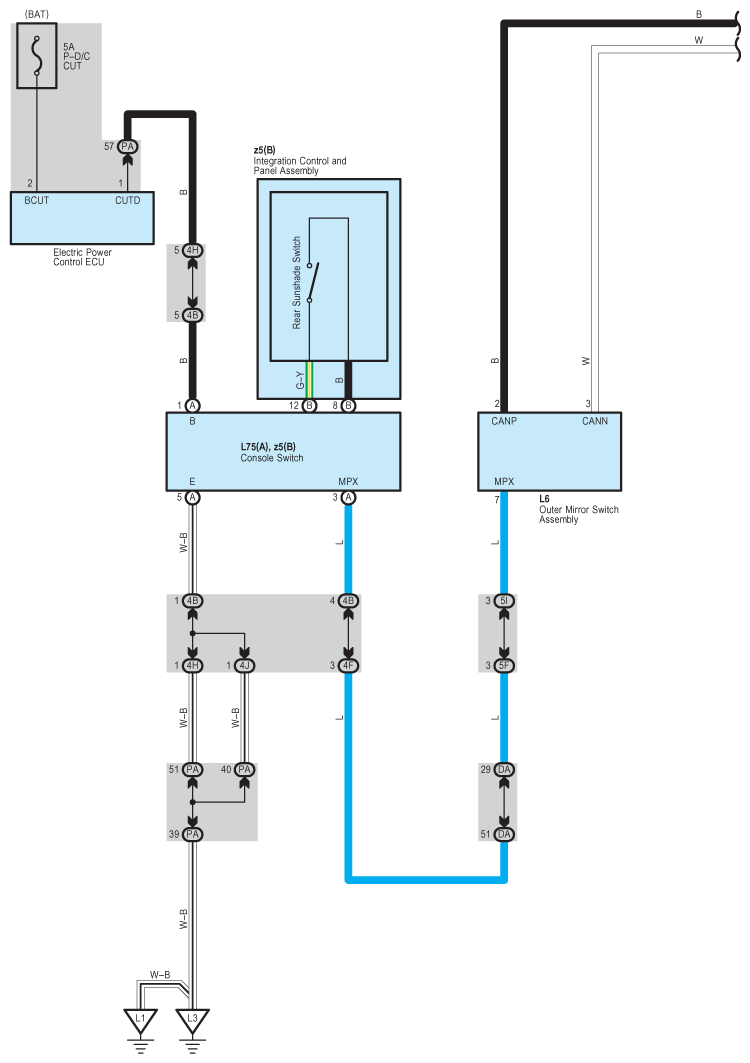

Fig 1: Rear Sunshade - Circuit Diagram (1 Of 4)
G07589619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

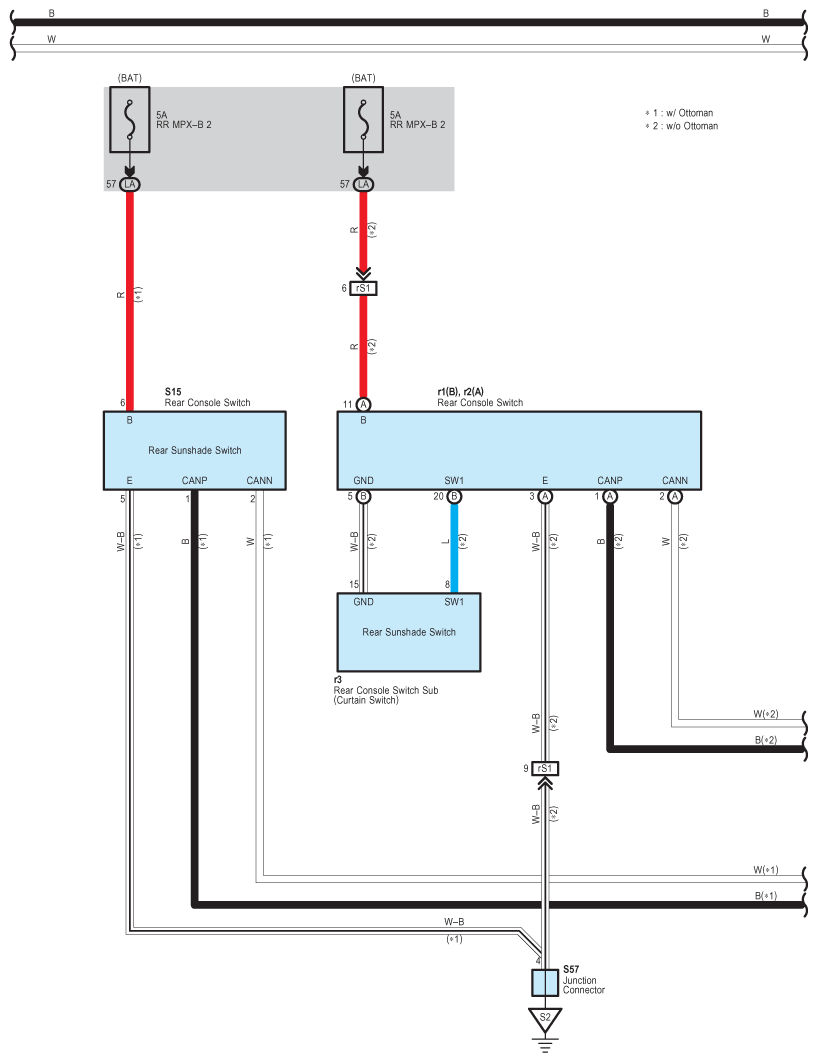

Fig 2: Rear Sunshade - Circuit Diagram (2 Of 4)
G07589620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

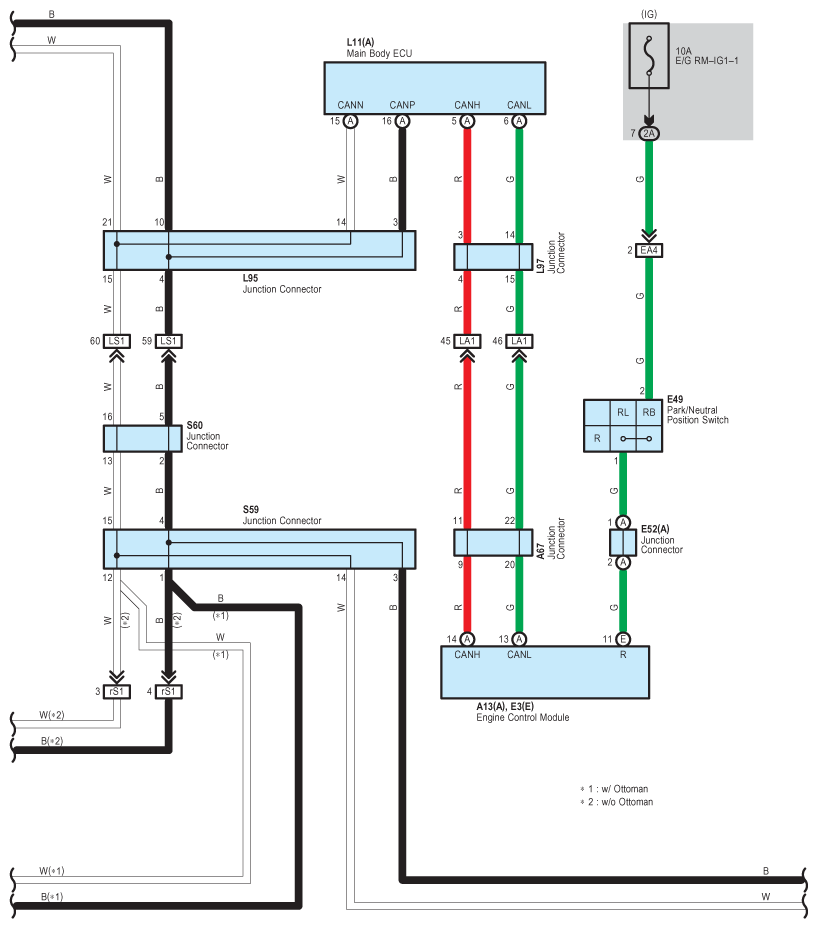

Fig 3: Rear Sunshade - Circuit Diagram (3 Of 4)
G07589621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

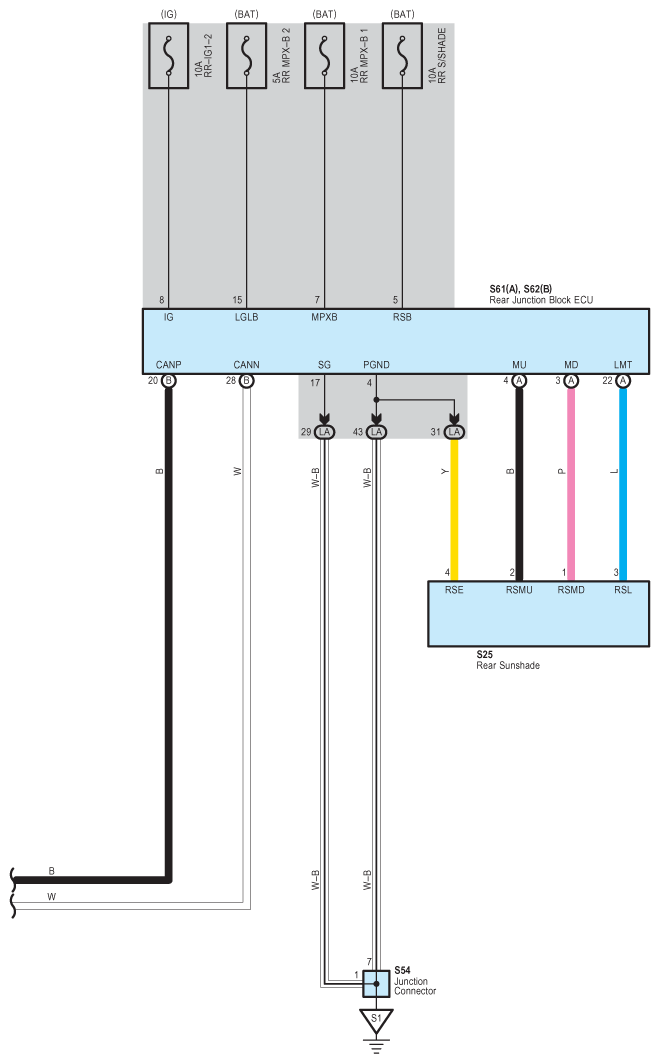

Fig 4: Rear Sunshade - Circuit Diagram (4 Of 4)
G07589622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
