AIR FUEL RATIO SENSOR (for AWD): Removal

REMOVE ENGINE AND TRANSMISSION
1. Remove the engine and transmission (See REMOVAL ).
REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
1. Disconnect the air fuel ratio sensor connector.
2. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
  SST 09224-00010

  Fig 1: Removing Air Fuel Ratio Sensor From Exhaust Manifold LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
1. Disconnect the air fuel ratio sensor connector.
2. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
  SST 09224-00010

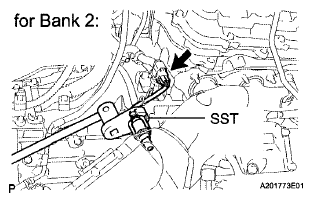

  Fig 2: Removing Air Fuel Ratio Sensor From Exhaust Manifold RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
