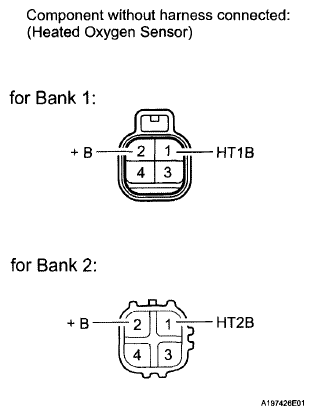

Measure the resistance according to the value (s) in the table below.Standard resistance
STANDARD RESISTANCE SPECIFICATION
| Tester Connection |
Condition |
Specified Condition |
1 (HT1B) - 2 (+B)
1 (HT2B) - 2 (+B) |
20°C (68°F) |
11 to 16 Ω |
If the result is not as specified, replace the heated oxygen sensor.
