HEATED OXYGEN SENSOR (for AWD): Installation

SST 09224-00010

Torque: without SST

44 N*m (449 kgf*cm, 32 ft.*lbf)

with SST

40 N*m (408 kgf*cm, 30 ft.*lbf)

HINT:

• Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
• Make sure SST and the wrench are connected in a straight line.

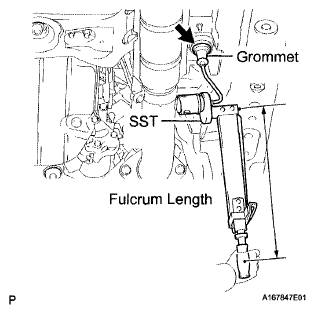

Fig 1: Identifying Heated Oxygen Sensor (Bank 1 Sensor 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, install the heated oxygen sensor to the front exhaust pipe.

   SST 09224-00010

   Torque: without SST

   44 N*m (449 kgf*cm, 32 ft.*lbf)

   with SST

   40 N*m (408 kgf*cm, 30 ft.*lbf)

   HINT:

   • Use a torque wrench with a fulcrum length of 300 mm (11.8 in.).
   • Make sure SST and the wrench are connected in a straight line.
2. Install the grommet to the vehicle.

Fig 2: Identifying Heated Oxygen Sensor (Bank 2 Sensor 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the heated oxygen sensor connector.

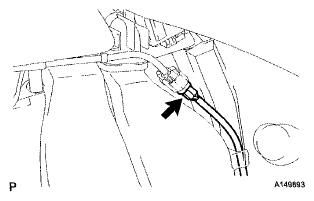

Fig 3: Locating Heated Oxygen Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
