System Diagram

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

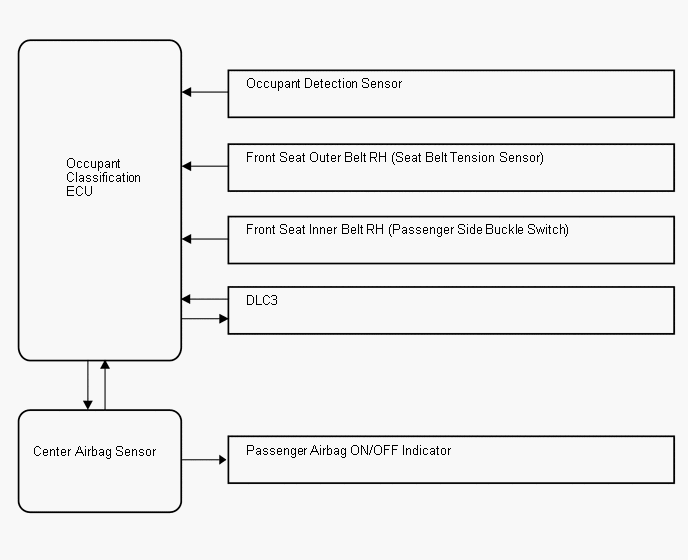

Fig 1: Occupant Classification ECU - System Diagram
GTY102939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
