Camshaft Timing Control Motor: Inspection

INSPECT CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY
1. Check that the joint of the camshaft timing control with EDU motor rotates smoothly when rotating it by hand.
  OK:

  Rotates smoothly.

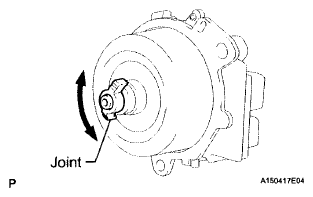

  Fig 1: Inspecting Camshaft Timing Control With EDU Motor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not drop the camshaft timing control with EDU motor. If dropped, replace the camshaft timing control with EDU motor assembly.
  - Do not disassemble the camshaft timing control with EDU motor. If disassembled, replace the camshaft timing control with EDU motor assembly.
  - Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
  If not as specified, replace the camshaft timing control with EDU motor assembly.
