Power Source: Notes

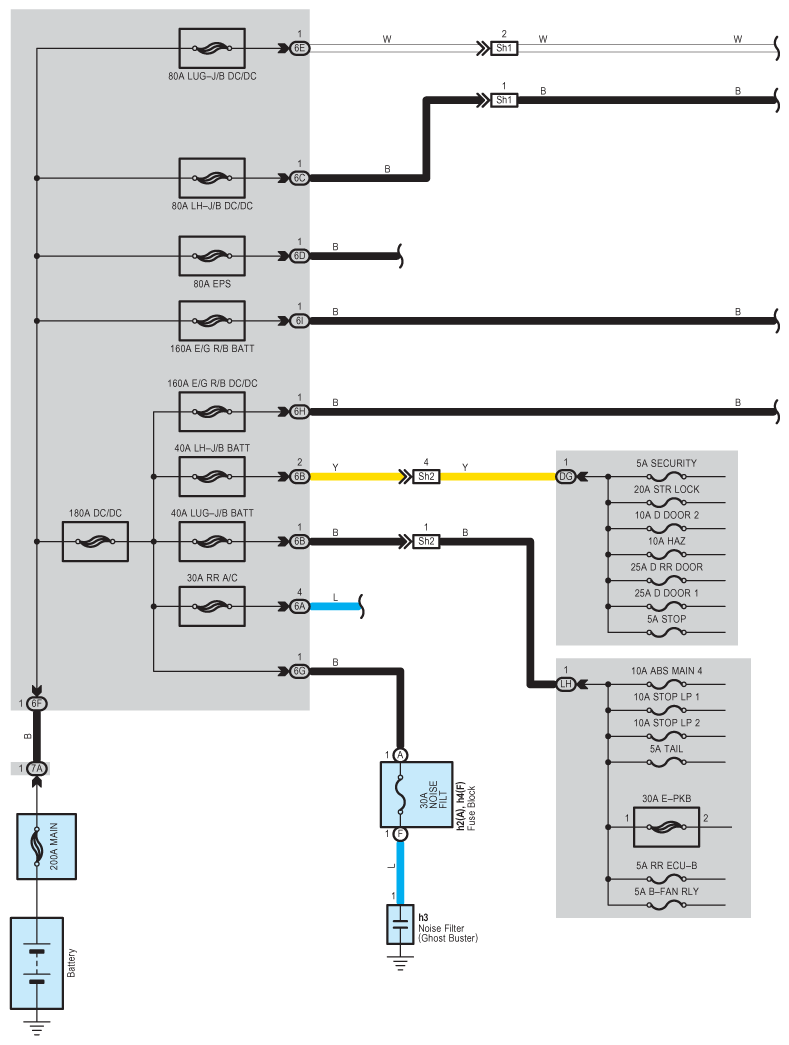

Fig 1: Power Source - Circuit Diagram (1 Of 9)

G07606872

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

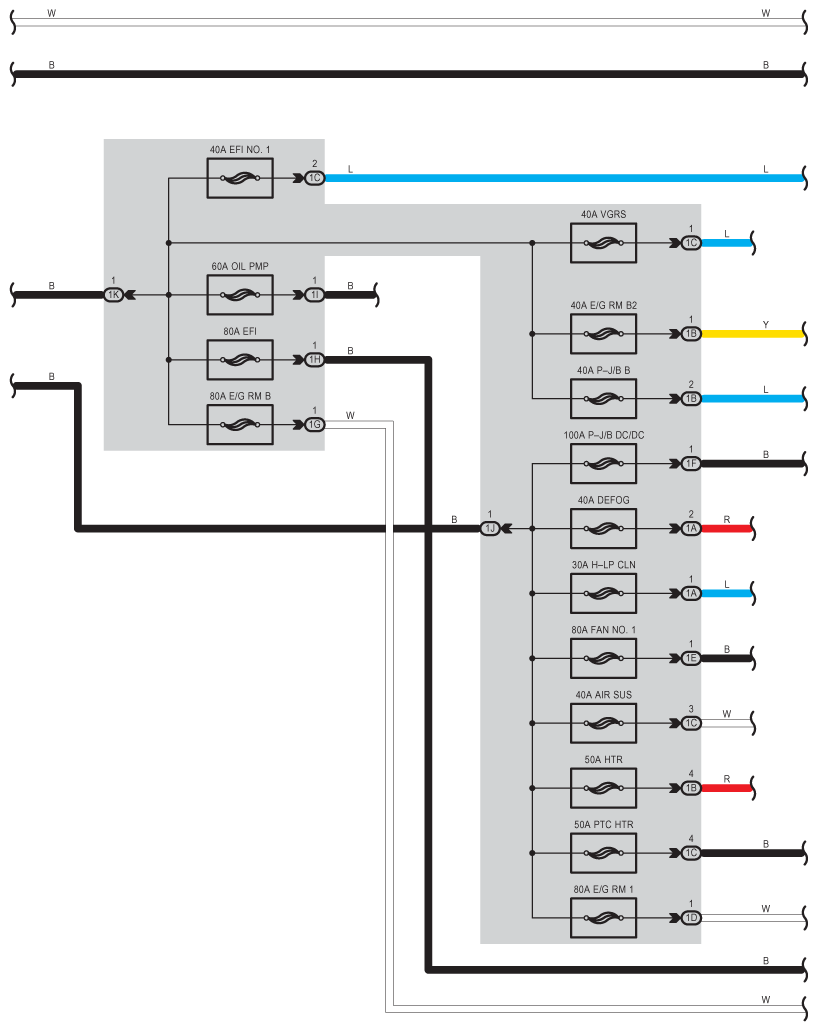

Fig 2: Power Source - Circuit Diagram (2 Of 9)

G07606873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

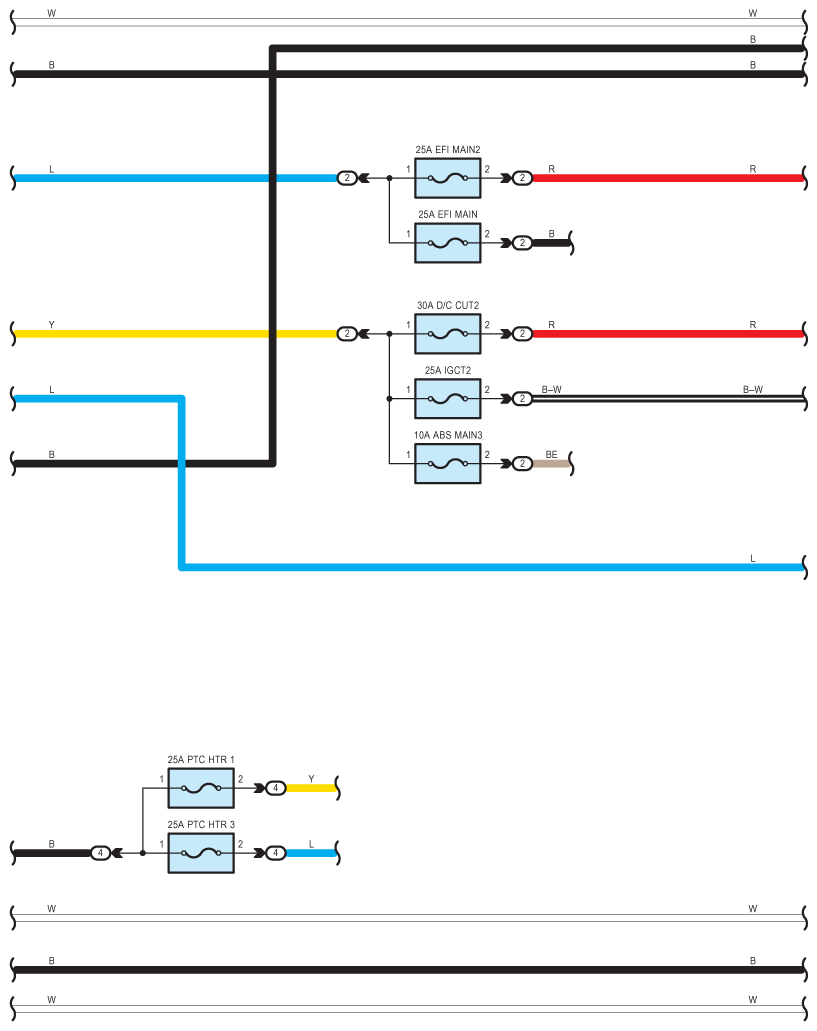

Fig 3: Power Source - Circuit Diagram (3 Of 9)

G07606874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

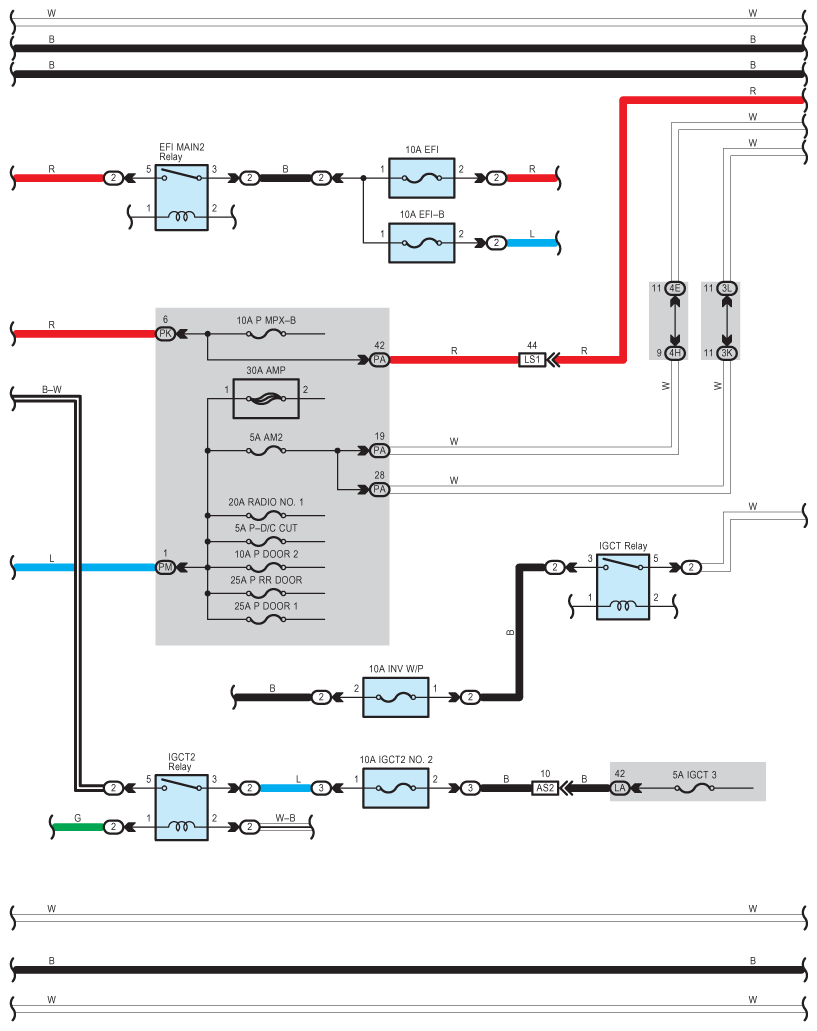

Fig 4: Power Source - Circuit Diagram (4 Of 9)

G07606875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

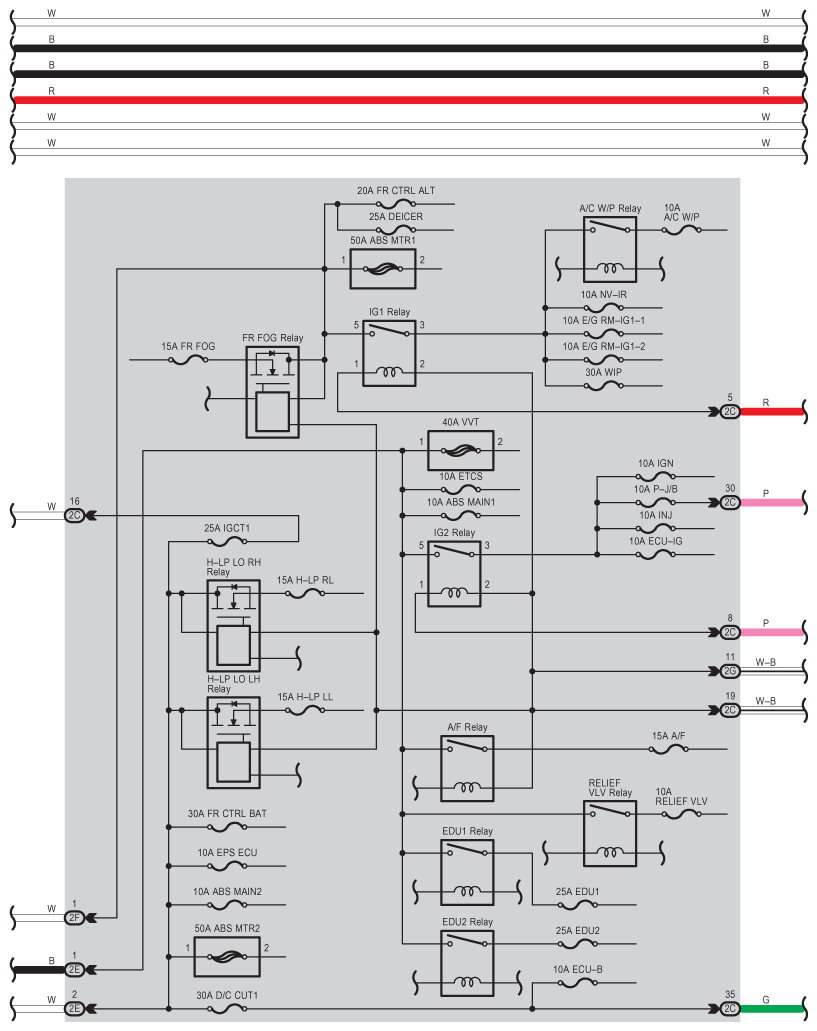

Fig 5: Power Source - Circuit Diagram (5 Of 9)

G07606876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

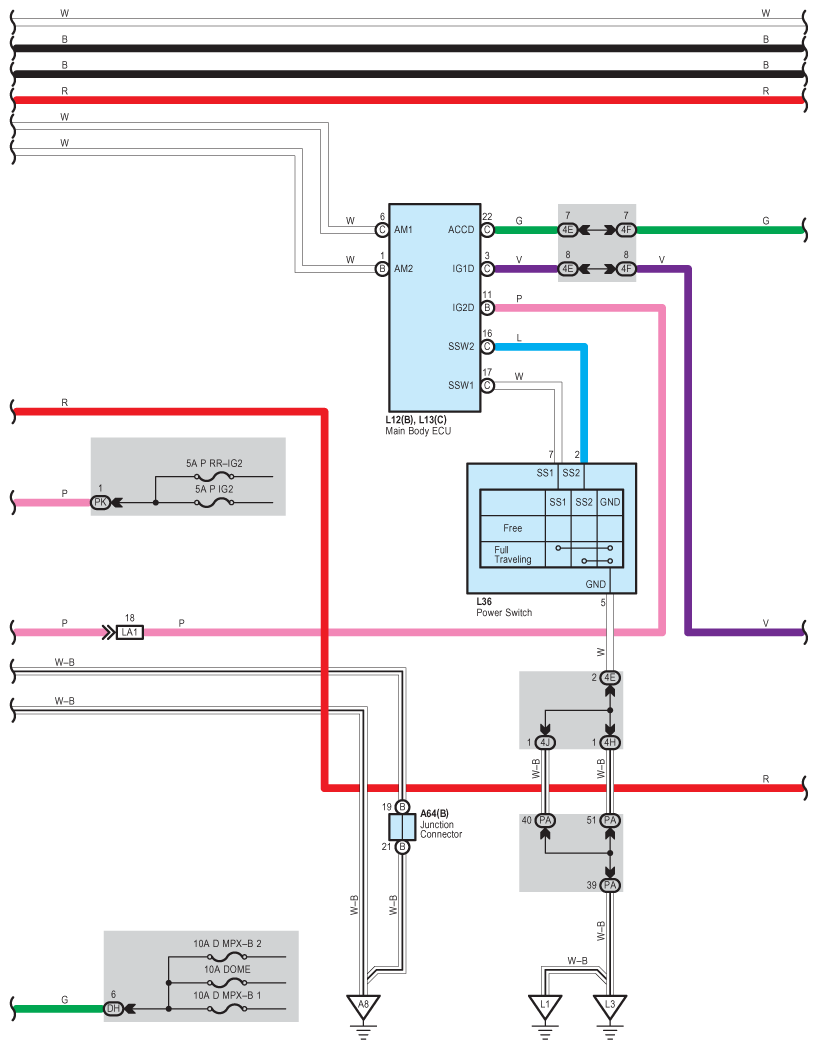

Fig 6: Power Source - Circuit Diagram (6 Of 9)

G07606877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

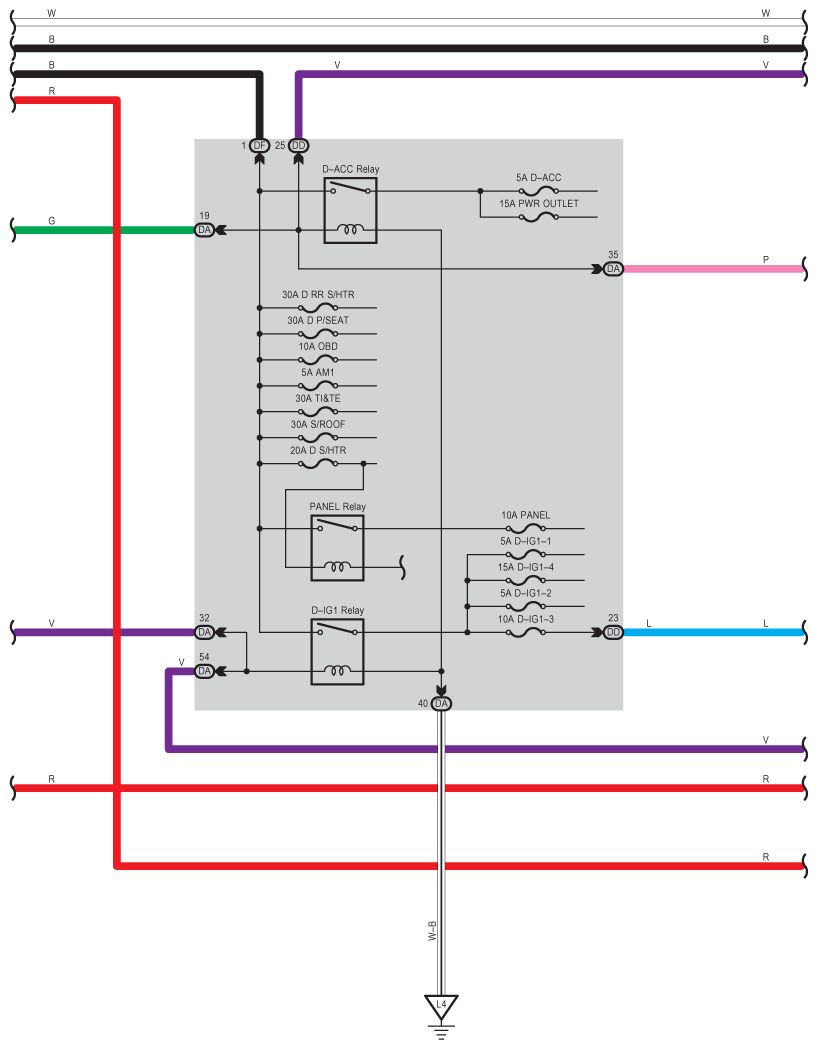

Fig 7: Power Source - Circuit Diagram (7 Of 9)

G07606878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

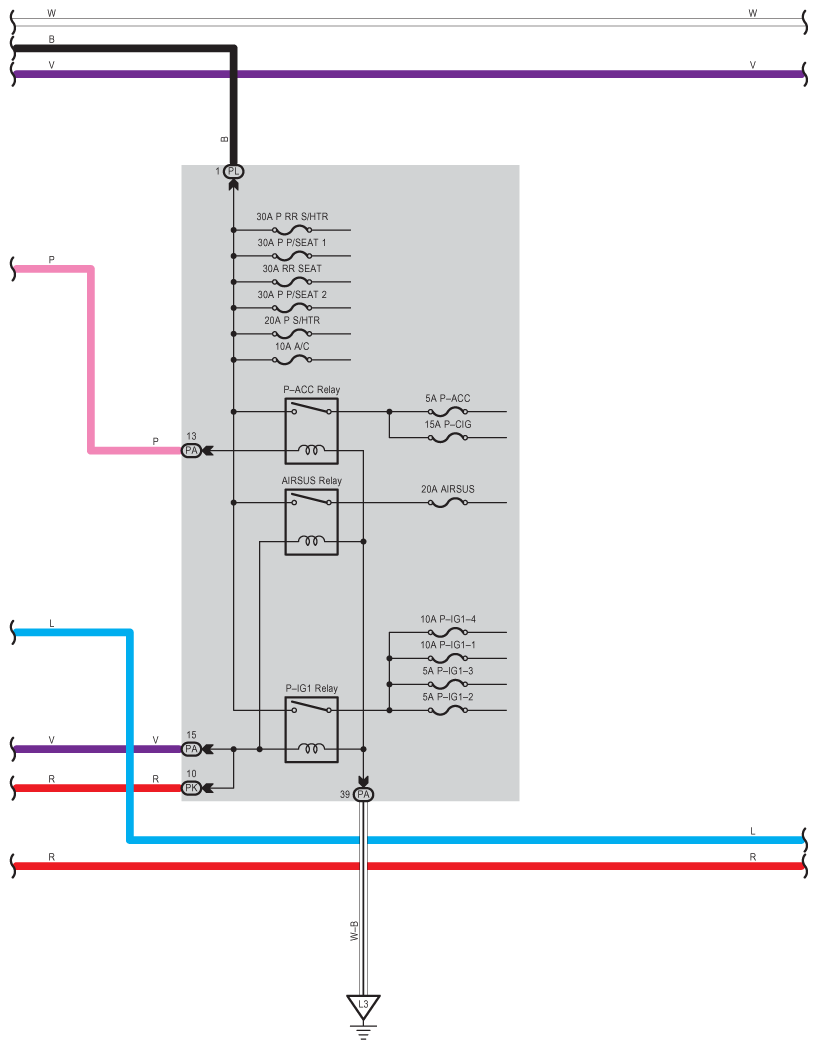

Fig 8: Power Source - Circuit Diagram (8 Of 9)

G07606879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

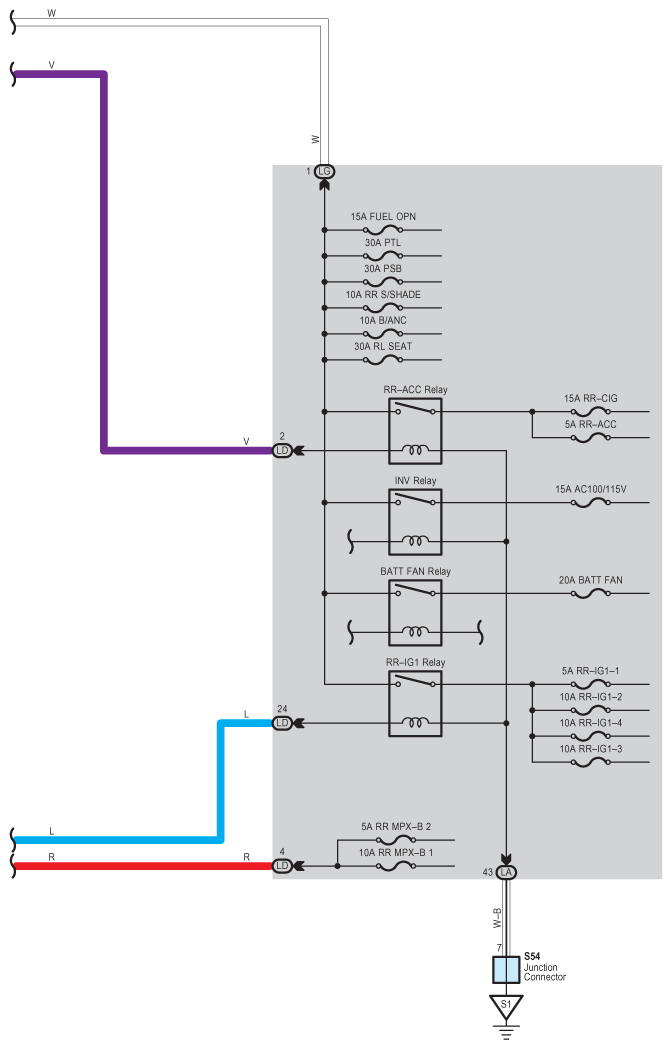

Fig 9: Power Source - Circuit Diagram (9 Of 9)

G07606880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
