Crankshaft Position Sensor: Removal: Removal

  1. REMOVE NO. 2 ENGINE UNDER COVER  . Refer to REMOVAL - Step 21
  2. REMOVE CRANKSHAFT POSITION SENSOR

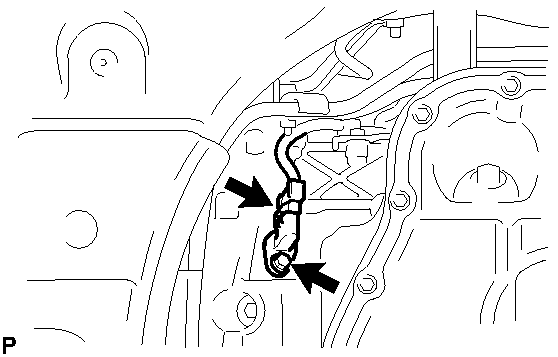

    Fig 1: Locating Sensor Connector
    GTY129969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the bolt and sensor.
