Cooling Fan: Notes

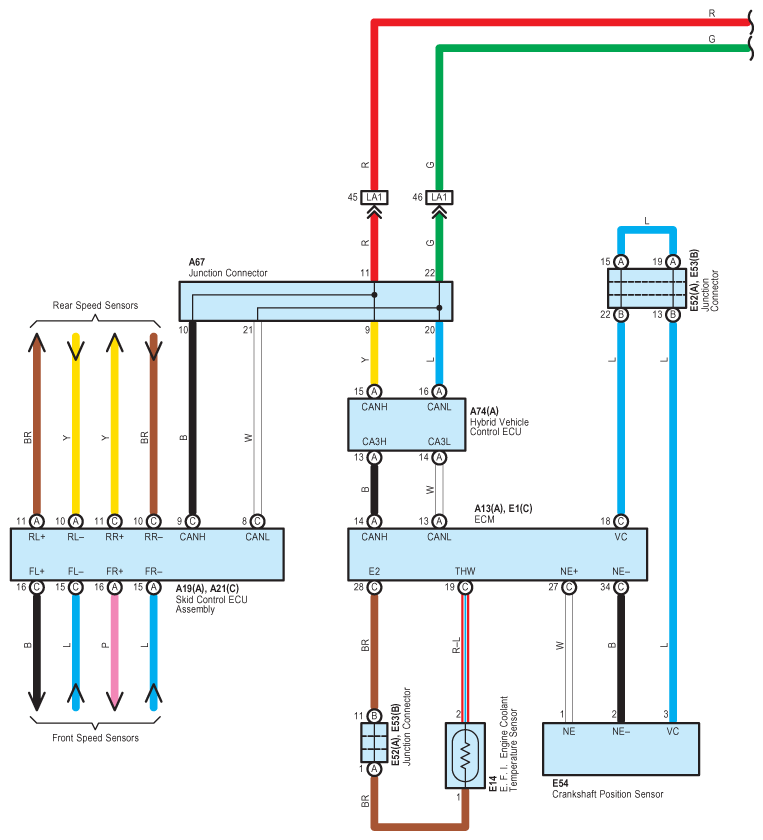

Fig 1: Cooling Fan - Circuit Diagram (1 Of 3)
G07607354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

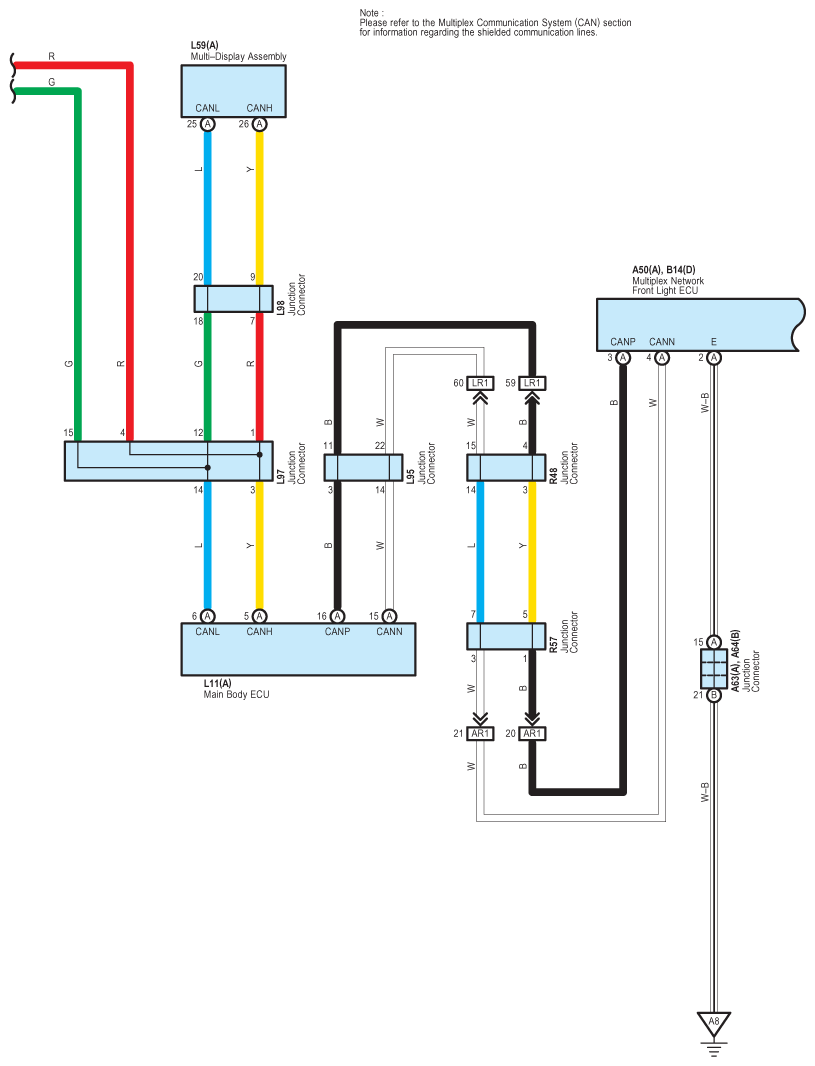

Fig 2: Cooling Fan - Circuit Diagram (2 Of 3)
G07607355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

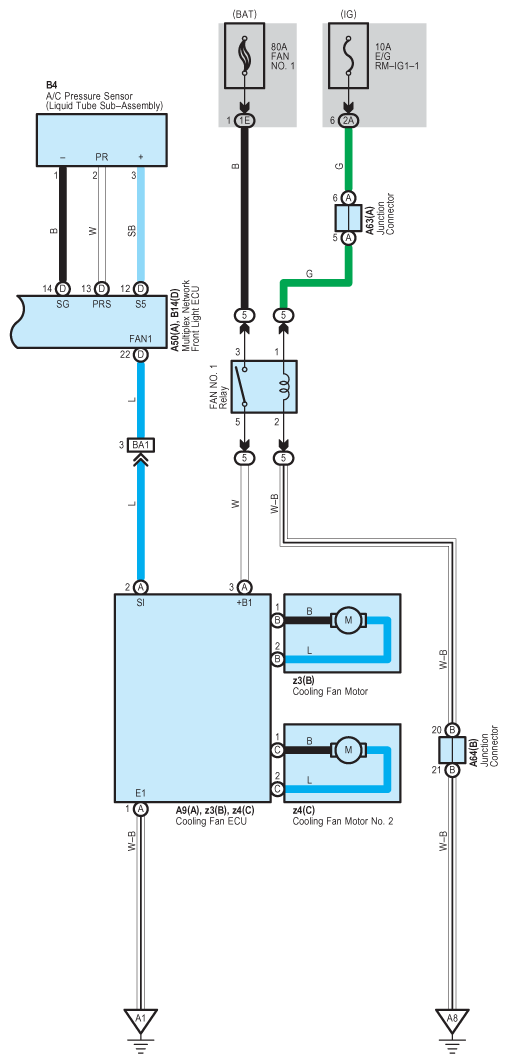

Fig 3: Cooling Fan - Circuit Diagram (3 Of 3)
G07607356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
