LEXUS Navigation System, Parking Assist (Rear View Monitor) and Multi-Display (w/o LEXUS Navigation System): Notes

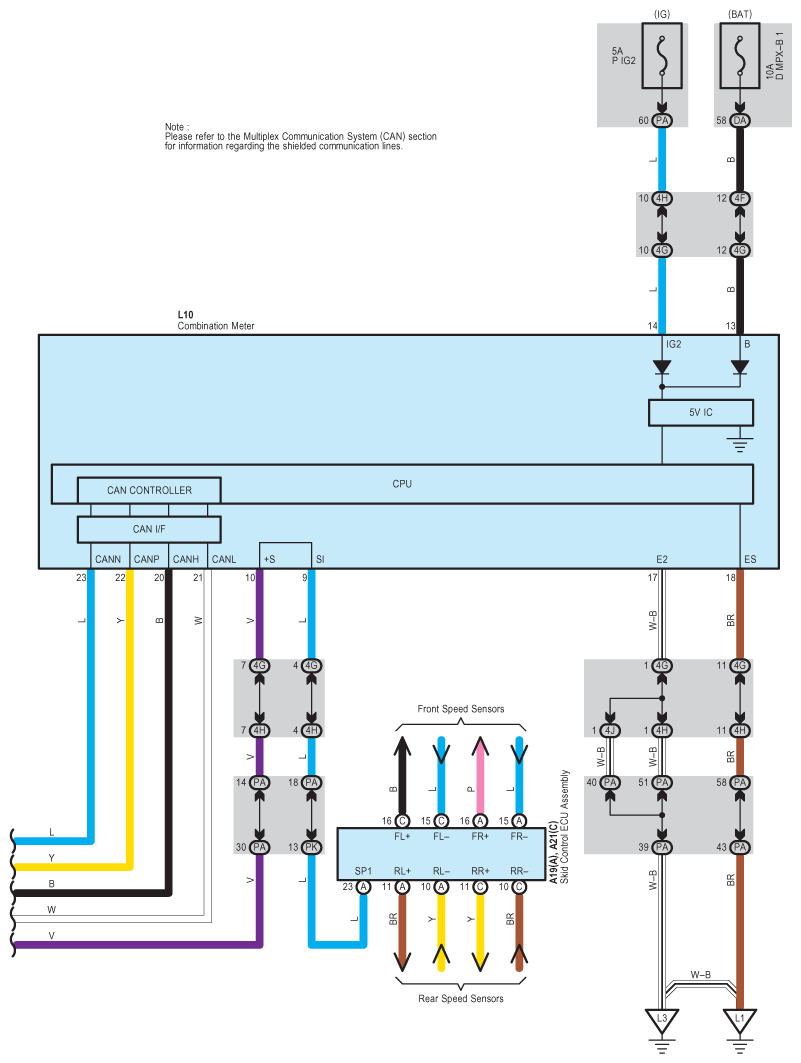

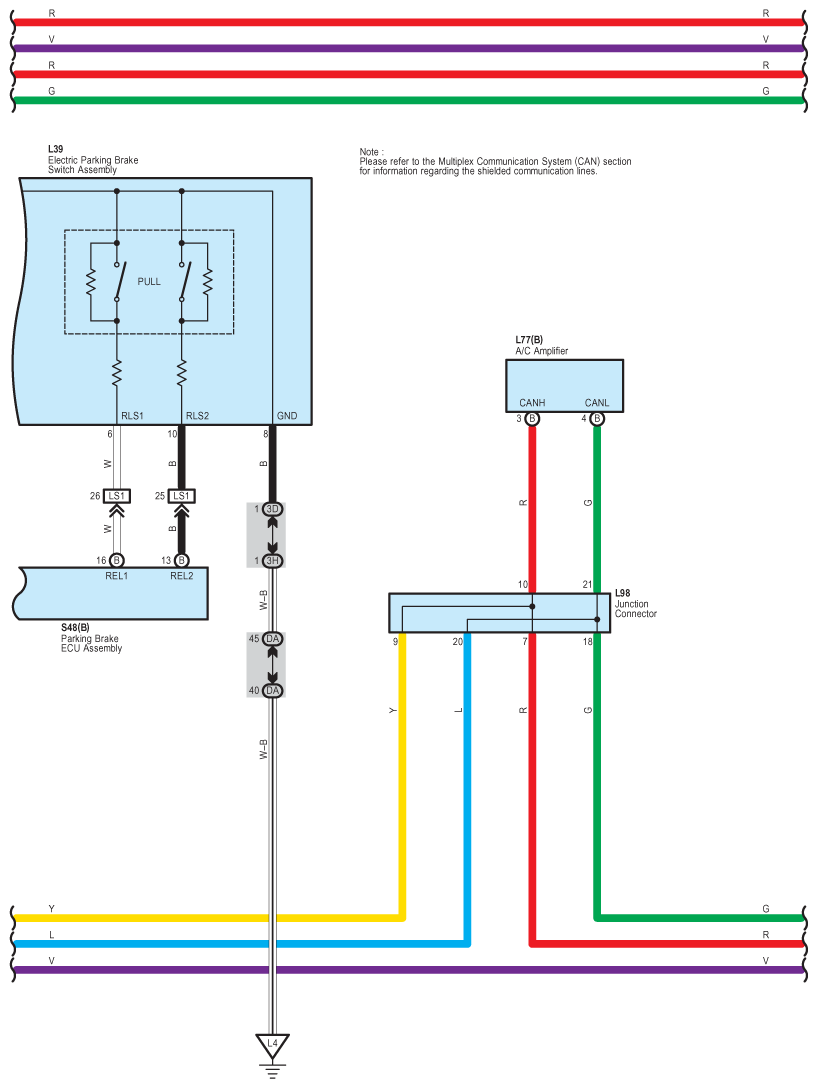

Fig 1: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

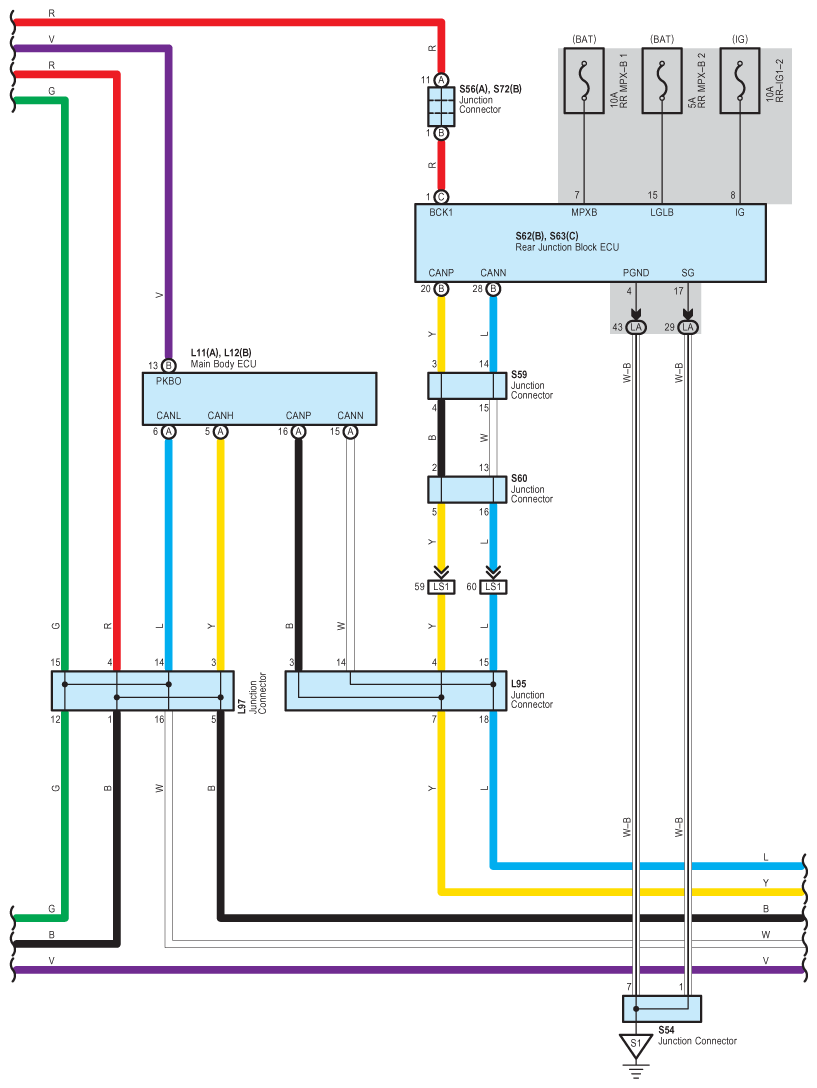

Fig 2: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

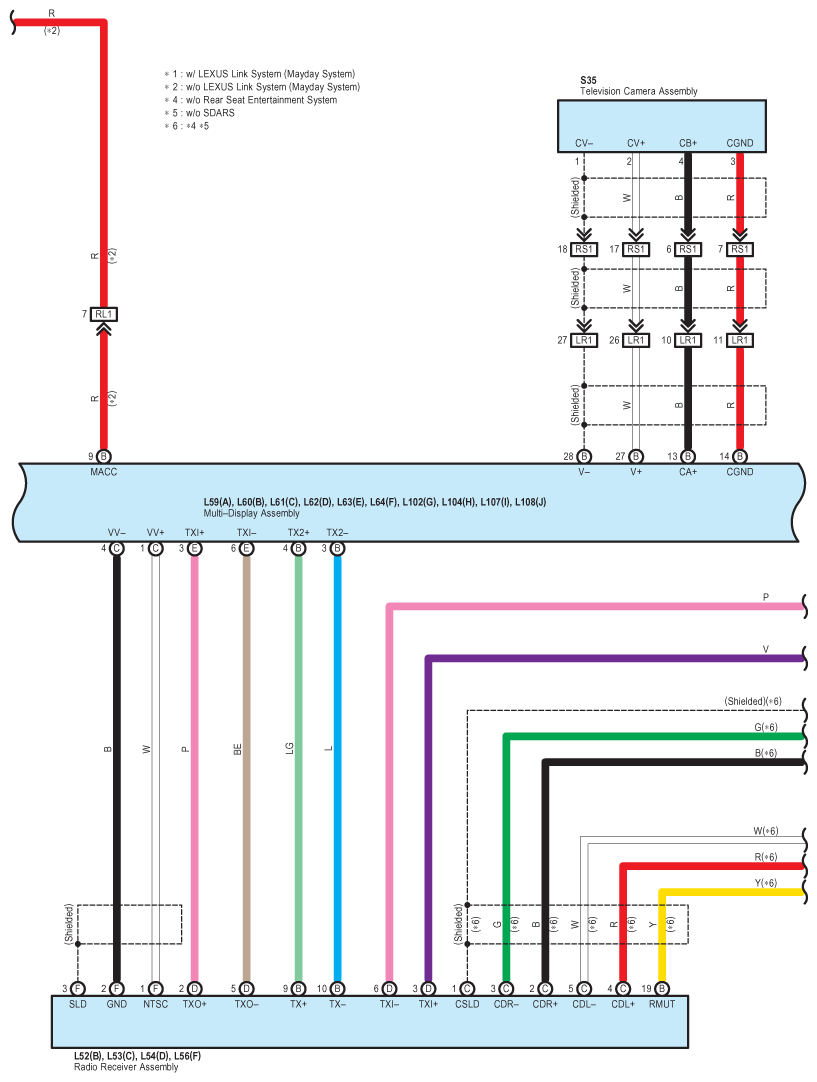

Fig 3: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

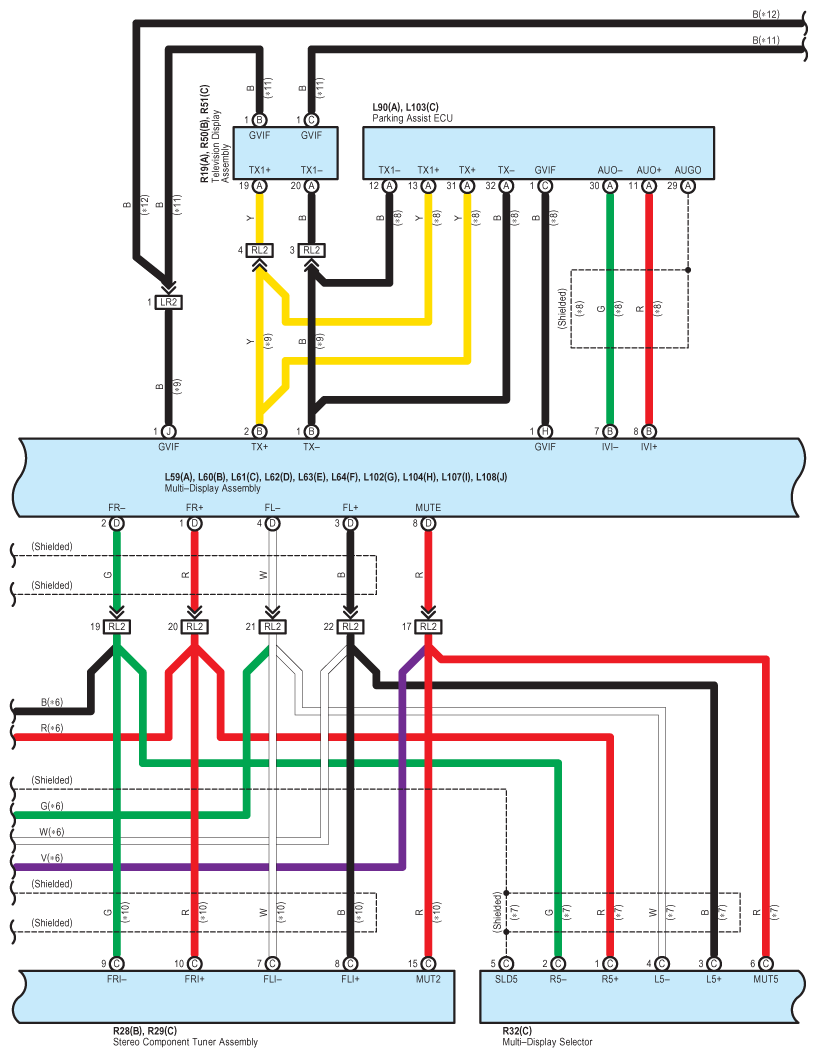

Fig 4: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

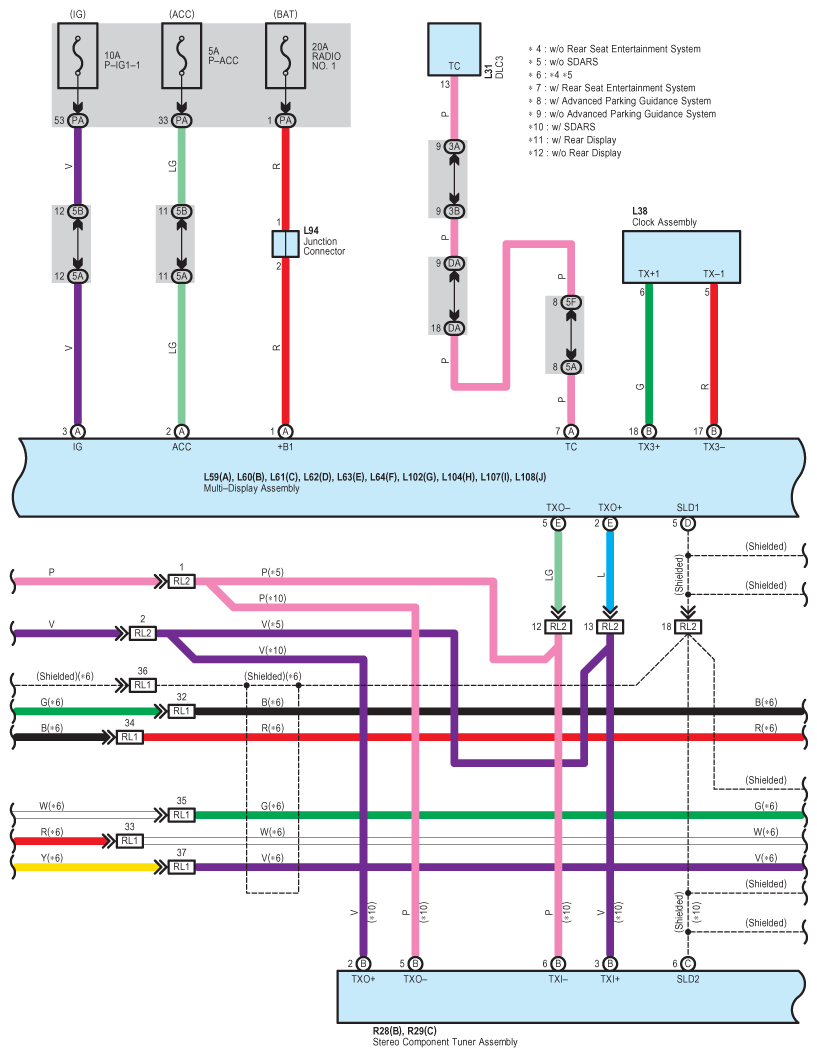

Fig 5: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

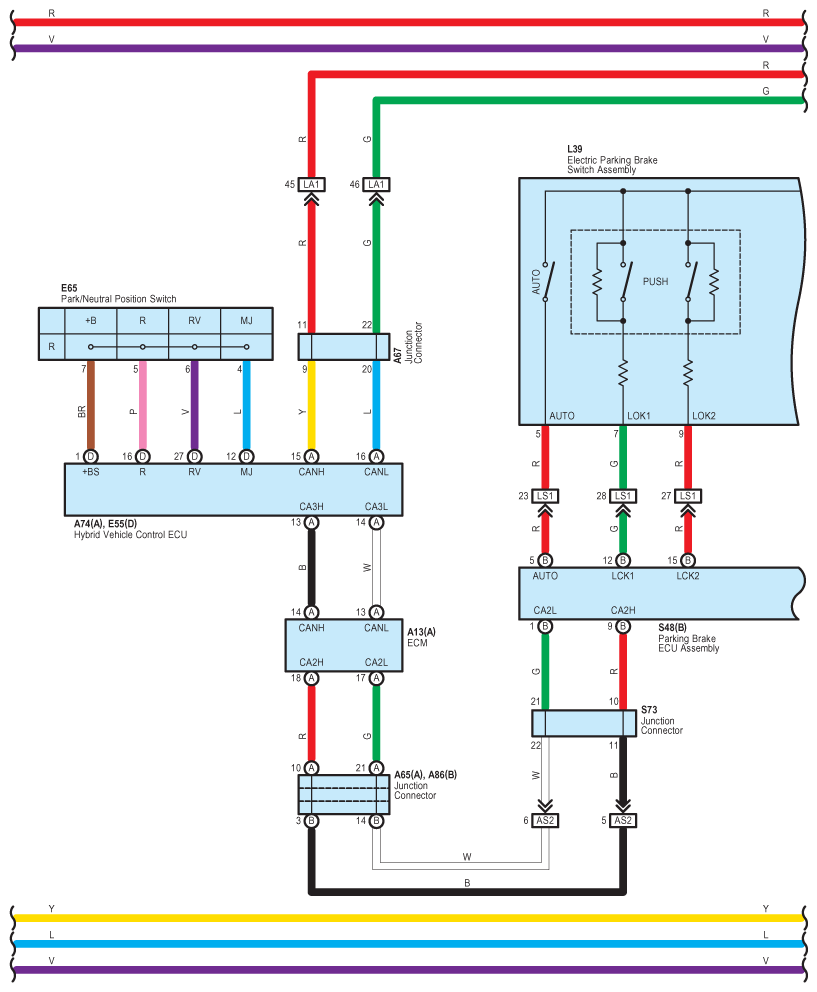

Fig 6: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

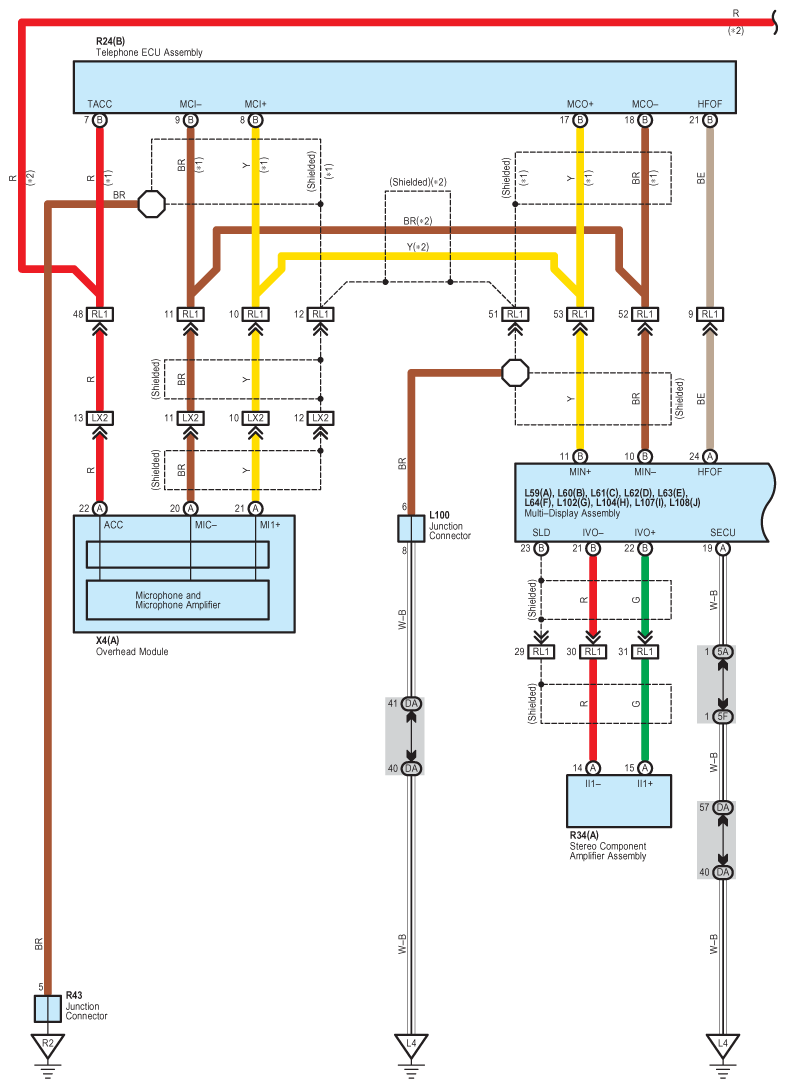

Fig 7: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (7 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

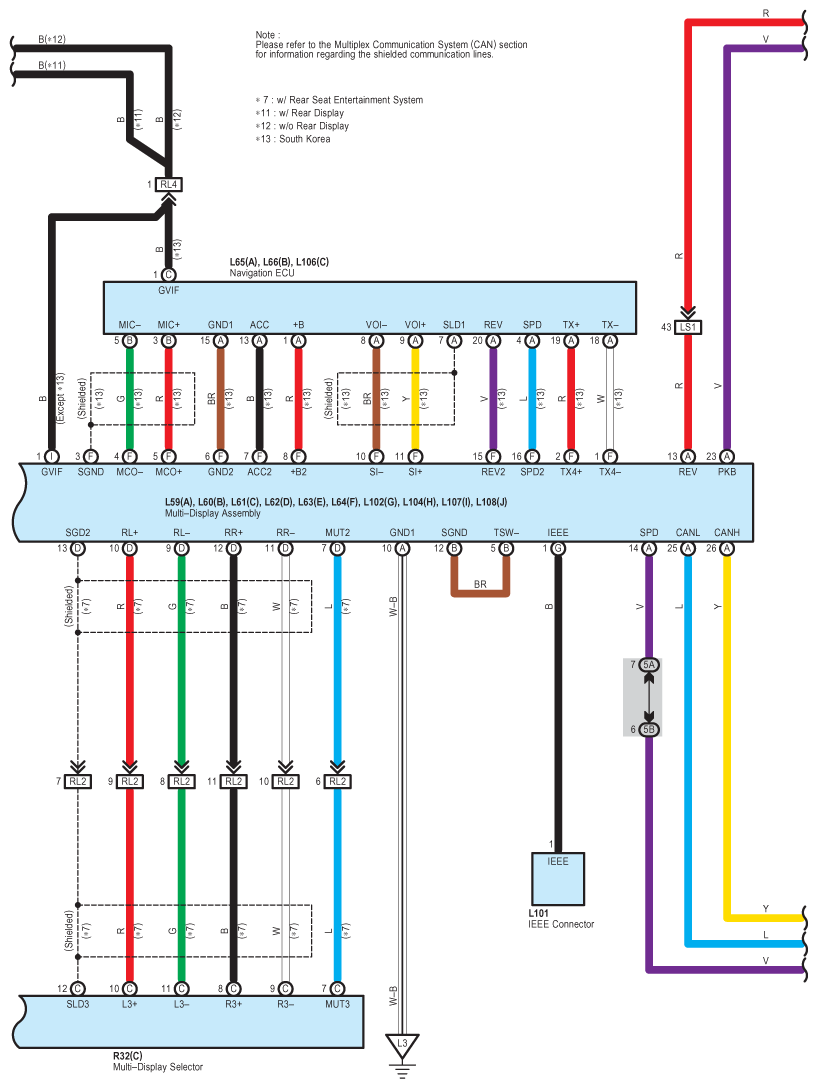

Fig 8: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (8 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Lexus Navigation System, Parking Assist (Rear View Monitor) And Multi-Display (W/O Lexus Navigation System) - Circuit Diagram (9 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
