Multiplex Communication System (CAN): Notes

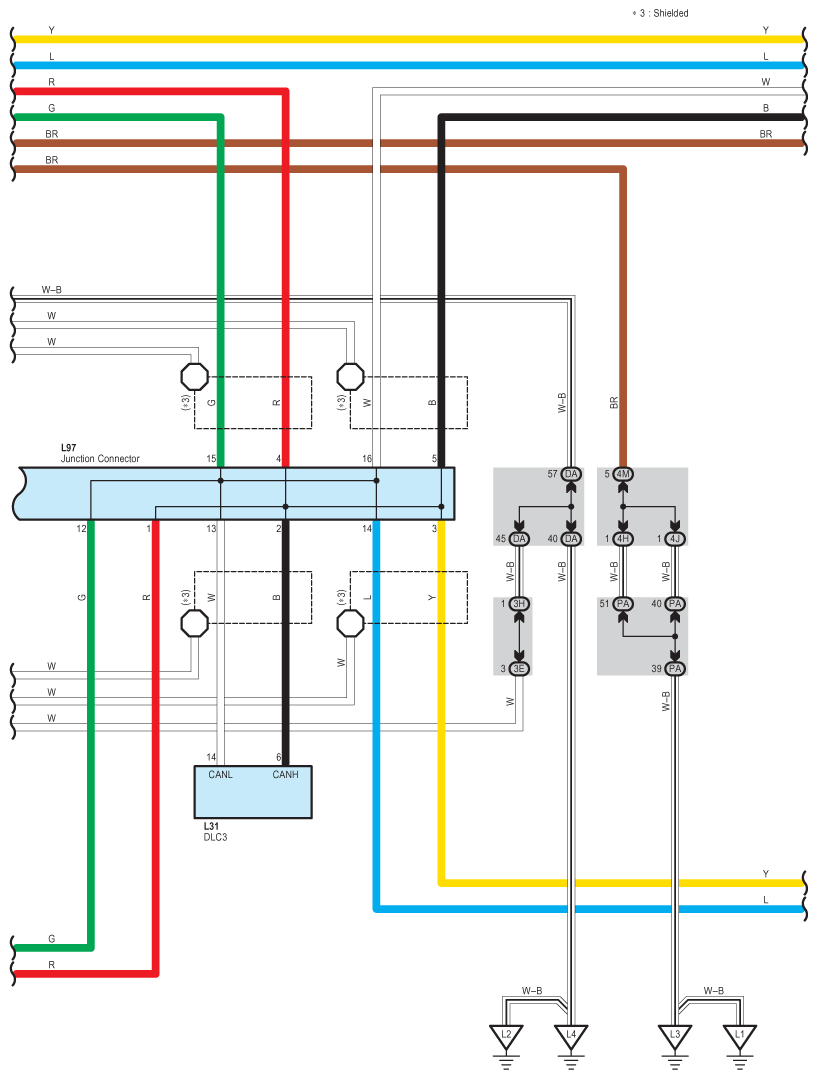

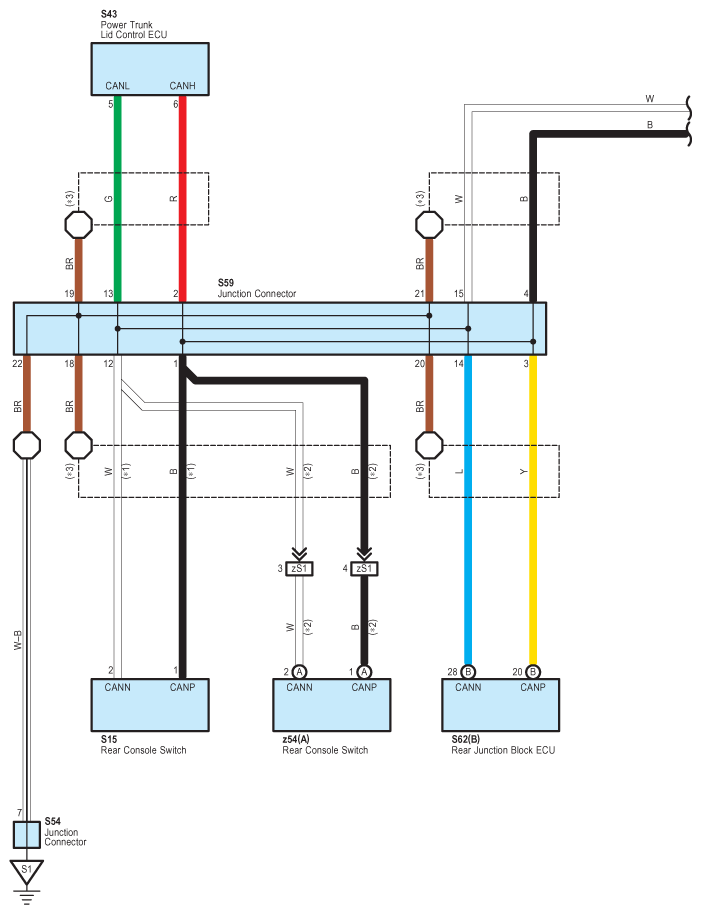

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram (1 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

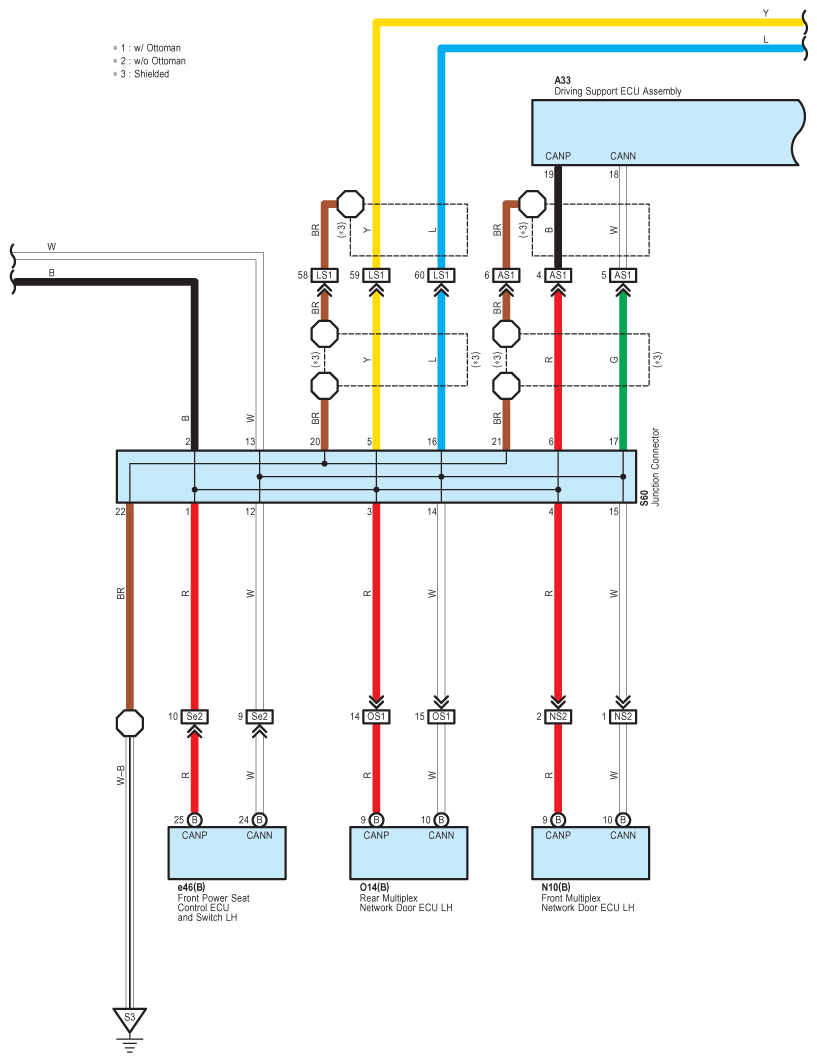

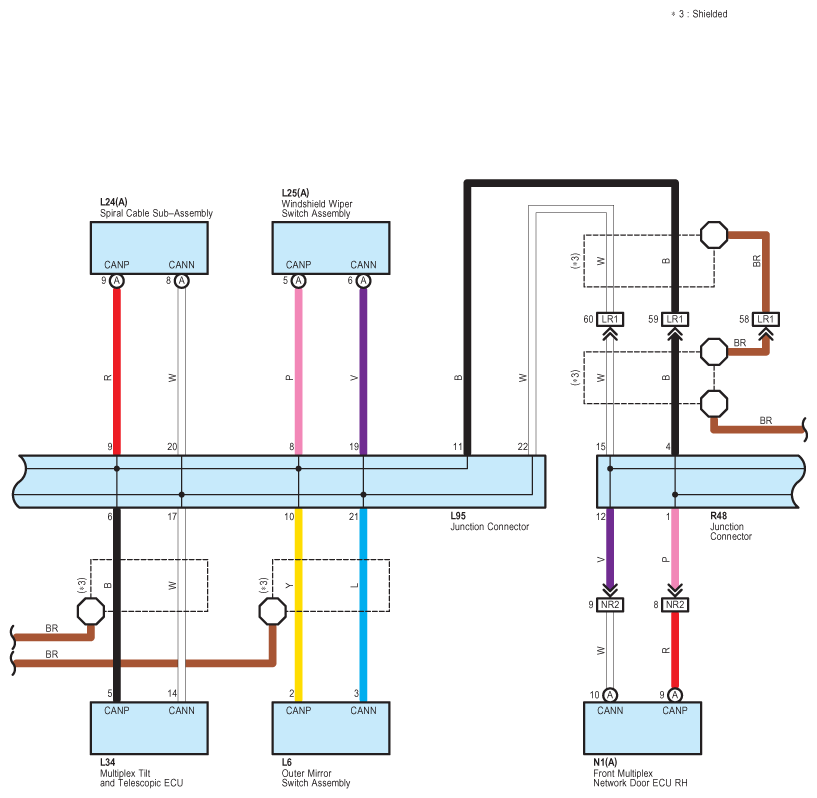

Fig 2: Multiplex Communication System (CAN) - Circuit Diagram (2 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

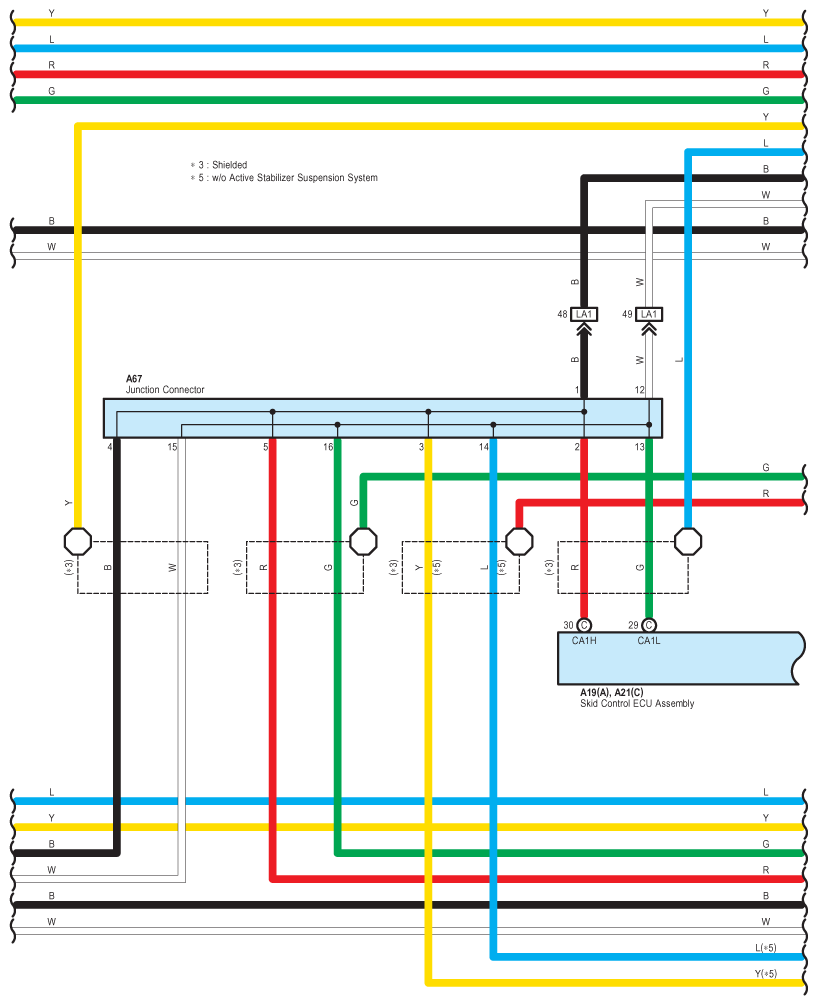

Fig 3: Multiplex Communication System (CAN) - Circuit Diagram (3 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

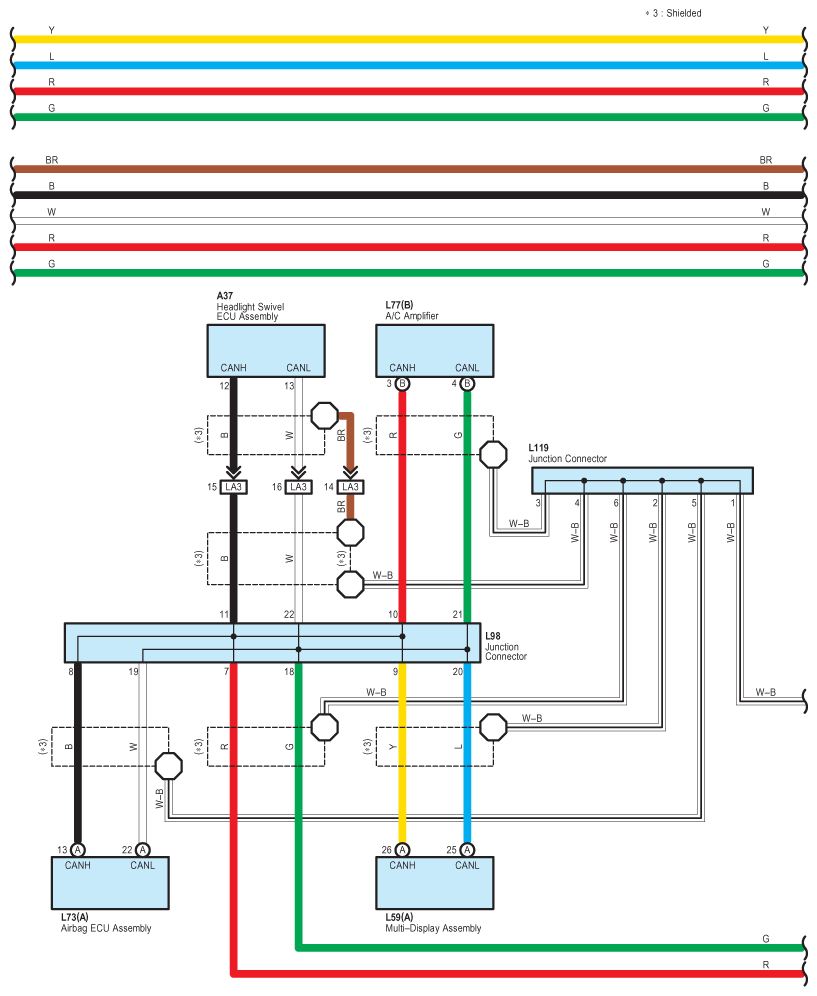

Fig 4: Multiplex Communication System (CAN) - Circuit Diagram (4 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

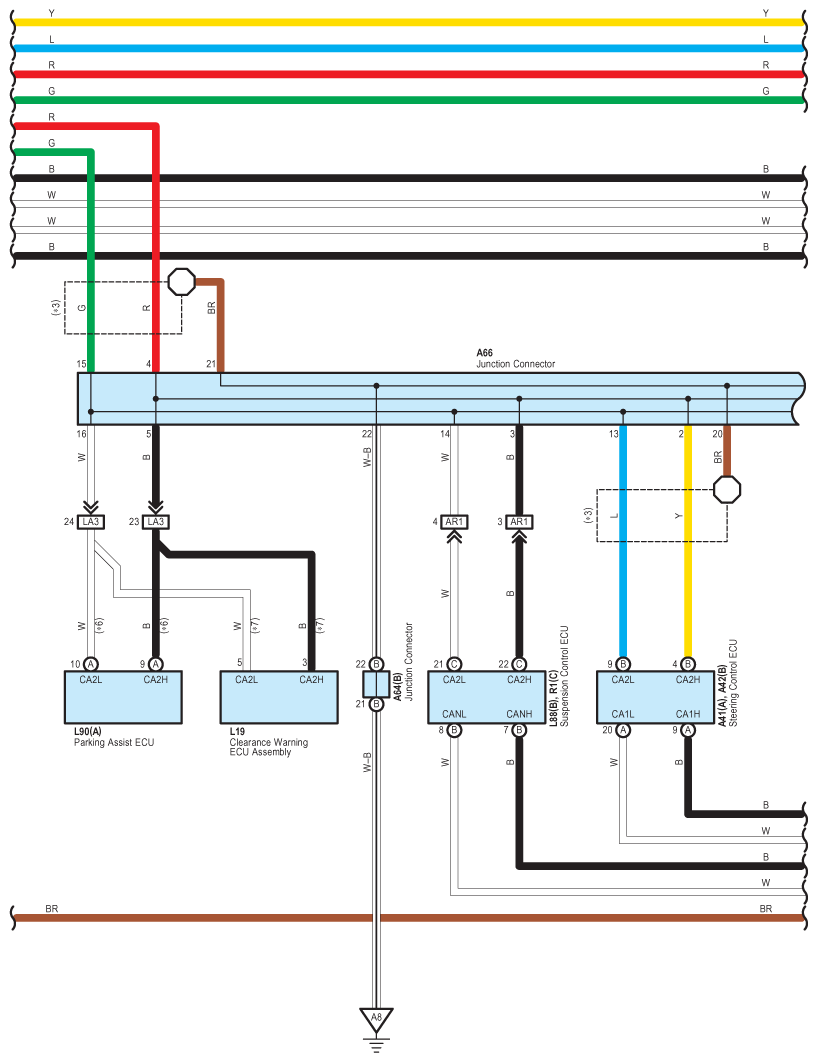

Fig 5: Multiplex Communication System (CAN) - Circuit Diagram (5 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

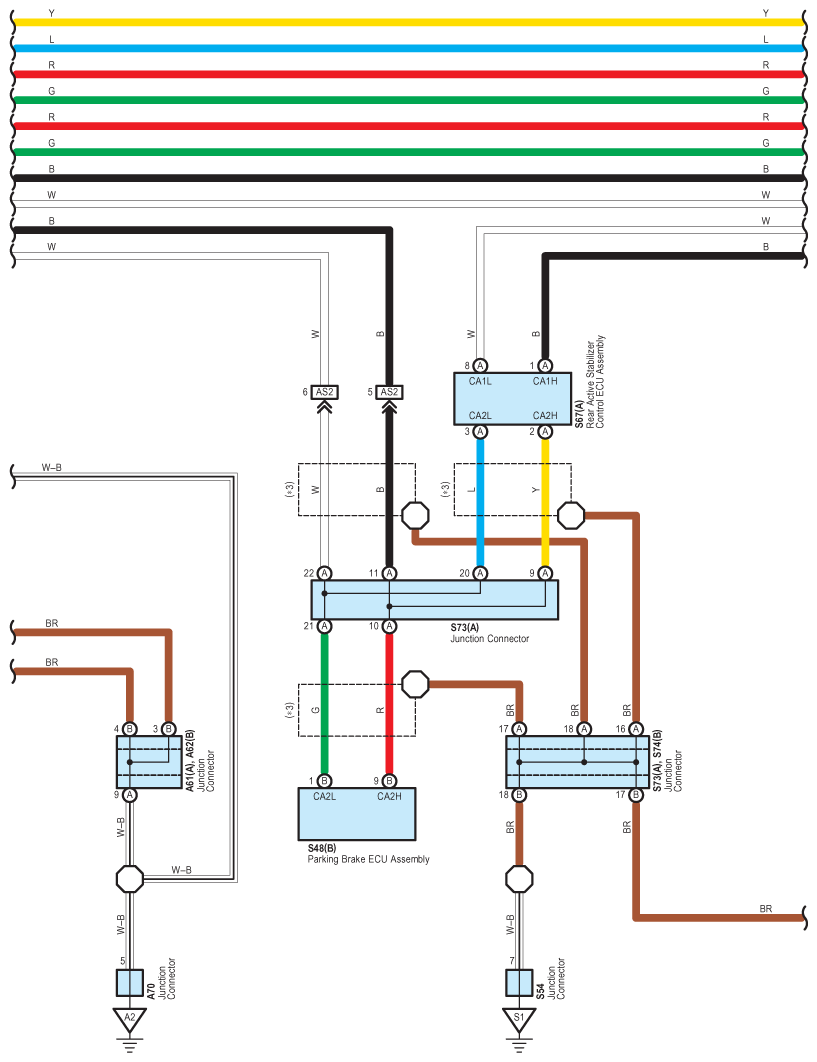

Fig 6: Multiplex Communication System (CAN) - Circuit Diagram (6 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

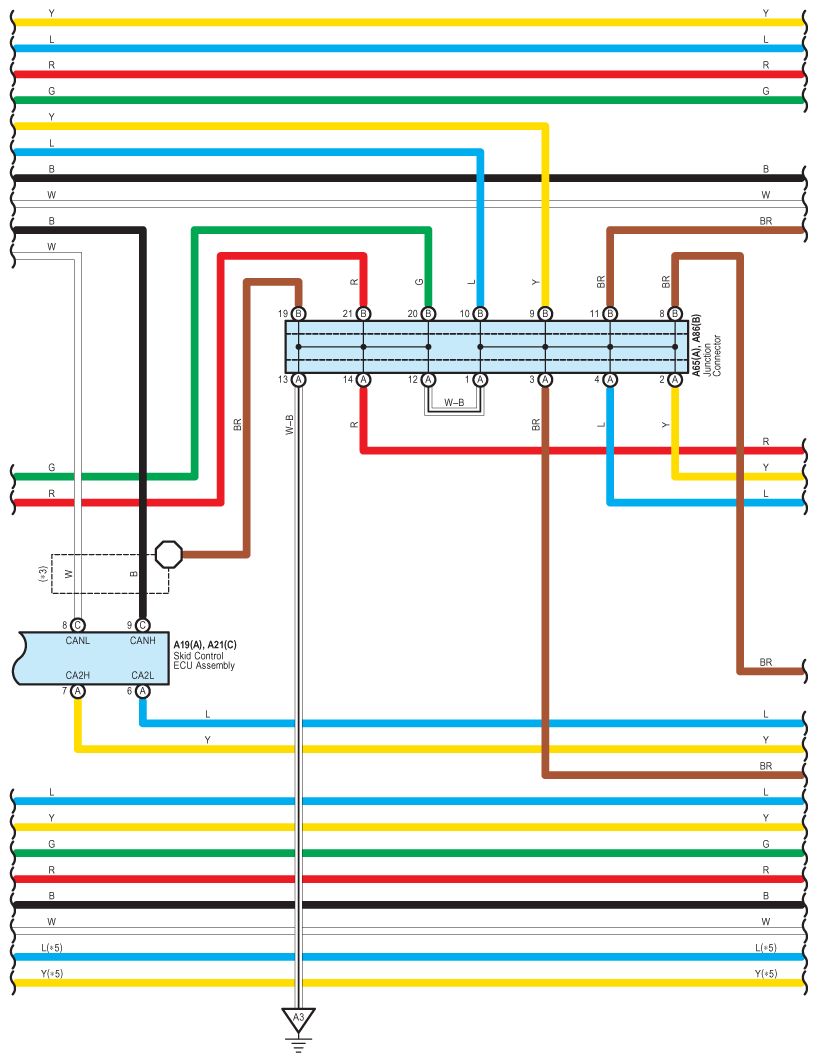

Fig 7: Multiplex Communication System (CAN) - Circuit Diagram (7 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

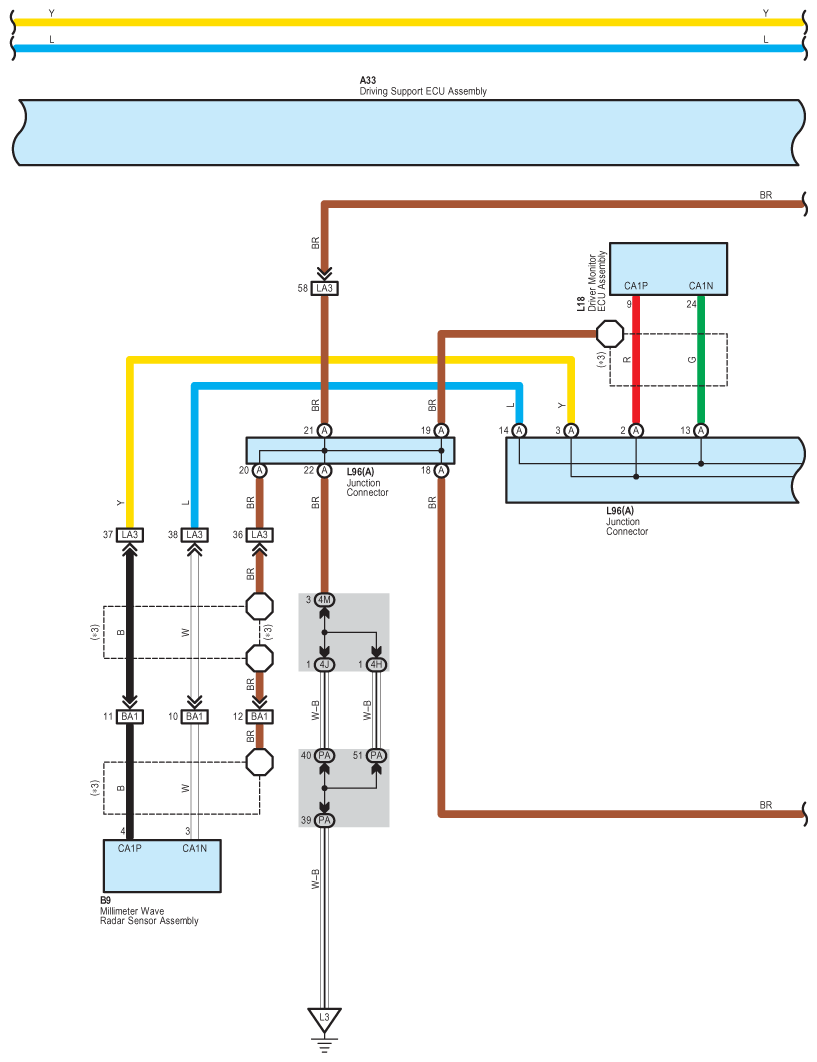

Fig 8: Multiplex Communication System (CAN) - Circuit Diagram (8 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

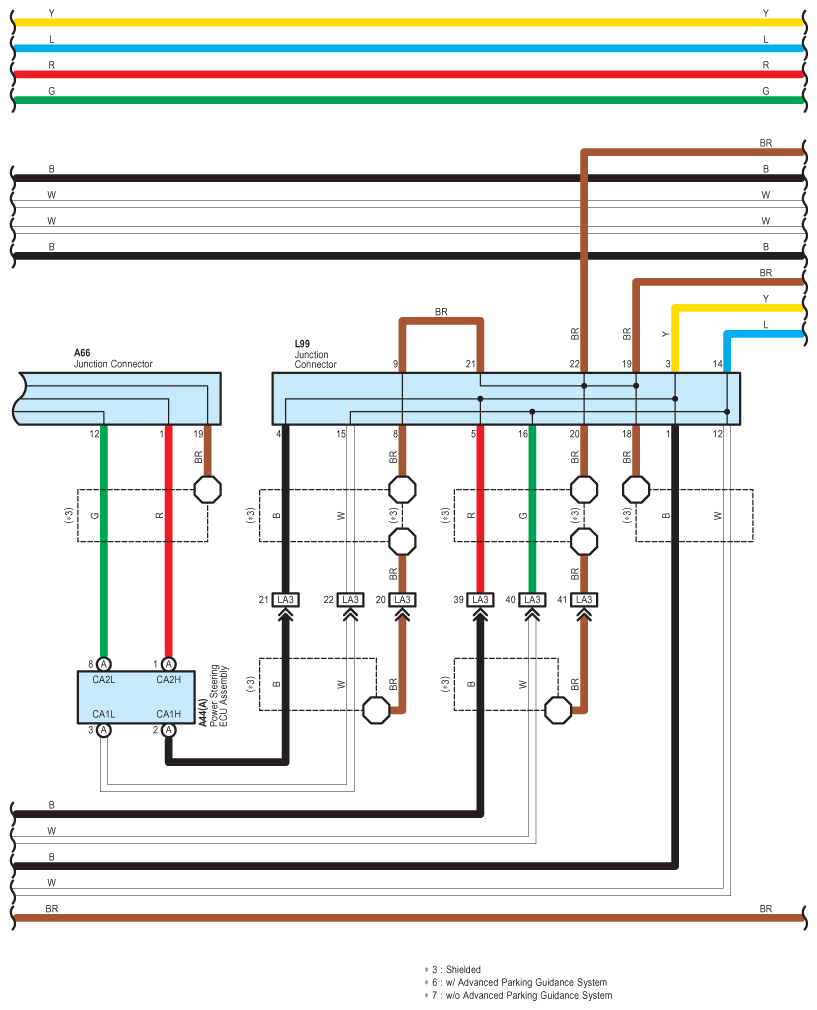

Fig 9: Multiplex Communication System (CAN) - Circuit Diagram (9 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

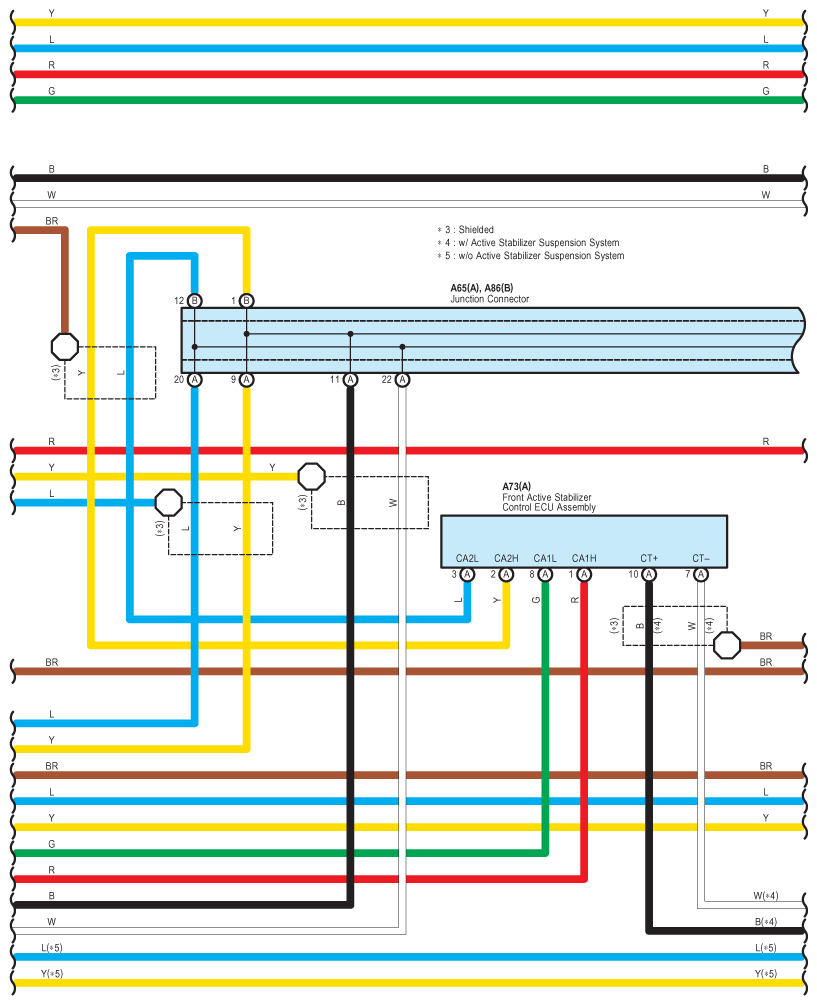

Fig 10: Multiplex Communication System (CAN) - Circuit Diagram (10 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

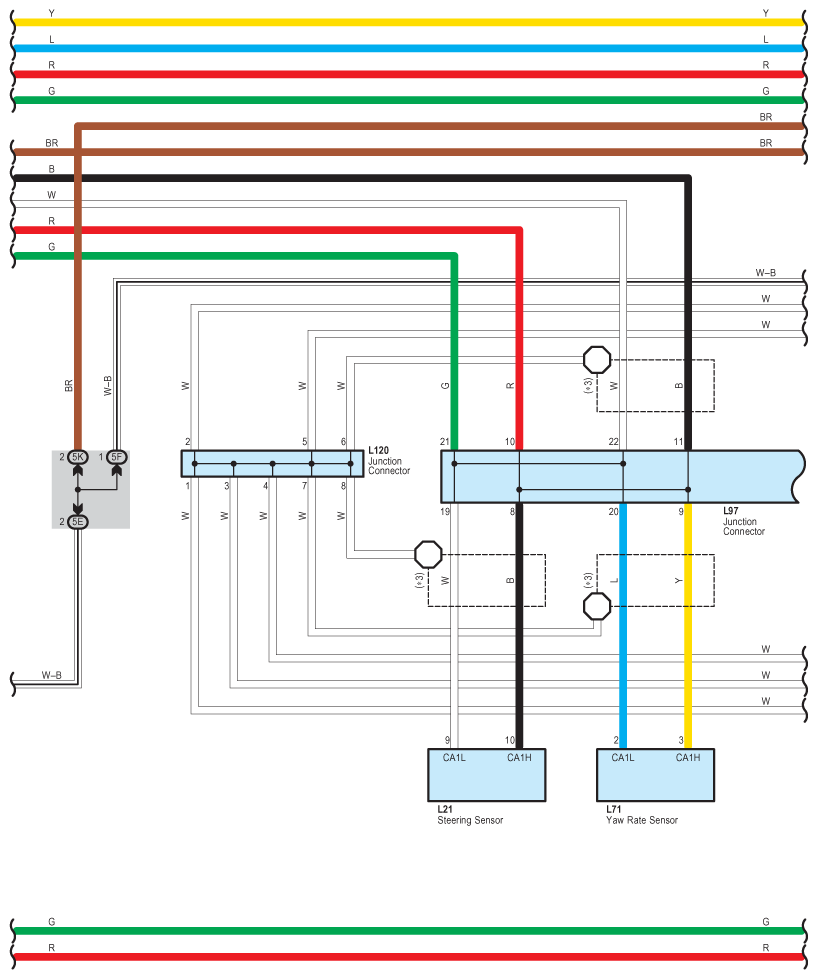

Fig 11: Multiplex Communication System (CAN) - Circuit Diagram (11 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

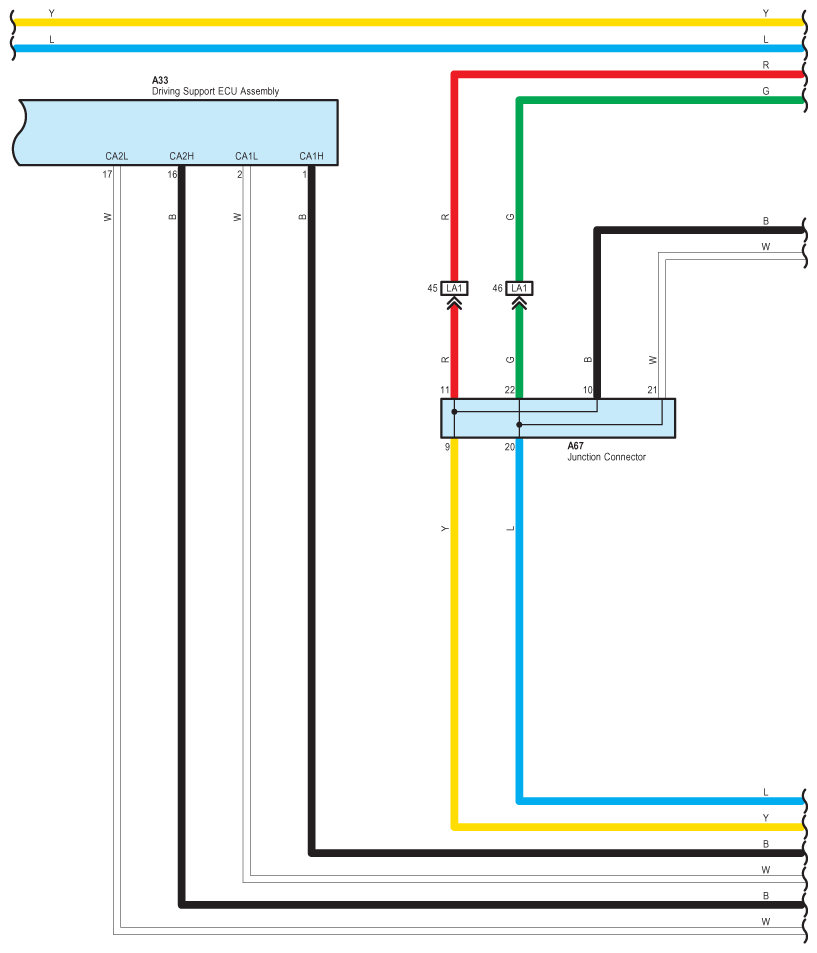

Fig 12: Multiplex Communication System (CAN) - Circuit Diagram (12 Of 19)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

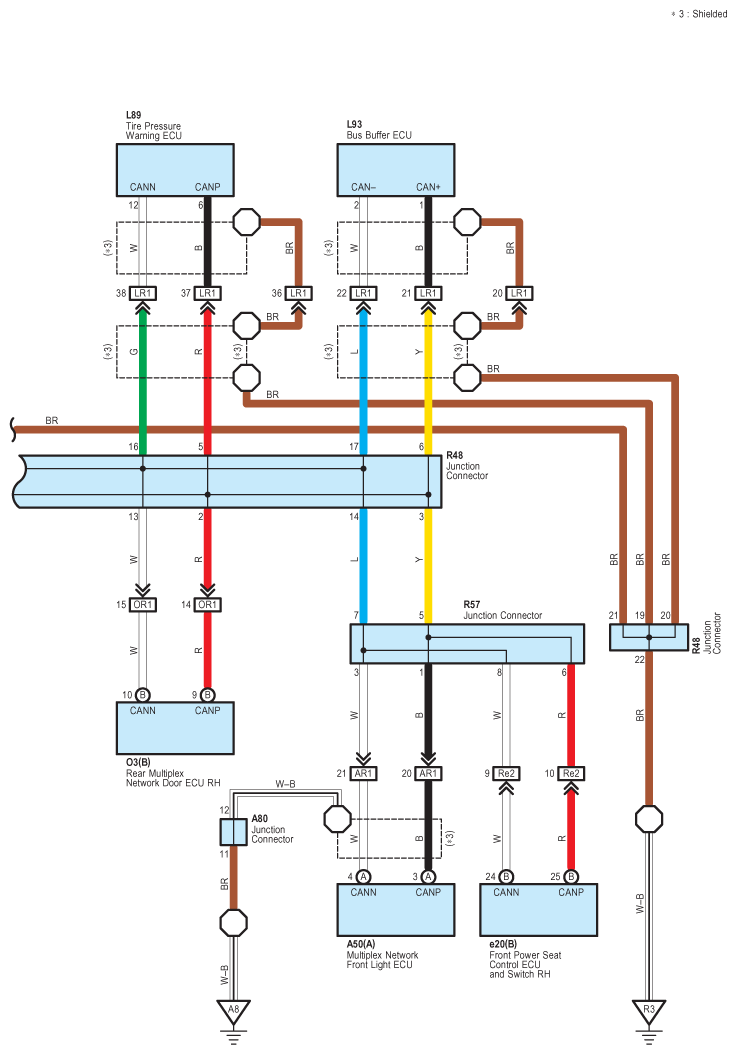

Fig 13: Multiplex Communication System (CAN) - Circuit Diagram (13 Of 19)

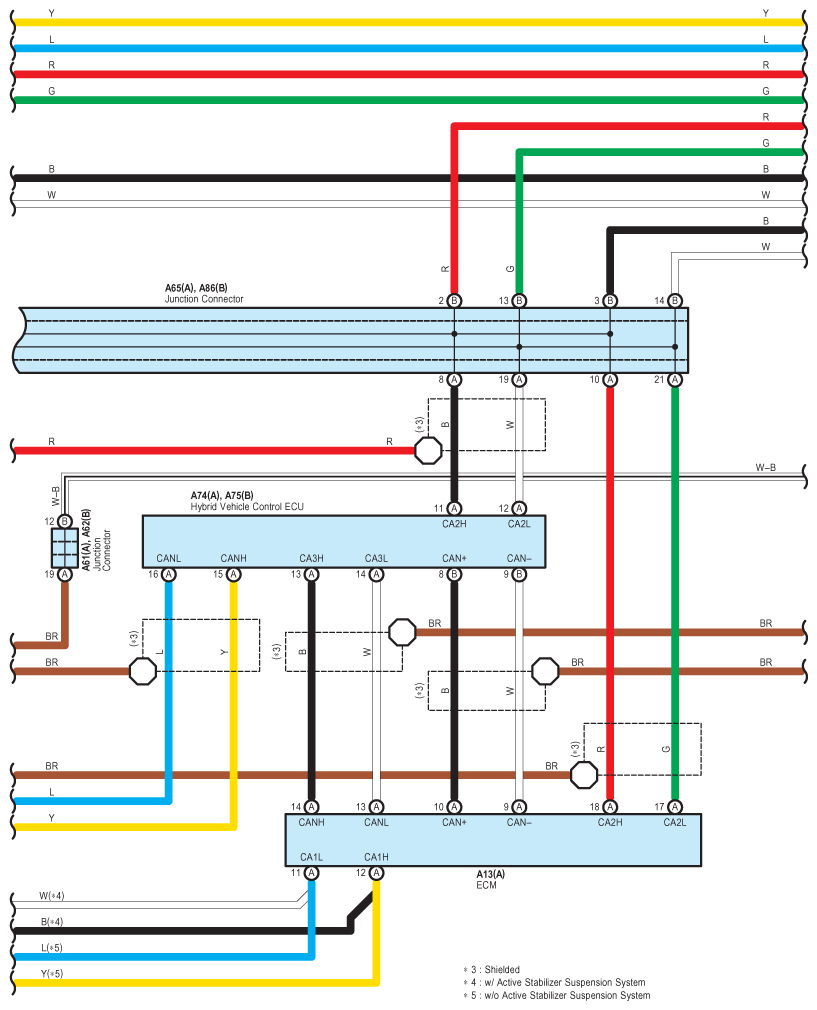

Fig 14: Multiplex Communication System (CAN) - Circuit Diagram (14 Of 19)

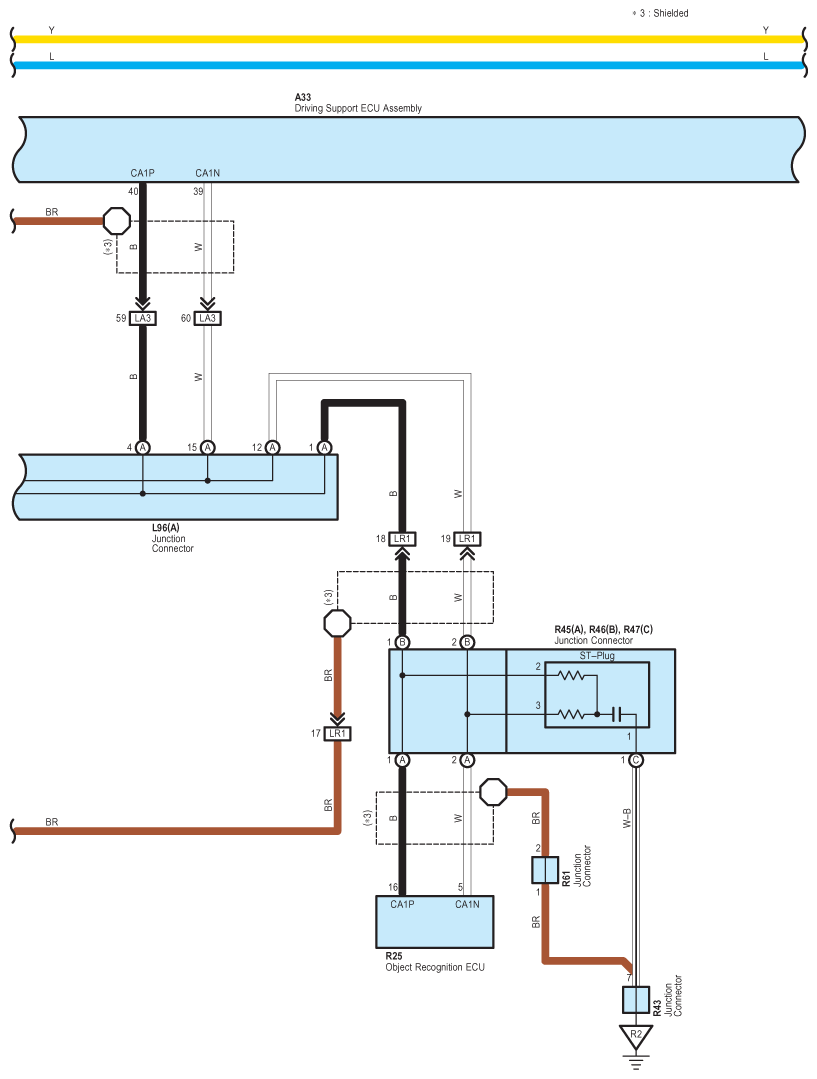

Fig 15: Multiplex Communication System (CAN) - Circuit Diagram (15 Of 19)

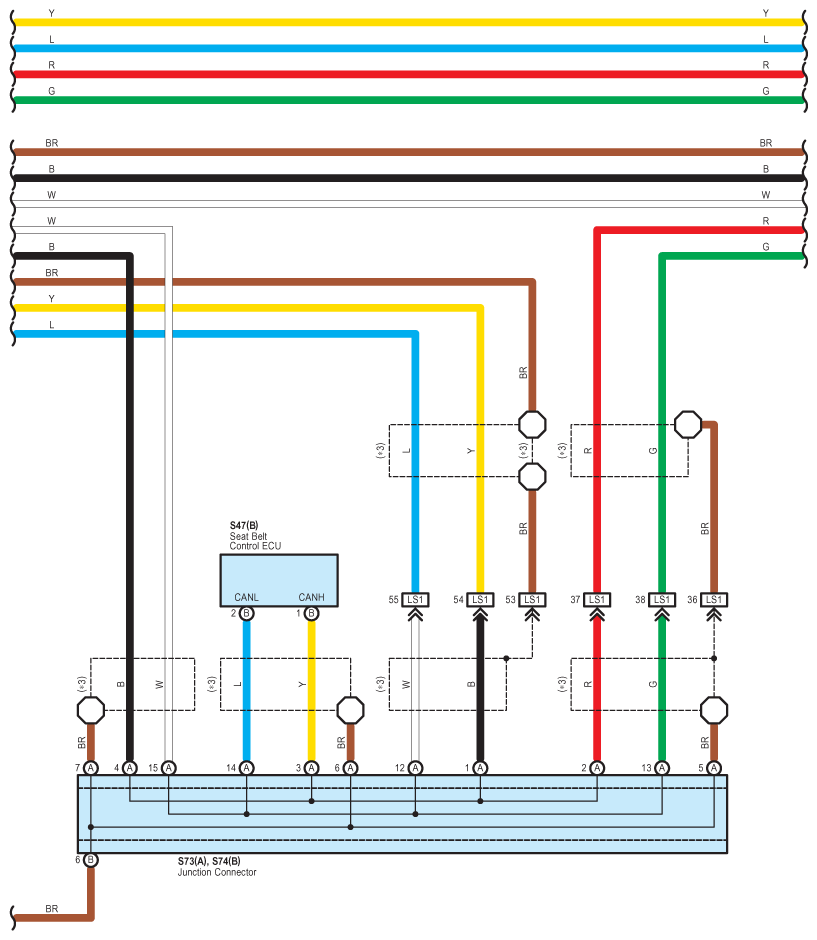

Fig 16: Multiplex Communication System (CAN) - Circuit Diagram (16 Of 19)

Fig 17: Multiplex Communication System (CAN) - Circuit Diagram (17 Of 19)

Fig 18: Multiplex Communication System (CAN) - Circuit Diagram (18 Of 19)

Fig 19: Multiplex Communication System (CAN) - Circuit Diagram (19 Of 19)
