Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Amplifier | Center of dash. See Figure. |
| Amplifier Antenna Assembly | Center of dash. See Figure. |

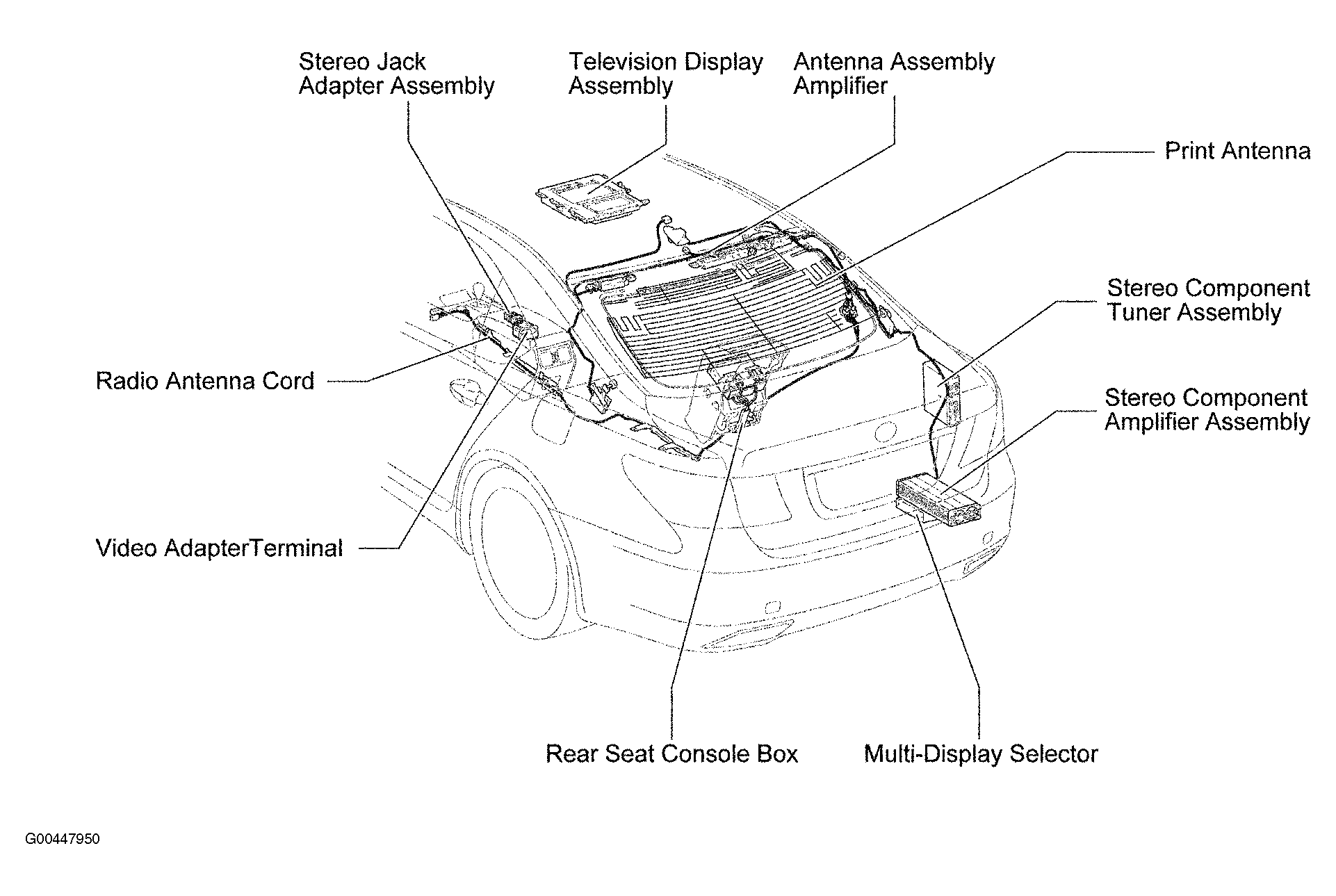

| Antenna Assembly Amplifier | Top of rear window. See Figure. |
| Brake Control Power Supply | Left rear of luggage compartment. See Figure. |
| Brake Stroke Simulator | Left rear of engine compartment. See Figure. |
| Curtain Shield Airbag Squib Circuit LH | Left side of roof. See Figure. |
| Curtain Shield Airbag Squib Circuit RH | Right side of roof. See Figure. |
| DLC3 | Left side of dash. See Figure. |
| Door Control Receiver | Right rear of luggage compartment. See Figure. |
| Driver Monitor Camera | Left side of dash. See Figure. |
| Driver Side Knee Airbag | Left side of dash. See Figure. |
| Driver Side Squib Circuit | Left side of dash. See Figure. |
| Driver Side Squib 2nd Step Circuit | Left side of dash. See Figure. |
| Electrical Key Antenna | Right "C" pillar. See Figure. |
| Electrical Key Oscillator | Left "C" pillar. See Figure. |
| Electrical Key Oscillator (Front Door LH) | Driver's door outside handle. See Figure. |
| Electrical Key Oscillator (Front Door RH) | Front passenger's door outside handle. See Figure. |
| Electrical Key Oscillator (Rear Door LH) | Left rear door outside handle. See Figure. |
| Electrical Key Oscillator (Rear Door RH) | Right rear door outside handle. See Figure. |
| Front Indoor Electrical Key Oscillator | Under center console. See Figure. |
| Front Pretensioner LH | Base of left "B" pillar. See Figure. |
| Front Pretensioner RH | Base of right "B" pillar. See Figure. |
| Front Seat Heater LH | Driver's seat back. See Figure. |
| Front Seat Heater RH | Front passenger's seat back. See Figure. |
| Front Side Airbag Squib Circuit LH | Under driver's seat. See Figure. |
| Front Side Airbag Squib Circuit RH | Under front passenger's seat. See Figure. |
| Front Tension Reducer LH | Base of left "B" pillar. See Figure. |
| Front Tension Reducer RH | Base of right "B" pillar. See Figure. |
| Front Wiper Deicer (Windshield Glass) | Left rear of engine compartment. See Figure. |
| Fuel Pump Resistor | Left side of engine compartment. See Figure. |
| High Pitched Horn Assembly | Left front of engine compartment. See Figure. |
| HV Battery Thermometer | Rear of vehicle. See Figure. |
| Hybrid Vehicle Converter | Right rear of luggage compartment. See Figure. |
| ID Code Box | Left side of dash. See Figure. |
| IEEE Connector | Left side of dash. See Figure. |
| Ignition Coil Assembly (No. 1) | Above No. 1 spark plug. See Figure. |
| Ignition Coil Assembly (No. 2) | Above No. 2 spark plug. See Figure. |
| Ignition Coil Assembly (No. 3) | Above No. 3 spark plug. See Figure. |
| Ignition Coil Assembly (No. 4) | Above No. 4 spark plug. See Figure. |
| Ignition Coil Assembly (No. 5) | Above No. 5 spark plug. See Figure. |
| Ignition Coil Assembly (No. 6) | Above No. 6 spark plug. See Figure. |
| Ignition Coil Assembly (No. 7) | Above No. 7 spark plug. See Figure. |
| Ignition Coil Assembly (No. 8) | Above No. 8 spark plug. See Figure. |
| Junction Connector A66 | Right kick panel. See Figure. |
| Junction Connector A80 | Right side of engine compartment. See Figure. |
| Junction Connector A85 | Right side of engine compartment. See Figure. |
| Junction Connector A86 | Left side of dash. See Figure. |
| Junction Connector E31 | Under front passenger's seat. See Figure. |
| Junction Connector E55 | Under driver's seat. See Figure. |
| Junction Connector E55 | Under front passenger's seat. See Figure. |
| Junction Connector F20 | Right rear seat back. See Figure. |
| Junction Connector F20 | Right rear seat back. See Figure. |
| Junction Connector F36 | Left rear seat back. See Figure. |
| Junction Connector L94 | Right side of dash. See Figure. |

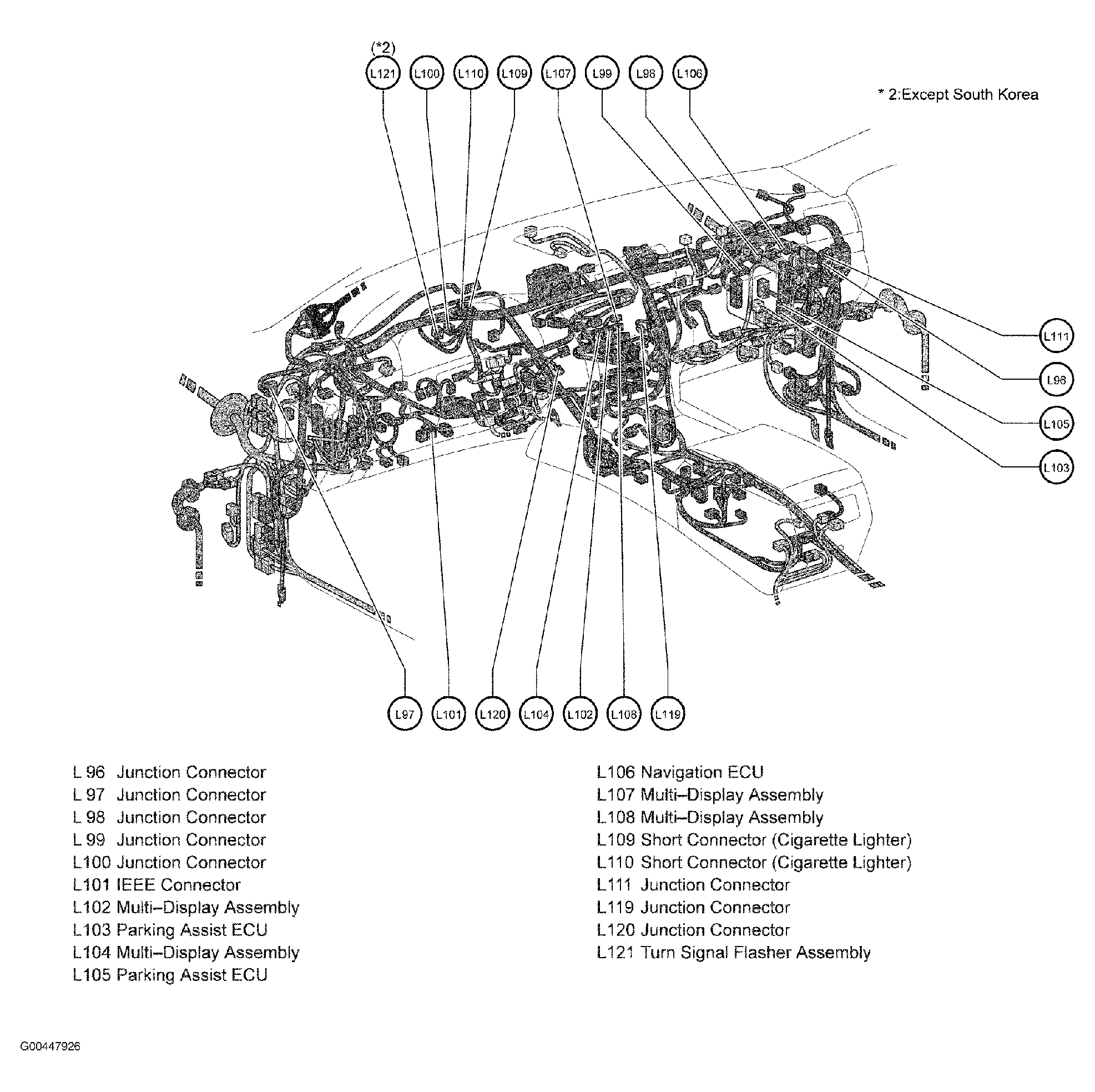

| Junction Connector L100 | Left center of dash. See Figure. |
| Junction Connector L111 | Right side of dash. See Figure. |
| Junction Connector L119 | Center of dash. See Figure. |
| Junction Connector L120 | Center of dash. See Figure. |
| Junction Connector R48 | Right kick panel. See Figure. |
| Junction Connector R61 | Right side of luggage compartment. See Figure. |
| Junction Connectors A60, A61, A62 & A70 | Left front of engine compartment. See Figure. |
| Junction Connectors A63 & A64 | Right side of engine compartment. See Figure. |
| Junction Connectors A65 & A67 | Left kick panel. See Figure. |
| Junction Connectors E51, E52 & E53 | Left front of engine compartment. See Figure. |
| Junction Connectors L95 & L96 | Left end of dash. See Figure. |
| Junction Connectors L96, L98 & L99 | Right side of dash. See Figure. |
| Junction Connectors R41, R42, R43, R44, R46 & R47 | Right side of luggage compartment. See Figure. |
| Junction Connectors S55 & S56 | Left rear of luggage compartment. See Figure. |
| Junction Connectors S57 & S58 | Left front of luggage compartment. See Figure. |
| Junction Connector S54 | Left side of luggage compartment. See Figure. |
| Junction Connector S60 | Left kick panel. See Figure. |
| Junction Connector S72 | Left rear quarter panel. See Figure. |
| Junction Connector S73 | Left rear of vehicle. See Figure. |
| Junction Connector S74 | Left rear of vehicle. See Figure. |
| Junction Connector Z43 | Right rear of vehicle chassis. See Figure. |
| Low Pitched Horn Assembly | Right front of engine compartment. See Figure. |
| Luggage Electrical Key Antenna (Inner) | Left rear of luggage compartment. See Figure. |
| Mayday Battery (Backup Battery) | Left rear of luggage compartment. See Figure. |
| Multi-Display Selector | Right rear of luggage compartment. See Figure. |
| Noise Filter | R/B No. 3. See Figure. |
| Noise Filter (Bypass) | Right rear of vehicle chassis. See Figure. |
| Noise Filter (Ghost Buster) | Right rear of luggage compartment. See Figure. |
| Noise Filter (Ignition Bank 1) | Left rear of engine. See Figure. |
| Noise Filter (Ignition Bank 2) | Right rear of engine. See Figure. |
| Noise Filter (Rear Window Defogger) (S19) | Left "C" pillar. See Figure. |
| Noise Filter (Rear Window Defogger) (W1) | Right "C" pillar. See Figure. |
| Object Recognition ECU | Right rear of luggage compartment. See Figure. |
| Oil Pump Thermistor | Right side of engine. See Figure. |
| Outside Luggage Electrical Key Antenna (Outside) | Right side of rear bumper. See Figure. |
| Passenger Side Knee Airbag | Right side of dash. See Figure. |
| Print Antenna | In rear window. See Figure. |
| Quick Heater Assembly | Center of dash. See Figure. |
| Radio Setting Condenser | Left "C" pillar. See Figure. |
| Rear Door Courtesy Light Switch Assembly LH | Base of left "C" pillar. See Figure. |
| Rear Electrical Key Oscillator | Rear of vehicle chassis. See Figure. |
| Rear Pretensioner LH | Left "C" pillar. See Figure. |
| Rear Pretensioner RH | Right "C" pillar. See Figure. |
| Rear Seat Console Box | Rear seat assembly. See Figure. |
| Rear Seat Heater LH | Left rear seat back. See Figure. |
| Rear Seat Heater RH | Right rear seat back. See Figure. |
| Rear Side Airbag Squib Circuit LH | Left rear seat back. See Figure. |
| Rear Side Airbag Squib Circuit RH | Right rear seat back. See Figure. |
| Security Horn Assembly | Left rear of engine compartment. See Figure. |
| Short Connector (Cigarette Lighter) | Left center of dash. See Figure. |
| Short Connector (Height Control) | Right kick panel. See Figure. |
| Spiral Cable Sub-Assembly | In steering column. See Figure. |
| Stereo Component Amplifier Assembly | Right rear of luggage compartment. See Figure. |
| Stereo Component Tuner Assembly | Right rear of luggage compartment. See Figure. |
| Television Camera Assembly | Center rear of luggage compartment lid. See Figure. |
| Tire Pressure Warning Antenna & Receiver | Center rear of roof. See Figure. |
