Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Battery Cooling Blower Assembly | Right side of luggage compartment. See Figure. |
| Brake Actuator Assembly | Left rear of engine compartment. See Figure. |
| Brake Booster Pump Assembly | Left rear of engine compartment. See Figure. |
| Cam Timing Control With EDU Motor Assembly (Bank 1) | Left front of engine. See Figure. |
| Cam Timing Control With EDU Motor Assembly (Bank 2) | Right front of engine. See Figure. |
| Cooling Fan Motor (Main) | Left side of radiator. See Figure. |
| Cooling Fan Motor (Sub) | Right side of radiator. See Figure. |
| Front Absorber Control Actuator LH | Left side of engine compartment. See Figure. |
| Front Absorber Control Actuator RH | Right side of engine compartment. See Figure. |
| Front Active Stabilizer Control Actuator Assembly | Left front of engine compartment. See Figure. |
| Front Blower With Fan Motor Sub-Assembly | Lower right side of dash. See Figure. |
| Front Door Closer Motor LH | Driver's door. See Figure. |
| Front Door Closer Motor RH | Front passenger's door. See Figure. |
| Front Door With Motor Lock Assembly LH | Driver's door. See Figure. |
| Front Door With Motor Lock Assembly RH | Front passenger's door. See Figure. |
| Front Headrest Motor RH | Front passenger's seat back. See Figure. |
| Front Lumbar Support Motor (Forward - Back) | Driver's seat back. See Figure. |
| Front Lumbar Support Motor RH | Front passenger's seat back. See Figure. |
| Front Lumbar Support Motor (Up - Down) | Driver's seat back. See Figure. |
| Front Power Seat Cushion Control Motor LH | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Lift Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Reclining Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Slide Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor LH (Vertical Position) | Under driver's seat. See Figure. |
| Front Power Seat Position Motor RH (Lift Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Reclining Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Slide Position) | Under front passenger's seat. See Figure. |
| Front Power Seat Position Motor RH (Vertical Position) | Under front passenger's seat. See Figure. |
| Front Power Window Regulator Motor Assembly LH | Driver's door. See Figure. |
| Front Power Window Regulator Motor Assembly RH | Front passenger's door. See Figure. |
| Front Pre-Collision Seat Belt Motor LH | Base of left "B" pillar. See Figure. |

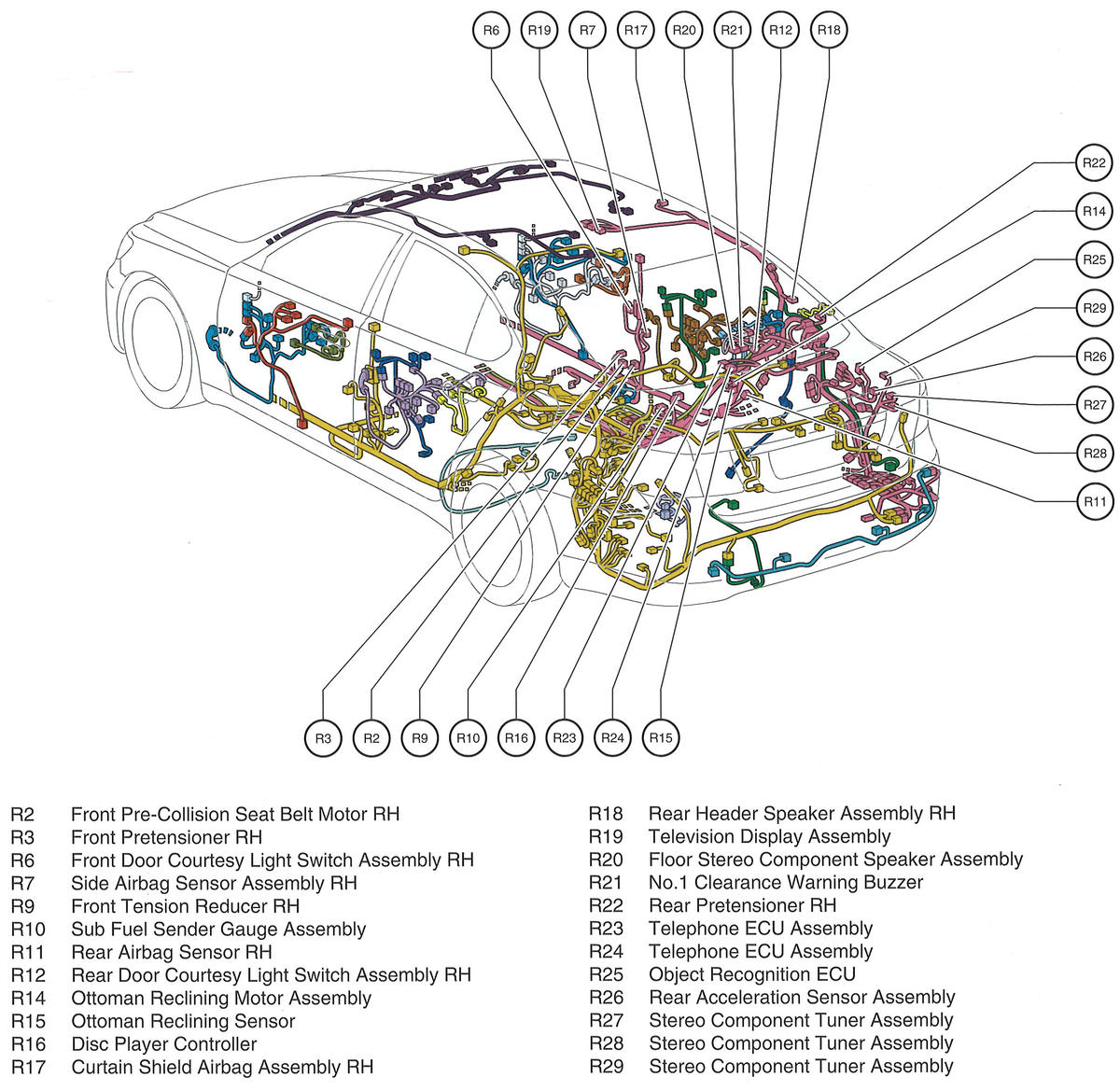

| Front Pre-Collision Seat Belt Motor RH | Base of right "B" pillar. See Figure. |
| Front Seat Climate Control Blower LH | Under driver's seat. See Figure. |

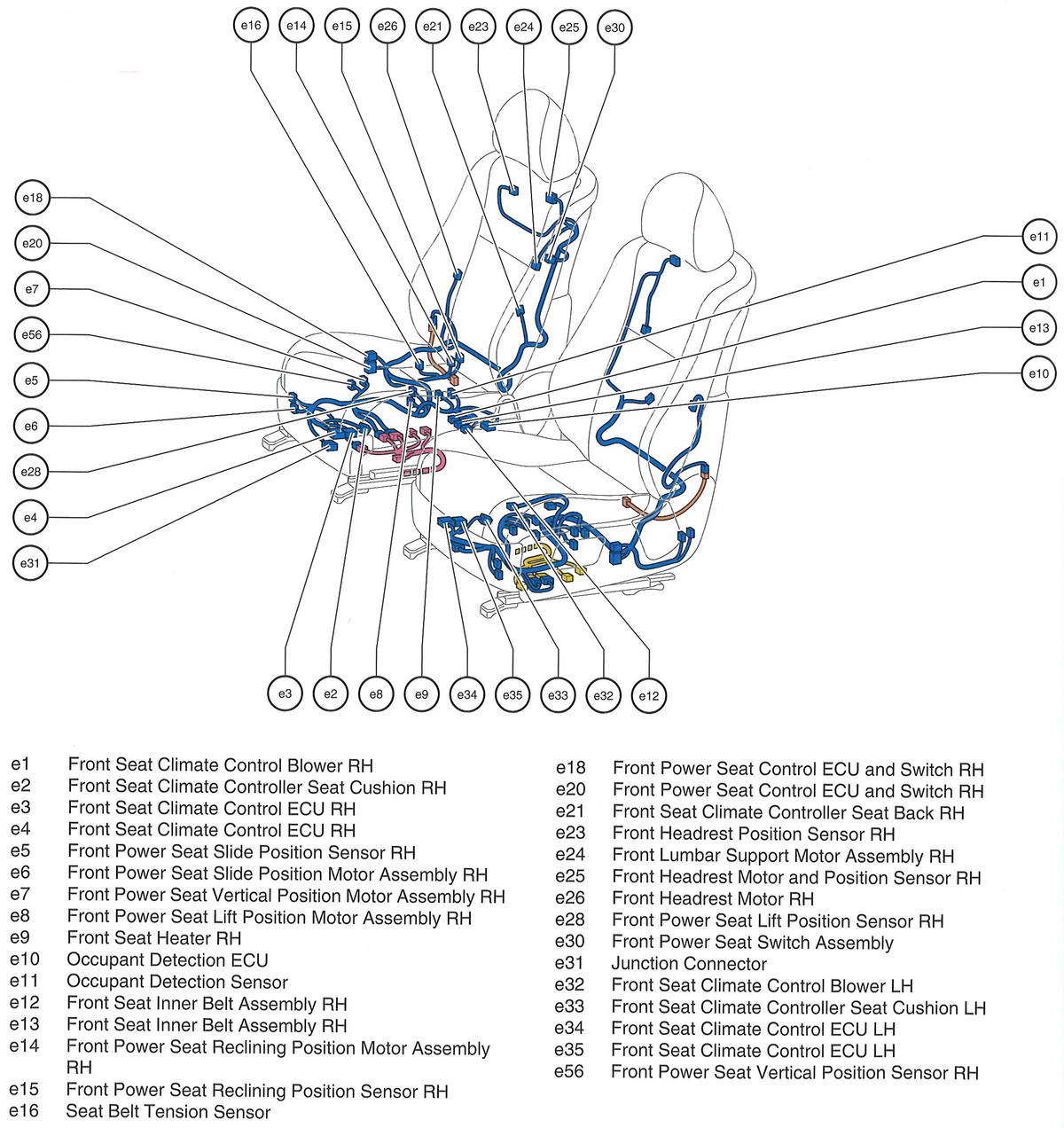

| Front Seat Climate Control Blower RH | Under front passenger's seat. See Figure. |
| Front Seat Headrest Adjuster Motor LH | Driver's seat back. See Figure. |
| Fuel Lid With Motor Lock Assembly | Behind left rear wheelwell. See Figure. |
| Headlight Cleaner Motor & Pump Assembly | Below left headlight. See Figure. |
| Heater Water Pump Assembly | Right front of engine compartment. See Figure. |
| Height Adjustable Anchor Motor LH | Left "B" pillar. See Figure. |

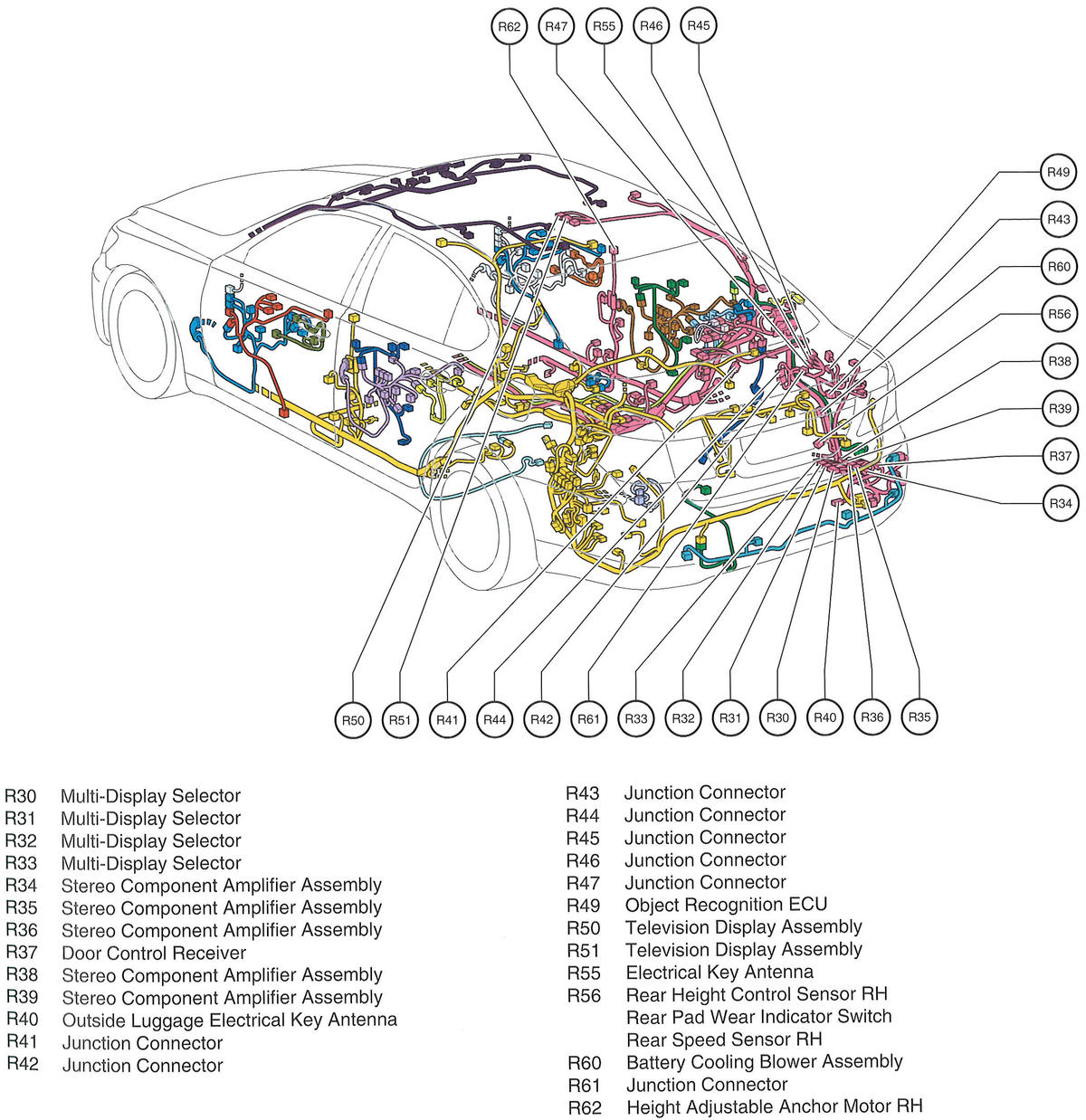

| Height Adjustable Anchor Motor RH | Right "B" pillar. See Figure. |
| Height Control Compressor Motor | Right front of engine compartment. See Figure. |
| Intake Air Control Valve Actuator | Left rear of engine. See Figure. |
| Inverter Water Pump Motor Assembly | Front of engine compartment. See Figure. |
| Luggage Door Closer Assembly | Center rear of luggage compartment lid. See Figure. |
| Motor Generator No. 1 | Rear of engine compartment. See Figure. |
| Motor Generator No. 2 | Rear of engine compartment. See Figure. |
| Ottoman Reclining Motor | Under center of rear seats. See Figure. |
| Outer Rear View Mirror LH | At mirror. See Figure. |
| Outer Rear View Mirror RH | At mirror. See Figure. |
| Parking Brake Actuator Assembly | Left side of luggage compartment. See Figure. |
| Power Steering Motor | Front center of engine compartment. See Figure. |
| Power Tilt Motor | On steering column. See Figure. |
| Rear Absorber Control Actuator LH | Left rear wheelwell. See Figure. |
| Rear Absorber Control Actuator RH | Right rear wheelwell. See Figure. |
| Rear Active Stabilizer Control Actuator Assembly | Rear of vehicle chassis. See Figure. |
| Rear Door Closer Motor LH | Left rear door. See Figure. |
| Rear Door Closer Motor RH | Right rear door. See Figure. |
| Rear Door Lock Assembly LH | Left rear door. See Figure. |
| Rear Door Lock Assembly RH | Right rear door. See Figure. |
| Rear Door Shade LH | Left rear door. See Figure. |
| Rear Door Shade RH | Right rear door. See Figure. |
| Rear Power Seat Motor LH | Under left rear seat. See Figure. |
| Rear Power Seat Motor RH | Under right rear seat. See Figure. |
| Rear Power Seat Position Motor LH (Fold Position) | Under left rear seat. See Figure. |
| Rear Power Seat Position Motor RH (Fold Position) | Under right rear seat. See Figure. |
| Rear Power Window Regulator Motor Assembly LH | Left rear door. See Figure. |
| Rear Power Window Regulator Motor Assembly RH | Right rear door. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Back) | Left rear seat back. See Figure. |
| Rear Seat Climate Fan Motor LH (Seat Cushion) | Under left rear seat. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Back) | Right rear seat back. See Figure. |
| Rear Seat Climate Fan Motor RH (Seat Cushion) | Under right rear seat. See Figure. |
| Rear Seat No. 1 Headrest Adjuster Sub-Assembly RH | Left rear seat back. See Figure. |
| Rear Seat No. 1 Headrest Adjuster Sub-Assembly RH | Right rear seat back. See Figure. |
| Rear Sunshade | Under center of rear parcel shelf. See Figure. |
| Seat Vibrator | Right rear seat back. See Figure. |
| Short Connector (Brake Stroke Simulator) (2) | Left rear of engine compartment. See Figure. |
| Steering Actuator Assembly | Left front of engine compartment. See Figure. |
| Windshield Washer Motor & Pump Assembly | Washer fluid reservoir. See Figure. |
| Windshield Wiper Motor Assembly | Left rear of engine compartment. See Figure. |
