Fuel Pump Resistor: Inspection: Inspection

INSPECT FUEL PUMP RESISTOR

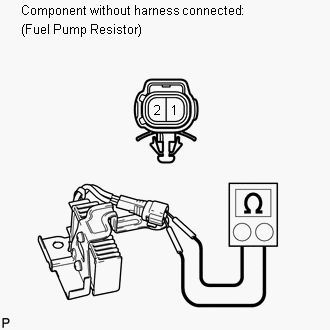

Fig 1: Identifying Fuel Pump Resistor Without Harness

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	20°C (68°F)	0.30 to 0.34 Ω

If the result is not as specified, replace the resistor.
