Navigation, Parking Assist (Rear View Monitor) and Multi-Display: Notes

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

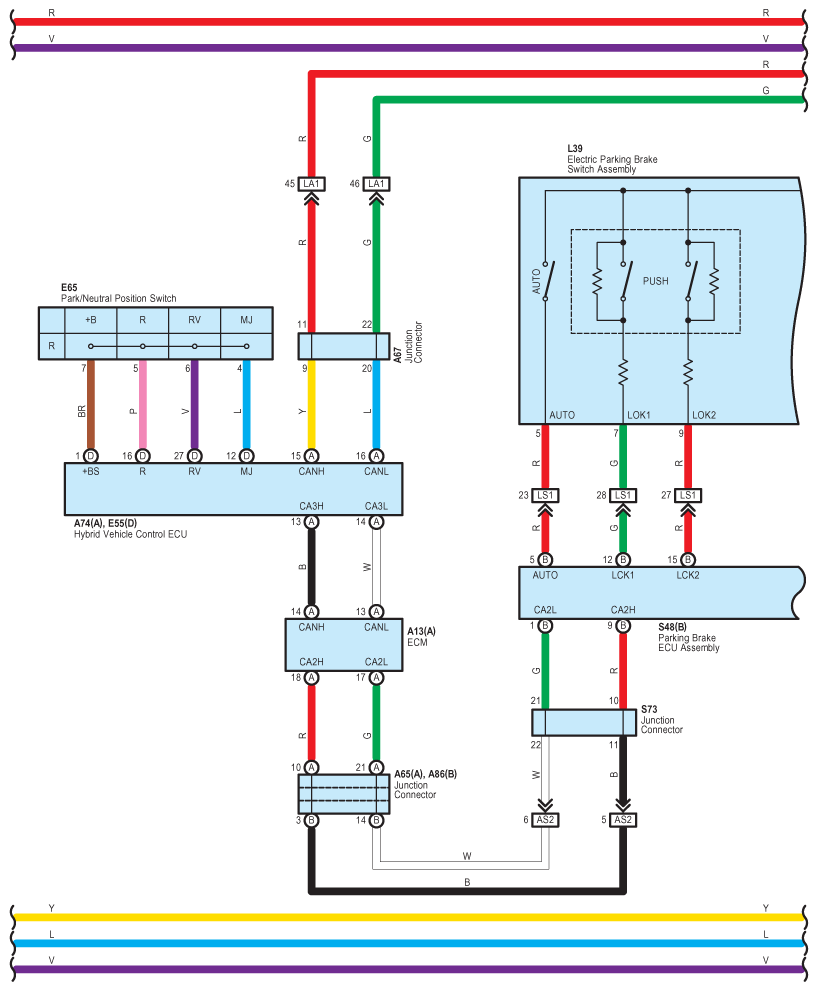

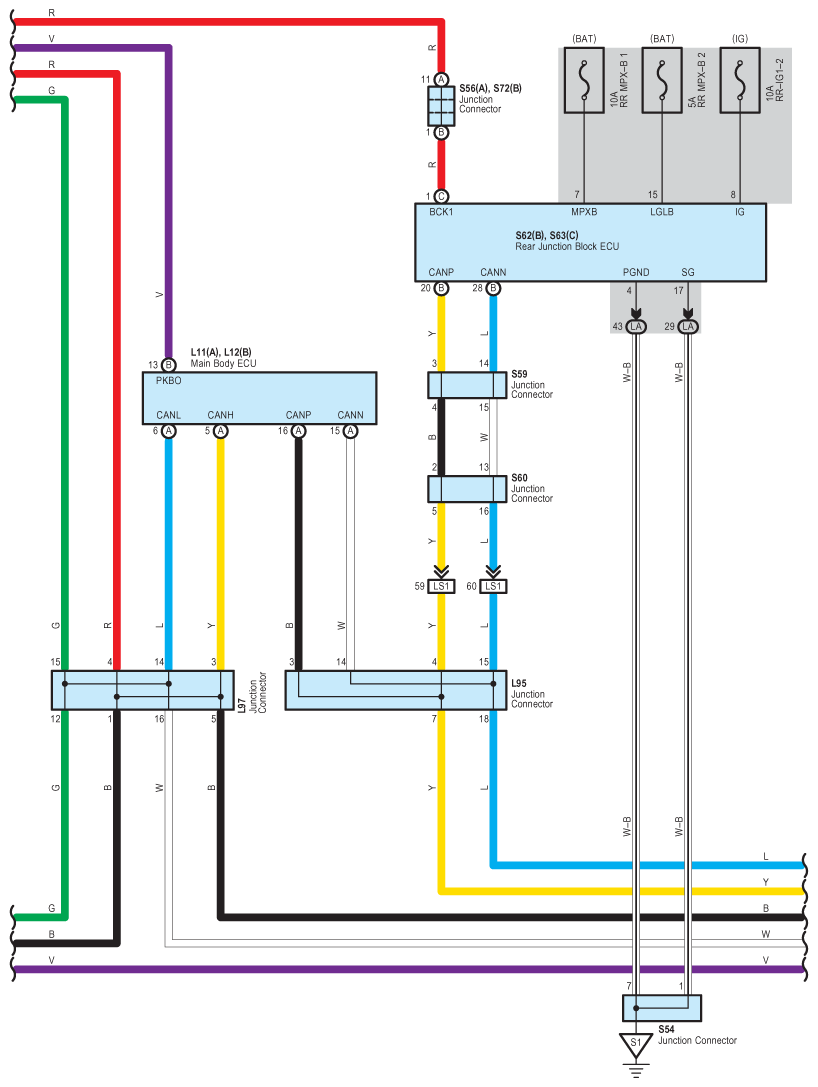

Fig 1: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

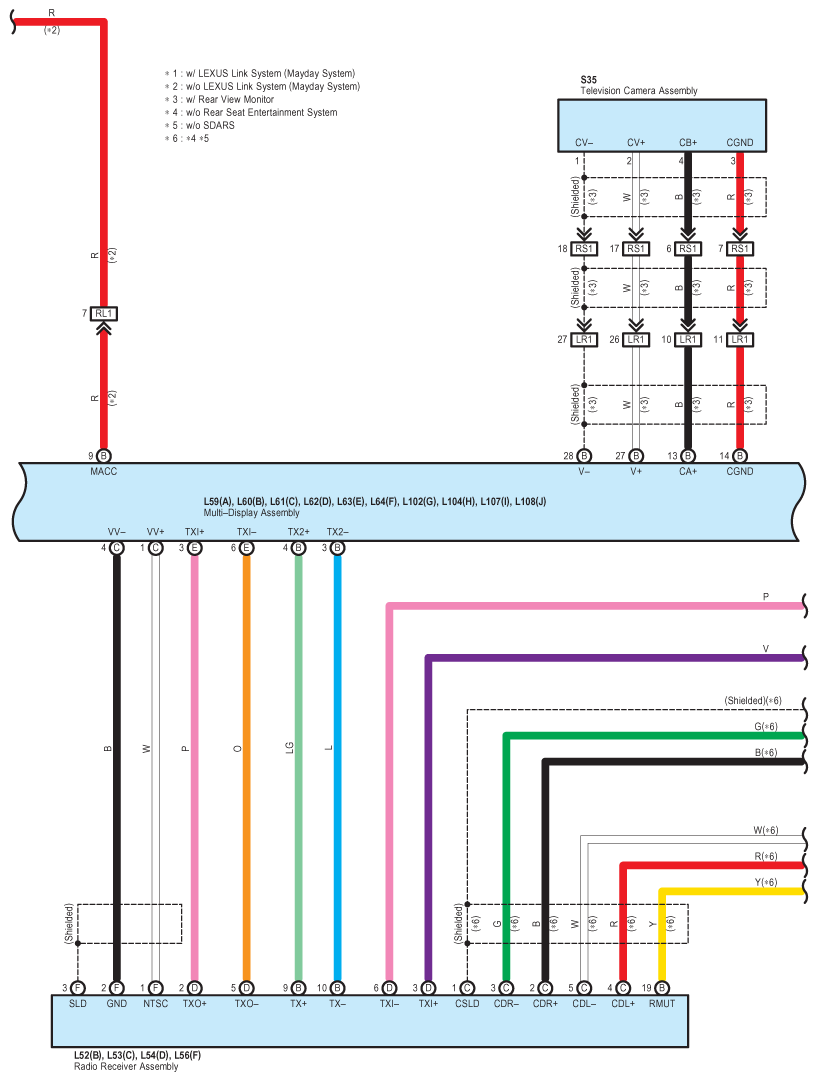

Fig 2: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

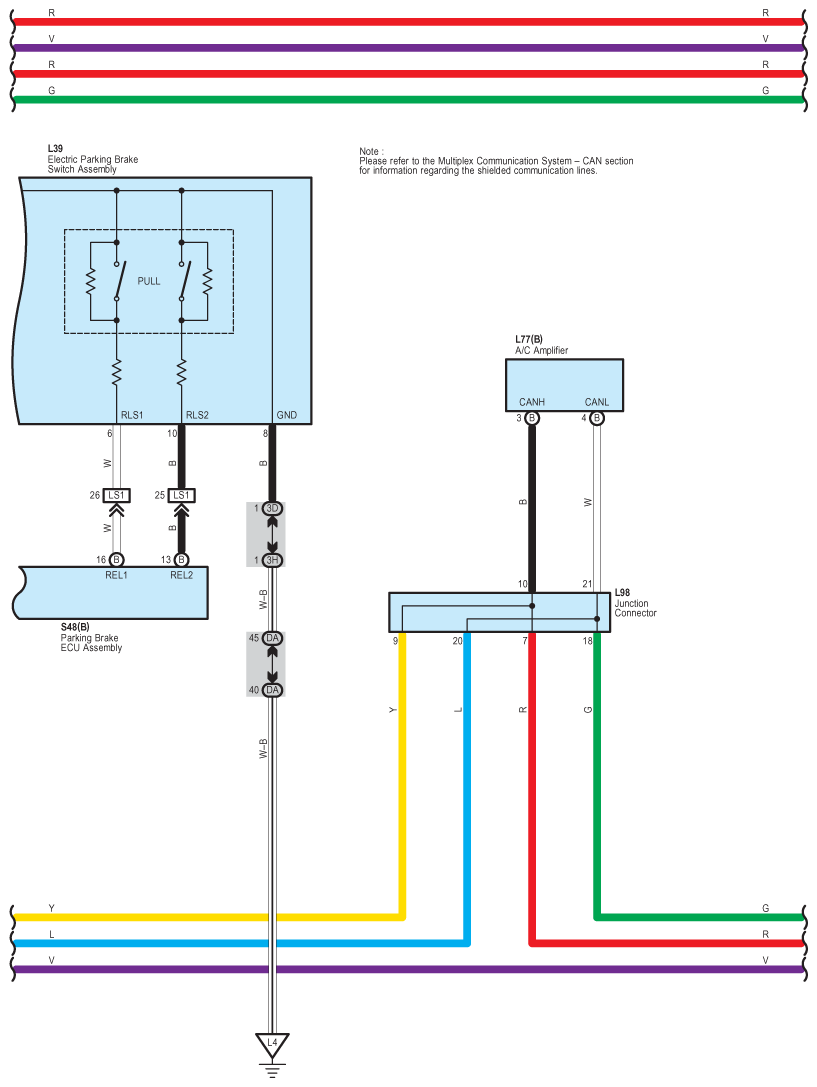

Fig 3: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

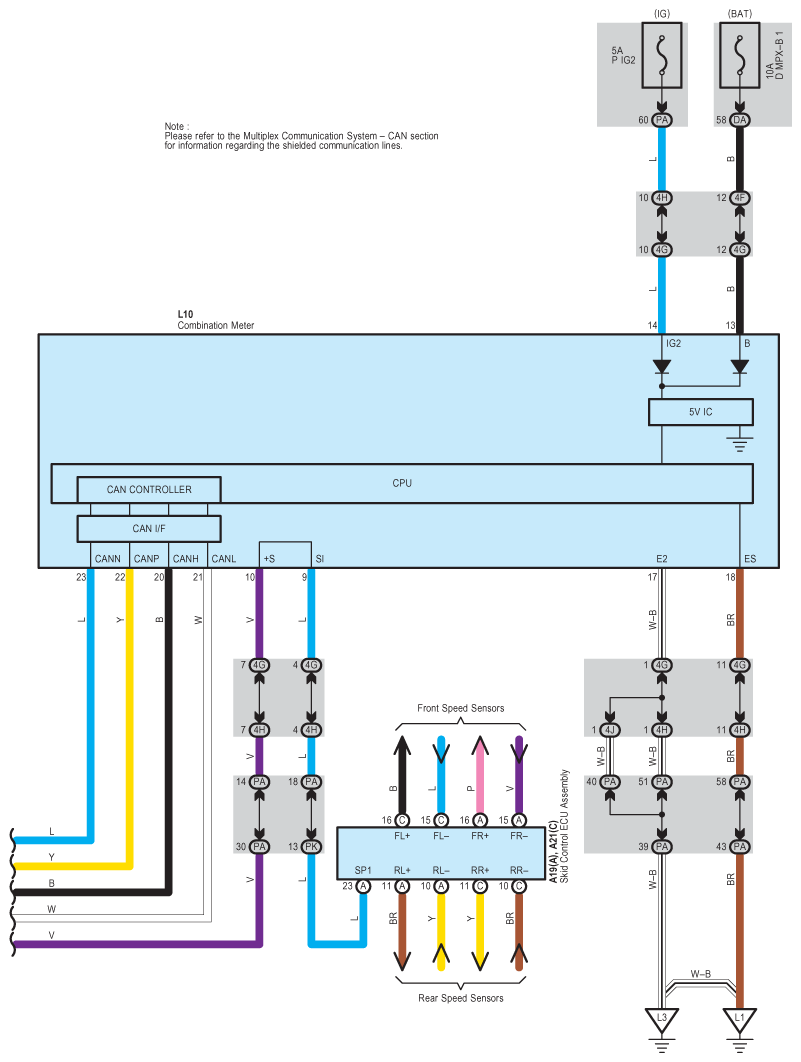

Fig 4: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

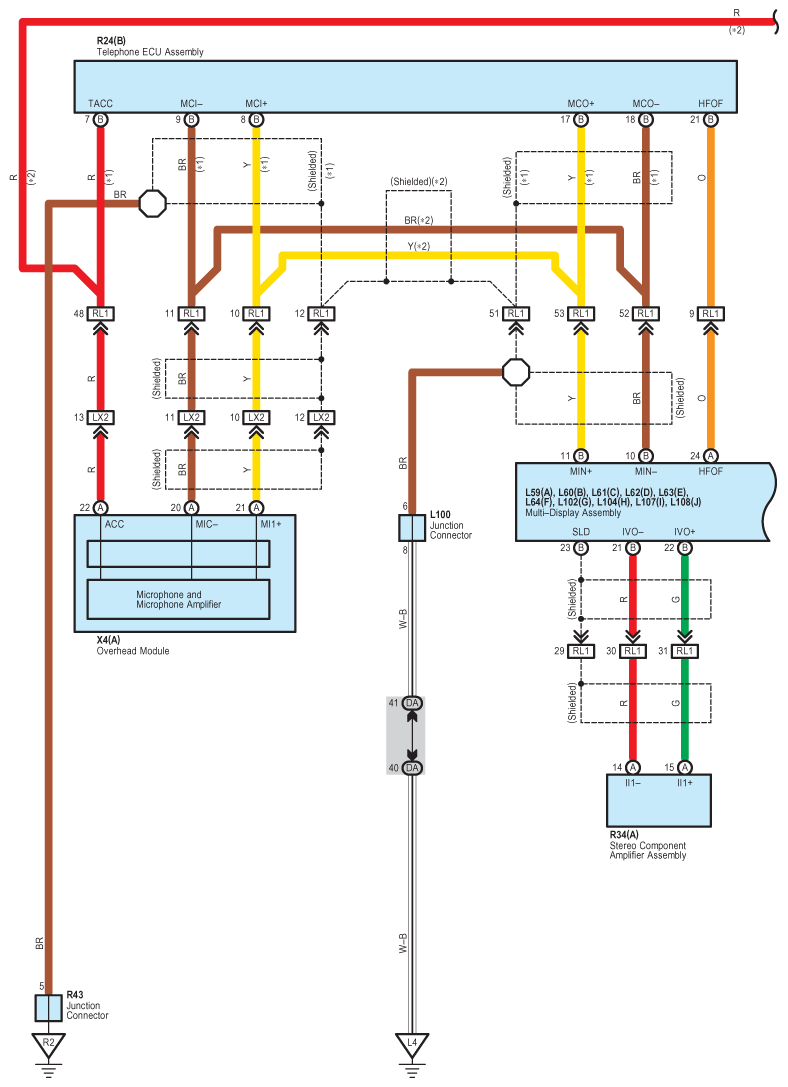

Fig 5: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

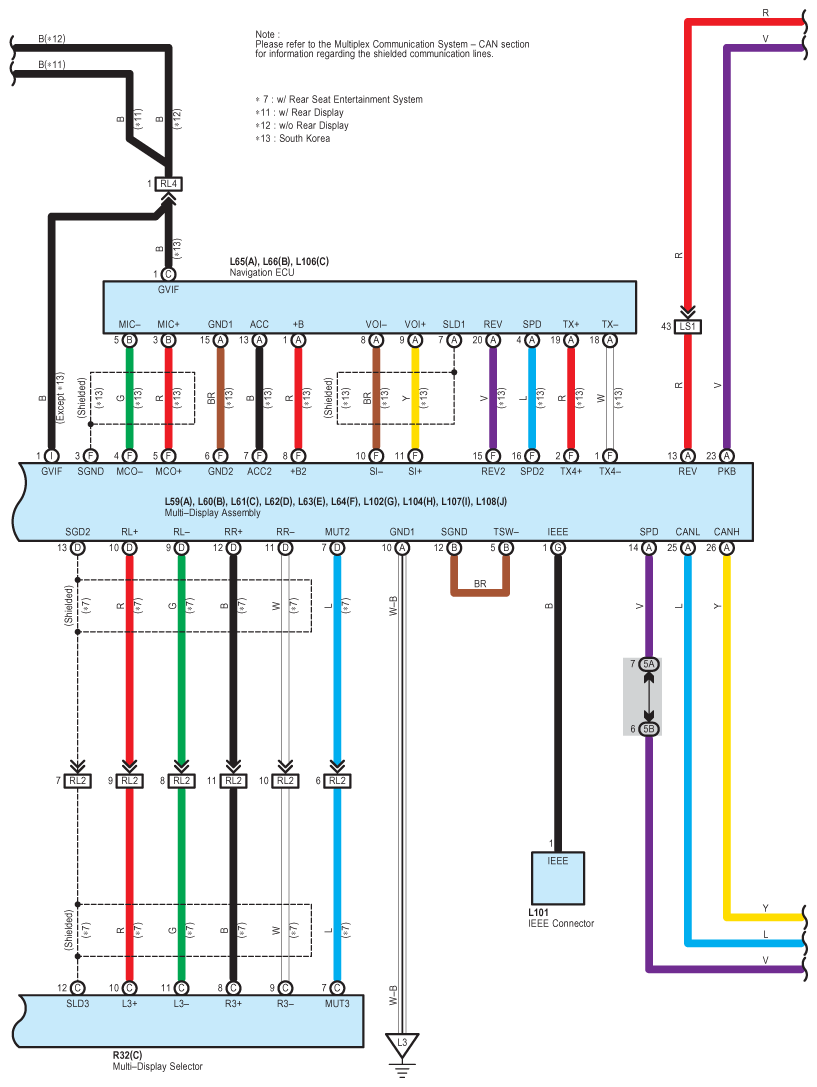

Fig 6: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (6 Of 9)

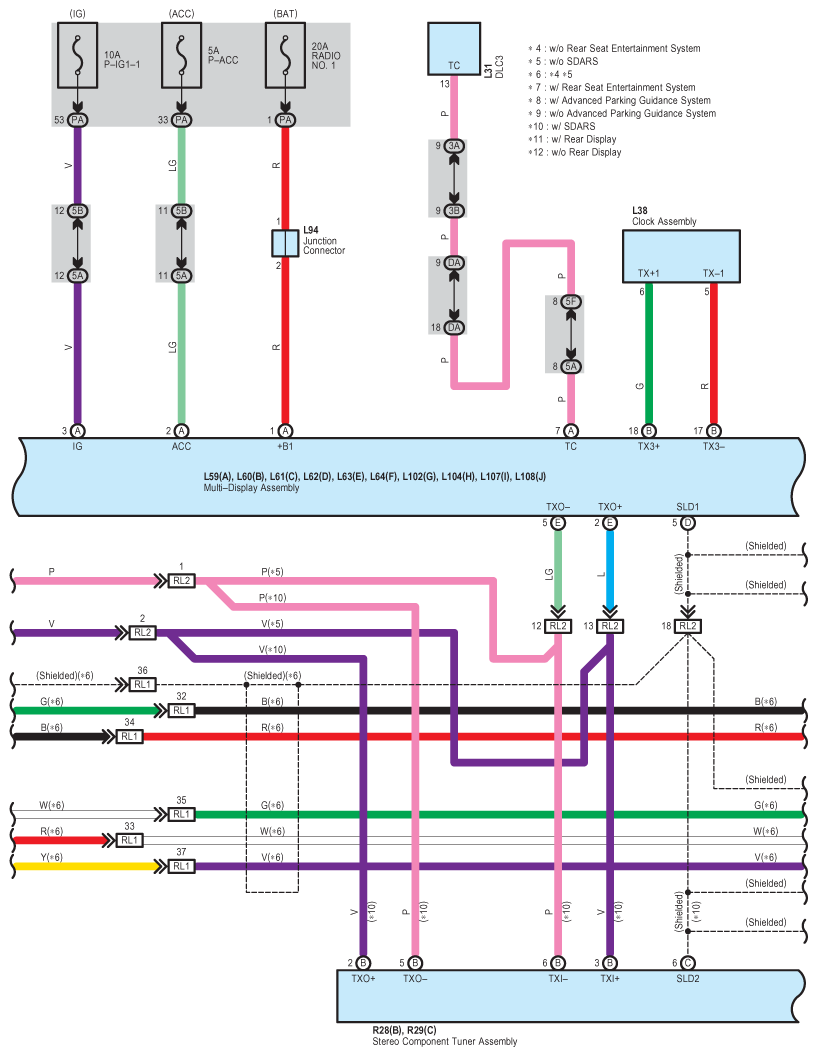

Fig 7: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (7 Of 9)

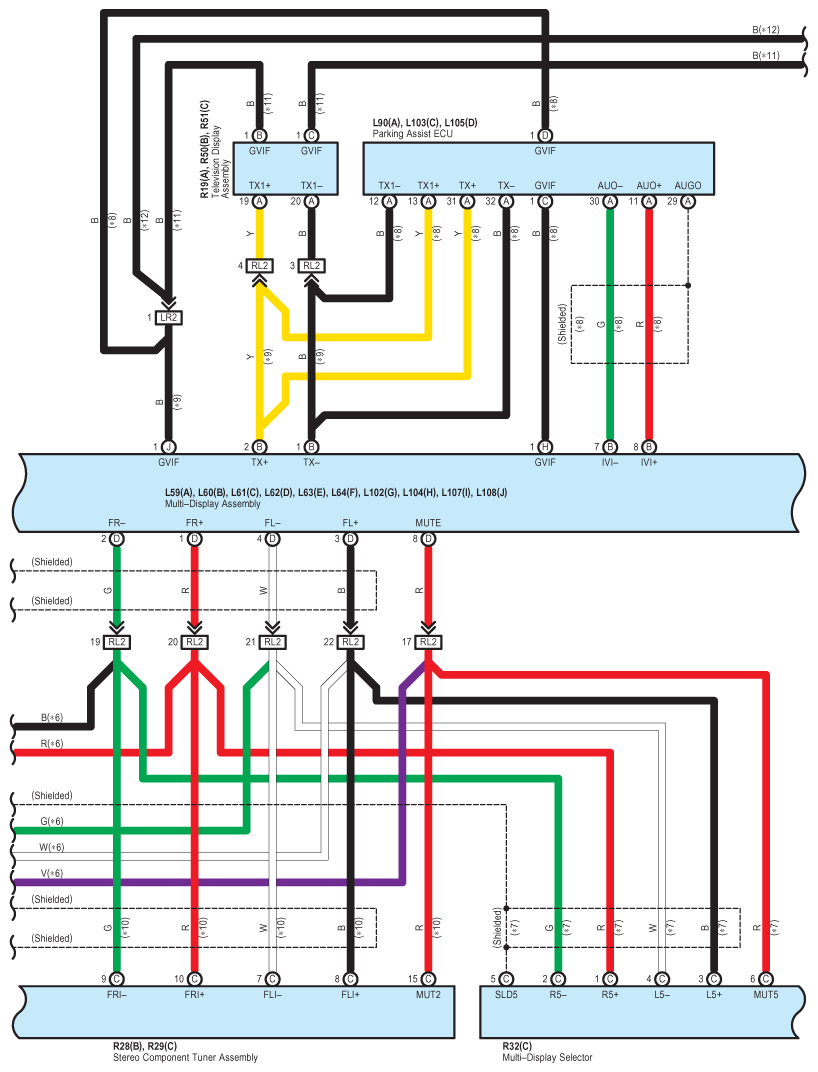

Fig 8: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (8 Of 9)

Fig 9: Navigation, Parking Assist (Rear View Monitor) And Multi-Display - Circuit Diagram (9 Of 9)
