Steering Column Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STEERING COLUMN ASSEMBLY
1. Install the steering column assembly with the 4 nuts.
  Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

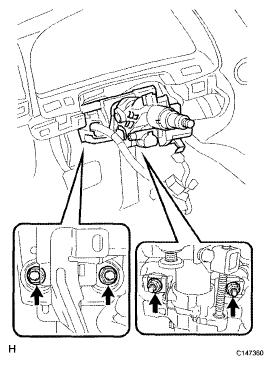

  Fig 1: Locating Tapered-Head Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connectors and wire harness clamps to the steering column assembly.
INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
1. Install the clamp to the steering column hole cover

  Fig 2: Locating Steering Column Hole Cover Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering column.
3. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  Fig 3: Identifying Matchmarks On No. 2 Steering Intermediate Shaft Assembly And Steering Column
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Align the matchmarks on the No. 2 steering intermediate shaft assembly and the steering link.
5. Install the bolt.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
PLACE FRONT WHEELS FACING STRAIGHT AHEAD

Fig 4: Identifying Matchmarks On No. 2 Steering Intermediate Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
1. Attach the 2 claws to install the air duct.
2. Install the bolt.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  Fig 5: Locating Bolt And Air Duct And Claw Location(s)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws and install the wiring harness protector.
INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY (See INSTALLATION )
INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION )

Fig 6: Identifying Wiring Harness Protector And Claw Location(s)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING (See INSTALLATION )
INSTALL INSTRUMENT SIDE PANEL LH (See INSTALLATION )
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See INSTALLATION )
INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.
2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly

  Fig 7: Locating Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TILT AND TELESCOPIC SWITCH
1. Attach the claw to install the switch
2. Connect the switch connector.

  Fig 8: Identifying Tilt And Telescopic Switch And Claw Location(s)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)
1. Attach the claw to install the upper steering column cover.
2. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.

  Fig 9: Identifying Upper Steering Column Cover And Claw Location(s)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws to install the lower steering column cover.
  NOTE: Do not damage the tilt and telescopic switch.
4. Install the 3 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)
1. Connect the driver monitor connector

  Fig 10: Identifying Lower Steering Column Cover And Claw Location(s)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the claw to install the upper steering column cover.
3. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.

  Fig 11: Identifying Upper Steering Column Cover And Claw Location(s)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Attach the 2 claws to install the lower steering column cover.
  NOTE: Do not damage the tilt and telescopic switch.
5. Install the 3 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)
INSPECT SPIRAL CABLE SUB- ASSEMBLY (See INSPECTION )

Fig 12: Identifying Lower Steering Column Cover And Claw Location(s)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks on the steering wheel assembly and steering main shaft assembly
2. Install the steering wheel assembly set nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
INSPECT STEERING WHEEL CENTER POINT
INSPECT STEERING PAD
1. Inspect the steering pad (see ON-VEHICLE INSPECTION ).
INSTALL STEERING WHEEL PAD (See INSTALLATION )

Fig 13: Identifying Matchmarks On Steering Wheel Assembly And Steering Main Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 STEERING WHEEL COVER LOWER (See INSTALLATION )
INSTALL SWITCH AND VOLUME CASE (See INSTALLATION )
CHECK FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL FRONT WHEELS
Torque: 140 N*m (1428 kgf*cm, 103 ft.*lbf)
INSTALL SERVICE PLUG GRIP (See INSTALLATION )
INSTALL BATTERY SERVICE HOLE COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (see CUSTOMIZE PARAMETERS ).
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
INSTALL BATTERY SERVICE HOLE COVER LH (See REMOVAL )
INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (see DIAGNOSIS SYSTEM ).
