Air Cleaner And Hose: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

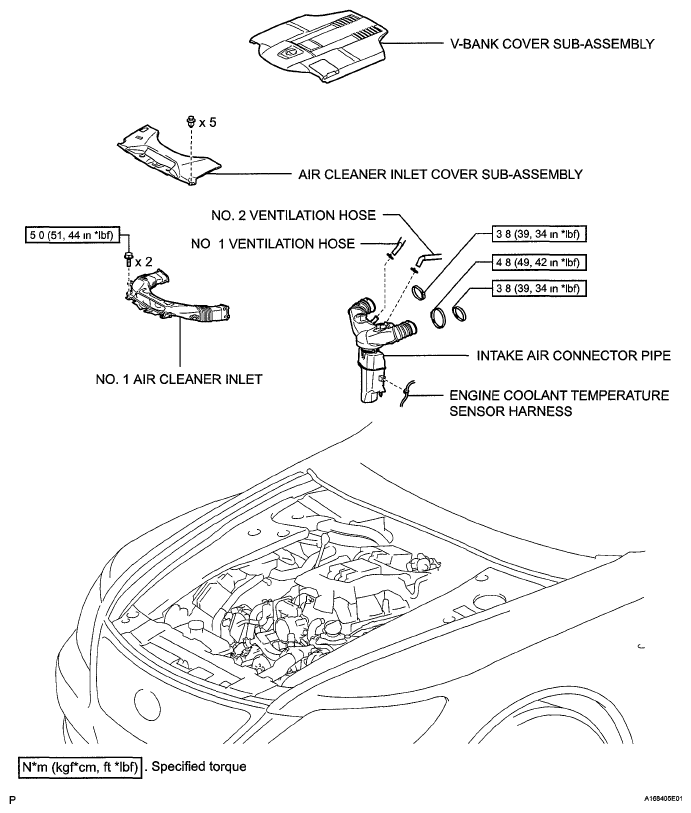

Fig 1: Air Cleaner And Hose Replacement Components With Torque Specifications (1 Of 2)
G05773198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

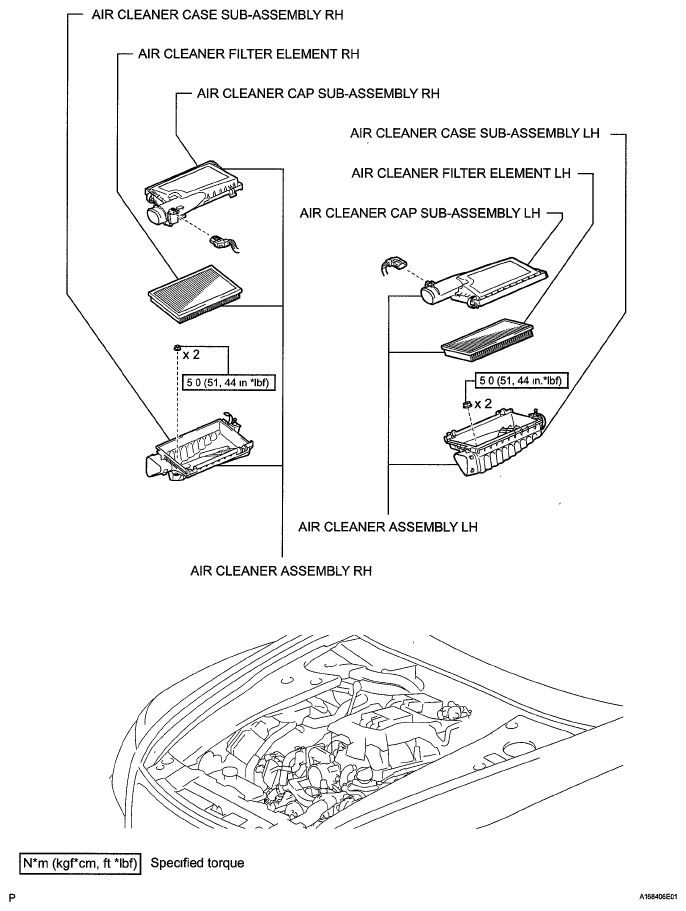

Fig 2: Air Cleaner And Hose Replacement Components With Torque Specifications (2 Of 2)
G05773199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
