Inspection Procedure
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When using the Intelligent tester or Techstream with the power switch OFF to troubleshoot:
Connect the Intelligent tester or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.
Connect the Intelligent tester or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.
- CHECK HARNESS AND CONNECTOR (INFRARED RAY SENSOR - AIR CONDITIONING AMPLIFIER)

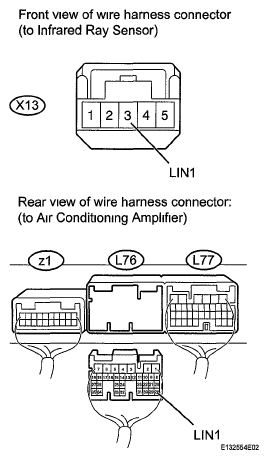

- Disconnect the X13 infrared ray sensor connector.
- Disconnect the L76 air conditioning amplifier connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition X13-3 (LIN1) - L76-28 (LIN1) Always Below 1 Ω X13-3 (LIN1) - Body ground Always 10 kΩ or higher L76-28 (LIN1) - Body ground Always 10 kΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (INFRARED RAY SENSOR - BATTERY AND BODY GROUND)
- Disconnect the X13 infrared ray sensor connector.
- Measure the resistance and voltage according to the value(s) in the table below
Standard resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition X13-1 (E) - Body ground Always Below 1 Ω Standard voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition X13-5 (IG) - Body ground Power switch OFF Below 1 V X13-5 (IG) - Body ground Power switch ON (IG) 11 to 14 V NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK INFRARED RAY SENSOR (OPERATION)
- Replace the infrared ray sensor with a new or normally functioning one (see REMOVAL )
- Operate the infrared ray sensor to check that it functions normally.
OK: Infrared ray sensor function operates normally.
NG: REPLACE AIR CONDITIONING AMPLIFIER
OK: END (INFRARED RAY SENSOR IS FAULTY)
