Parts Location

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

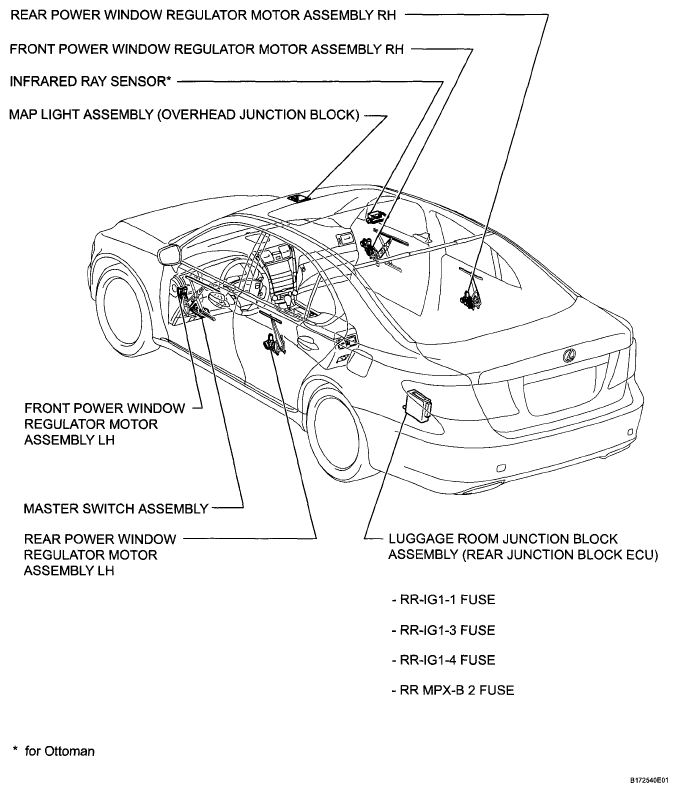

Fig 1: Identifying LIN Communication System Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

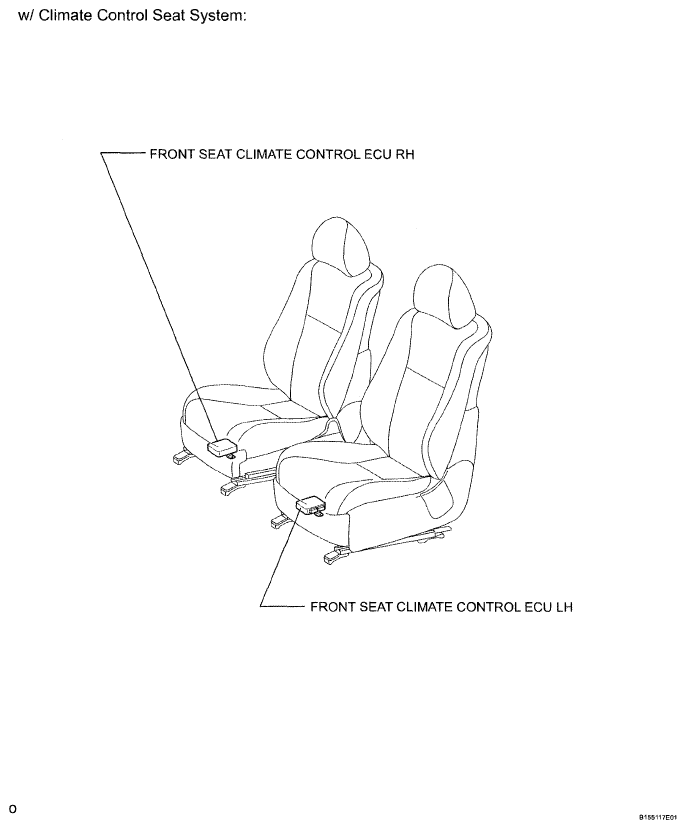

Fig 2: Identifying LIN Communication System Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

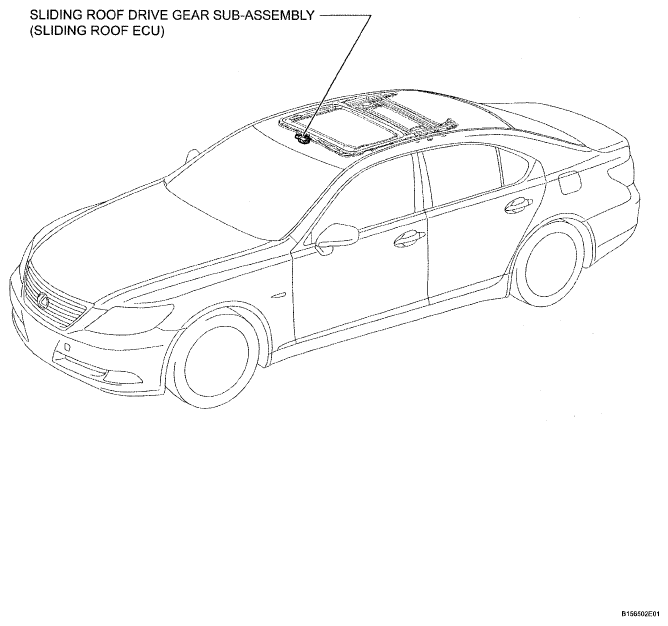

Fig 3: Identifying LIN Communication System Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

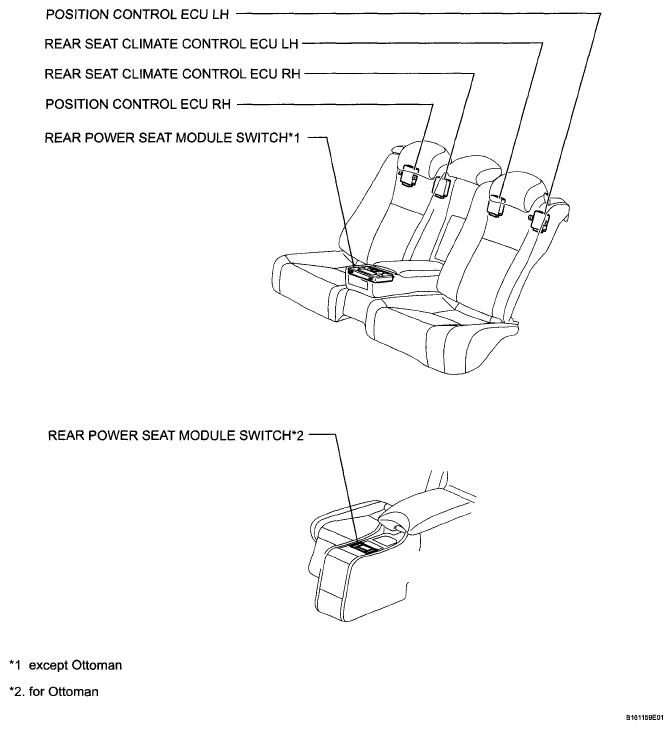

Fig 4: Identifying LIN Communication System Parts Location (4 Of 6)

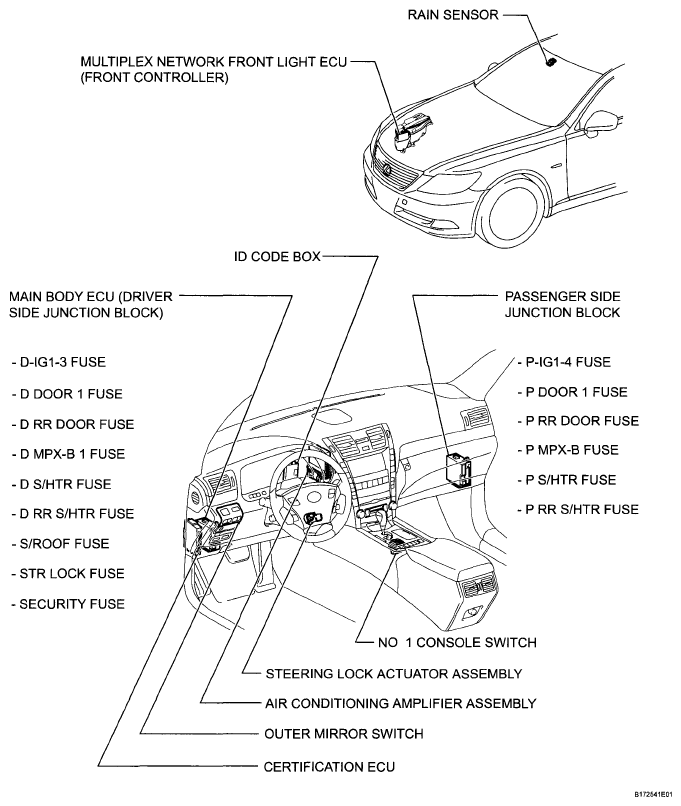

Fig 5: Identifying LIN Communication System Parts Location (5 Of 6)

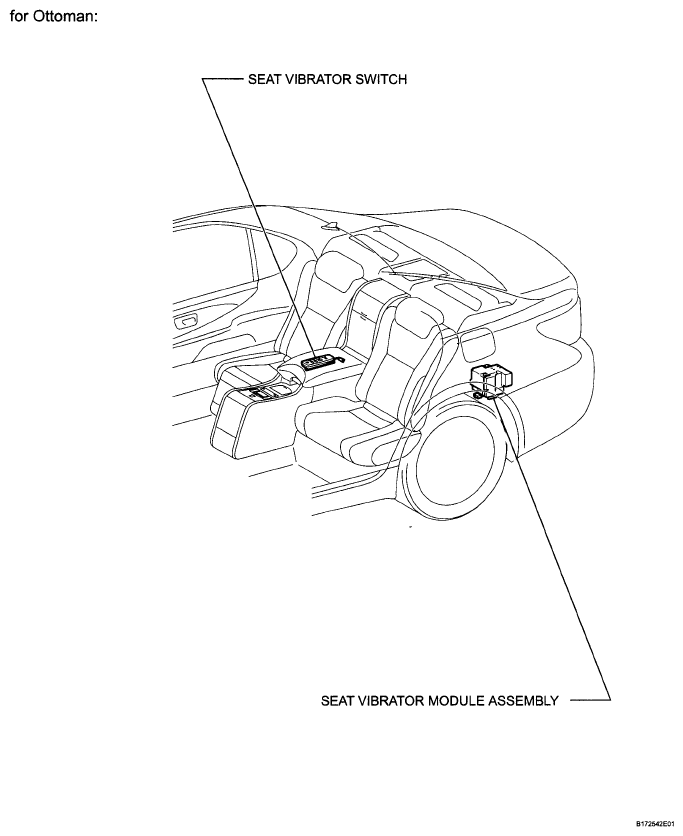

Fig 6: Identifying LIN Communication System Parts Location (6 Of 6)
