Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When using the Intelligent tester or Techstream with the power switch OFF to troubleshoot:
Connect the Intelligent tester or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.
  1. CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER - REAR POWER SEAT MODULE SWITCH)
    1. Disconnect the L76 amplifier connector
    2. Disconnect the z54*1 or S15*2 module switch connector
    3. Measure the resistance and voltage according to the value(s) in the table below

    Standard resistance

    w/o Ottoman:

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    L76-21 (LIN3) - z54-14 (RCLN) Always Below 1 Ω
    L76-21 (LIN3) or z54-14 (RCLN) - Body ground Always 10 kΩ or higher

    w/ Ottoman:

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    L76-21 (LIN3) - S15-13 (RCLN) Always Below 1 Ω
    L76-21 (LIN3) or S15-13 (RCLN) - Body ground Always 10 kΩ or higher

    Standard voltage

    w/o Ottoman:

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    L76-21 (LIN3) or z54-14 (RCLN) - Body ground Always Below 1 V

    w/ Ottoman:

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    L76-21 (LIN3) or S15-13 (RCLN) - Body ground Always Below 1 V

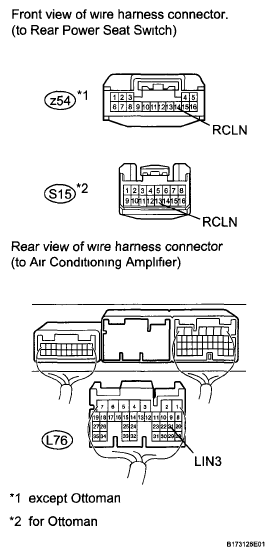

    Fig 1: Identifying Rear Power Seat Switch Connectors Z54, S15 & A/C Amplifier Connector L76
    G05787117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - BATTERY AND BODY GROUND)
    1. Disconnect the z54*1 or S15*2 module switch connector
    2. Measure the resistance and voltage according to the value(s) in the table below

    Standard resistance

    w/o Ottoman:

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    z54-3 (E) - Body ground Always Below 1 Ω

    w/ Ottoman:

    RESISTANCE REFERENCE

    Tester Connection Condition Specified Condition
    S15-5 (E) - Body ground Always Below 1 Ω

    Standard voltage

    w/o Ottoman:

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    z54-11 (B) - Body ground Always 11 to 14 V

    w/Ottoman:

    VOLTAGE SPECIFICATION

    Tester Connection Condition Specified Condition
    S15-6 (B) - Body ground Always 11 to 14 V

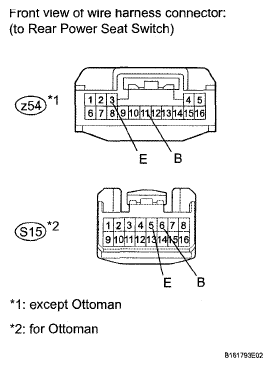

    Fig 2: Identifying Identifying Rear Power Seat Switch Connectors Z54 & S15
    G04947026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK REAR POWER SEAT MODULE SWITCH (OPERATION)
    1. Temporarily replace the rear power seat module switch with a new or normally functioning one (See REMOVAL )
    2. Check the rear air conditioning function is normal

      OK: Rear air conditioning function is normal.

    NG: REPLACE AIR CONDITIONING AMPLIFIER

    OK: END (REAR POWER SEAT MODULE SWITCH IS DEFECTIVE)
