Amplifier Antenna: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Amplifier Antenna Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Amplifier Antenna Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Amplifier Antenna Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Amplifier Antenna Components (4 Of 5)

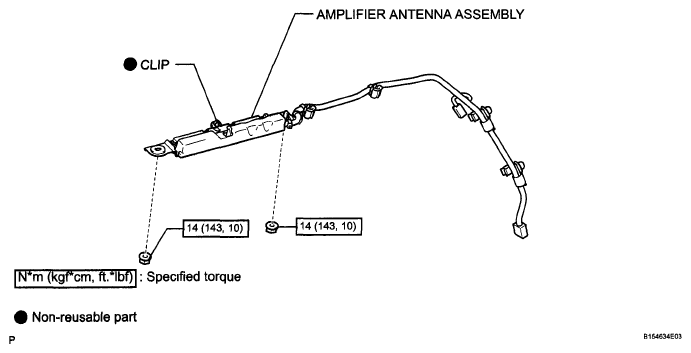

Fig 5: Amplifier Antenna Replacement Components With Torque Specifications (5 Of 5)
