Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO RECEIVER ASSEMBLY

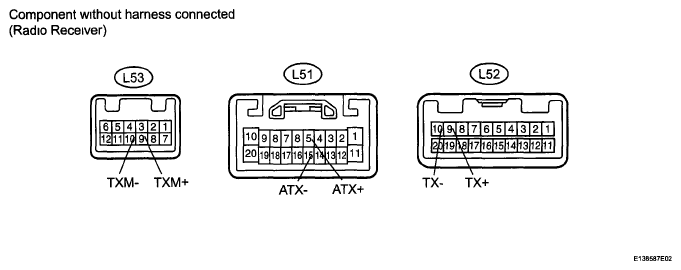

Fig 1: Identifying Radio Receiver's L51, L52 and L53 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the L51, L52 and L53 receiver connectors

Measure the resistance according to the value(s) in the table below

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
L51-5 (ATX+) - L51-15 (ATX-)	Always	60 to 80 Ω
L52-9 (TX+) - L52-10 (TX-)
L53-9 (TXM+) - L53-10 (TXM-)

NG: REPLACE RADIO RECEIVER ASSEMBLY (See REMOVAL )

OK: Go to next step

CHECK HARNESS AND CONNECTOR
HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram, check all AVC-LAN circuits
  1. Disconnect all connectors in all AVC-LAN circuits.
  2. Check for an open or short in all AVC-LAN circuits
    OK: There is no open or short circuit.

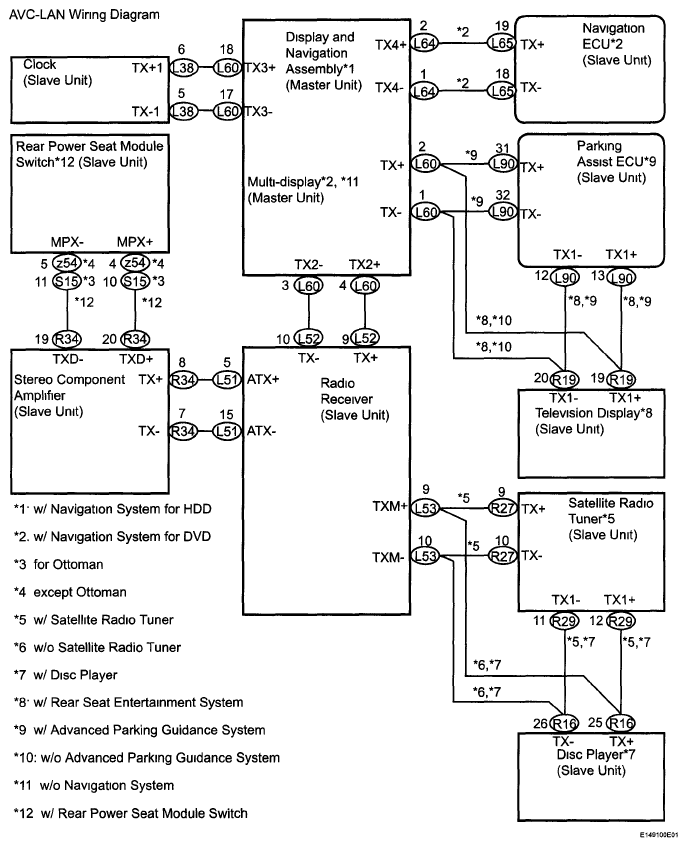

    Fig 2: AVC-LAN Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
