Inspection Procedure

1. Check if the component shown by the sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01-DC" is output for any other components, check if the same physical address is displayed.

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the next step.

      Result

      RESULT CHART



      Result	Proceed to
      "01-DC" is not output or the same physical address is not displayed	A
      "01-DC" is output and the same physical address is displayed	B

B:  Go to step  4

A: Go to next step

1. Clear the DTCs (see DTC CHECK / CLEAR  )

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction

1. Recheck for DTCs and check if the same trouble occurs again.

   OK: Malfunction disappears.

   Result

   RESULT CHART



   Result	Proceed to
   OK	A
   NG (w/ Navigation system for HDD)	B
   NG (w/ Navigation system for DVD)	C
   NG (w/o Navigation system)	D

B:  Go to step  6

C:  Go to step  7

D:  Go to step  8

A: USE SIMULATION METHOD TO CHECK  (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

1. Enter the diagnostic mode
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code

   Component table

   COMPONENT CHART



   Display	Component
   AUDIO	Radio receiver
   DSP-AMP	Stereo component amplifier
   EMV*5, *7	Multi-display
   EMVN*6	Display and navigation assembly
   NAVI*5	Navigation ECU
   CLOCK	Clock
   RSE*1	Television display
   DVD-P*2	Disc player
   CAMERA-C*3	Parking assist ECU
   Rr-CONT	Rear power seat module switch
   XM*4	Satellite radio tuner
   HINT: *1: w/ Rear Seat Entertainment System *2: w/ Disc Player *3: w/ Advanced Parking Guidance System *4: w/ Satellite Radio Tuner *5: w/ Navigation System for DVD *6: w/ Navigation System for HDD *7: w/o Navigation System (w/ Multi-display) "NAVI" is the component which has stored this code in the example shown in the illustration

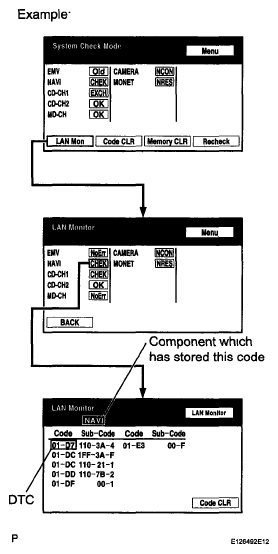

   Fig 1: Screen Display - LAN Monitor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check if the navigation system is equipped on the vehicle.

   Result

   RESULT CHART



   Result	Proceed to
   w/ Navigation system for HDD	A
   w/ Navigation system for DVD	B
   w/o Navigation system (w/ Multi-display)	C

B:  Go to step  7

C:  Go to step  8

A: Go to next step

1. Select the component which has stored this code.

   Component table

   COMPONENT CHART



   Component	Proceed to
   Radio receiver (AUDIO)	Radio receiver communication error (see RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (see STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Display and navigation assembly (EMVN)	Display and navigation assembly communication error (see DISPLAY AND NAVIGATION ASSEMBLY COMMUNICATION ERROR  )
   Clock (CLOCK)	Clock communication error (see CLOCK COMMUNICATION ERROR  )
   Television display (RSE)*1	Television display assembly communication error (see TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR  )
   Disc player (DVD-P)*2	Disc player communication error (see DISC PLAYER COMMUNICATION ERROR  )
   Parking assist ECU (CAMERA-C)*3	Parking assist ECU communication error (see PARKING ASSIST ECU COMMUNICATION ERROR  )
   Rear power seat module switch (Rr-CONT)*5	Rear power seat module switch communication error (see REAR POWER SEAT MODULE SWITCH COMMUNICATION ERROR  )
   Satellite Radio Tuner (XM)*4	Satellite radio tuner communication error (see SATELLITE RADIO TUNER COMMUNICATION ERROR  )
   HINT: *1: w/ Rear Seat Entertainment System *2: w/ Disc Player *3: w/ Advanced Parking Guidance System *4: w/ Satellite Radio Tuner *5: w/ Rear Power Seat Module Switch

NEXT: END

1. Select the component which has stored this code.

   Component table

   COMPONENT CHART



   Component	Proceed to
   Radio receiver (AUDIO)	Radio receiver communication error (see RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (see STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Multi-display (EMV)	Multi-display communication error (see MULTI-DISPLAY COMMUNICATION ERROR  )
   Navigation ECU (NAVI)	Navigation ECU communication error (see NAVIGATION ECU COMMUNICATION ERROR  )
   Clock (CLOCK)	Clock communication error (see CLOCK COMMUNICATION ERROR  )
   Television display (RSE)*1	Television display assembly communication error (see TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR  )
   Disc player (DVD-P)*2	Disc player communication error (see DISC PLAYER COMMUNICATION ERROR  )
   Rear power seat module switch (Rr-CONT)*3	Rear power seat module switch communication error (see REAR POWER SEAT MODULE SWITCH COMMUNICATION ERROR  )
   HINT: *1: w/ Rear Seat Entertainment System *2: w/ Disc Player *3: w/ Rear Power Seat Module Switch

NEXT: END

1. Select the component which has stored this code

   Component table

   COMPONENT CHART



   Component	Proceed to
   Radio receiver (AUDIO)	Radio receiver communication error (see RADIO RECEIVER COMMUNICATION ERROR  )
   Stereo component amplifier (DSP-AMP)	Stereo component amplifier communication error (see STEREO COMPONENT AMPLIFIER COMMUNICATION ERROR  )
   Multi-display (EMV)	Multi-display communication error (see MULTI-DISPLAY COMMUNICATION ERROR  )
   Clock (CLOCK)	Clock communication error (see CLOCK COMMUNICATION ERROR  )
   Television display (RSE)*1	Television display assembly communication error (see TELEVISION DISPLAY ASSEMBLY COMMUNICATION ERROR  )
   Disc player (DVD-P)*2	Disc player communication error (see DISC PLAYER COMMUNICATION ERROR  )
   Rear power seat module switch (Rr-CONT)*3	Rear power seat module switch communication error (see REAR POWER SEAT MODULE SWITCH COMMUNICATION ERROR  )
   HINT: *1: w/ Rear Seat Entertainment System *2: w/ Disc Player *3: w/ Rear Power Seat Module Switch

NEXT: END
