Display Check Mode

HINT:

• This mode checks the color display on the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE  (See DTC CHECK / CLEAR  ).
2. DISPLAY CHECK
   1. Select "Display Check" from the "Diagnosis MENU" screen
      Fig 1: Screen Display - Display Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. COLOR BAR CHECK
   1. Select "Color Bar Check" from the "Display Check" screen

      HINT:

      *. For the Navigation system (for HDD), this item does not exist.

      Fig 2: Screen Display - Color Bar Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Select a color bar from the "Color Bar Check Mode" screen.
   3. Check the display color.

      HINT:

      • The entire screen turns to the color or stripe selected.
      • Touch the display to return to the "Color Bar Check" screen.

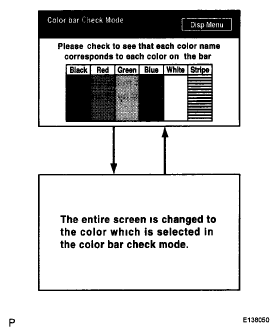

        Fig 3: Screen Display - Color Bar Check

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. TOUCH SWITCH CHECK
   1. Select "Touch Switch Check" from the "Display Check" screen

      HINT:

      *: For the Navigation system (for HDD), this item does not exist.

      Fig 4: Screen Display - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

      HINT:

      A "+" mark appears at the touched position.

      Fig 5: Screen Display - Touch Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. PANEL SWITCH CHECK
   1. Select "Panel Switch Check" from the "Display Check" screen.

      HINT:

      * For the Navigation system (for HDD), this item does not exist.

      Fig 6: Screen Display - Panel Switch Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Operate each switch and check that the switch name and condition are correctly displayed.
      Fig 7: Screen Display - Panel Switch Check Mode

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DISPLAY CONTENTS



      Display	Contents
      Push switch name/*	Name of the pressed switch is displayed If more than one switch is pressed, "MULTIPLE" is displayed

6. VEHICLE SIGNAL CHECK
   1. Select "Vehicle Signal Check" from the "Display Check" screen

      HINT:

      * For the Navigation system (for HDD), this item does not exist.

      Fig 8: Screen Display - Vehicle Signal Check

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions

      HINT:

      • Only conditions having inputs are displayed.
      • This screen is updated once per second when input signals to the vehicle are changed.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
        Fig 9: Screen Display - Vehicle Signal Check Mode

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. MIC & VOICE RECOGNITION*

   HINT:

   *. For the Navigation system (for HDD), this item does not exist.

   1. Select "Mic & Voice Recognition" on the "Navigation Check" screen to display "MICROPHONE & VOICE RECOGNITION CHECK" screen.
      Fig 10: Screen Display - Mic & Voice Recognition

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
   3. Push the recording switch and perform voice recording.
   4. Check that the recording indicator remains on while recording and that the recorded voice is played normally.

      HINT:

      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION
      • This function is controlled by the navigation ECU.
        Fig 11: Screen Display - Recording Switch

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CAN CHECK
   1. Select "CAN Check" from the "Display Check" screen
   2. Check the CAN connection check result.

      HINT:

      • This function operates only for the systems connected to the CAN system.
      • For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION  .
        Fig 12: Screen Display - CAN Connection

        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
