Identification Of Noise Source

1. Radio frequency band

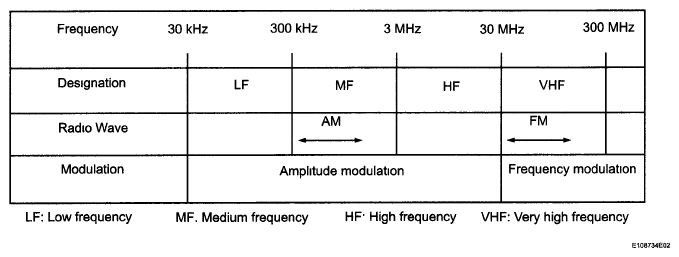

   1. Radio broadcasts use the radio frequency bands shown in the table below.
      Fig 1: Wave Band Chart

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. The broadcast range for AM and FM is very different. Sometimes an AM broadcast can be received very clearly but FM stereo cannot. FM stereo has the smallest service area, and is prone to picking up static and other types of interference (for example, noise).

HINT:

Besides the problem of static, there are other problems, such as "phasing", "multipath" and "fade out". These problems are caused by the nature of the radio waves themselves, not by electrical noise.

Fig 2: Identifying Radio Frequency Area

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. AM broadcasts are susceptible to electrical interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off of the ionosphere and the other signal is received directly from the transmitter.
   Fig 3: Identifying Radio Frequency Area - Phasing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off of buildings or mountains and the other signal is received directly from the transmitter.
   Fig 4: Identifying Radio Frequency Area - Multipath

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Fade out is caused by objects (buildings, mountains, etc.) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are much more difficult to deflect.
   Fig 5: Identifying Radio Frequency Area - Fade Out

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Technicians must have a clear understanding about the noise problems of the customer's vehicle Use the following table to diagnose the problems.
   RADIO WAVE CHART



   Radio Wave	Condition in Which Noise Occurs	Presumable Cause
   AM	Noise occurs in a specific area	Strong possibility of foreign noise
   AM	Noise occurs when broadcasting is faint	Same program may be broadcasted from various local stations If the program is the same, one of those may be tuned in
   AM	Noise occurs only at night	Strong possibility of beats from distant broadcasting
   FM	Noise occurs at a specific place during driving	Strong possibility of multipath noise and fading noise caused by changes of FM frequency

   HINT:

   When the noise does not match the examples above, refer to "Reception Problems". Check the descriptions about phasing and multipath.
