Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

CHECK MULTI-DISPLAY CONTROLLER

Measure the voltage according to the value(s) in the table below

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
R32-18 (MUT6) - Body ground	Turn power switch ON (ACC), audio system is playing → Changing modes	3.5 V or higher → Below 1 V

Fig 1: Identifying R32 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )

CHECK SATELLITE RADIO TUNER

Check if the satellite radio tuner is equipped on the vehicle

Result

RESULT CHART

Result	Proceed to
w/ Satellite Radio Tuner	A
w/o Satellite Radio Tuner	B

B: Go to step 6

A: Go to next step

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)

Disconnect the L53 receiver connector
Disconnect the R27 tuner connector

Measure the resistance according to the value(s) in the table below

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
L53-6 (MUTE) - R27-6 (MUTE)	Always	Below 1 Ω
L53-6 (MUTE) - Body ground	Always	10 kΩ or higher

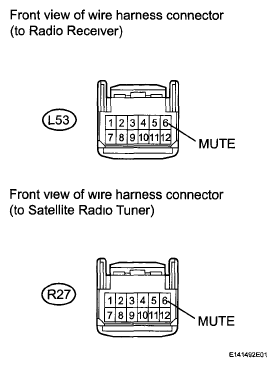

Fig 2: Identifying L53 And R27 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - MULTI-DISPLAY CONTROLLER)

Disconnect the R29 tuner connector
Disconnect the R32 controller connector

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
R29-15 (MUT2) - R32-18 (MUT6)	Always	Below 1 Ω
R32-18 (MUT6) - Body ground	Always	10 kΩ or higher

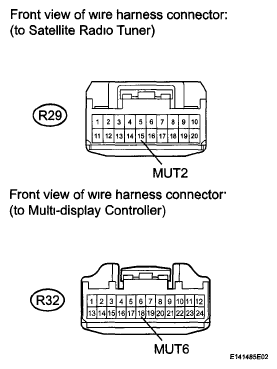

Fig 3: Identifying R29 And R32 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK SATELLITE RADIO TUNER (OPERATION)
1. Replace the satellite radio tuner with a normal one and check if the same problem occurs again (see REMOVAL ).
  OK: Same problem does not occur.
NG: Go to step 7

OK: END (SATELLITE RADIO TUNER IS DEFECTIVE)

CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY CONTROLLER)

Disconnect the L53 receiver connector.
Disconnect the R32 controller connector.

Measure the resistance according to the value(s) in the table below

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
L53-6 (MUTE) - R32-18 (MUT6)	Always	Below 1 Ω
L53-6 (MUTE) - Body ground	Always	10 kΩ or higher

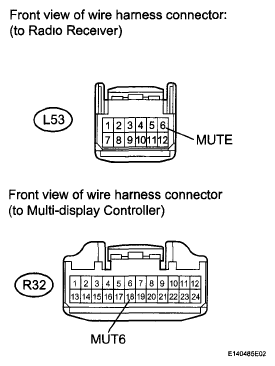

Fig 4: Identifying L53 And R32 Connector Terminals

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

CHECK MULTI-DISPLAY CONTROLLER

Reconnect the R32 controller connector

Measure the voltage according to the value(s) in the table below

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
R32-18 (MUT6) - Body ground	Audio system is playing	Above 3.5 V

Fig 5: Identifying R32 Controller Connector

NG: REPLACE MULTI-DISPLAY CONTROLLER (See REMOVAL )

OK: REPLACE RADIO RECEIVER ASSEMBLY (See REMOVAL )
