Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

IDENTIFY COMPONENT SHOWN BY SUB-CODE
1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode
3. Identify the component shown by the sub-code
  HINT:
  - "110 (multi-display)" is the component shown by the sub-code in the example shown in the illustration.
  - The sub-code will be indicated by its physical address.
  - For the component list, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION "

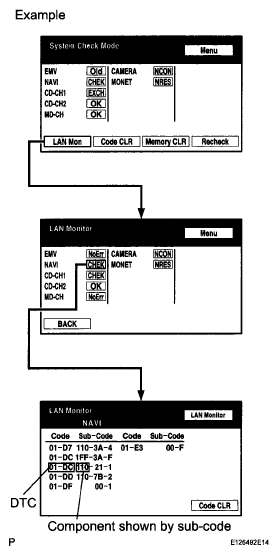

    Fig 1: Screen Display - LAN Monitor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE

Inspect the power source circuit of the component shown by the sub-code.

If the power source circuit is operating normally, proceed to the next step.

Component table

COMPONENT CHART

Display	Proceed to
Radio receiver (190)	Radio receiver power source circuit (see RADIO RECEIVER POWER SOURCE CIRCUIT )
Stereo component amplifier (440)	Stereo component amplifier power source circuit (see STEREO COMPONENT AMPLIFIER POWER SOURCE CIRCUIT )
Multi-display (110)	Multi-display power source circuit (see MULTI-DISPLAY POWER SOURCE CIRCUIT )
Clock (1D6)	Clock power source circuit (see CLOCK POWER SOURCE CIRCUIT )
Television display (1F6)*1	Television display power source circuit (see TELEVISION DISPLAY POWER SOURCE CIRCUIT )
Disc player (1A0)*2	Disc player controller power source circuit (see DISC PLAYER CONTROLLER POWER SOURCE CIRCUIT )
Rear power seat module switch (1C0)*3	Rear seat control switch power source circuit (see REAR SEAT CONTROL SWITCH POWER SOURCE CIRCUIT )
HINT: 1: w/ Rear Seat Entertainment System 2: w/ Disc Player *3: w/ Rear Power Seat Module Switch

INSPECT RADIO RECEIVER ASSEMBLY

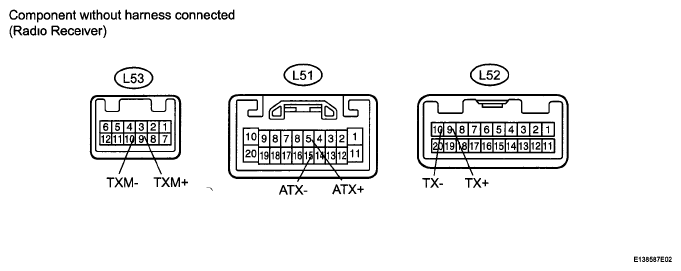

Fig 2: Identifying Radio Receiver's L51, L52 and L53 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the L51, L52 and L53 receiver connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
L51-5 (ATX+) - L51-15 (ATX-)	Always	60 to 80 Ω
L52-9 (TX+) - L52-10 (TX-)
L53-9 (TXM+) - L53-10 (TXM-)

NG: REPLACE RADIO RECEIVER ASSEMBLY (See REMOVAL )

OK: Go to next step

CHECK HARNESS AND CONNECTOR (NAVIGATION ECU - COMPONENT SHOWN BY SUB-CODE)
HINT:
- Start the check from the circuit that is near the component shown by the sub-code first
- For details of the connectors, refer to "TERMINALS OF ECU " .
1. Referring to the AVC-LAN wiring diagram, check the AVC-LAN circuit between the navigation ECU and the component shown by the sub-code
  1. Disconnect all connectors between the navigation ECU and the component shown by the sub-code
  2. Check for an open or short in the AVC-LAN circuit between the navigation ECU and the component shown by the sub-code.
    OK: There is no open or short circuit.

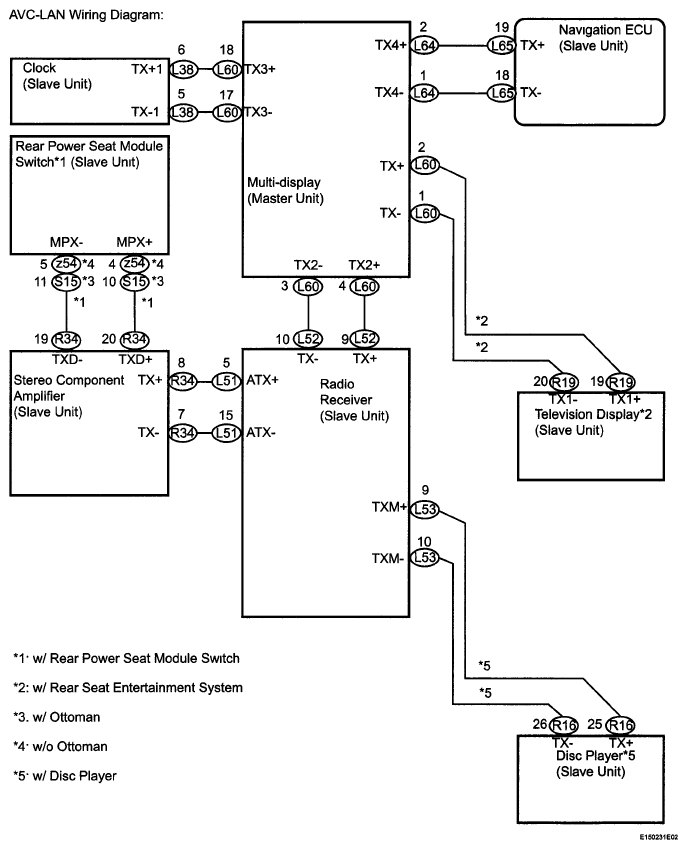

    Fig 3: AVC-LAN Wiring Diagram
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step
REPLACE COMPONENT SHOWN BY SUB-CODE
1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.
  OK: Same problem does not occur.
NG: REPLACE NAVIGATION ECU (See REMOVAL )

OK: END
