Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

First make sure the CAN communication system is operating normally.

INSPECT FUSE (RR MPX-B 2)

Disconnect the RR MPX-B 2 fuse from the luggage room junction block.

Measure the resistance according to the value(s) in the table below

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
RR MPX-B 2 fuse	Always	Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

CHECK HARNESS AND CONNECTOR (REAR POWER SEAT MODULE SWITCH - BATTERY AND BODY GROUND)

Disconnect the S15 or z54 module connector

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
S15-5 (E) - Body ground*1	Always	Below 1 Ω
z54-3 (E) - Body ground*2	Always	Below 1 Ω

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
S15-6 (B) - Body ground*1	Always	11 to 14 V
z54-11 (B) - Body ground*2	Always	11 to 14 V

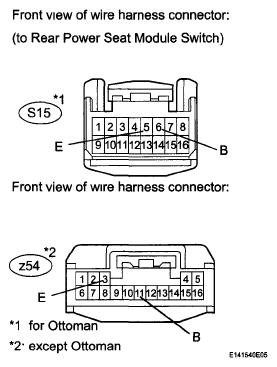

Fig 1: Identifying S15 And Z54 Connector Terminals

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE ).
