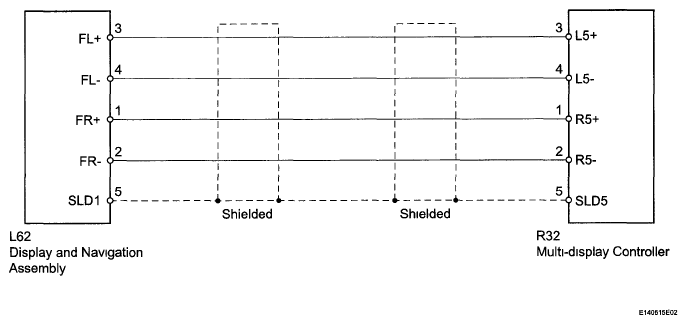

Sound Signal Circuit between Multi-display Controller and Navigation Assembly: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
