Steering Pad Switch: Inspection

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

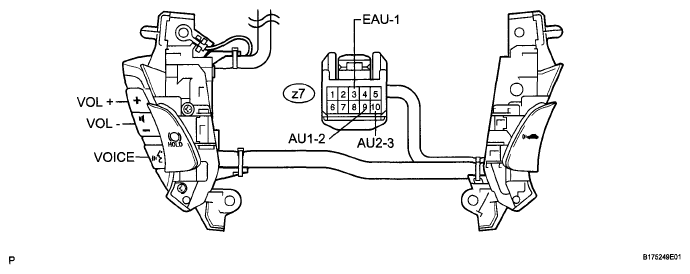

INSPECT STEERING PAD SWITCH ASSEMBLY (Steering Wheel Side)

Fig 1: Inspecting Steering Pad Switch Assembly (Steering Wheel Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
7 (AU1-2) - 3 (EAU-1)	VOL+ switch pushed	680 Ω
7 (AU1-2) - 3 (EAU-1)	VOL- switch pushed	2880 Ω
10 (AU2-3) - 3 (EAU-1)	VOICE switch pushed	2200 Ω

If the result is not as specified, replace the switch assembly

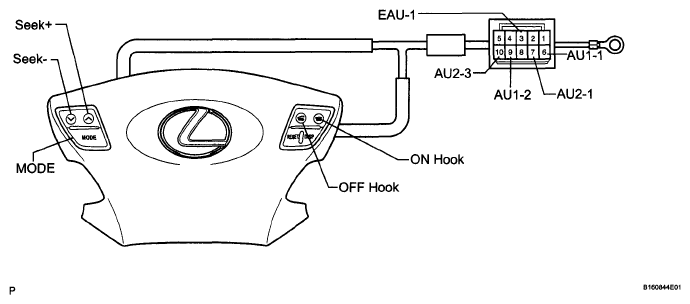

INSPECT STEERING PAD SWITCH ASSEMBLY (Steering Pad Side)

Fig 2: Inspecting Steering Pad Switch Assembly (Steering Pad Side)

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Switch Condition	Specified Condition
7 (AU2-1) - 3 (EAU-1)	No switch is pushed	1000 kΩ or higher
7 (AU2-1) - 3 (EAU-1)	MODE switch pushed	Below 1 Ω
7 (AU2-1) - 10 (AU2-3)	No switch is pushed	1010 Ω
7 (AU2-1) - 3 (EAU-1)	ON Hook switch pushed	330 Ω
7 (AU2-1) - 3 (EAU-1)	OFF Hook switch pushed	1010 Ω
6 (AU1-1) - 3 (EAU-1)	No switch is pushed	1000 kΩ or higher
6 (AU1-1) - 3 (EAU-1)	Seek+ switch pushed	Below 2.5 Ω
6 (AU1-1) - 3 (EAU-1)	Seek- switch pushed	330 Ω
6 (AU1-1) - 9 (AU1-2)	No switch is pushed	330 Ω

If the result is not as specified, replace the switch assembly
