Vehicle Height Offset Calibration

NOTE:
  • Make sure that the pressure of the tires is normal.
  • Make sure that the vehicle is empty.
  • Make sure that the parking brake is released and that the shift lever is on N.
  1. PERFORM VEHICLE HEIGHT INSPECTION
    1. Adjust the pressure of the tires.
    2. Stabilize the suspension by releasing the parking brake and bouncing the corners of the vehicle up and down.
    3. Turn the power switch OFF.
    4. Connect the Techstream to the DLC3.
    5. Turn the power switch ON (READY) and the Techstream ON.
    6. Enter the following menus: Chassis / Air suspension / Data List.
    7. Press the height control switch and adjust the vehicle height to "HEIGHT HIGH".
    8. Press the height control switch and return the vehicle height to NORMAL.
    9. Using the DATA LIST, confirm that the vehicle height control operation is complete.
      AIR SUSPENSION

      Tester Display Measurement Item/Range Normal Condition Diagnosis Note
      Height Control Vehicle height control condition reading /
      ON or OFF      		 ON: Vehicle height control is operating
      OFF: Vehicle height control is not operating      		 -
    10. Turn the power switch OFF.
    11. Move the shift lever to N and move the vehicle forward and rearward.
    12. Turn the power switch ON (IG).
    13. Enter the following menus: Chassis / Air suspension / Data List.
    14. Using the Techstream, read the DATA LIST.

      HINT:

      Then read and write the values for "After Height Adjust" and "Height Adjust" for each wheel.

      AIR SUSPENSION

      Tester Display Measurement Item/Range Normal Condition Diagnosis Note
      FR Height Adjust Display of vehicle height offset recorded value of front right wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 - -
      FL Height Adjust Display of vehicle height offset recorded value of front left wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 - -
      RR Height Adjust Display of vehicle height offset recorded value of rear right wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 - -
      RL Height Adjust Display of vehicle height offset recorded value of rear left wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 - -
      FR After Height Adjust Display of after-calibration vehicle height value of front right wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 When vehicle height is NORMAL: 0 +/-20 mm (0 +/-0.787 in.)
      When vehicle height is changing: Varies based on vehicle height
      After HEIGHT HIGH adjustment: 20 +/-20 mm (0.787 +/-0.787 in.)      		 -
      FL After Height Adjust Display of after-calibration vehicle height value of front left wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 When vehicle height is NORMAL: 0 +/-20 mm (0 +/-0.787 in.)
      When vehicle height is changing: Varies based on vehicle height
      After HEIGHT HIGH adjustment: 20 +/-20 mm (0.787 +/-0.787 in.)      		 -
      RR After Height Adjust Display of after-calibration vehicle height value of rear right wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 When vehicle height is NORMAL: 0 +/-20 mm (0 +/-0.787 in.)
      When vehicle height is changing: Varies based on vehicle height
      After HEIGHT HIGH adjustment: 20 +/-20 mm (0.787 +/-0.787 in.)      		 -
      RL After Height Adjust Display of after-calibration vehicle height value of rear left wheel /
      min.: -3276.8 mm (-129 in.)
      max.: 3276.7 mm (129 in.)      		 When vehicle height is NORMAL: 0 +/-20 mm (0 +/-0.787 in.)
      When vehicle height is changing: Varies based on vehicle height
      After HEIGHT HIGH adjustment: 20 +/-20 mm (0.787 +/-0.787 in.)      		 -
    15. Turn the power switch OFF.
    16. Perform the vehicle height inspection.

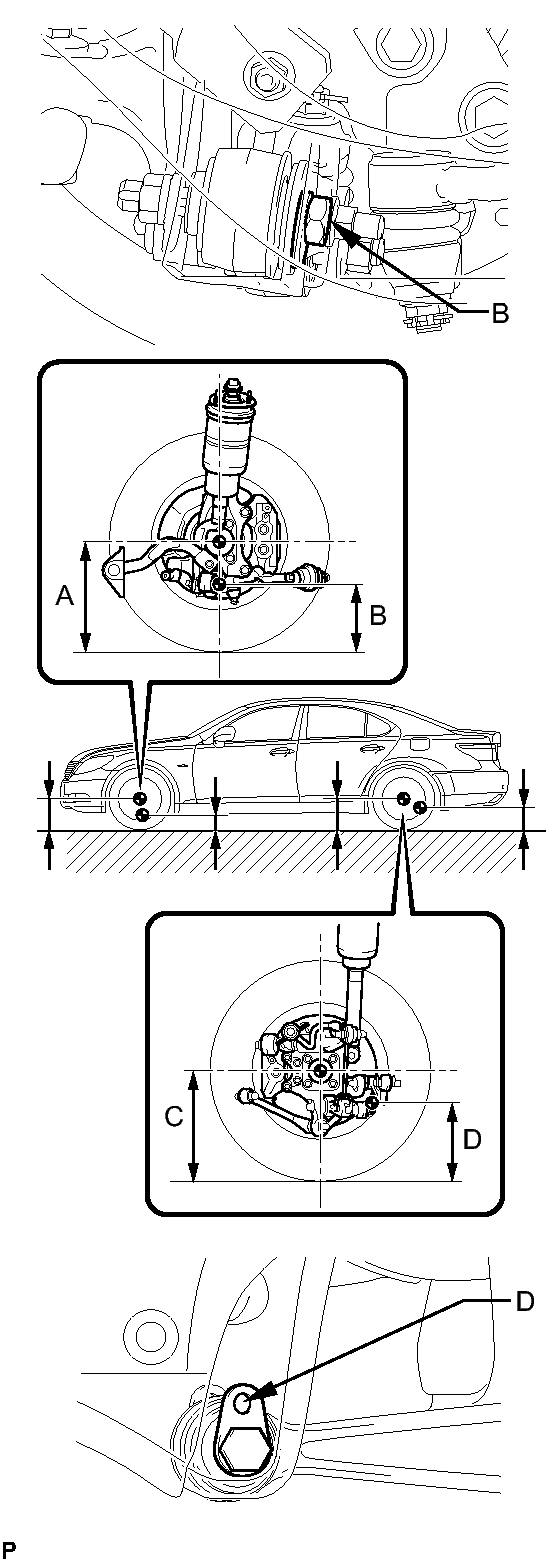

      Fig 1: Identifying Vehicle Height Inspection Points
      GTY110033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard vehicle height

      Front (A - B) Rear (C - D)
      146 mm (5.75 in.) 83 mm (3.27 in.)

      Measuring points

      A

      Ground clearance of front wheel center

      B

      Ground clearance of head center of bolt used to install front No. 1 suspension lower arm to front suspension member

      C

      Ground clearance of rear wheel center

      D

      Ground clearance of pit center of attachment rear suspension arm

      NEXT: Go to next step

  2. PERFORM VEHICLE HEIGHT OFFSET CALIBRATION
    NOTE:

    The possible vehicle height automatic adjustment value is 20 mm (0.787 in.). If the "Height Adjust" value + (Standard value - Measurement value - "After Height Adjust" value) is 20 mm (0.787 in.) or more, first perform the vehicle height adjustment (height control link adjustment).

    1. Turn the power switch OFF.
    2. Connect the Techstream to the DLC3.
    3. Turn the power switch ON (IG) and the Techstream ON.
    4. Enter the following menus: Chassis / Air suspension / Utility / Height Offset.
    5. For each wheel, follow the instructions on the Techstream screen and input the input value to complete the vehicle height offset calibration.

      HINT:

      Input value = Measurement value

    6. Turn the power switch ON (READY).
    7. In the DATA LIST, enter "Height Control".
    8. Press the height control switch and adjust the vehicle height to "HEIGHT HIGH".
    9. Press the height control switch and return the vehicle height to NORMAL.
    10. Using the DATA LIST, confirm that the vehicle height control operation is complete.
      AIR SUSPENSION

      Tester Display Measurement Item/Range Normal Condition Diagnosis Note
      Height Control Vehicle height control condition reading /
      ON or OFF      		 ON: Vehicle height control is operating
      OFF: Vehicle height control is not operating      		 -
    11. Turn the power switch OFF.
    12. Perform the vehicle height inspection. Check that the result is within +/-14.3 mm (+/-0.563 in.) of the standard value.

      NEXT → END
