Front Fog Light: Notes

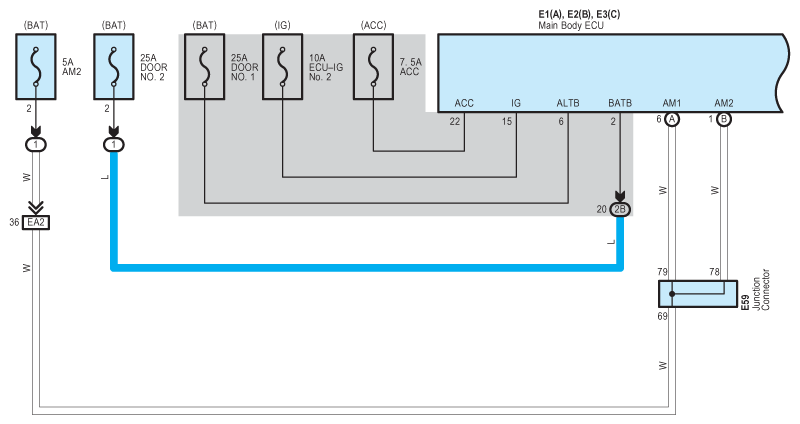

Fig 1: Front Fog Light - Circuit Diagram (1 Of 4)
G07600628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

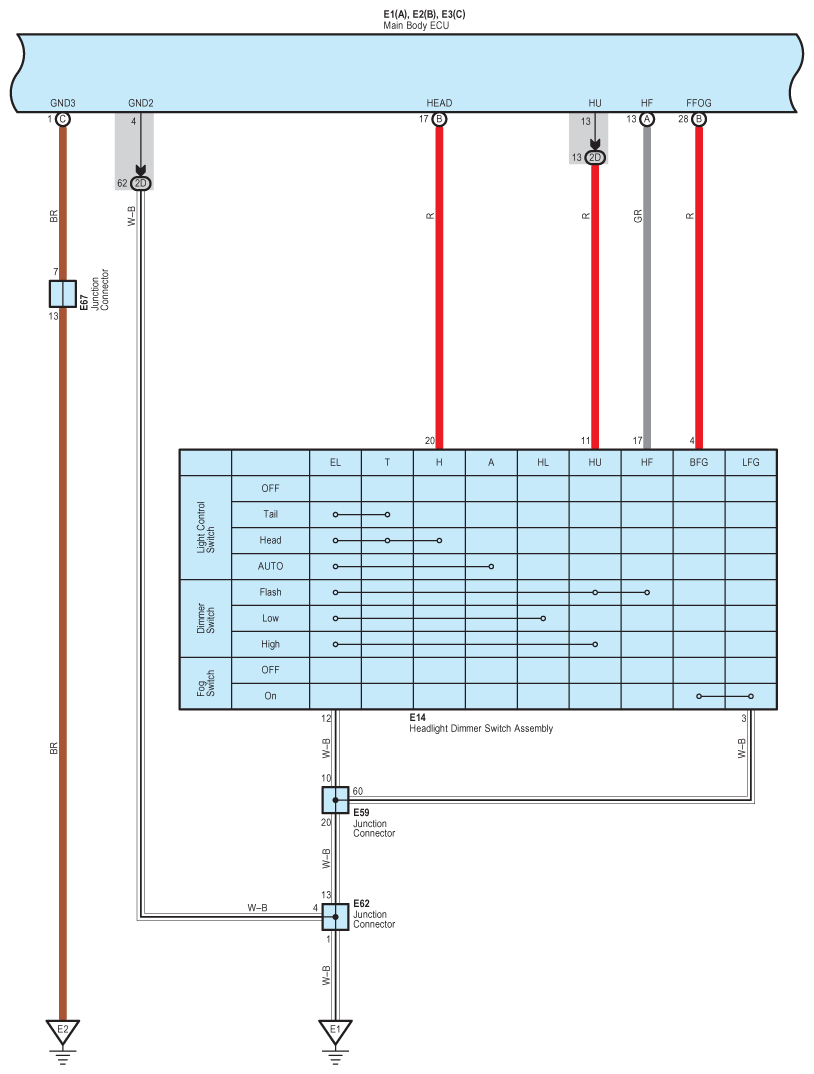

Fig 2: Front Fog Light - Circuit Diagram (2 Of 4)
G07600629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

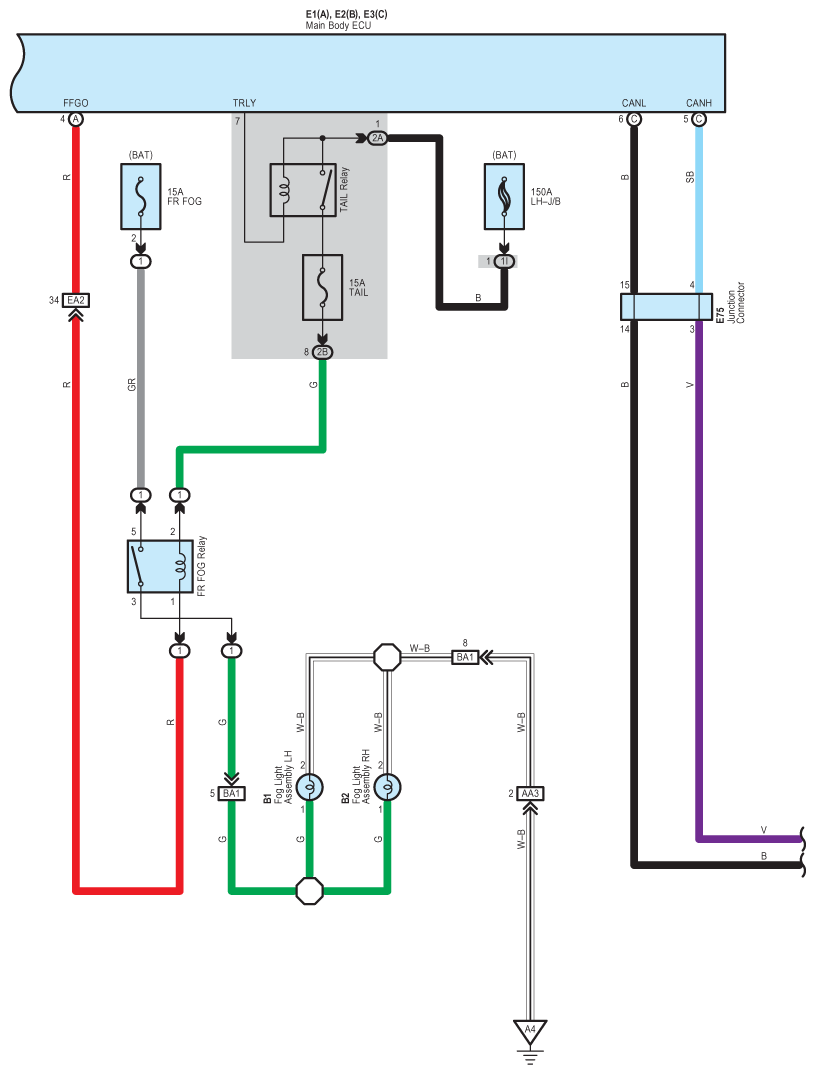

Fig 3: Front Fog Light - Circuit Diagram (3 Of 4)
G07600630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

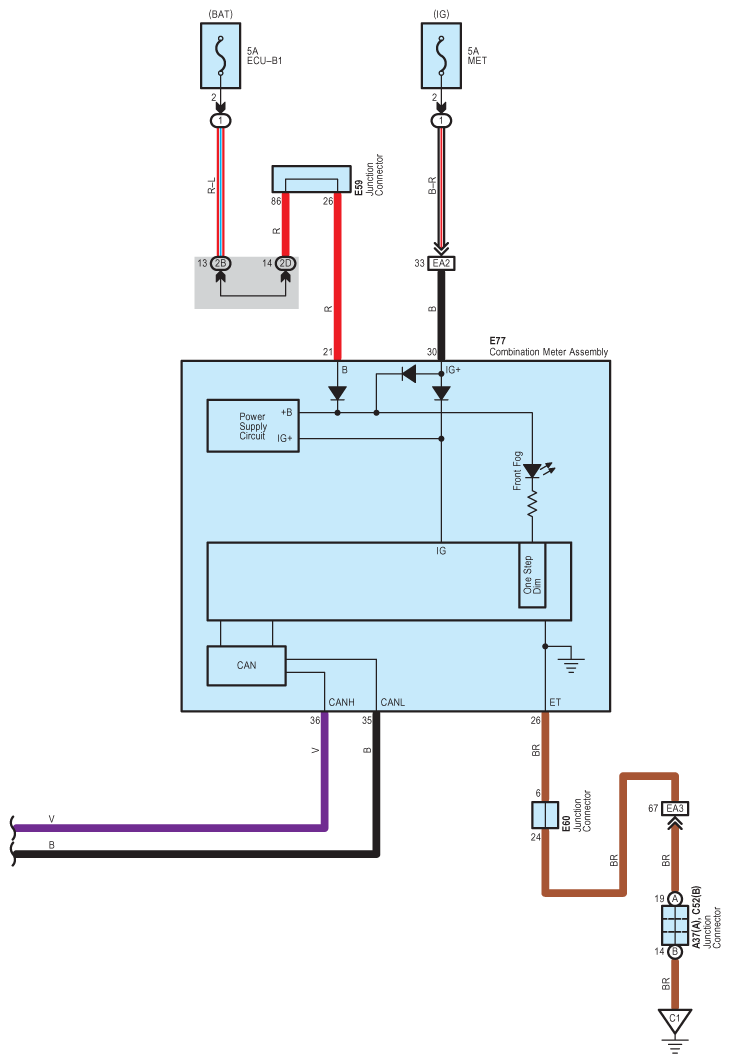

Fig 4: Front Fog Light - Circuit Diagram (4 Of 4)
G07600631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
