Sliding Roof: Notes

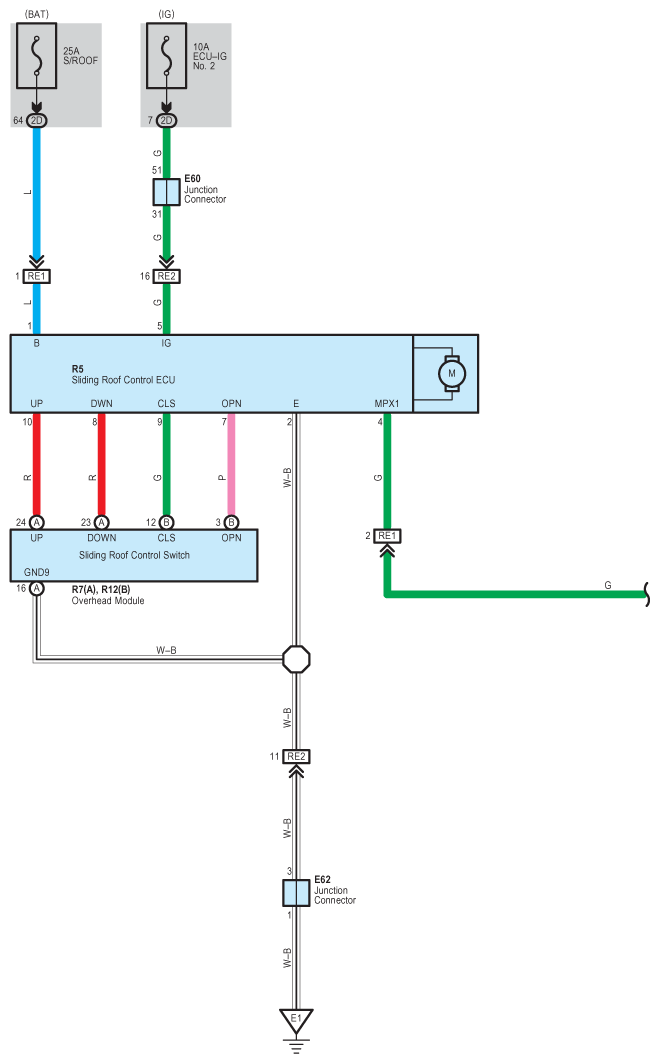

Fig 1: Sliding Roof - Circuit Diagram (1 Of 5)
G07600673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

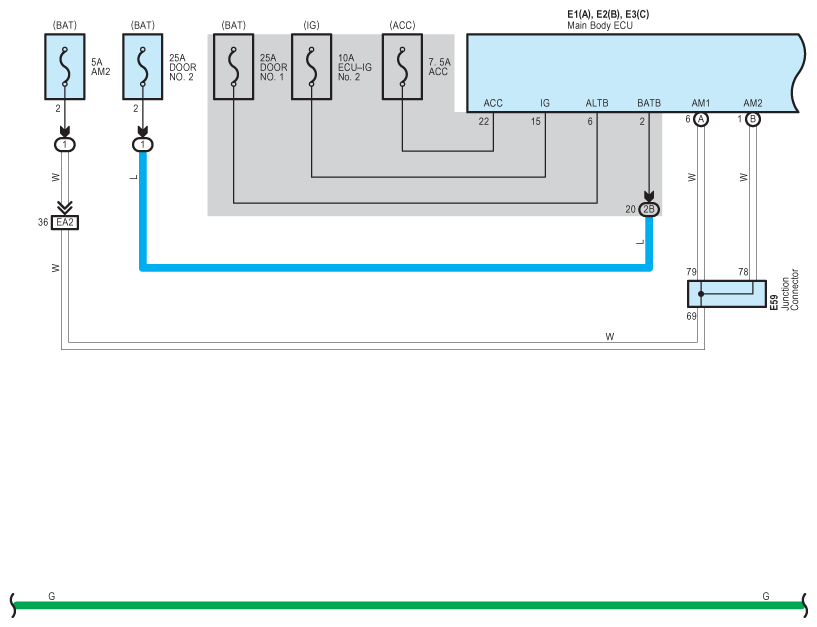

Fig 2: Sliding Roof - Circuit Diagram (2 Of 5)
G07600674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

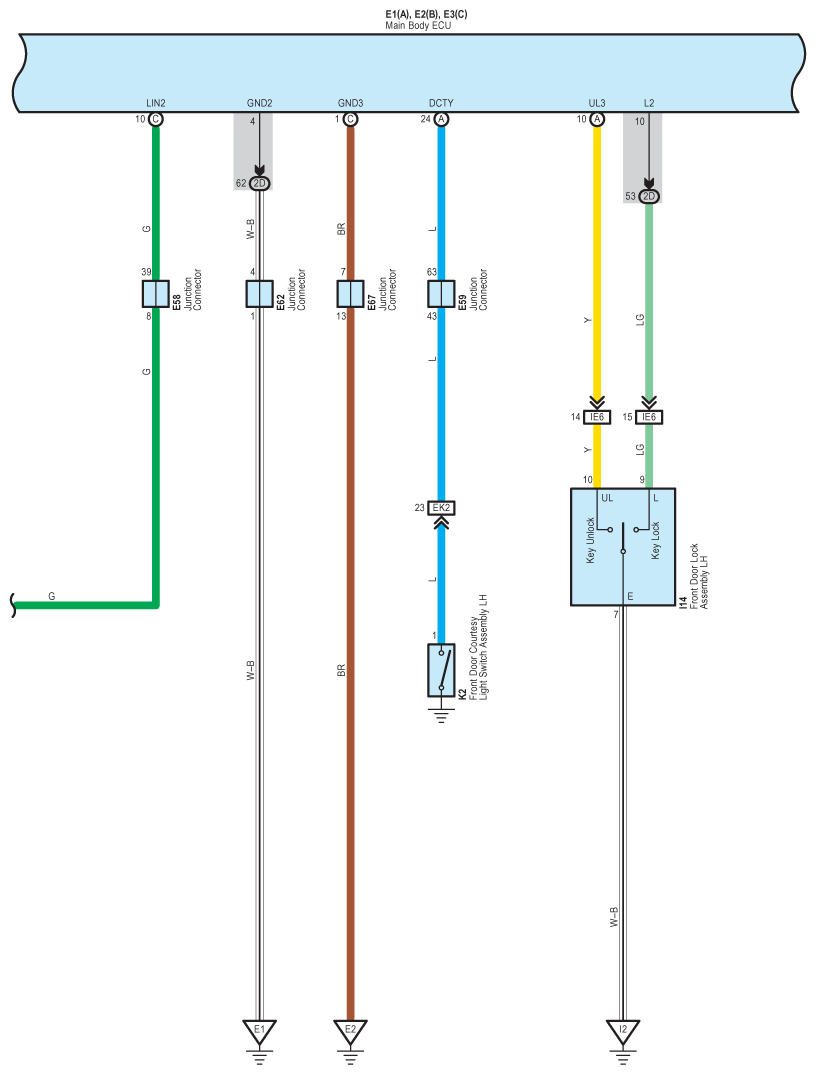

Fig 3: Sliding Roof - Circuit Diagram (3 Of 5)
G07600675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

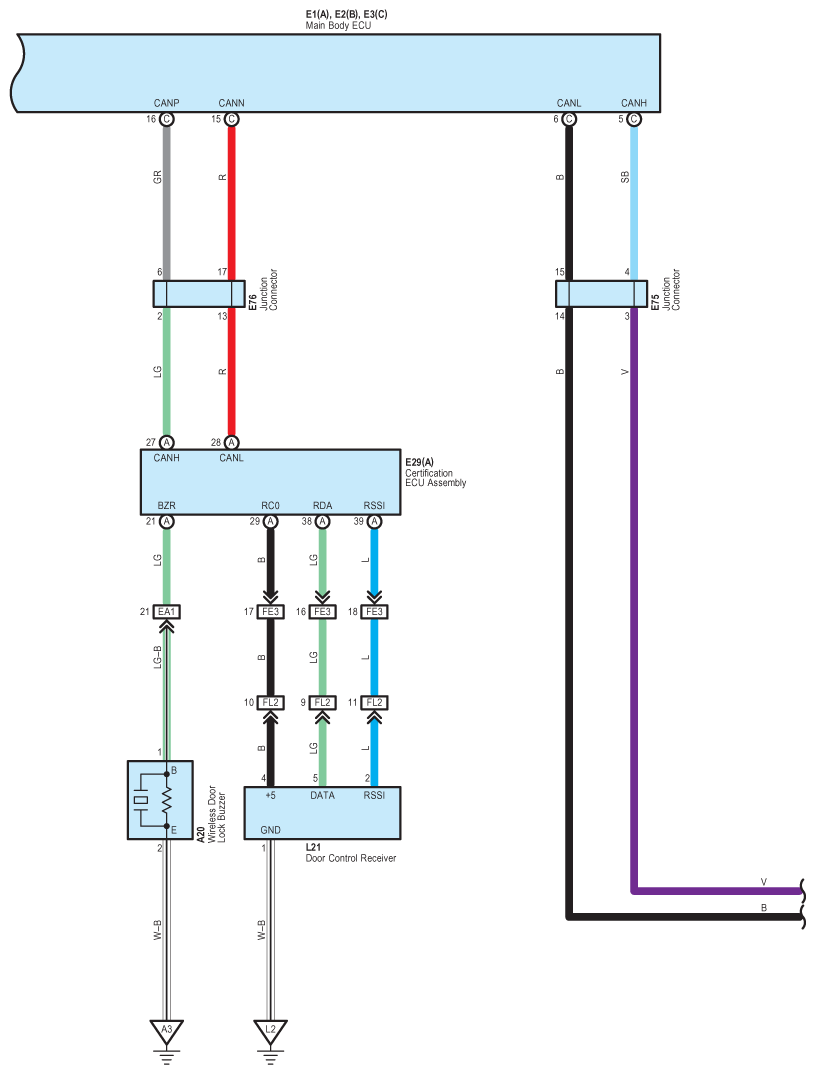

Fig 4: Sliding Roof - Circuit Diagram (4 Of 5)
G07600676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

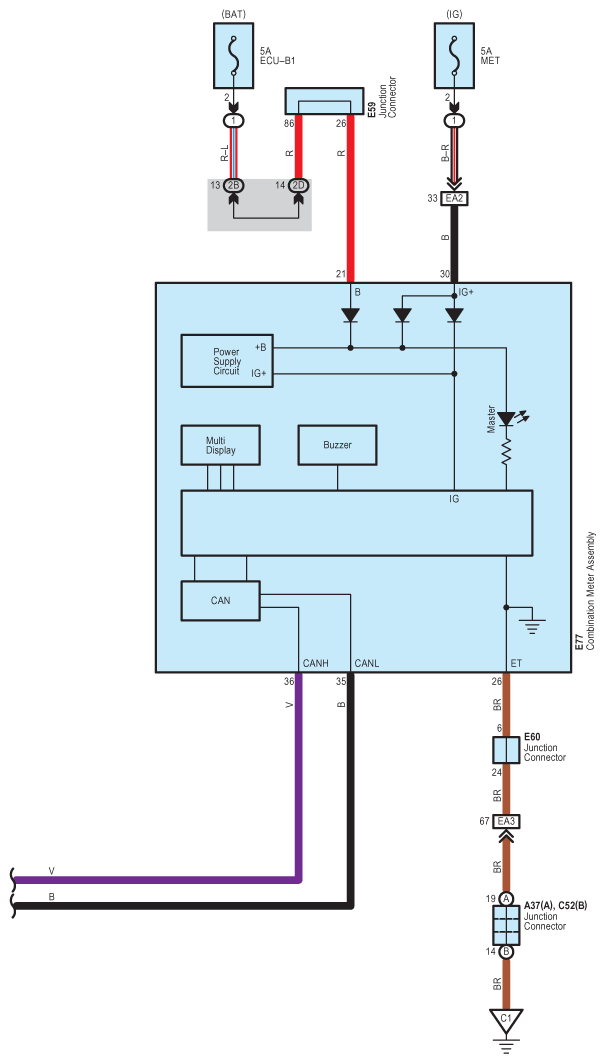

Fig 5: Sliding Roof - Circuit Diagram (5 Of 5)
G07600677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
