Smart Access System with Push-Button Start, Theft Deterrent and Back Door Opener: Notes

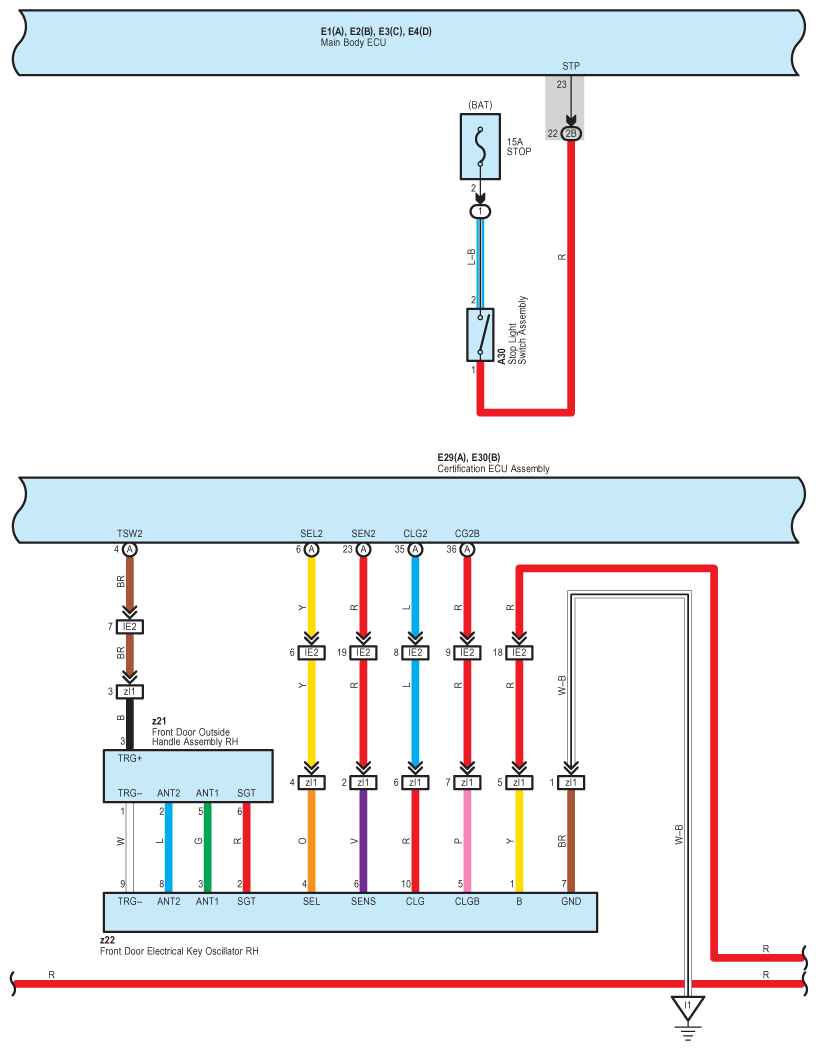

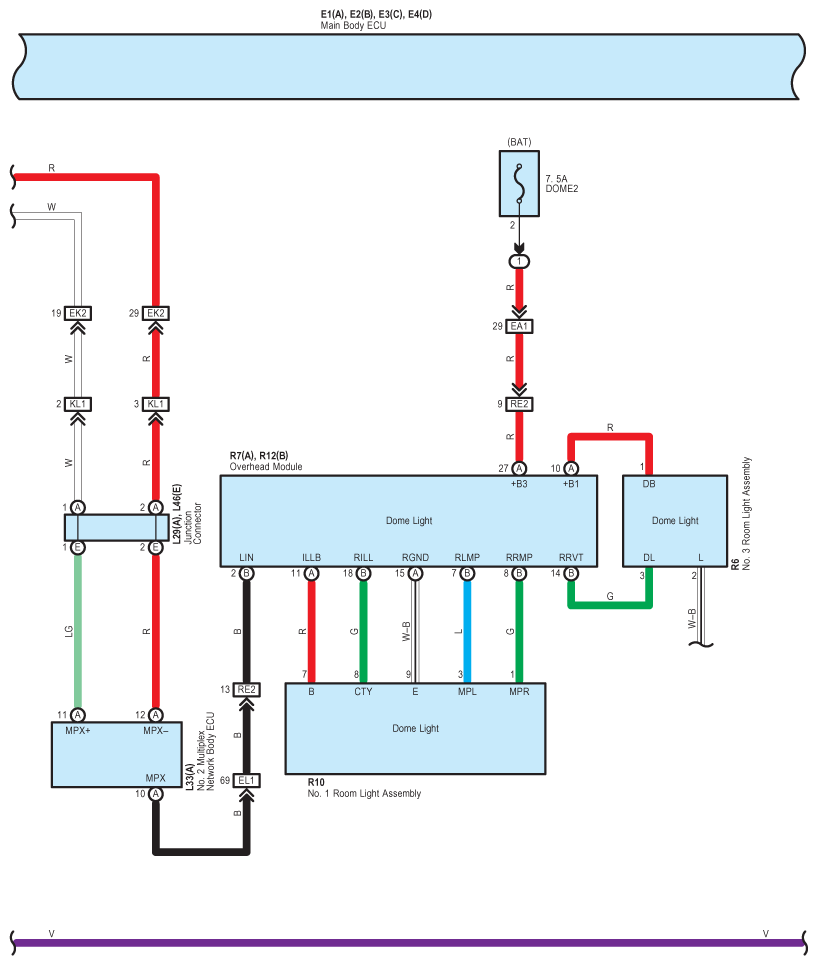

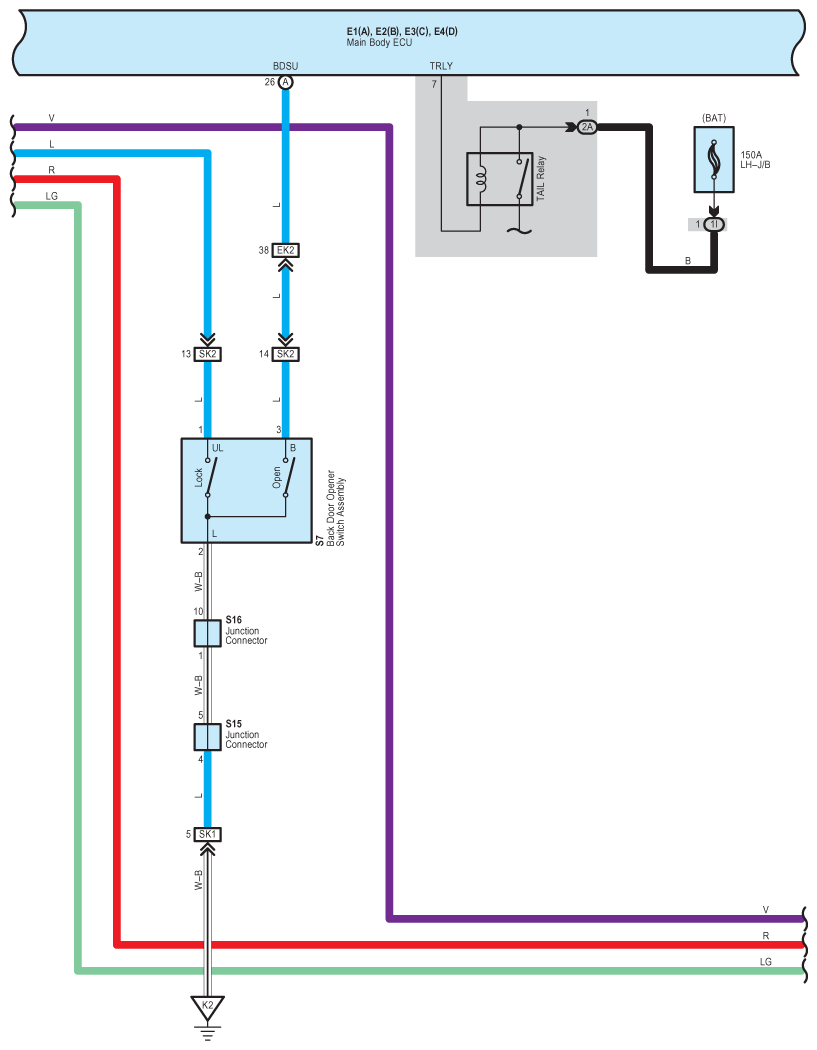

Fig 1: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

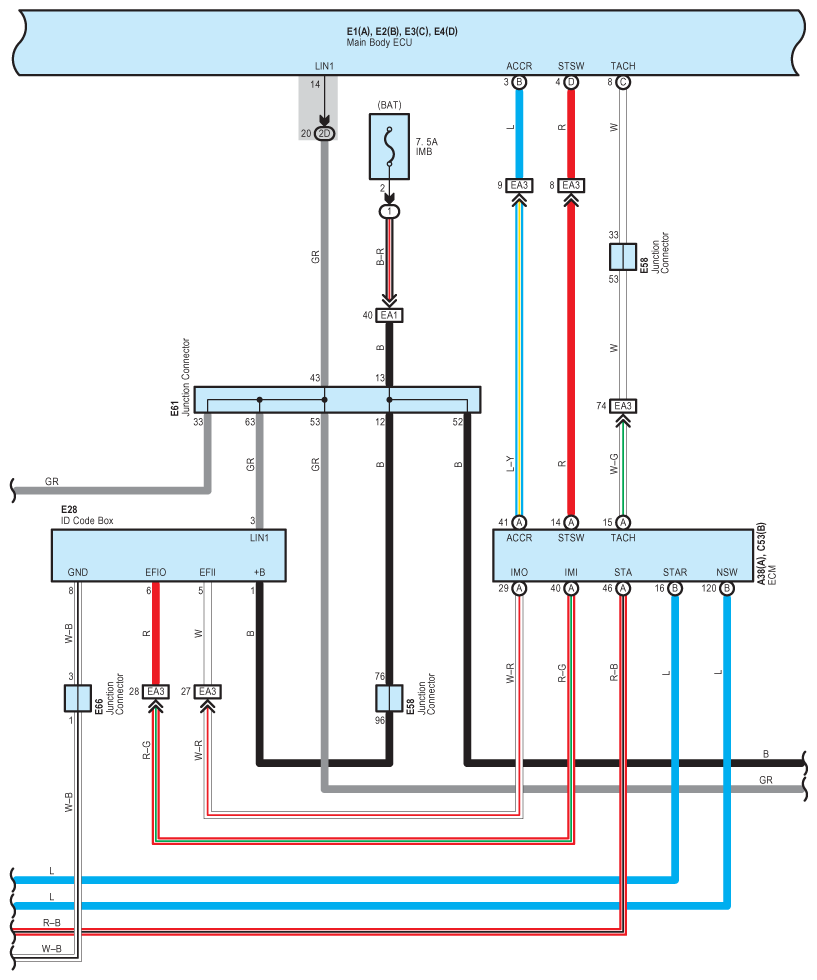

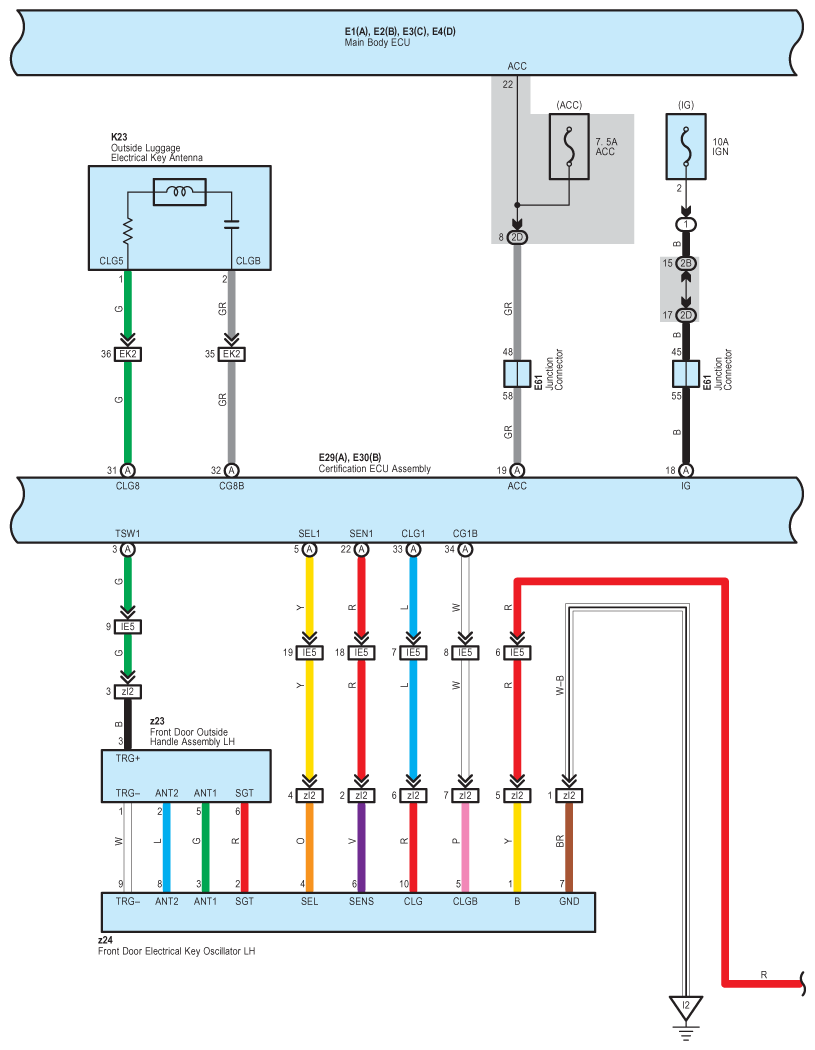

Fig 2: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

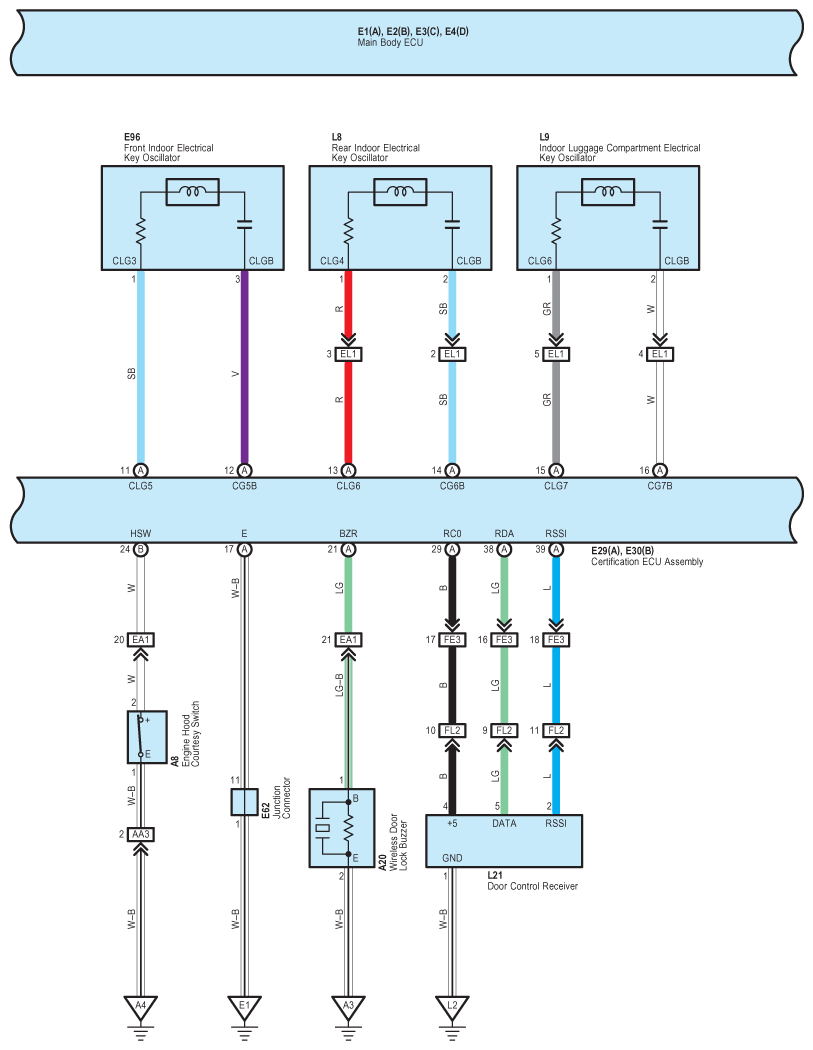

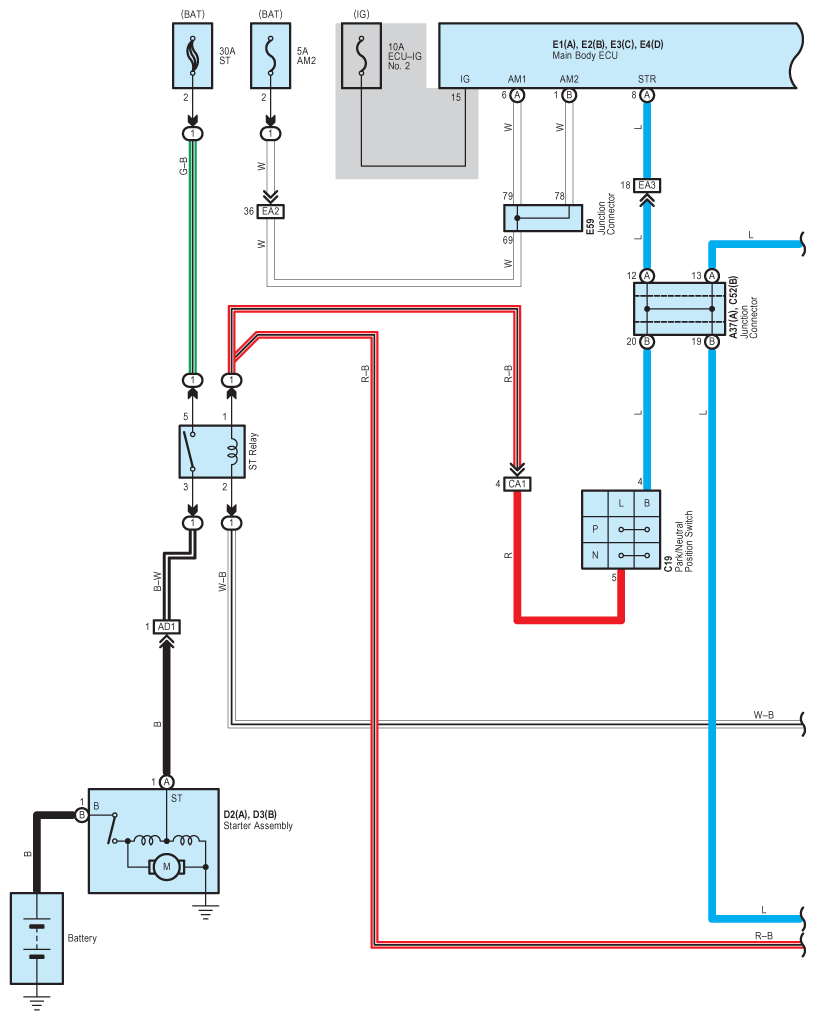

Fig 3: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

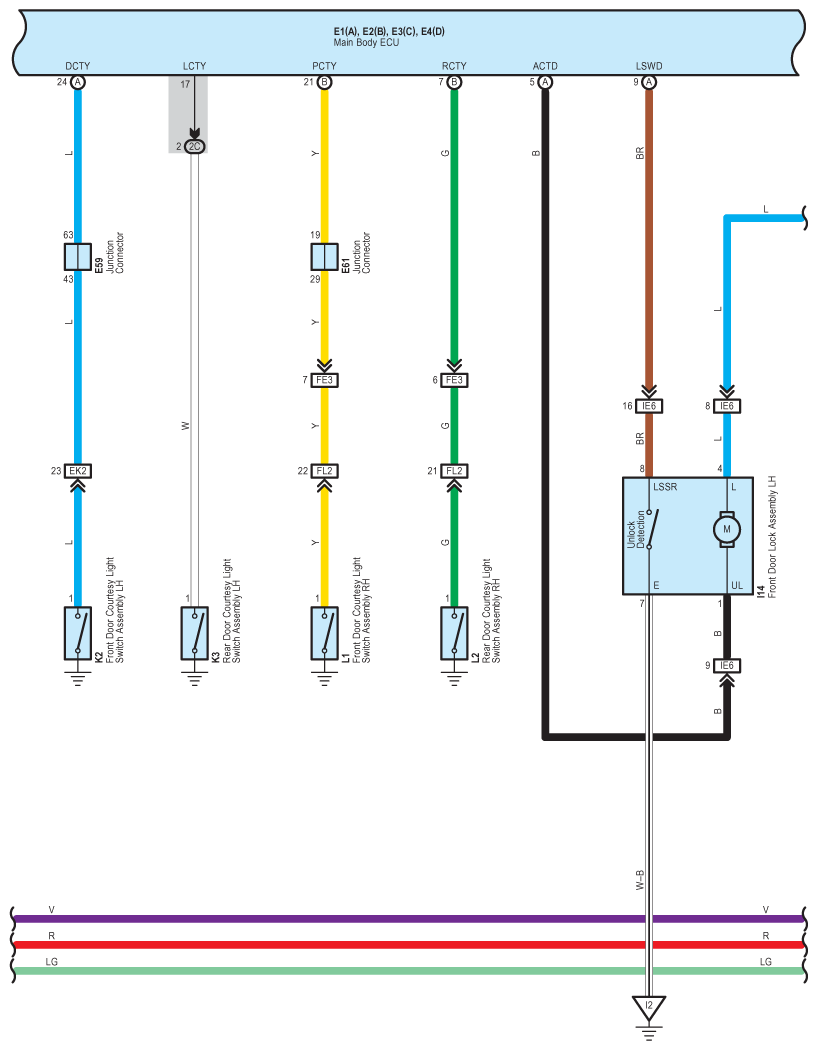

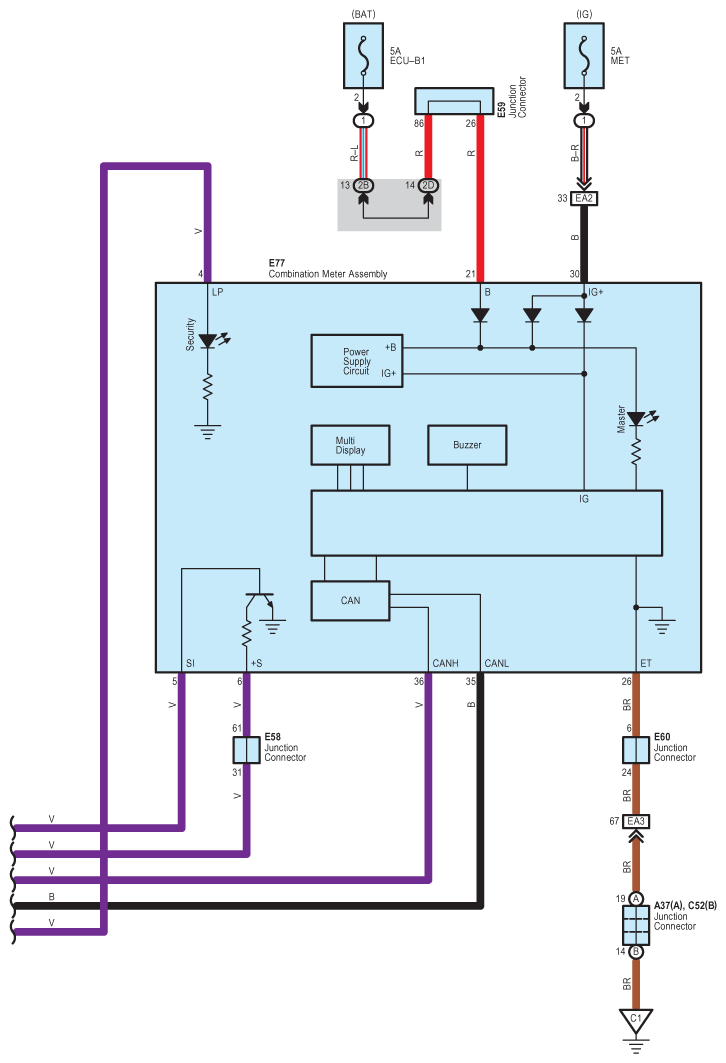

Fig 4: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

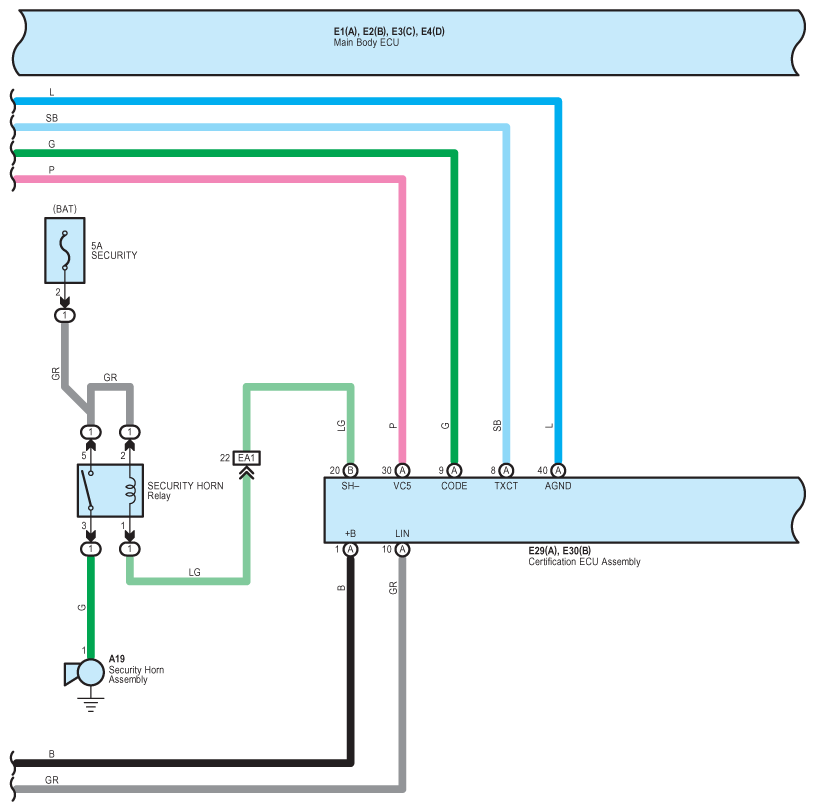

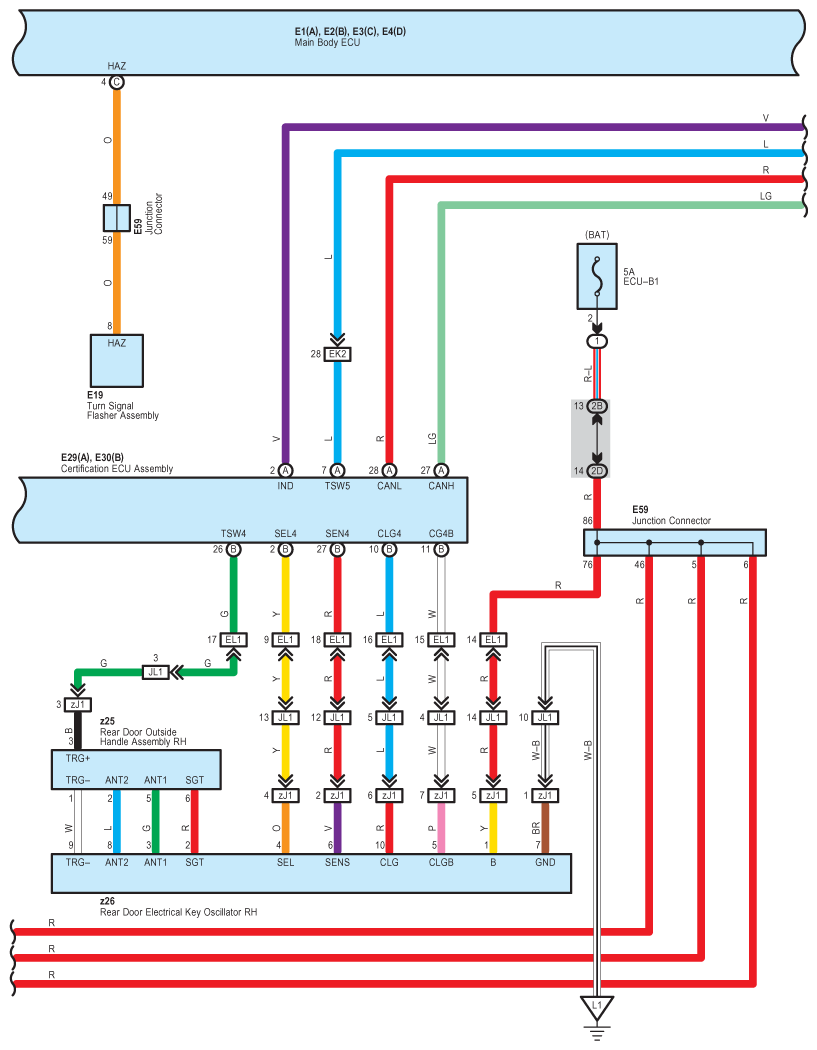

Fig 5: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

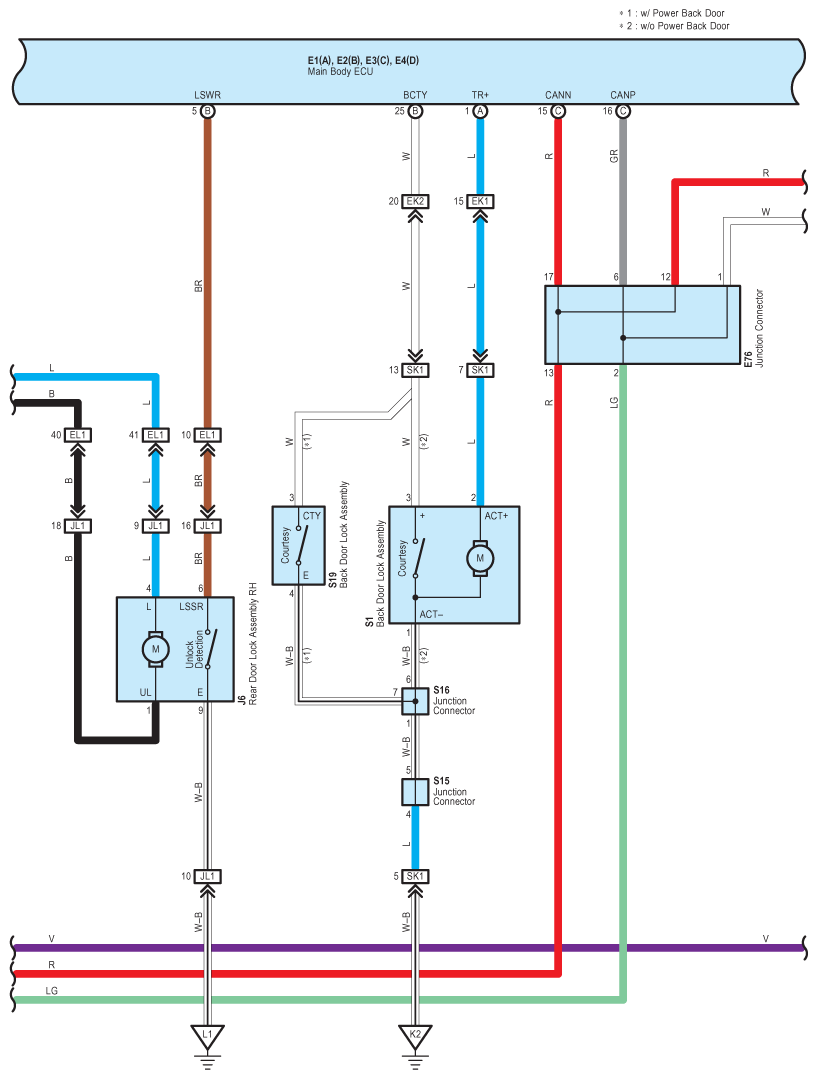

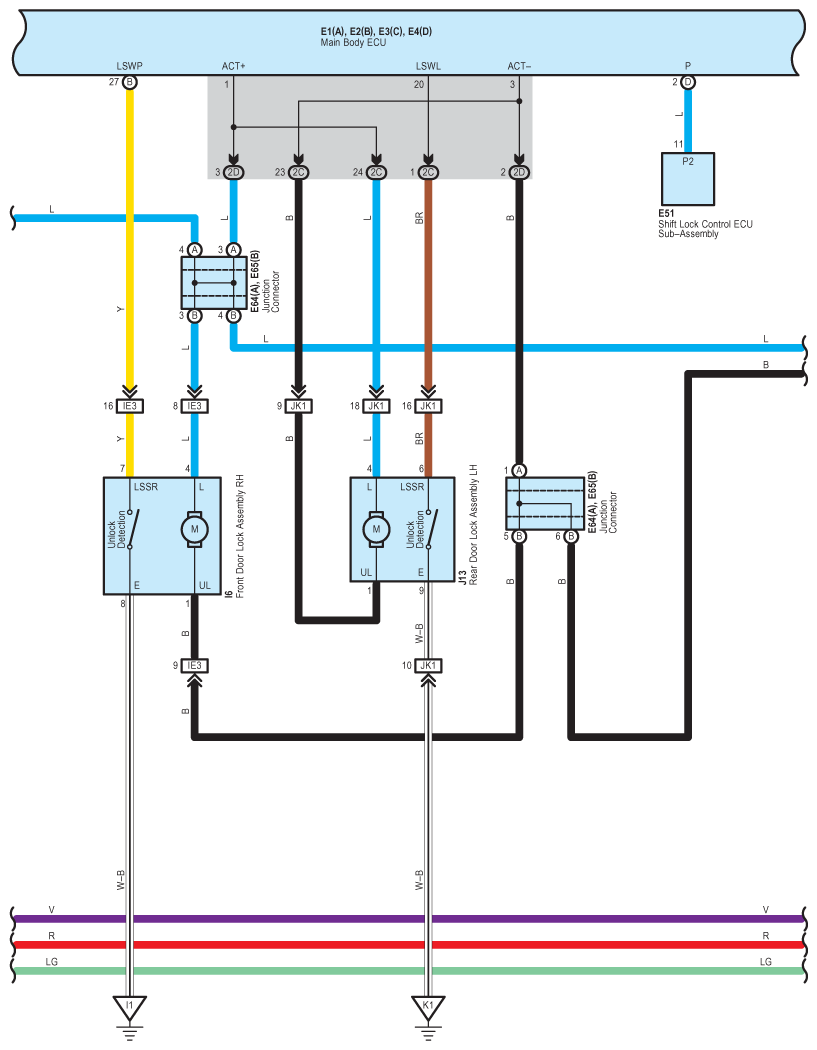

Fig 6: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

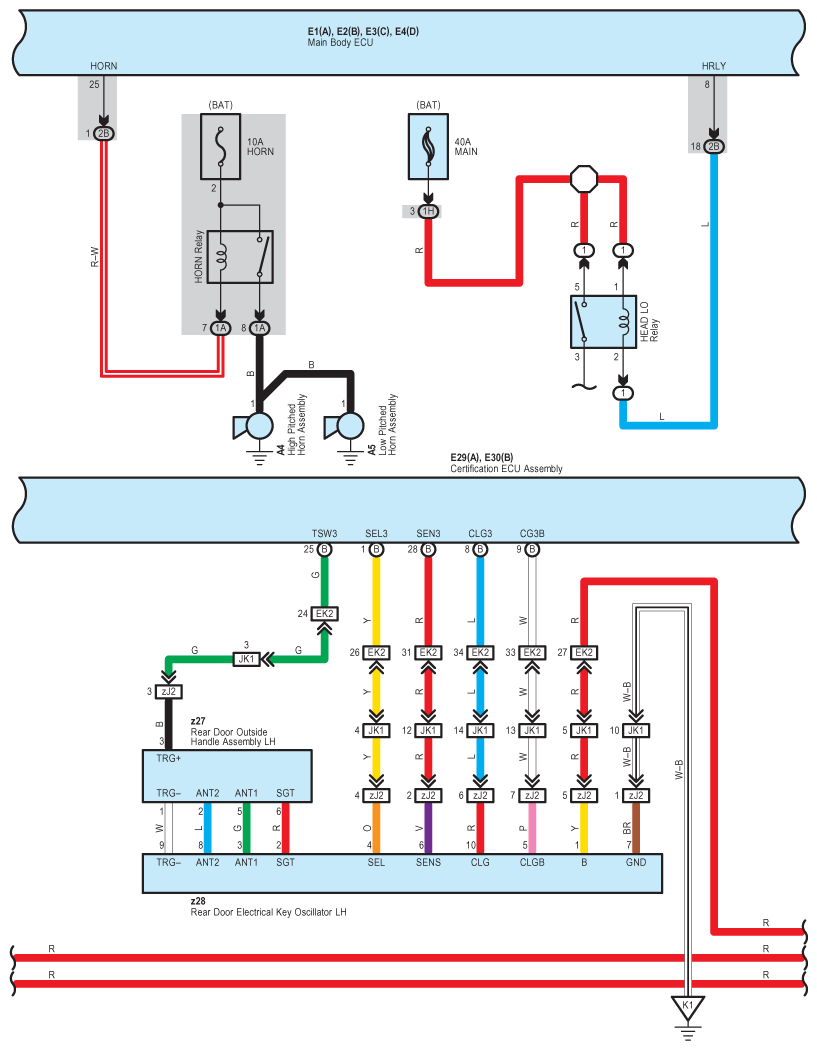

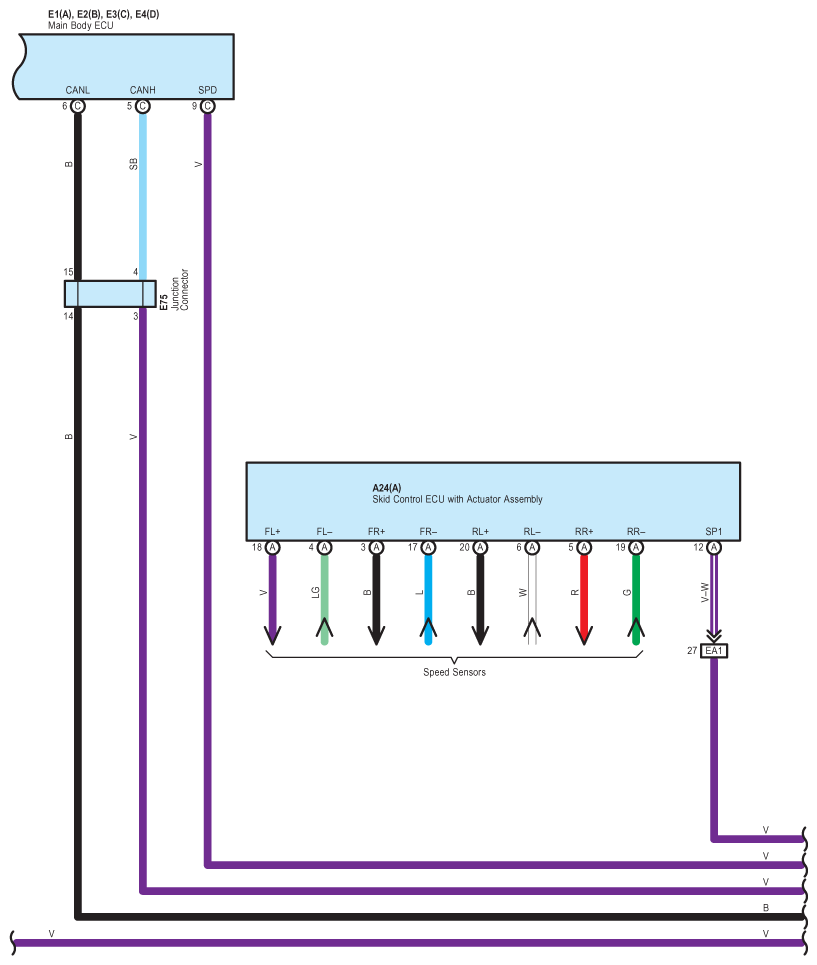

Fig 7: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

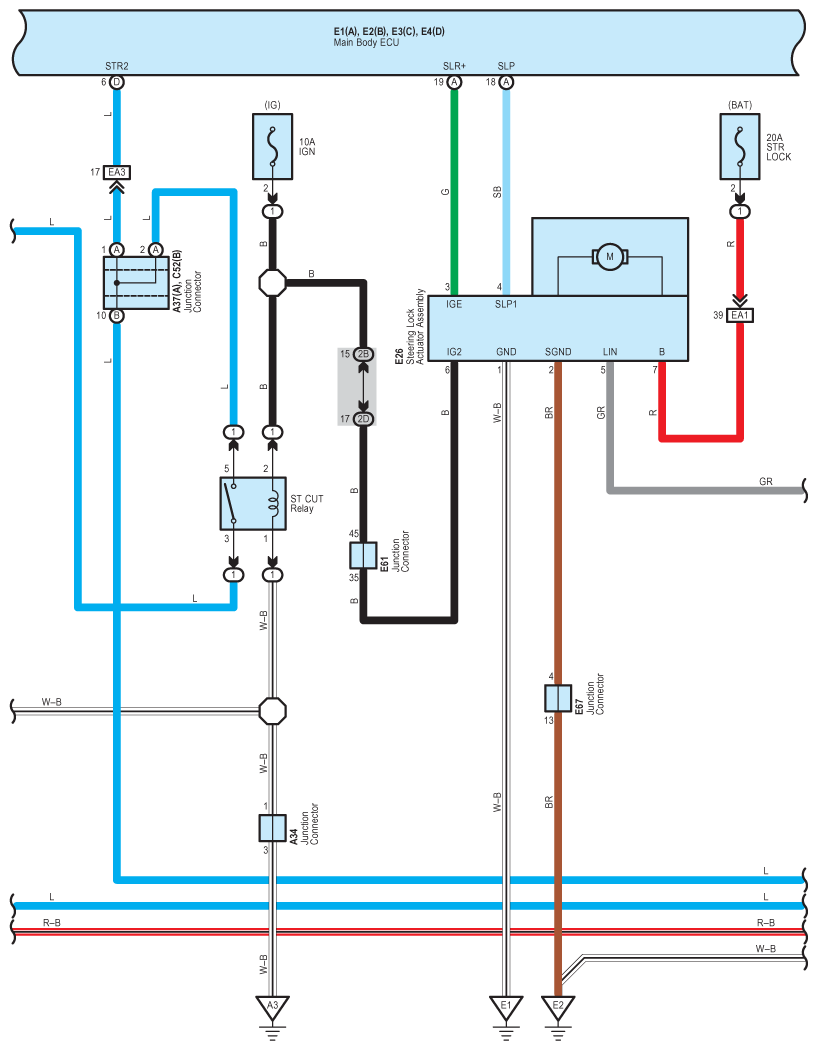

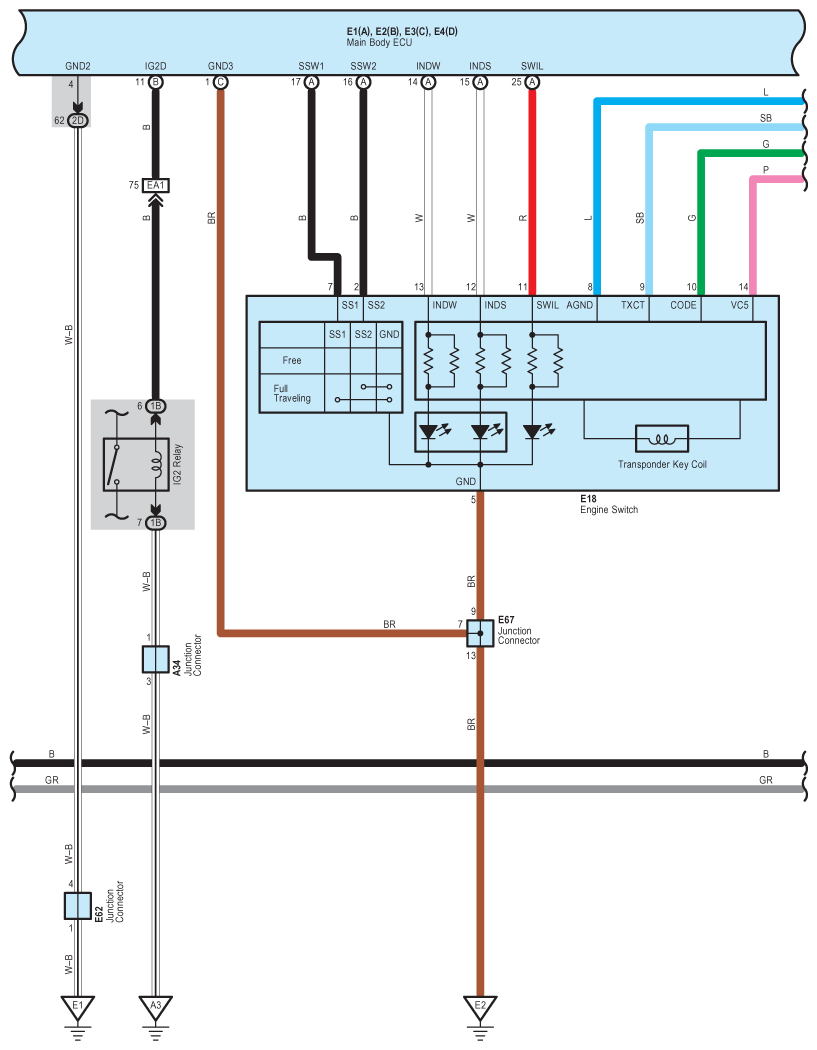

Fig 8: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (12 Of 17)

Fig 13: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (13 Of 17)

Fig 14: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (14 Of 17)

Fig 15: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (15 Of 17)

Fig 16: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (16 Of 17)

Fig 17: Smart Access System With Push-Button Start, Theft Deterrent And Back Door Opener - Circuit Diagram (17 Of 17)
