Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION

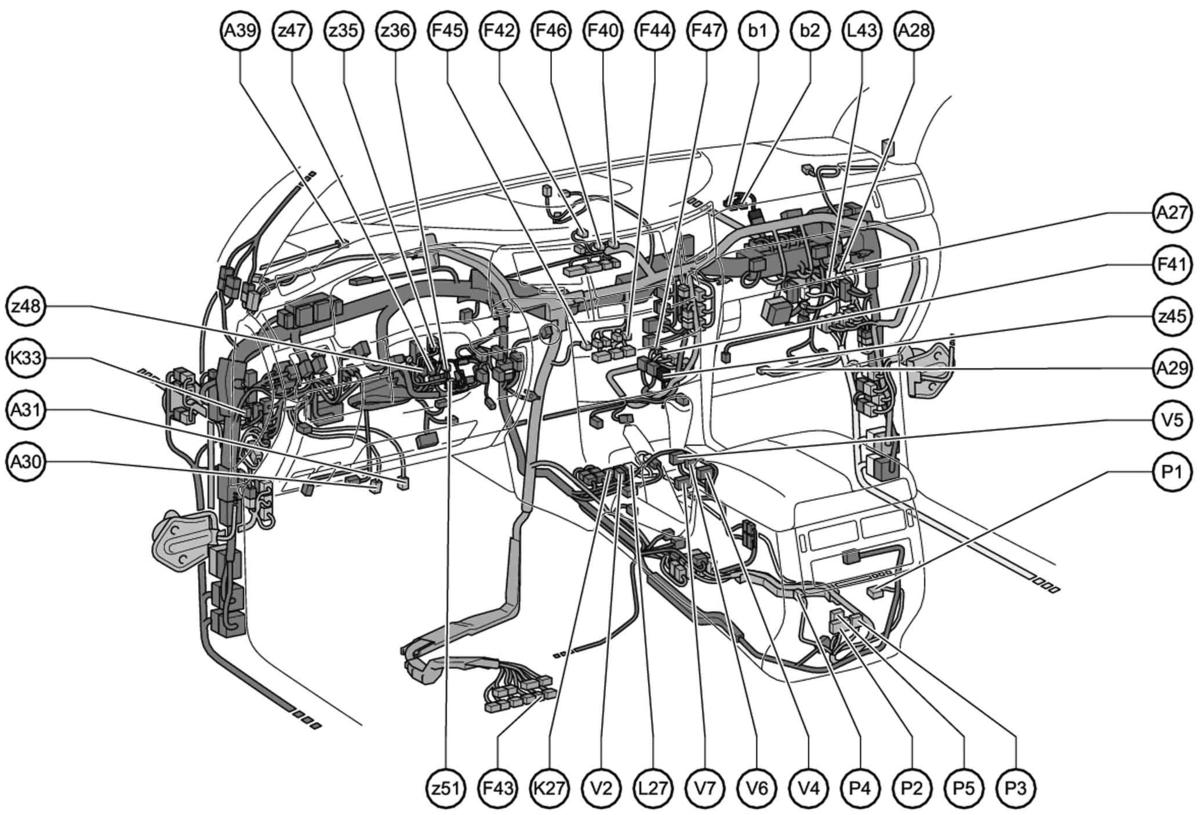

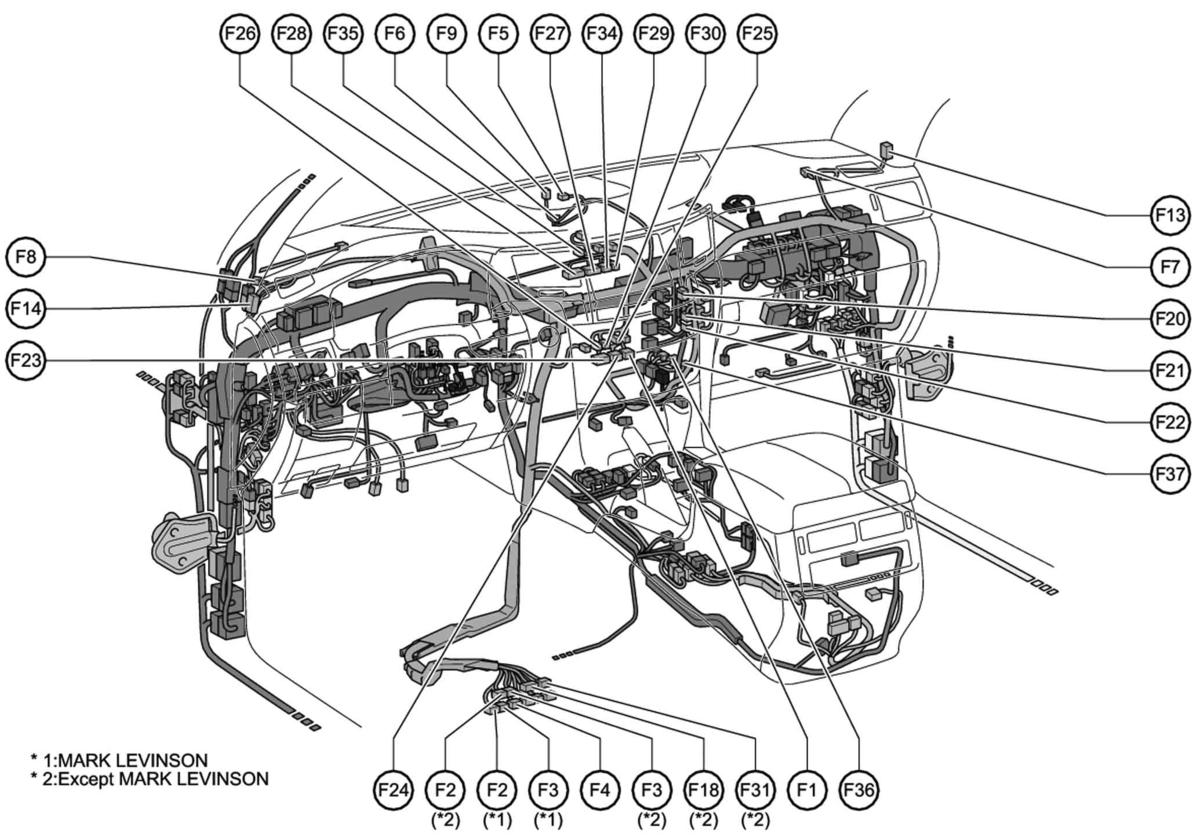

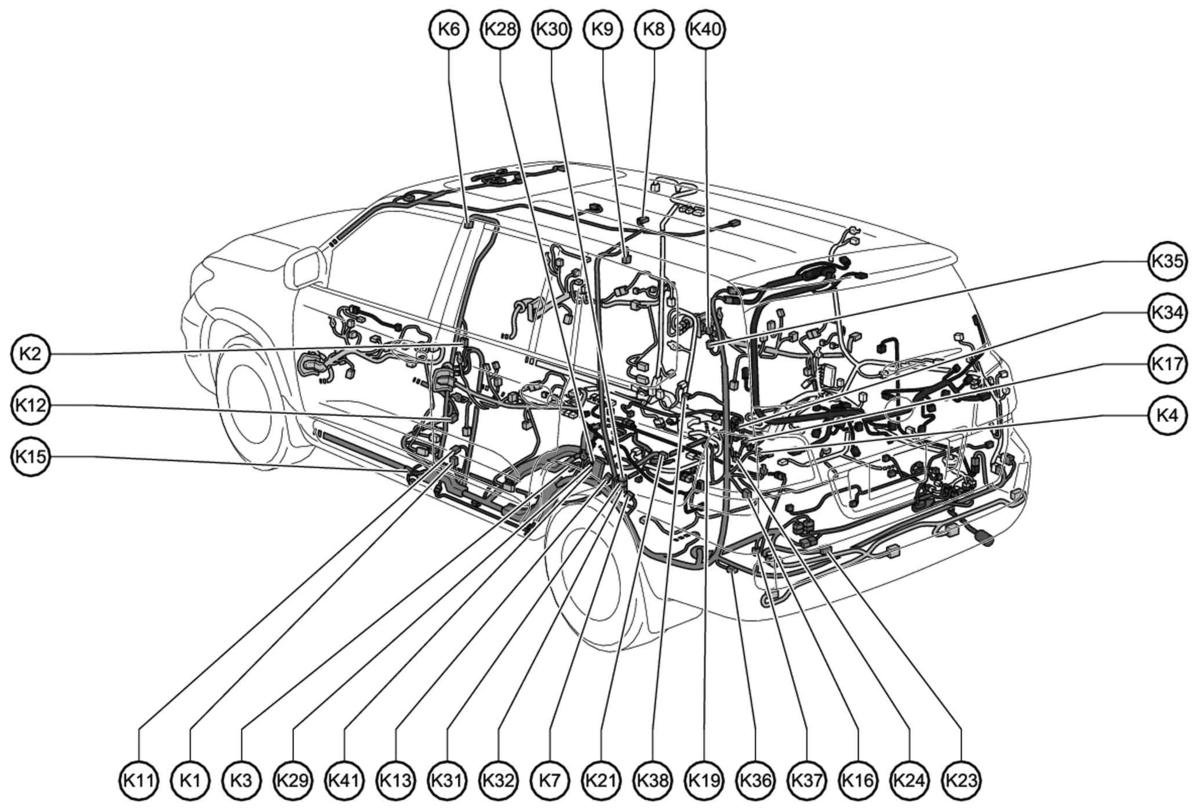

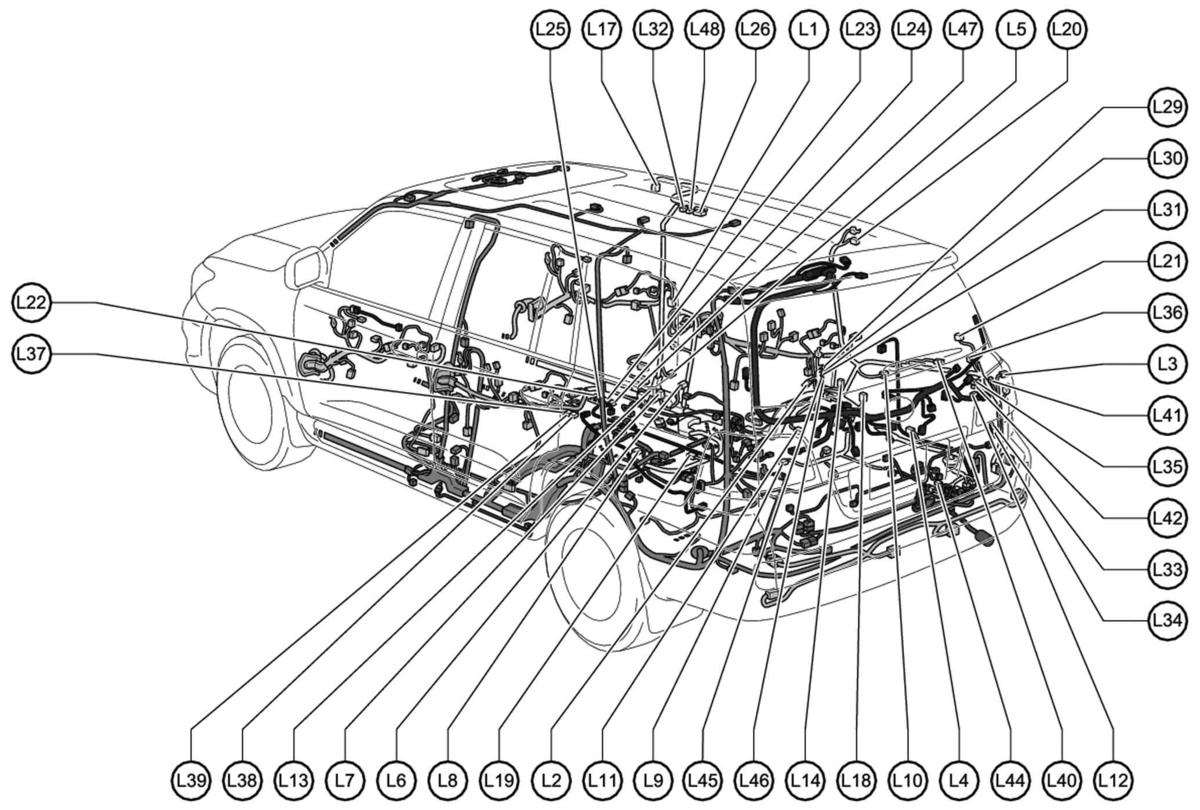

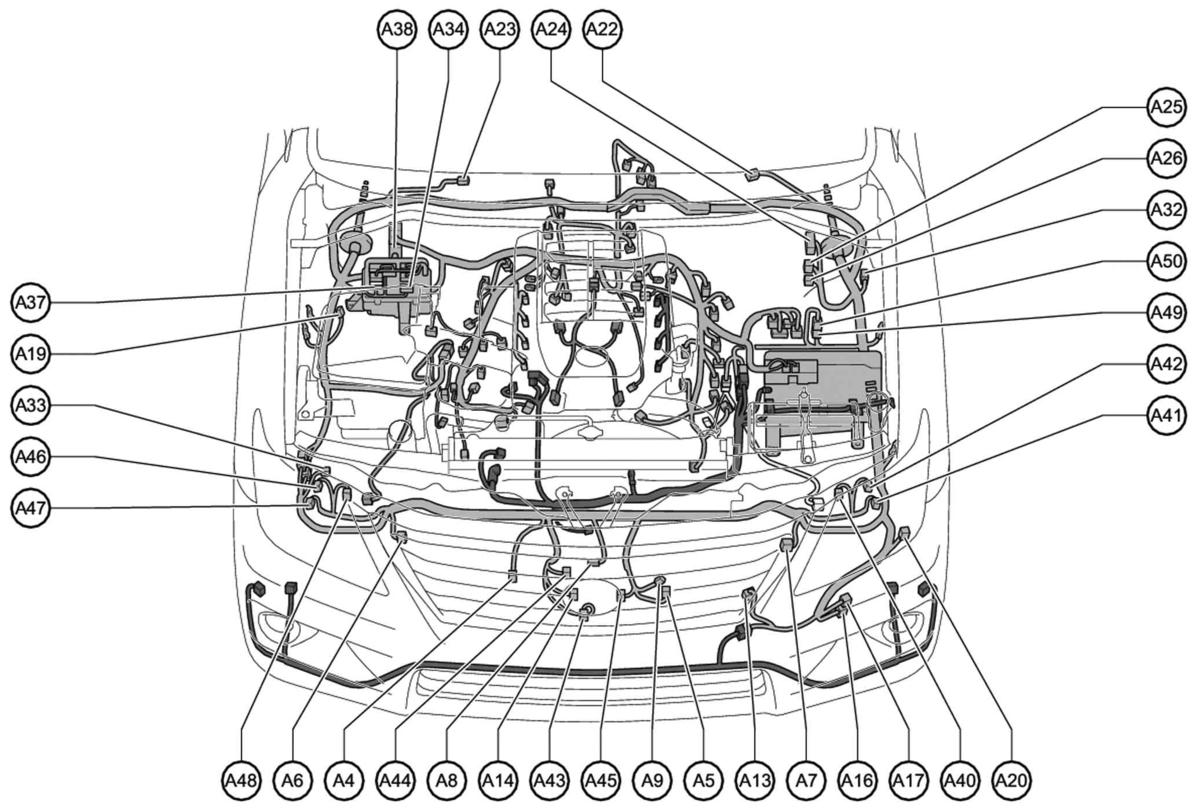

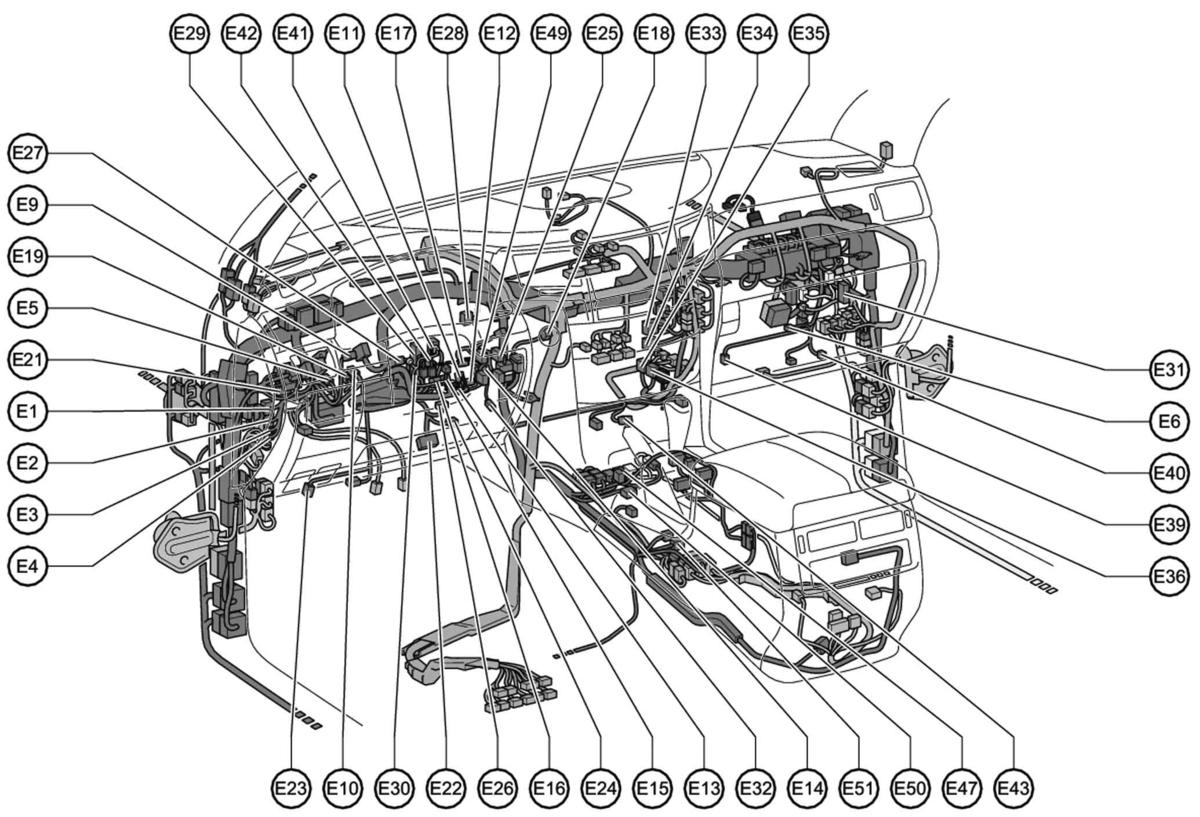

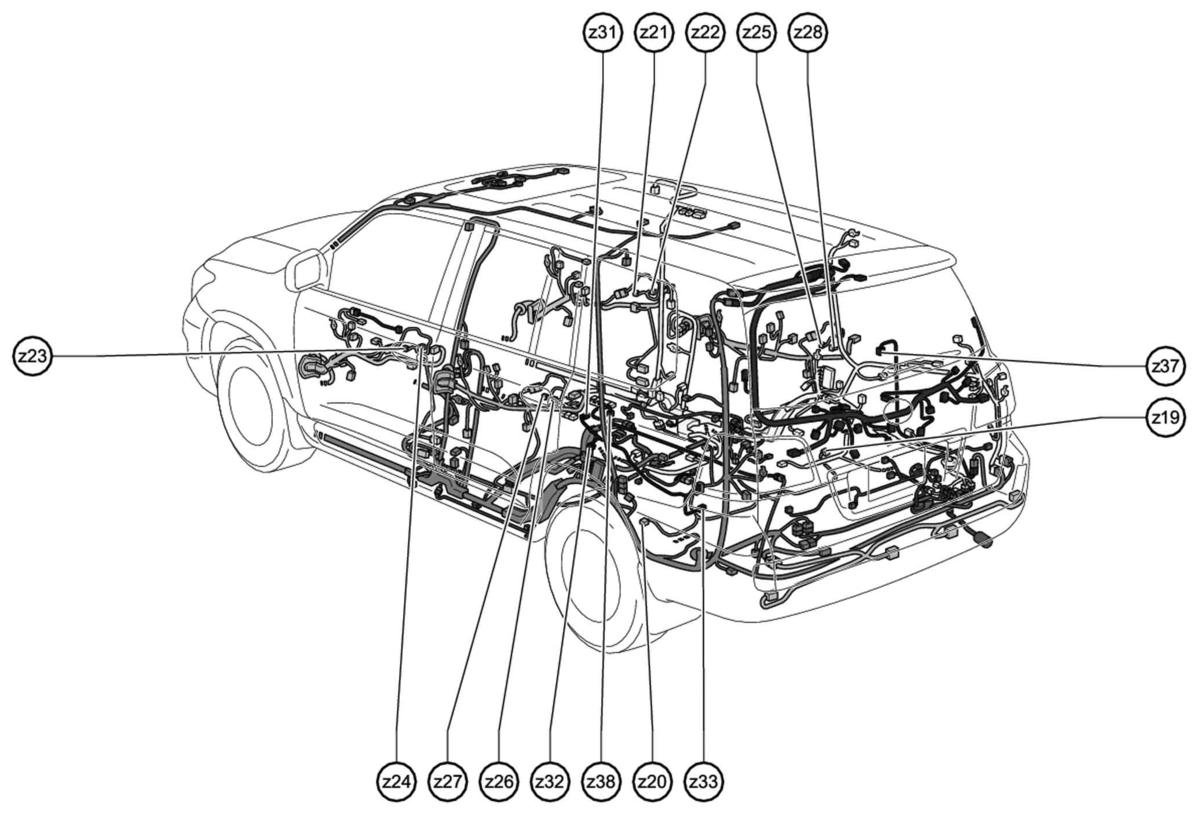

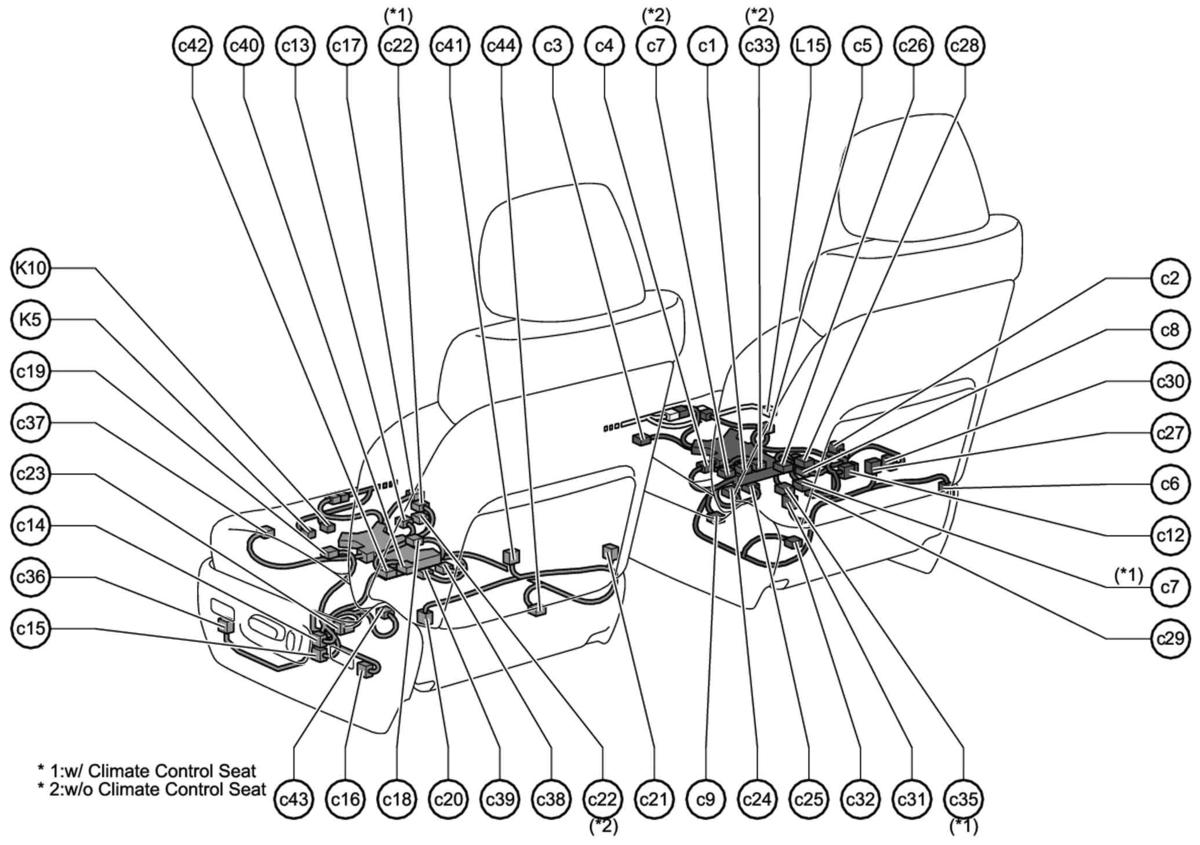

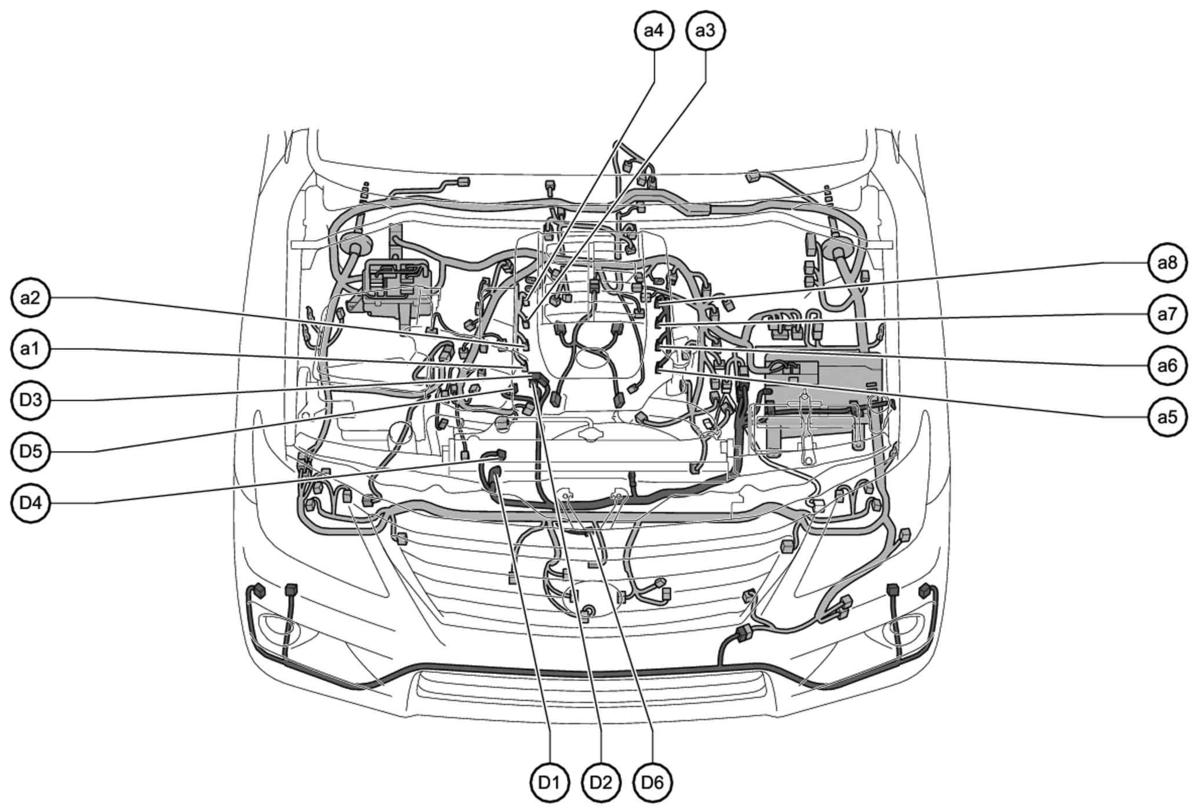

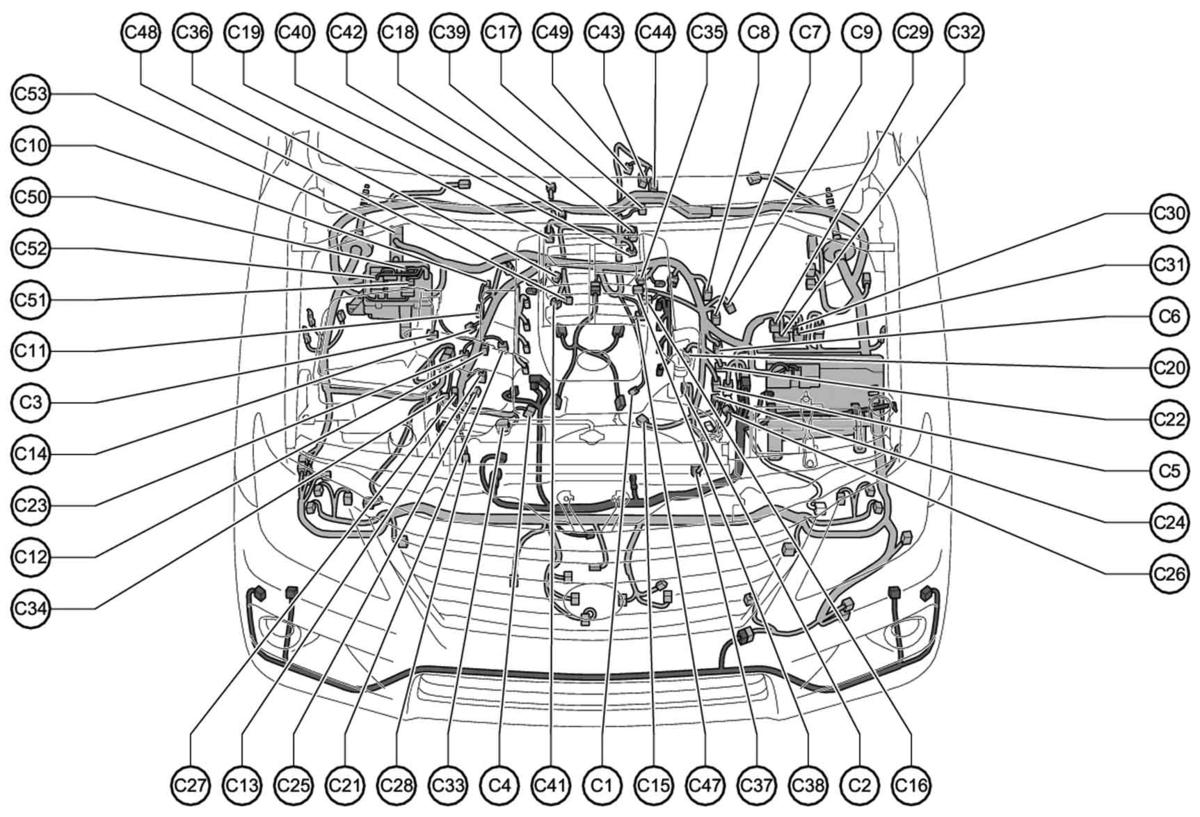

| Component | Location |
|---|---|
| A/C Amplifier | Left side of dash. See Figure. |
| Air Bag Squibs (Driver Side & 2nd Step) (Z47, Z48) | Center of steering wheel. See Figure. |
| Air Bag Squibs (Front Passenger Air Bag Assembly) (B1, B2) | Right side of dash. See Figure. |
| Amplifier Antenna Assembly (F5) | Top center of dash. See Figure. |
| Curtain Shield Airbag Assembly (Left Front) (K6) | Top of left "B" pillar. See Figure. |
| Curtain Shield Airbag Assembly (Left Rear) (K9) | Top of left "C" pillar. See Figure. |
| Curtain Shield Airbag Assembly (Right Front) (L17) | Top of right "B" pillar. See Figure. |
| Curtain Shield Airbag Assembly (Right Rear) (L20) | Top of right "C" pillar. See Figure. |
| Daytime Running Light Resistor (A33) | Right front of engine compartment. See Figure. |
| DLC3 (Data Link Connector) (E22) | Left side of dash. See Figure. |
| Door Control Receiver (L21) | Right "D" pillar. See Figure. |
| Door Electrical Key Oscillator (Left Front) (Z24) | Driver's door handle. See Figure. |
| Door Electrical Key Oscillator (Left Rear) (Z28) | Left rear door handle. See Figure. |
| Door Electrical Key Oscillator (Right Front) (Z21) | Front passenger's door handle. See Figure. |
| Door Electrical Key Oscillator (Right Rear) (Z26) | Right rear door handle. See Figure. |
| Driver Air Bag Assembly (Lower No. 1) (E24) | Left side of dash. See Figure. |
| Electrical Key Antenna (Indoor Luggage) (L9) | Center front of luggage compartment. See Figure. |
| Electrical Key Antenna (Outside Luggage) (K23) | Left side of rear bumper. See Figure. |
| Electrical Key Oscillator (Front Indoor) (E96) | Under center console. See Figure. |
| Electrical Key Oscillator (Rear Indoor) (L8) | Under center of rear seats. See Figure. |
| Front Passenger Air Bag Assembly (Lower No. 2) (E40) | Right side of dash. See Figure. |
| Front Seat Inner Belt Assembly (Left) (K10) | Under driver's seat. See Figure. |
| Front Seat Inner Belt Assembly (Right) (C7) | Under front passenger's seat. See Figure. |
| Front Wiper Deicer (Windshield Glass) (A23) | Right rear of engine compartment. See Figure. |
| Generator (D1) | Right front of engine. See Figure. |
| Horn (High) (A4) | Right front of engine compartment. See Figure. |
| Horn (Low) (A5) | Left front of engine compartment. See Figure. |
| IEEE Connector (F45) | Center of dash. See Figure. |
| Ignition Coil No. 1 (C5) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 2 (C13) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 3 (C6) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 4 (C12) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 5 (C7) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 6 (C11) | Top of right cylinder bank. See Figure. |
| Ignition Coil No. 7 (C8) | Top of left cylinder bank. See Figure. |
| Ignition Coil No. 8 (C10) | Top of right cylinder bank. See Figure. |

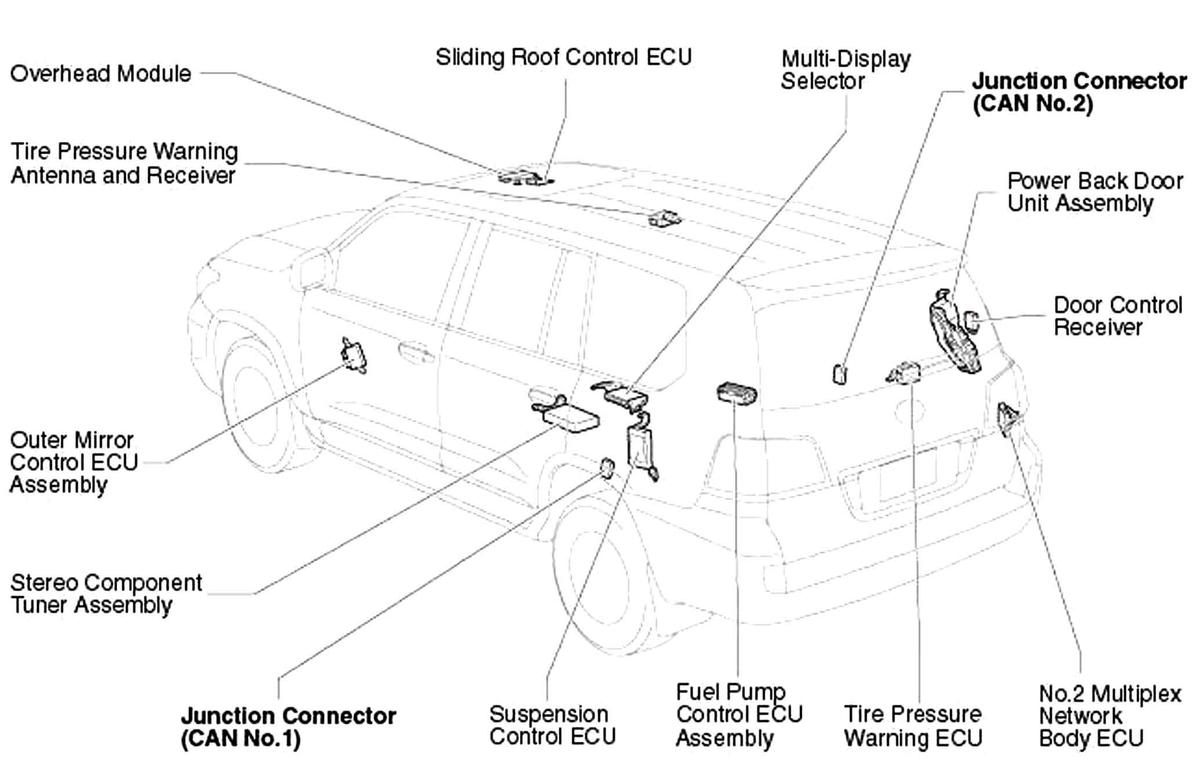

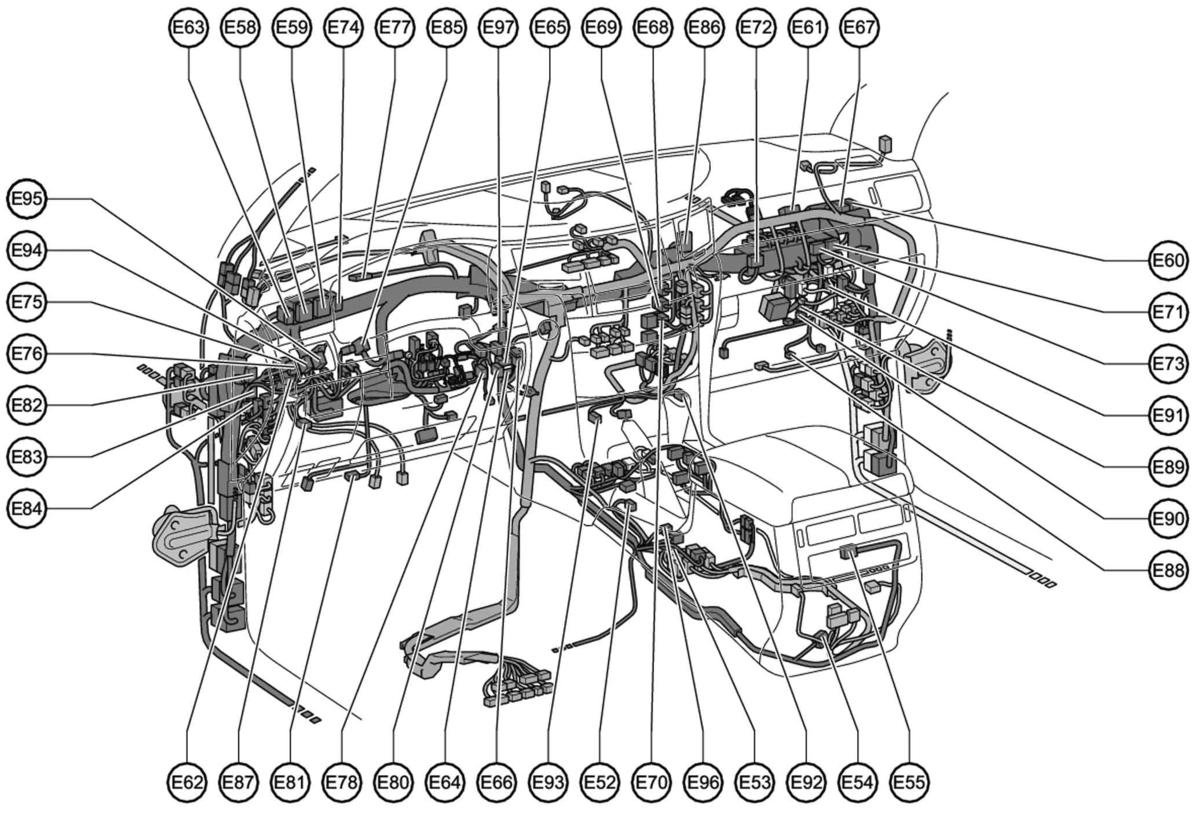

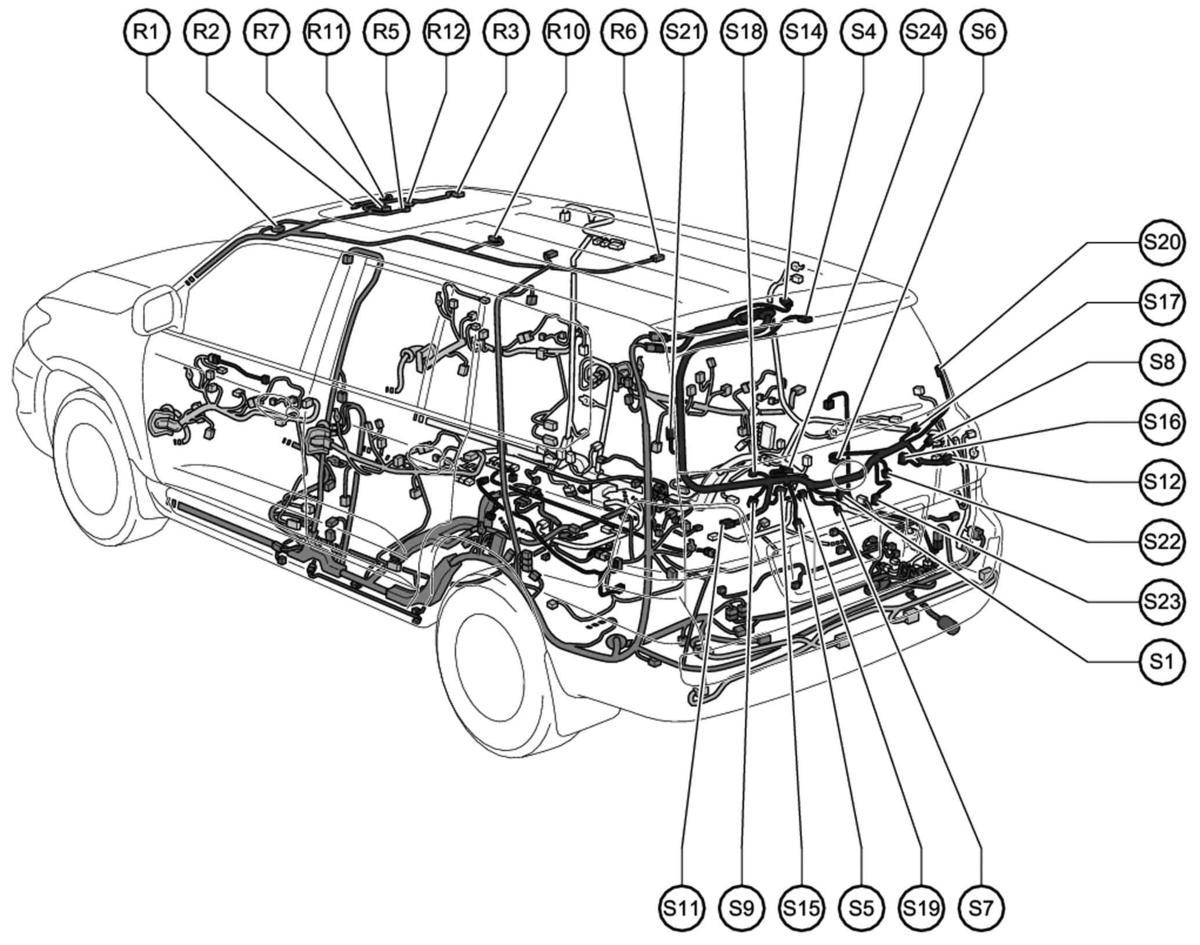

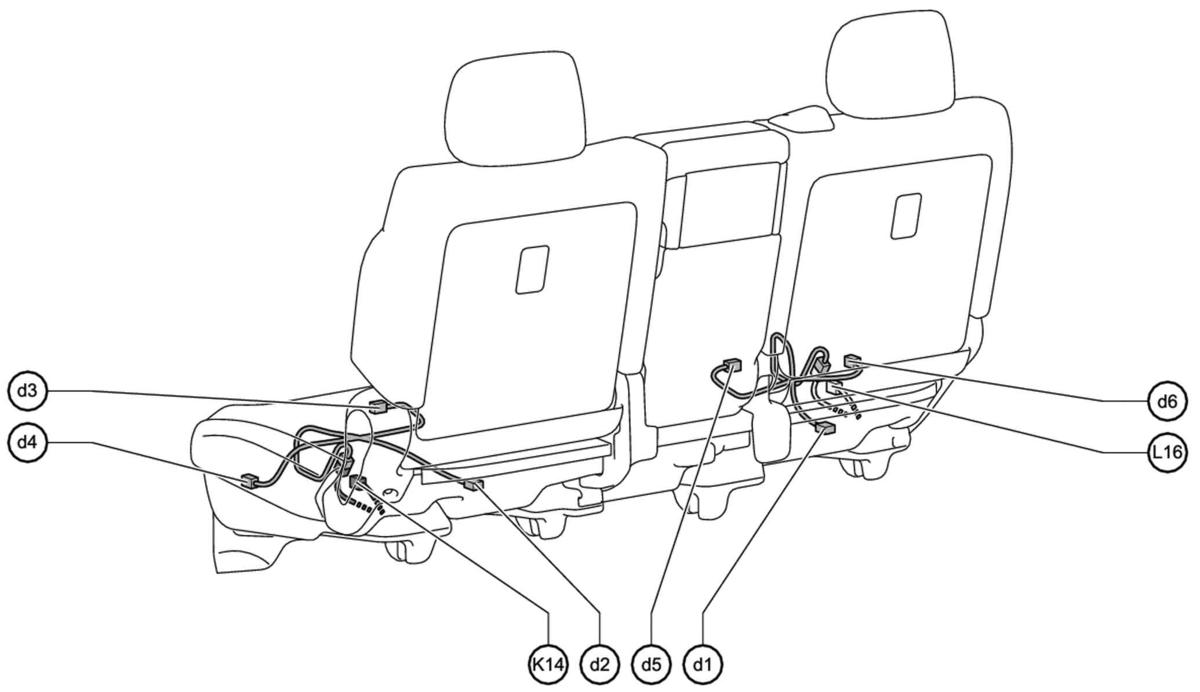

| Junction Connector (CAN No. 1) | Left quarterpanel. See Figure. |
| Junction Connector (CAN No. 2) | Right quarterpanel. See Figure. |
| Junction Connector (C12) | Under front passenger's seat. See Figure. |
| Junction Connector (C23) | Under driver's seat. See Figure. |
| Junction Connectors (A34 & A37) | Right rear of engine compartment. See Figure. |
| Junction Connectors (C50, C51, & C52) | Right rear of engine compartment. See Figure. |
| Junction Connectors (E58, E59, E62, E63, E74, E75 & E76) | Left side of dash. See Figure. |
| Junction Connectors (E60, E61, E67, E68, E69, E70, E71, E72 & E73) | Right side of dash. See Figure. |
| Junction Connectors (E64, E65 & E66) | Center of dash. See Figure. |
| Junction Connectors (F20, F21 & F22) | Right center of dash. See Figure. |
| Junction Connectors (K28, K29 & K41) | Left quarterpanel. See Figure. |
| Junction Connectors (L29, L30, L31, L45 & L46) | Right quarterpanel. See Figure. |
| Junction Connector (S15) | Left side of rear door. See Figure. |
| Junction Connector (S16) | Right side of rear door. See Figure. |
| Noise Filter (Ghost Buster) (A32) | Left rear of engine compartment. See Figure. |
| Noise Filter (Ignition Bank 1) (C9) | Top of left cylinder bank. See Figure. |
| Noise Filter (Ignition Bank 2) (C14) | Top of right cylinder bank. See Figure. |
| Noise Filter (Rear Window Defogger & Stop) (S14) | Top center of rear door. See Figure. |
| Option Connector (Bus Buffer) (E6) | Right side of dash. See Figure. |
| Pretensioner (Left Front) (K1) | Base of left "B" pillar. See Figure. |
| Pretensioner (Left Rear) (K13) | Base of left "C" pillar. See Figure. |
| Pretensioner (Right Front) (L13) | Base of right "B" pillar. See Figure. |
| Pretensioner (Right Rear) (L14) | Base of right "C" pillar. See Figure. |
| Security Horn (A19) | Right rear of engine compartment. See Figure. |
| Shock Absorber Assembly (Left Front) (N10) | Under left side of vehicle. See Figure. |
| Shock Absorber Assembly (Left Rear) (N7) | Under left side of vehicle. See Figure. |
| Shock Absorber Assembly (Right Front) (N8) | Under right side of vehicle. See Figure. |
| Shock Absorber Assembly (Right Rear) (N5) | Under right side of vehicle. See Figure. |
| Short Connectors (A49, A50) | Left rear of engine compartment. See Figure. |
| Side Airbag Squib (Left Front) (K5) | Under driver's seat. See Figure. |
| Side Airbag Squib (Left Rear) (K14) | Under left rear seat. See Figure. |
| Side Airbag Squib (Right Front) (L15) | Under front passenger's seat. See Figure. |
| Side Airbag Squib (Right Rear) (L16) | Under right rear seat. See Figure. |
| Spiral Cable Assembly (E12) | In steering column. See Figure. |
| Stereo Component Amplifier | Under driver's seat. See Figure. |
| Television Camera (Front) (A43) | Center front of engine compartment. See Figure. |
| Television Camera (Rear) (S5) | Center of rear door. See Figure. |
| Tension Reducer (Left Front) (K12) | Left "B" pillar. See Figure. |
| Tension Reducer (Right Front) (L6) | Right "B" pillar. See Figure. |
| Towing Converter (K24) | Left "D" pillar. See Figure. |
| Trailer Socket (Q1) | Right side of rear bumper. See Figure. |
| Voltage Inverter Assembly (K16) | Left "D" pillar. See Figure. |
