Electrical Component Locator: Motors

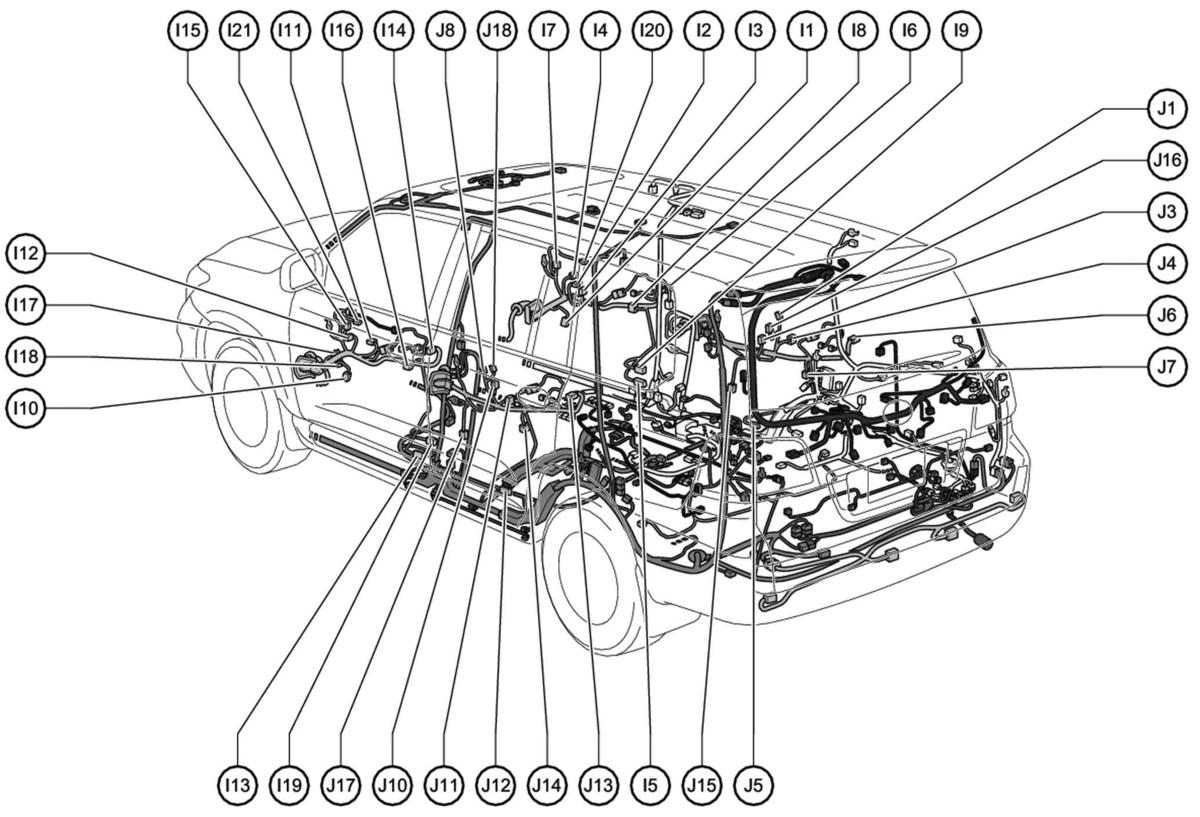

MOTORS LOCATION
| Component | Location |
|---|---|
| A/C Blower Assembly (Front) (Z45) | Center of dash. See Figure. |
| A/C Blower Assembly (Rear) (K19) | Left quarterpanel. See Figure. |
| Air Pump (Bank 1) (C33) | Right front of engine. See Figure. |
| Air Pump (Bank 2) (C34) | Right side of engine. See Figure. |
| Back Door Lock Assembly (S1) | Center of rear door. See Figure. |
| Condenser Blower Motor Assembly (A9) | Center front of engine compartment. See Figure. |
| Door Lock Assembly (Left Front) (I14) | Driver's door. See Figure. |
| Door Lock Assembly (Left Rear) (J13) | Rear of left rear door. See Figure. |
| Door Lock Assembly (Right Front) (I6) | Front passenger's door. See Figure. |
| Door Lock Assembly (Right Rear) (J6) | Rear of right rear door. See Figure. |
| Floor Release Motor (Left) (I14) | Under left rear floor panel. See Figure. |
| Floor Release Motor (Right) (I6) | Under right rear floor panel. See Figure. |
| Front Blower Fan Motor (A29) | Right side of dash. See Figure. |
| Fuel Pump (N1) | In fuel tank. See Figure. |
| Headlight Cleaner Motor | Left side of engine compartment. See Figure. |
| Height Control Pump & Motor Assembly (L44) | Under right rear of vehicle. See Figure. |
| Outer Rearview Mirror Assembly (Left/Right) (I7, I15) | Respective door mirrors. See Figure. |
| Power Back Door Unit Assembly | Right "D" pillar. See Figure. |
| Power Seat Cushion Control Motor (Left Front) (C37) | Under driver's seat. See Figure. |
| Power Seat Lift Position Motor (Left Front) (C18) | Under driver's seat. See Figure. |
| Power Seat Lift Position Motor (Right Front) (C4) | Under front passenger's seat. See Figure. |
| Power Seat Lumbar Support Forward/Back Motor (Left Front) (C21) | Driver's seat back. See Figure. |
| Power Seat Lumbar Support Forward/Back Motor (Right Front) (C31) | Front passenger's seat back. See Figure. |
| Power Seat Reclining Position Motor (Left Front) (C20) | Under driver's seat. See Figure. |
| Power Seat Reclining Position Motor (Right Front) (C6) | Under front passenger's seat. See Figure. |
| Power Seat Slide Position Motor (Left Front) (C17) | Under driver's seat. See Figure. |
| Power Seat Slide Position Motor (Left Rear) (D3) | Under left rear seat. See Figure. |
| Power Seat Slide Position Motor (Right Front) (C3) | Under front passenger's seat. See Figure. |
| Power Seat Slide Position Motor (Right Rear) (D5) | Under right rear seat. See Figure. |
| Power Seat Vertical Position Motor (Left Front) (C19) | Under driver's seat. See Figure. |
| Power Seat Vertical Position Motor (Right Front) (C5) | Under front passenger's seat. See Figure. |
| Power Tilt Motor (E17) | On steering column. See Figure. |
| Power Window Regulator Motor (Left Front) (I12) | Driver's door. See Figure. |
| Power Window Regulator Motor (Left Rear) (J11) | Left rear door. See Figure. |
| Power Window Regulator Motor (Right Front) (I4) | Front passenger's door. See Figure. |
| Power Window Regulator Motor (Right Rear) (J4) | Right rear door. See Figure. |
| Pre-Collision Seat Belt Motor (Left Front) (K11) | Base of left "B" pillar. See Figure. |
| Pre-Collision Seat Belt Motor (Right Front) (L5) | Base of right "B" pillar. See Figure. |
| Rear Blower Motor (Z31) | Left quarterpanel. See Figure. |
| Rear Wiper Motor (S6) | Center of rear door. See Figure. |
| Seat Back Release Motor No. 1 (Left) (H7) | Left rear seat back. See Figure. |
| Seat Back Release Motor No. 1 (Right) (H2) | Right rear seat back. See Figure. |
| Seat Back Release Motor No. 2 (Left) (H8) | Left rear seat back. See Figure. |
| Seat Back Release Motor No. 2 (Right) (H3) | Right rear seat back. See Figure. |
| Seat Back Retract Motor No. 2 (Left) (I9) | Under left rear seat. See Figure. |
| Seat Back Retract Motor No. 2 (Right) (I1) | Under right rear seat. See Figure. |
| Seat Climate Control Blower (Left Front) (C42) | Under driver's seat. See Figure. |
| Seat Climate Control Blower (Right Front) (C28) | Under front passenger's seat. See Figure. |
| Seat Closer Motor No. 2 (Left Rear) (K38) | Left quarterpanel. See Figure. |
| Seat Closer Motor No. 2 (Right Rear) (L40) | Right quarterpanel. See Figure. |
| Starter (D2) | Right rear of engine. See Figure. |
| Steering Actuator Assembly (E85) | On steering column. See Figure. |
| Tailgate Lock Assembly (Lower Left) (F3) | Left rear door. See Figure. |
| Tailgate Lock Assembly (Lower Right) (F2) | Right rear door. See Figure. |
| Throttle Body Assembly (C4) | Top right front of engine. See Figure. |
| Transfer Shift Actuator (C43) | Left side of transmission. See Figure. |
| Windshield Washer Motor & Pump Assembly (A16) | Washer fluid reservoir. See Figure. |
| Windshield Wiper Motor (A22) | Left rear of engine compartment. See Figure. |
