Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Brake Fluid Level Warning Switch (A26) | Brake master cylinder reservoir. See Figure. |

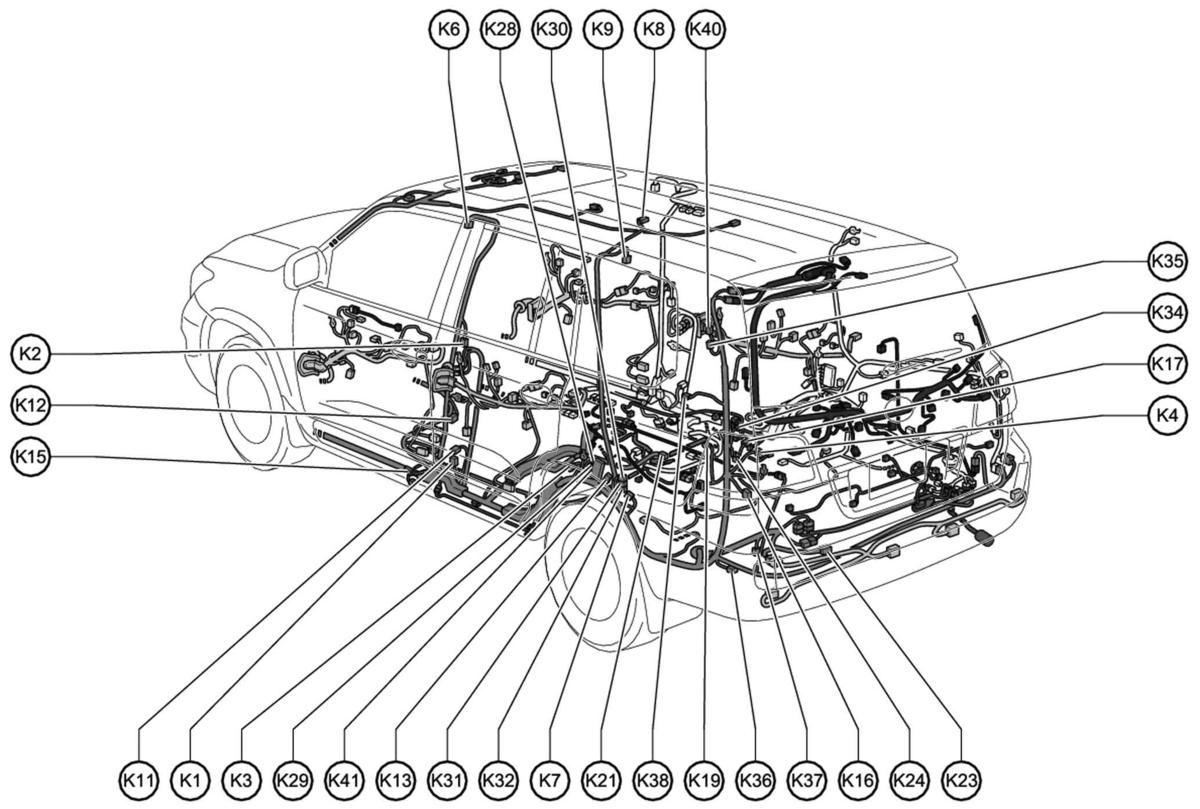

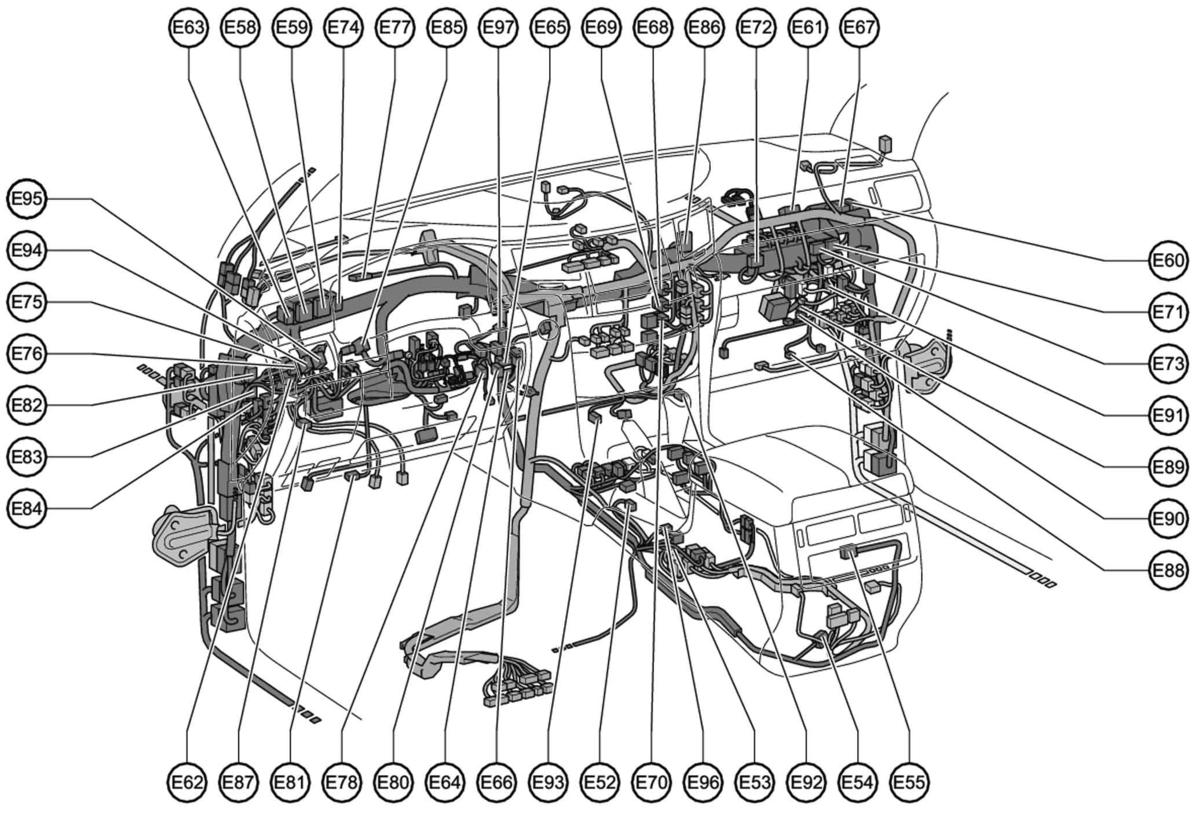

| Door Courtesy Switch (Left Front) (K2) | Left "B pillar. See Figure. |
| Door Courtesy Switch (Left Rear) (K3) | Left "C" pillar. See Figure. |
| Door Courtesy Switch (Right Front) (L1) | Right "B" pillar. See Figure. |
| Door Courtesy Switch (Right Rear) (L2) | Right "C" pillar. See Figure. |
| Engine Hood Courtesy Switch (A8) | Center front of engine compartment. See Figure. |
| Floor Striker Limit Switch No. 1 (Left) (I15) | Under left rear floor panel. See Figure. |
| Floor Striker Limit Switch No. 1 (Right) (I7) | Right rear floor panel. See Figure. |
| Floor Striker Limit Switch No. 2 (Left) (I16) | Under left rear floor panel. See Figure. |
| Floor Striker Limit Switch No. 2 (Right) (I8) | Right rear floor panel. See Figure. |
| Parking Brake Switch (E53) | Base of park brake lever. See Figure. |
| Park/Neutral Position Switch (C19) | Right side of transmission. See Figure. |

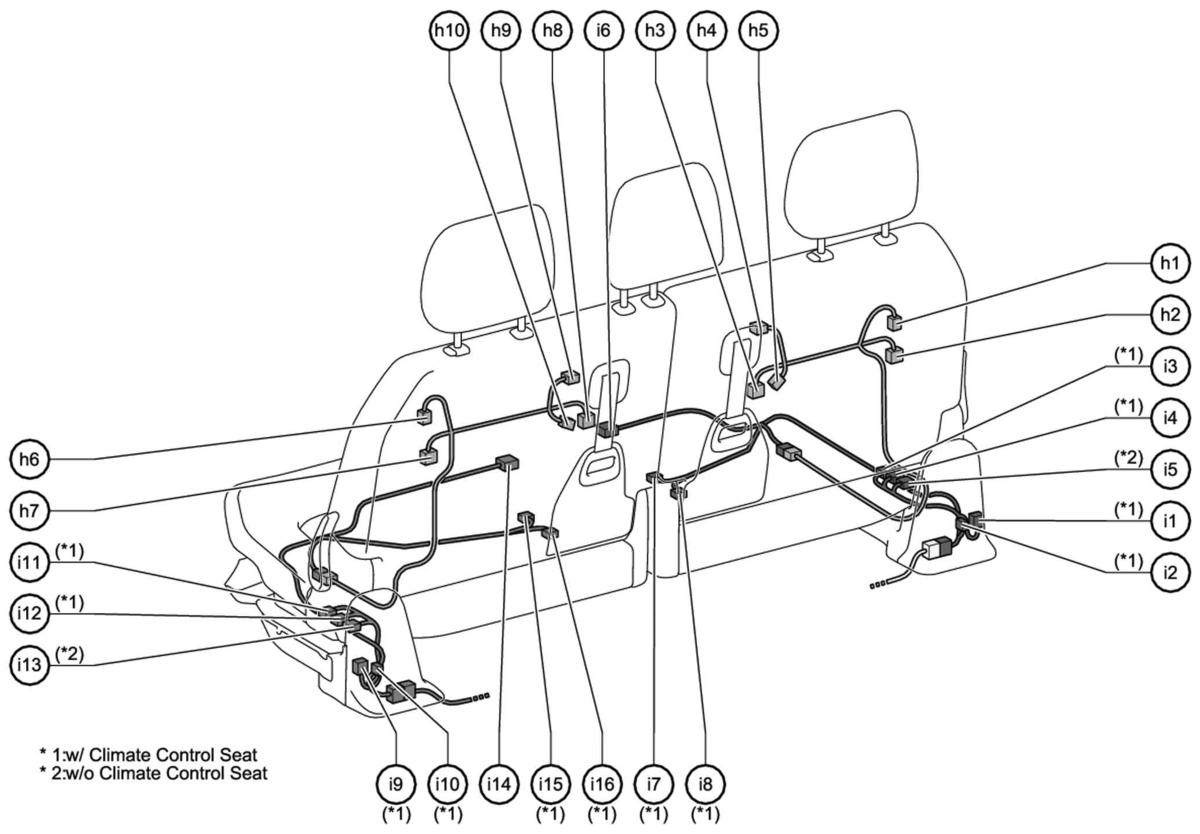

| Seat Back Lock Switch No. 1 (Left) (H6) | Left side of left rear seat back. See Figure. |
| Seat Back Lock Switch No. 1 (Right) (H1) | Right side of right rear seat back. See Figure. |
| Seat Back Lock Switch No. 2 (Left) (H10) | Right side of left rear seat back. See Figure. |
| Seat Back Lock Switch No. 2 (Right) (H5) | Left side of right rear seat back. See Figure. |

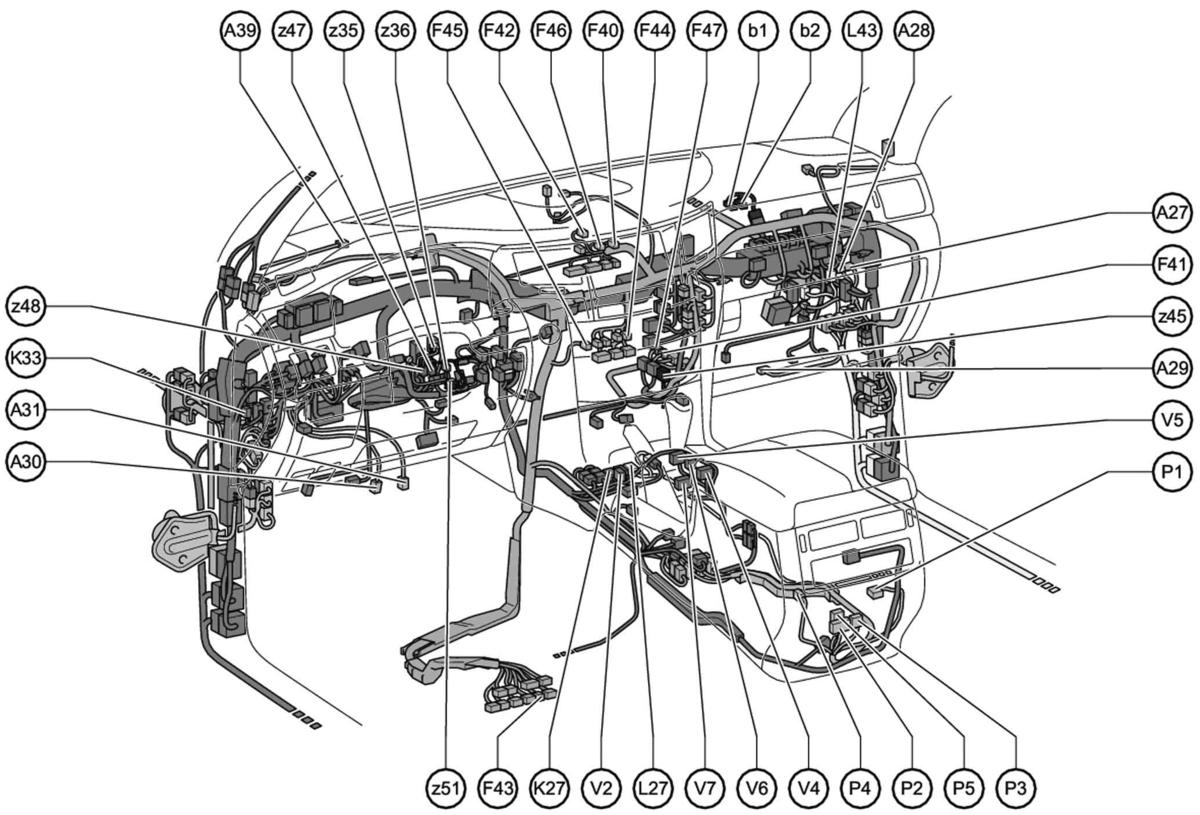

| Stop Light Switch (A30) | Left side of dash. See Figure. |
