Steering Column Assembly: Inspection: Inspection

  1. INSPECT STEERING COLUMN ASSEMBLY

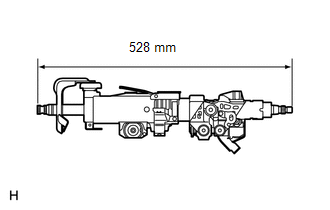

    Fig 1: Identifying Standard Length Of Steering Main Shaft
    GTY109502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the length of the steering main shaft.

      Standard length

      528 mm (1.73 ft.)
